Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

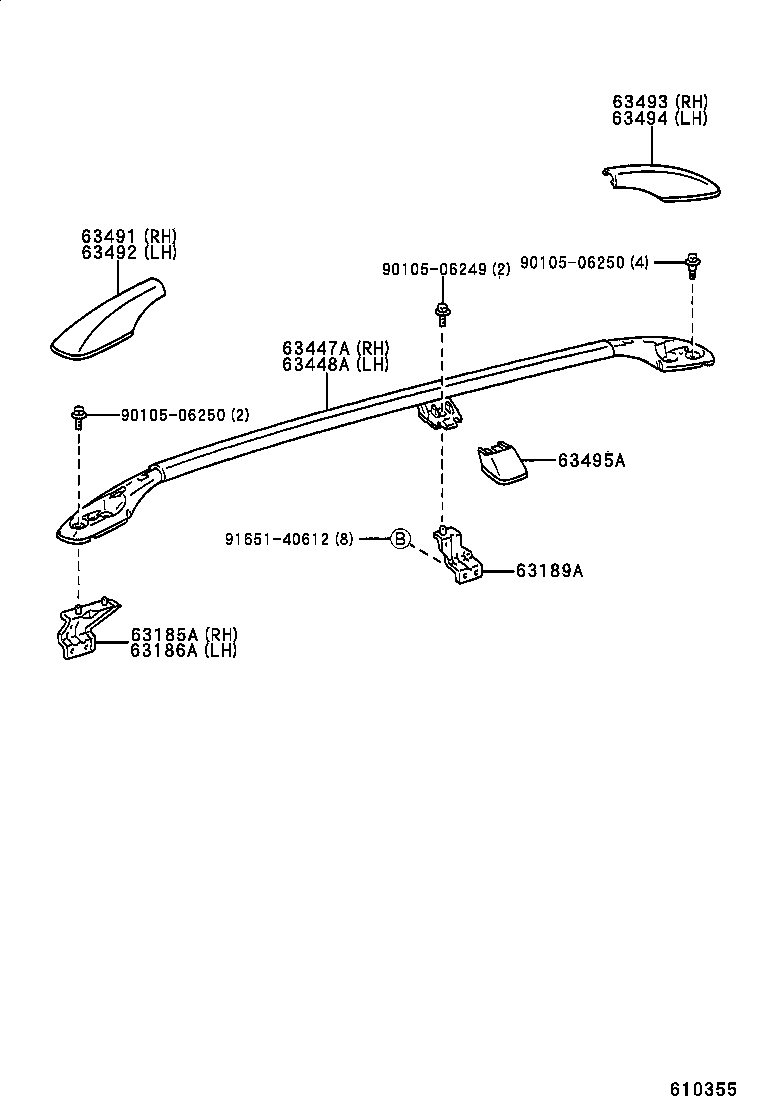

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63185A — Bracket, Roof Rack, Front RH | ||||
| 63185-13020 |
Bracket, Roof Rack, Front RH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,120 | |
| 63185-13050 |
Bracket, Roof Rack, Front RH
1997-04 → —
|
CE102,108,EE104 | ¥1,460 | |
| 63186A — Bracket, Roof Rack, Front LH | ||||
| 63186-13020 note |
Bracket, Roof Rack, Front LH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,120 | |
| 63186-13050 |
Bracket, Roof Rack, Front LH
1997-04 → —
|
CE102,108,EE104 | ¥1,460 | |
| 63189A — Bracket, Roof Rack, Center | ||||
| 63189-13020 note |
Bracket, Roof Rack, Center
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,020 | |
| 63189-13050 note |
Bracket, Roof Rack, Center
1997-04 → —
|
CE102,108,EE104 | ¥1,410 | |
| 63199-13020 note |
Bracket, Roof Rack, Center
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,020 | |
| 63199-13040 note |
Bracket, Roof Rack, Center
1997-04 → —
|
CE102,108,EE104 | ¥1,410 | |
| 63447A — Roof Rail, RH | ||||
| 63447-13030 |
Roof Rail, RH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥8,500 | |
| 63460-13060 |
Roof Rail, RH
1997-04 → —
|
CE102,108,EE104 | ¥28,700 | |
| 63448A — Roof Rail, LH | ||||
| 63448-13030 |
Roof Rail, LH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥8,500 | |
| 63470-13060 |
Roof Rail, LH
1997-04 → —
|
CE102,108,EE104 | ¥28,700 | |
| 63491 — Cover, Roof Rack Leg, Front RH | ||||
| 63491-13020 |
Cover, Roof Rack Leg, Front RH
1994-01 → 1994-09
ended
|
CE108,EE104 | ¥1,810 | |
| 63491-13020 note |
Cover, Roof Rack Leg, Front RH
1994-09 → 1995-09
ended
|
CE108,EE104 | ¥1,810 | |
| 63491-13020 |
Cover, Roof Rack Leg, Front RH
1995-09 → 1997-04
ended
|
CE108,EE104 | ¥1,810 | |
| 63491-13050 |
Cover, Roof Rack Leg, Front RH
1997-04 → —
|
CE102,108,EE104 | ¥1,810 | |
| 63492 — Cover, Roof Rack Leg, Front LH | ||||
| 63492-13020 |
Cover, Roof Rack Leg, Front LH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,810 | |
| 63492-13050 |
Cover, Roof Rack Leg, Front LH
1997-04 → —
|
CE102,108,EE104 | ¥1,810 | |
| 63493 — Cover, Roof Rack Leg, Rear RH | ||||
| 63493-13030 |
Cover, Roof Rack Leg, Rear RH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,800 | |
| 63493-13060 |
Cover, Roof Rack Leg, Rear RH
1997-04 → —
|
CE102,108,EE104 | ¥1,810 | |
| 63494 — Cover, Roof Rack Leg, Rear LH | ||||
| 63494-13030 |
Cover, Roof Rack Leg, Rear LH
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥1,800 | |
| 63494-13060 |
Cover, Roof Rack Leg, Rear LH
1997-04 → —
|
CE102,108,EE104 | ¥1,810 | |
| 63495A — Cover, Roof Rack Leg, Center | ||||
| 63495-13020 note |
Cover, Roof Rack Leg, Center
1994-01 → 1994-09
ended
|
CE108,EE104 | ¥760 | |
| 63495-13020 note |
Cover, Roof Rack Leg, Center
1994-09 → 1995-09
ended
|
CE108,EE104 | ¥760 | |
| 63495-13020 note |
Cover, Roof Rack Leg, Center
1995-09 → 1997-04
ended
|
CE108,EE104 | ¥760 | |
| 63495-13050 note |
Cover, Roof Rack Leg, Center
1997-04 → —
|
CE102,108,EE104 | ¥760 | |
| 63496-13020 note |
Cover, Roof Rack Leg, Center
1994-01 → 1994-09
ended
|
CE108,EE104 | ¥760 | |
| 63496-13020 note |
Cover, Roof Rack Leg, Center
1994-09 → 1995-09
ended
|
CE108,EE104 | ¥760 | |
| 63496-13020 note |
Cover, Roof Rack Leg, Center
1995-09 → 1997-04
ended
|
CE108,EE104 | ¥760 | |
| 63496-13050 note |
Cover, Roof Rack Leg, Center
1997-04 → —
|
CE102,108,EE104 | ¥760 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
