Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

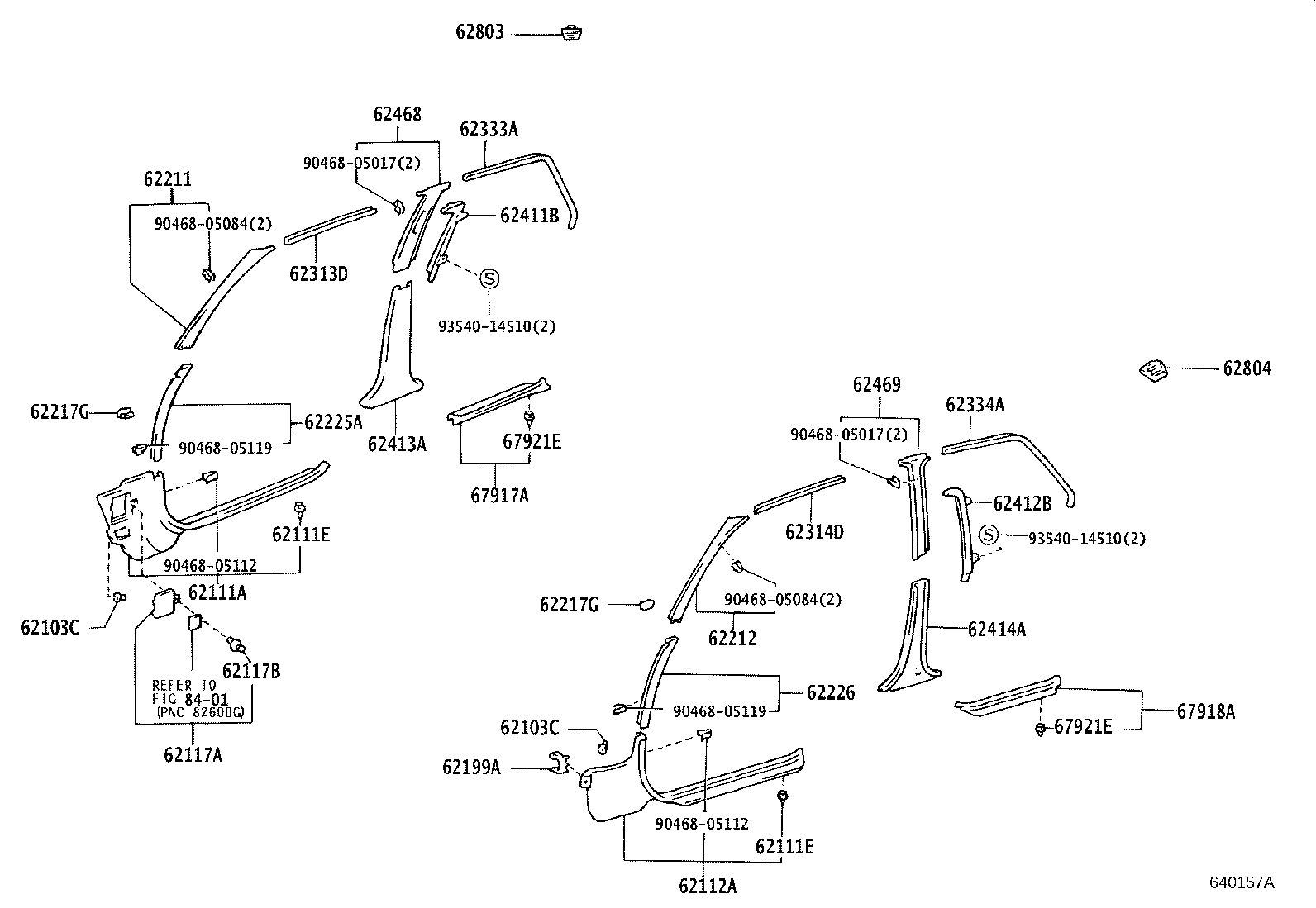

Exploded illustration 640157A 62803 — GRILLE SUB-ASSY, ROOM VENTILATION, RH (2 parts) 62468 — GARNISH, CENTER PILLAR, REAR RH (1 parts) 62333A — TRIM, REAR DOOR OPENING, RH (1 parts) 9046805017 — not listed in this catalogue 62211 — GARNISH, FRONT PILLAR, RH (4 parts) 9046805084 — not listed in this catalogue 62313D — TRIM, FRONT DOOR OPENING, RH (2 parts) 62217G — CLIP, FRONT PILLAR GARNISH (3 parts) 62225A — GARNISH, FRONT PILLAR, LOWER RH (4 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (5 parts) 62411B — GARNISH, CENTER PILLAR, UPPER RH (4 parts) 9354014510 — not listed in this catalogue 67921E — RETAINER, REAR DOOR SCUFF PLATE (1 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (4 parts) 62217G — CLIP, FRONT PILLAR GARNISH (3 parts) 62103C — CLIP, COWL SIDE TRIM BOARD SET (6 parts) 9046805017 — not listed in this catalogue 62314D — TRIM, FRONT DOOR OPENING, LH (2 parts) 9046805084 — not listed in this catalogue 62212 — GARNISH, FRONT PILLAR, LH (4 parts) 62226 — GARNISH, FRONT PILLAR, LOWER LH (4 parts) 9046805119 — not listed in this catalogue 9046805112 — not listed in this catalogue 62111E — RETAINER, COWL SIDE TRIM (1 parts) 62112A — TRIM SUB-ASSY, COWL SIDE, LH (4 parts) 62334A — TRIM, REAR DOOR OPENING, LH (1 parts) 62412B — GARNISH, CENTER PILLAR, UPPER LH (4 parts) 9354014510 — not listed in this catalogue 62414A — GARNISH, CENTER PILLAR, LOWER LH (5 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (4 parts) 67921E — RETAINER, REAR DOOR SCUFF PLATE (1 parts) 62804 — GRILLE SUB-ASSY, ROOM VENTILATION, LH (2 parts) 62469 — GARNISH, CENTER PILLAR, REAR LH (1 parts) 62111E — RETAINER, COWL SIDE TRIM (1 parts) 9046805112 — not listed in this catalogue 62111A — TRIM SUB-ASSY, COWL SIDE, RH (4 parts) 62103C — CLIP, COWL SIDE TRIM BOARD SET (6 parts) 62117B — CLIP, NO.1(FOR COWL SIDE TRIM) (2 parts) 8401 — not listed in this catalogue 62117A — COVER, COWL SIDE TRIM SERVICE HOLE (4 parts) 9046805119 — not listed in this catalogue 62199A — HOLDER, FUSEE (1 parts)
640157A · 31 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
62103C — Clip, Cowl Side Trim Board Set
90467-05050-01 note Clip, Cowl Side Trim Board Set
1992-06 → 1992-11 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥170
90467-05050-01 note Clip, Cowl Side Trim Board Set
1992-06 → 1992-11 ended
AE100,101,CE100,106,108,109,EE10# CTD,DX,GT,L,XL ¥170
90467-05050-22 note Clip, Cowl Side Trim Board Set
1992-11 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥90
90467-05050-22 note Clip, Cowl Side Trim Board Set
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥90
90467-05050-22 note Clip, Cowl Side Trim Board Set
1992-11 → —
AE100,101,109,CE100,102,105,106,107,108,109,EE10# CTD,DX,DXJ,GT,L,XL ¥90
90467-08160 Clip, Cowl Side Trim Board Set
1991-06 → 1992-06 ended
AE10#,CE10#,EE10# ¥140
62111A — Trim Sub-assy, Cowl Side, RH
62101-12160-P0 note Trim Sub-assy, Cowl Side, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,240
62101-12170-K0 note Trim Sub-assy, Cowl Side, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥4,270
62101-12170-P0 note Trim Sub-assy, Cowl Side, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,270
62101-12170-W3 note Trim Sub-assy, Cowl Side, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥4,270
62111E — Retainer, Cowl Side Trim
67921-32010 Retainer, Cowl Side Trim
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥160
62112A — Trim Sub-assy, Cowl Side, LH
62102-12160-P0 note Trim Sub-assy, Cowl Side, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,090
62102-12170-K0 note Trim Sub-assy, Cowl Side, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥4,080
62102-12170-P0 note Trim Sub-assy, Cowl Side, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,080
62102-12170-W3 note Trim Sub-assy, Cowl Side, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥4,080
62117A — Cover, Cowl Side Trim Service Hole
62117-12140-K0 note Cover, Cowl Side Trim Service Hole
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥680
62117-12140-P0 note Cover, Cowl Side Trim Service Hole
1991-06 → 1996-05 ended
AE10#,CE10#,EE10# ¥680
62117-12140-W3 note Cover, Cowl Side Trim Service Hole
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥680
62117-12141-P0 note Cover, Cowl Side Trim Service Hole
1996-05 → —
AE109,CE10#,EE10# ¥680
62117B — Clip, NO.1(FOR COWL SIDE TRIM)
90467-08149 Clip, NO.1(FOR COWL SIDE TRIM)
1991-06 → 1996-05 ended
AE10#,CE10#,EE10# ¥150
90467-08149 Clip, NO.1(FOR COWL SIDE TRIM)
1997-04 → —
AE109,CE10#,EE10# ¥150
62199A — Holder, Fusee
90468-25003 Holder, Fusee
1991-06 → —
AE10#,CE10#,EE10# ¥160
62211 — Garnish, Front Pillar, RH
62211-12240-K0 note Garnish, Front Pillar, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,400
62211-12240-P0 note Garnish, Front Pillar, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,400
62211-12240-W3 note Garnish, Front Pillar, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,400
62211-13040-P0 note Garnish, Front Pillar, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,400
62212 — Garnish, Front Pillar, LH
62212-12240-K0 note Garnish, Front Pillar, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,400
62212-12240-P0 note Garnish, Front Pillar, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,400
62212-12240-W3 note Garnish, Front Pillar, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,400
62212-13040-P0 note Garnish, Front Pillar, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,400
62217G — Clip, Front Pillar Garnish
62217-12010 note Clip, Front Pillar Garnish
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥250
62217-12020 Clip, Front Pillar Garnish
1991-09 → 1991-10 ended
CE106,108,109,EE106,107,108 ¥190
62217-12030 note Clip, Front Pillar Garnish
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥140
62225A — Garnish, Front Pillar, Lower RH
62225-12010-P0 note Garnish, Front Pillar, Lower RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,440
62225-12020-K0 note Garnish, Front Pillar, Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥790
62225-12020-P0 note Garnish, Front Pillar, Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥790
62225-12020-W3 note Garnish, Front Pillar, Lower RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥790
62226 — Garnish, Front Pillar, Lower LH
62226-12010-P0 note Garnish, Front Pillar, Lower LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,440
62226-12020-K0 note Garnish, Front Pillar, Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥790
62226-12020-P0 note Garnish, Front Pillar, Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥790
62226-12020-W3 note Garnish, Front Pillar, Lower LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥790
62313D — Trim, Front Door Opening, RH
62313-13010-P0 note Trim, Front Door Opening, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥710
62333-13040-P0 note Trim, Front Door Opening, RH
1991-09 → 1995-11 ended
EE103,107;EE106 4F;EE106 3FC DX;CE106,EE102 +3 ¥2,050
62314D — Trim, Front Door Opening, LH
62313-13010-P0 note Trim, Front Door Opening, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥710
62333-13040-P0 note Trim, Front Door Opening, LH
1991-09 → 1995-11 ended
EE103,107;EE106 4F;EE106 3FC DX;CE106,EE102 +3 ¥2,050
62333A — Trim, Rear Door Opening, RH
62333-13040-P0 note Trim, Rear Door Opening, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,050
62334A — Trim, Rear Door Opening, LH
62333-13040-P0 note Trim, Rear Door Opening, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,050
62411B — Garnish, Center Pillar, Upper RH
62411-12450-K0 note Garnish, Center Pillar, Upper RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,200
62411-12450-P0 note Garnish, Center Pillar, Upper RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,200
62411-12450-W3 note Garnish, Center Pillar, Upper RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,200
62411-13030-P0 note Garnish, Center Pillar, Upper RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,530
62412B — Garnish, Center Pillar, Upper LH
62412-12450-K0 note Garnish, Center Pillar, Upper LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,200
62412-12450-P0 note Garnish, Center Pillar, Upper LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,200
62412-12450-W3 note Garnish, Center Pillar, Upper LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,200
62412-13030-P0 note Garnish, Center Pillar, Upper LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,540
62413A — Garnish, Center Pillar, Lower RH
62413-12180-P0 note Garnish, Center Pillar, Lower RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,100
62413-12190-K0 note Garnish, Center Pillar, Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,500
62413-12190-P0 note Garnish, Center Pillar, Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,500
62413-12190-W3 note Garnish, Center Pillar, Lower RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,500
62413-13040-B0 note Garnish, Center Pillar, Lower RH
2000-08 → —
AE109,CE10#,EE10# ¥5,300
62414A — Garnish, Center Pillar, Lower LH
62414-12180-P0 note Garnish, Center Pillar, Lower LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,100
62414-12190-K0 note Garnish, Center Pillar, Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,500
62414-12190-P0 note Garnish, Center Pillar, Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,500
62414-12190-W3 note Garnish, Center Pillar, Lower LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,500
62414-13040-B0 note Garnish, Center Pillar, Lower LH
2000-08 → —
AE109,CE10#,EE10# ¥5,300
62468 — Garnish, Center Pillar, Rear RH
62468-13010-P0 note Garnish, Center Pillar, Rear RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,170
62469 — Garnish, Center Pillar, Rear LH
62469-13010-P0 note Garnish, Center Pillar, Rear LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,170
62803 — Grille Sub-assy, Room Ventilation, RH
62803-13040-C0 note Grille Sub-assy, Room Ventilation, RH
1992-12 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥680
62803-13040-P0 note Grille Sub-assy, Room Ventilation, RH
1991-09 → 1992-12 ended
CE106,108,109,EE106,107,108 ¥680
62804 — Grille Sub-assy, Room Ventilation, LH
62804-13040-C0 note Grille Sub-assy, Room Ventilation, LH
1992-12 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥680
62804-13040-P0 note Grille Sub-assy, Room Ventilation, LH
1991-09 → 1992-12 ended
CE106,108,109,EE106,107,108 ¥680
67917A — Plate, Rear Door Scuff, RH
67917-12080-K0 note Plate, Rear Door Scuff, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,680
67917-12080-P0 note Plate, Rear Door Scuff, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,680
67917-12080-W3 note Plate, Rear Door Scuff, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,680
67917-13030-B0 note Plate, Rear Door Scuff, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,300
67918A — Plate, Rear Door Scuff, LH
67918-12070-K0 note Plate, Rear Door Scuff, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,680
67918-12070-P0 note Plate, Rear Door Scuff, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,680
67918-12070-W3 note Plate, Rear Door Scuff, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,680
67918-13030-B0 note Plate, Rear Door Scuff, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,300
67921E — Retainer, Rear Door Scuff Plate
67921-32010 Retainer, Rear Door Scuff Plate
1991-06 → —
AE10#,CE10#,EE10# ¥160
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
