Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

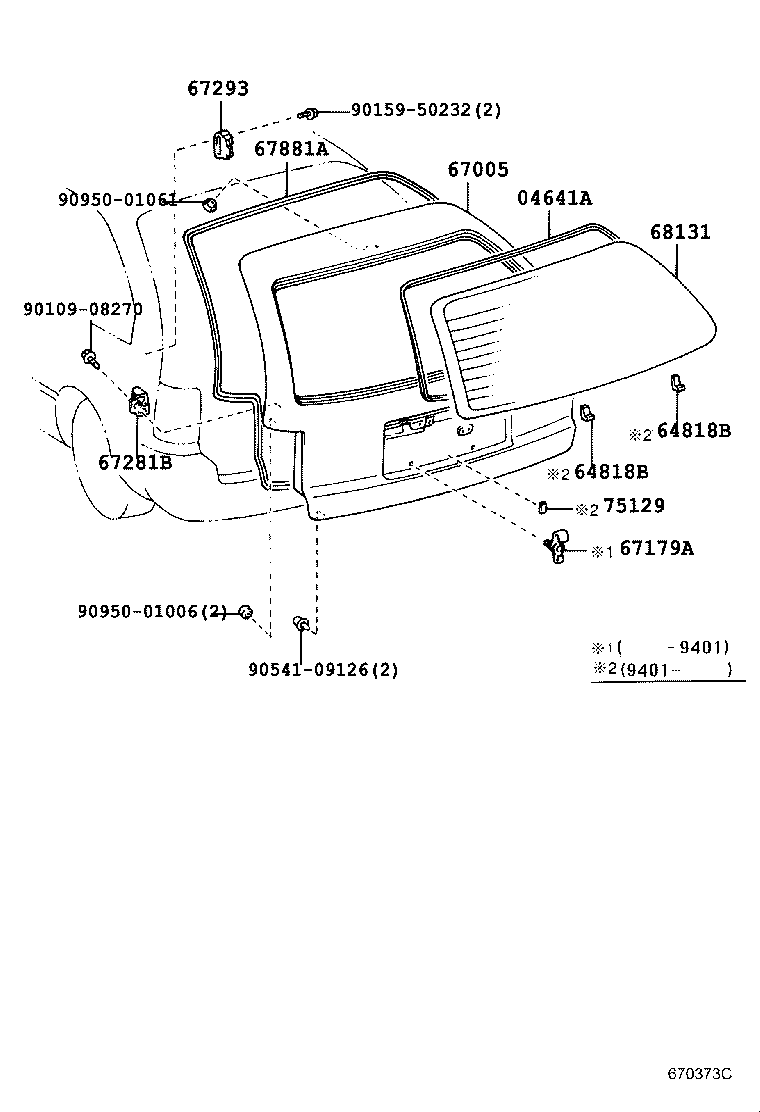

Exploded illustration 670373C 67293 — CUSHION, BACK DOOR LOWER STOPPER (1 parts) 67881A — WEATHERSTRIP, BACK DOOR (1 parts) 9015950232 — not listed in this catalogue 9095001061 — not listed in this catalogue 9010908270 — not listed in this catalogue 67281B — STOPPER, BACK DOOR, LOWER (1 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (36 parts) 04641A — DAM KIT, BACK WINDOW GLASS ADHESIVE (6 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (1 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (1 parts) 75129 — CUSHION, REAR LICENSE PLATE (2 parts) 67179A — RETAINER, LICENSE PLATE (1 parts) 9095001006 — not listed in this catalogue 9054109126 — not listed in this catalogue 68131 — GLASS, BACK DOOR (9 parts)
670373C · 10 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
04641A — Dam Kit, Back Window Glass Adhesive
68294-13010 Dam Kit, Back Window Glass Adhesive
1991-09 → 1992-07 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥1,680
68294-13010 note Dam Kit, Back Window Glass Adhesive
1991-09 → 1992-07 ended
CE106,EE106 CTD ¥1,680
68294-13010 note Dam Kit, Back Window Glass Adhesive
1992-01 → 1992-07 ended
CE106,EE106 MTM DX ¥1,680
68294-13010 Dam Kit, Back Window Glass Adhesive
1992-07 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥1,680
68294-13010 Dam Kit, Back Window Glass Adhesive
1991-09 → 1992-07 ended
CE106,EE106 CTD ¥1,680
68294-13031 Dam Kit, Back Window Glass Adhesive
1994-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥1,680
64818B — Spacer, Back Door Glass, NO.1
64818-13020 Spacer, Back Door Glass, NO.1
1994-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥60
67005 — Panel Sub-assy, Back Door
67005-1F080 Panel Sub-assy, Back Door
1991-09 → 1993-11 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥54,300
67005-1F080 note Panel Sub-assy, Back Door
1993-11 → 1994-01 ended
CE106,EE106 CTD ¥54,300
67005-1F080 Panel Sub-assy, Back Door
1993-11 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L ¥54,300
67005-1F100 note Panel Sub-assy, Back Door
1991-09 → 1993-11 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥54,300
67005-1F100 note Panel Sub-assy, Back Door
1993-11 → 1994-01 ended
CE106,EE106 CTD ¥54,300
67005-1F100 note Panel Sub-assy, Back Door
1993-11 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L ¥54,300
67005-1F120 note Panel Sub-assy, Back Door
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥54,300
67005-1F120 Panel Sub-assy, Back Door
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥54,300
67005-1F130 note Panel Sub-assy, Back Door
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L ¥54,300
67005-1F130 note Panel Sub-assy, Back Door
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥54,300
67005-1F130 note Panel Sub-assy, Back Door
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥54,300
67005-1F202 note Panel Sub-assy, Back Door
1997-08 → 2002-06 ended
CE106 DX;EE103 3FC DX;AE109,EE102 +2 ¥54,500
67005-1F202 note Panel Sub-assy, Back Door
1994-01 → 1997-08 ended
CE106,EE102 MTM DX ¥54,500
67005-1F202 Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
CE106 CTD;EE102 (3FC,4F) DXJ;CE107,EE102 +2 ¥54,500
67005-1F230 note Panel Sub-assy, Back Door
1993-11 → 1994-01 ended
CE106,EE106 CTD ¥54,300
67005-1F230 note Panel Sub-assy, Back Door
1991-09 → 1993-11 ended
CE106,EE106 CTD ¥54,300
67005-1F242 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104 CTD,DX,DXJ,L ¥54,500
67005-1F252 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
CE106 CTD;EE102 (3FC,4F) DXJ ¥54,500
67005-1F252 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE107,EE102 5F DXJ ¥54,500
67005-1F302 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
CE106 CTD;EE102 (3FC,4F) DXJ ¥54,500
67005-1F302 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE107,EE102 5F DXJ ¥54,500
67005-1F322 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
EE102,103 (3FC,4F) (DX,DXJ);AE109,CE106,108,109,EE104 CTD,DX,L ¥54,500
67005-1F322 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE107,EE102 5F DXJ ¥54,500
67005-1F322 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE10#,EE102,103 (4FC,5F) (DX,L) ¥54,500
67005-1F332 note Panel Sub-assy, Back Door
2000-08 → 2002-06 ended
EE102 5F DXJ ¥54,500
67005-1F332 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
EE102 XJ,L DX;EE102 (3FC,4F) +2 ¥54,500
67005-1F332 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
CE105,106,107,109,EE103 XL ¥54,500
67005-1F342 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
CE106 CTD;EE102 (3FC,4F) DXJ ¥54,500
67005-1F342 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE107 DXJ ¥54,500
67005-1F342 note Panel Sub-assy, Back Door
2000-08 → 2002-06 ended
EE102 5F DXJ ¥54,500
67005-1F362 note Panel Sub-assy, Back Door
2000-08 → 2002-06 ended
EE102,103 5F DX ¥54,500
67005-1F362 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
EE103 XL;AE109,CE106,108,109,EE104;EE102,103 (3FC,4F) (DX,DXJ) ¥54,500
67005-1F362 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE10# DX,L ¥54,500
67005-1F362 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE105,107 XL ¥54,500
67005-1F362 note Panel Sub-assy, Back Door
1998-04 → 2002-06 ended
CE107,EE102 5F DXJ ¥54,500
67005-1F382 note Panel Sub-assy, Back Door
1994-01 → 2002-06 ended
CE102,108,EE104 ¥54,500
67179A — Retainer, License Plate
67179-13040 Retainer, License Plate
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥390
67281B — Stopper, Back Door, Lower
67281-13060 Stopper, Back Door, Lower
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,000
67293 — Cushion, Back Door Lower Stopper
67293-13020 Cushion, Back Door Lower Stopper
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥640
67881A — Weatherstrip, Back Door
67881-13180 Weatherstrip, Back Door
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥9,800
68131 — Glass, Back Door
68131-13260 note Glass, Back Door
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥34,100
68131-13260 note Glass, Back Door
1992-01 → 1994-01 ended
CE106,EE106 MTM DX ¥34,100
68131-13261 note Glass, Back Door
1994-01 → 1997-05 ended
CE106,EE102 CTD,DXJ —
68131-13261 note Glass, Back Door
1994-01 → 1997-05 ended
CE106,EE102 MTM DX —
68131-13270 note Glass, Back Door
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥51,000
68131-13271 note Glass, Back Door
1994-01 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104 ¥52,100
68131-13410 note Glass, Back Door
1997-04 → 1997-08 ended
EE102 3FC DXJ;CE106,EE102 MTM +1 ¥40,600
68131-13410 note Glass, Back Door
1997-08 → —
EE102 3FC DXJ;AE109,EE103 ATM +3 ¥40,600
68131-13420 note Glass, Back Door
1997-04 → —
AE109,CE10#,EE10# ¥60,500
75129 — Cushion, Rear License Plate
75129-13010 Cushion, Rear License Plate
1994-11 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥250
75129-13020 Cushion, Rear License Plate
1994-01 → 1994-11 ended
CE106,108,109,EE102,103,104 ¥80
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
