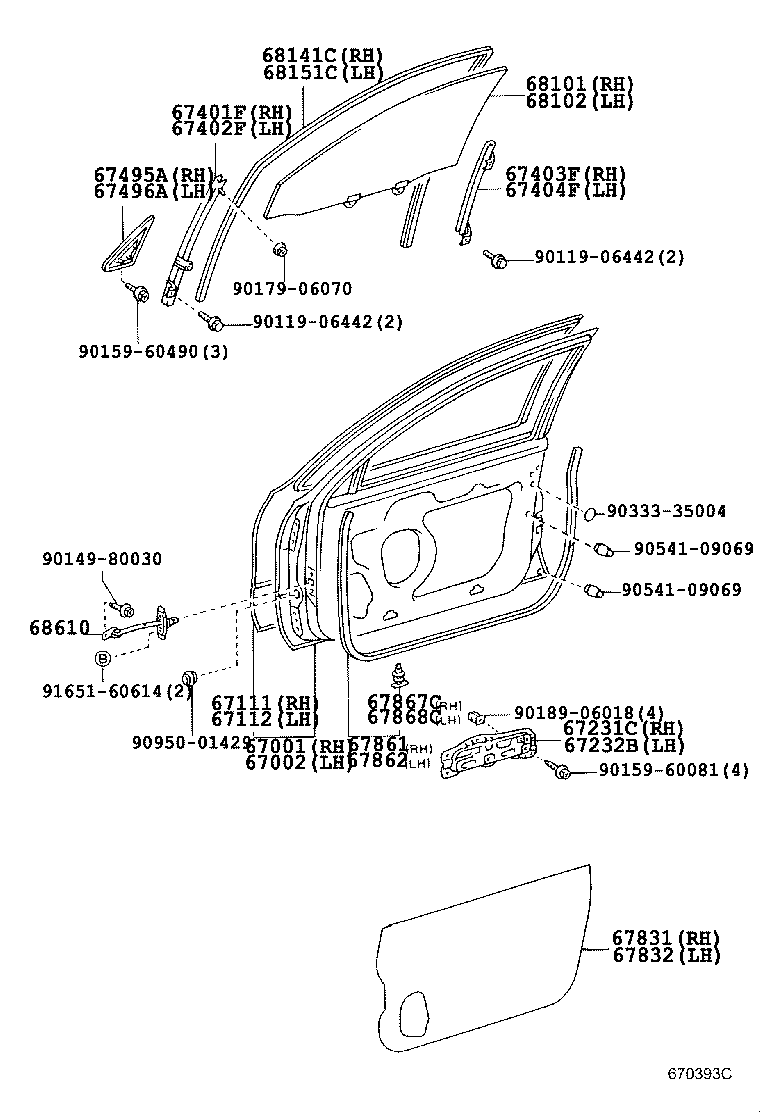

Exploded illustration 670393C 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (2 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (2 parts) 67495A — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH (2 parts) 67496A — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH (2 parts) 68141C — RUN, FRONT DOOR GLASS, RH (2 parts) 68151C — RUN, FRONT DOOR GLASS, LH (2 parts) 9017906070 — not listed in this catalogue 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (6 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (6 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (1 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (1 parts) 9011906442 — not listed in this catalogue 9054109069 — not listed in this catalogue 9033335004 — not listed in this catalogue 9054109069 — not listed in this catalogue 9015960081 — not listed in this catalogue 67231C — SUPPORT, DOOR TRIM, RH (2 parts) 67232B — SUPPORT, DOOR TRIM, LH (2 parts) 9018906018 — not listed in this catalogue 67861 — WEATHERSTRIP, FRONT DOOR, RH (3 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (3 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (5 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (6 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (6 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (6 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (10 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (10 parts) 9095001429 — not listed in this catalogue 9165160614 — not listed in this catalogue 68610 — CHECK ASSY, FRONT DOOR (8 parts) 9014980030 — not listed in this catalogue 9015960490 — not listed in this catalogue 9011906442 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (14 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (15 parts)
670393C · 23 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-1A470 Panel Sub-assy, Front Door, RH
1991-09 → 2000-08 ended
AE109,CE105,106,107,109,EE102,103,106,107 CTD,DX,DXJ ¥58,800
67001-1A471 Panel Sub-assy, Front Door, RH
2000-08 → —
AE109,CE105,107,EE102,103 DX,DXJ ¥58,800
67001-1A490 Panel Sub-assy, Front Door, RH
1991-06 → 1991-07 ended
AE10#,CE100,EE101 ¥61,800
67001-1A491 Panel Sub-assy, Front Door, RH
1991-07 → 1995-05 ended
AE10#,CE100,104,EE101 ¥61,400
67001-1A530 note Panel Sub-assy, Front Door, RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L,XL ¥58,800
67001-1A531 note Panel Sub-assy, Front Door, RH
2000-08 → —
AE109,CE10#,EE10# DX,L,XL ¥58,800
67002 — Panel Sub-assy, Front Door, LH
67002-1A450 Panel Sub-assy, Front Door, LH
1991-09 → 2000-08 ended
AE109,CE105,106,107,109,EE102,103,106,107 CTD,DX,DXJ ¥58,800
67002-1A451 Panel Sub-assy, Front Door, LH
2000-08 → —
AE109,CE105,107,EE102,103 DX,DXJ ¥58,800
67002-1A470 Panel Sub-assy, Front Door, LH
1991-06 → 1991-07 ended
AE10#,CE100,EE101 ¥61,800
67002-1A471 Panel Sub-assy, Front Door, LH
1991-07 → 1995-05 ended
AE10#,CE100,104,EE101 ¥61,400
67002-1A510 note Panel Sub-assy, Front Door, LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L,XL ¥58,800
67002-1A511 note Panel Sub-assy, Front Door, LH
2000-08 → —
AE109,CE10#,EE10# DX,L,XL ¥58,800
67111 — Panel, Front Door, Outer RH
67111-12570 Panel, Front Door, Outer RH
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥23,900
67111-12570 Panel, Front Door, Outer RH
1997-04 → —
CE106 CTD;AE109,CE105,107,EE102,103 DX,DXJ ¥23,900
67111-12570 note Panel, Front Door, Outer RH
1997-04 → 1998-04 ended
CE106,109 DX ¥23,900
67111-12570 Panel, Front Door, Outer RH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 CTD,DX,DXJ ¥23,900
67111-12570 note Panel, Front Door, Outer RH
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX ¥23,900
67111-12580 Panel, Front Door, Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥24,700
67111-12610 Panel, Front Door, Outer RH
1994-01 → 1997-04 ended
CE106,108,109,EE103,104 L,XL ¥23,900
67111-12610 note Panel, Front Door, Outer RH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX ¥23,900
67111-12610 Panel, Front Door, Outer RH
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥23,900
67111-12610 note Panel, Front Door, Outer RH
1997-04 → —
AE109,CE10#,EE10# DX,L,XL ¥23,900
67112 — Panel, Front Door, Outer LH
67112-12460 Panel, Front Door, Outer LH
1994-01 → 1997-04 ended
CE106,108,109,EE103,104 L,XL ¥23,900
67112-12460 note Panel, Front Door, Outer LH
1997-04 → —
AE109,CE10#,EE10# DX,L,XL ¥23,900
67112-12460 note Panel, Front Door, Outer LH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX ¥23,900
67112-12460 Panel, Front Door, Outer LH
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥23,900
67112-12610 note Panel, Front Door, Outer LH
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX ¥23,900
67112-12610 Panel, Front Door, Outer LH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 CTD,DX,DXJ ¥23,900
67112-12610 note Panel, Front Door, Outer LH
1997-04 → 1998-04 ended
CE106,109 DX ¥23,900
67112-12610 Panel, Front Door, Outer LH
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥23,900
67112-12610 Panel, Front Door, Outer LH
1997-04 → —
CE106 CTD;AE109,CE105,107,EE102,103 DX,DXJ ¥23,900
67112-12620 Panel, Front Door, Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥24,700
67231C — Support, Door Trim, RH
67231-12010 Support, Door Trim, RH
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥2,030
67231-12050 Support, Door Trim, RH
2000-08 → —
AE109,CE10#,EE10# ¥1,650
67232B — Support, Door Trim, LH
67232-12010 Support, Door Trim, LH
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥2,030
67232-12050 Support, Door Trim, LH
2000-08 → —
AE109,CE10#,EE10# ¥1,650
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-12270 Frame Sub-assy, Front Door, Front Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,510
67401-12320 Frame Sub-assy, Front Door, Front Lower RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,240
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-12290 Frame Sub-assy, Front Door, Front Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,510
67402-12340 Frame Sub-assy, Front Door, Front Lower LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,240
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-12170 Frame Sub-assy, Front Door, Rear Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,860
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-12170 Frame Sub-assy, Front Door, Rear Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,860
67495A — Cover, Front Door Front Lower Frame, Upper RH
67495-12160 Cover, Front Door Front Lower Frame, Upper RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,810
67495-12170 Cover, Front Door Front Lower Frame, Upper RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,930
67496A — Cover, Front Door Front Lower Frame, Upper LH
67496-12160 Cover, Front Door Front Lower Frame, Upper LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,810
67496-12170 Cover, Front Door Front Lower Frame, Upper LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,930
67831 — Cover, Front Door Service Hole, RH
67831-12470 note Cover, Front Door Service Hole, RH
2000-08 → —
CE10#,EE102,103 4FC,5F;EE102,103 3FC (DXJ,XL) ¥920
67831-12470 note Cover, Front Door Service Hole, RH
1991-06 → 2000-08 ended
CE102,105,107 DX,L ¥920
67831-12470 note Cover, Front Door Service Hole, RH
1994-01 → —
EE102,103 (3FC,4F) DX;AE109,CE106,108,109,EE104 DX,L ¥920
67831-12470 Cover, Front Door Service Hole, RH
1991-06 → 2000-08 ended
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,104,EE101 DX,LX ¥920
67831-12480 note Cover, Front Door Service Hole, RH
1991-09 → —
CE106,109,EE103 XL ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
1997-04 → —
EE104 ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
2000-08 → —
AE109,CE105,107,EE102,103 DX,DXJ ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
1991-06 → —
CE105,107 XL;AE100,101,104,CE100,102,104,EE101 ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
1997-04 → 1998-04 ended
CE108 ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
1991-09 → 1994-01 ended
EE107 XL ¥1,300
67831-12480 note Cover, Front Door Service Hole, RH
1991-09 → 1994-01 ended
CE108,EE108 ¥1,300
67831-13030 Cover, Front Door Service Hole, RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥920
67831-13060 Cover, Front Door Service Hole, RH
2000-08 → —
AE109,CE10#,EE10# ¥890
67832 — Cover, Front Door Service Hole, LH
67831-13030 Cover, Front Door Service Hole, LH
1992-01 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥920
67831-13060 Cover, Front Door Service Hole, LH
2000-08 → —
AE109,CE10#,EE10# ¥890
67832-12270 Cover, Front Door Service Hole, LH
1991-06 → 2000-08 ended
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,104,EE101 DX,LX ¥920
67832-12280 note Cover, Front Door Service Hole, LH
1991-09 → 1994-01 ended
CE108,EE108 ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
1991-09 → 1994-01 ended
EE107 XL ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
1997-04 → 1998-04 ended
CE108 ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
2000-08 → —
AE109,CE105,107,EE102,103 DX,DXJ ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
1991-06 → —
CE105,107 XL;AE100,101,104,CE100,102,104,EE101 ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
1991-09 → —
CE106,109,EE103 XL ¥1,300
67832-12280 note Cover, Front Door Service Hole, LH
1997-04 → —
EE104 ¥1,300
67832-13010 Cover, Front Door Service Hole, LH
1991-09 → 1992-01 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥1,280
67832-13030 note Cover, Front Door Service Hole, LH
1994-01 → —
EE103 XL;EE102,103 (3FC,4F) DX;AE109,CE106,108,109,EE104 +1 ¥910
67832-13030 note Cover, Front Door Service Hole, LH
1998-04 → 2000-08 ended
CE10# DX,L,XL ¥910
67832-13030 note Cover, Front Door Service Hole, LH
2000-08 → —
EE103 5F DX;EE102 3FC +2 ¥910
67861 — Weatherstrip, Front Door, RH
67861-12780 Weatherstrip, Front Door, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,090
67861-12820 Weatherstrip, Front Door, RH
1991-09 → 2001-03 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥10,700
67861-1A040 Weatherstrip, Front Door, RH
2001-03 → —
AE109,CE10#,EE10# ¥10,700
67862 — Weatherstrip, Front Door, LH
67862-12740 Weatherstrip, Front Door, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,090
67862-12780 Weatherstrip, Front Door, LH
1991-09 → 2001-03 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥10,700
67862-12890 Weatherstrip, Front Door, LH
2001-03 → —
AE109,CE10#,EE10# ¥10,700
67867C — Retainer, Front Door Weatherstrip, RH
67867-12150 Retainer, Front Door Weatherstrip, RH
1994-05 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥100
67867-12150 Retainer, Front Door Weatherstrip, RH
1994-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥100
67868-12050 note Retainer, Front Door Weatherstrip, RH
1991-09 → 1994-05 ended
CE106,108,109,EE102,103,104,106,107,108 ¥210
67868-12050 Retainer, Front Door Weatherstrip, RH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥210
67868-20140 note Retainer, Front Door Weatherstrip, RH
1991-09 → 1994-05 ended
CE106,108,109,EE102,103,104,106,107,108 ¥180
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
1994-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥100
67867-12150 Retainer, Front Door Weatherstrip, LH
1994-05 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥100
67868-12050 Retainer, Front Door Weatherstrip, LH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥210
67868-12050 note Retainer, Front Door Weatherstrip, LH
1991-09 → 1994-05 ended
CE106,108,109,EE102,103,104,106,107,108 ¥210
67868-20140 note Retainer, Front Door Weatherstrip, LH
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 ¥180
67868-20150 note Retainer, Front Door Weatherstrip, LH
1992-05 → 1994-05 ended
CE106,108,109,EE102,103,104,106,107,108 ¥100
68101 — Glass Sub-assy, Front Door, RH
68101-12790 note Glass Sub-assy, Front Door, RH
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥17,500
68101-12800 note Glass Sub-assy, Front Door, RH
1991-09 → 1997-05 ended
CE106,108,109,EE103,104,107,108 L,XL ¥18,200
68101-12840 note Glass Sub-assy, Front Door, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥17,300
68101-12850 note Glass Sub-assy, Front Door, RH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥21,500
68101-12850 note Glass Sub-assy, Front Door, RH
1992-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥21,500
68101-1A410 note Glass Sub-assy, Front Door, RH
1997-04 → —
AE109,CE10#,EE10# ¥18,100
68102 — Glass Sub-assy, Front Door, LH
68102-12790 note Glass Sub-assy, Front Door, LH
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥17,500
68102-12800 note Glass Sub-assy, Front Door, LH
1991-09 → 1997-05 ended
CE106,108,109,EE103,104,107,108 L,XL ¥18,200
68102-12840 note Glass Sub-assy, Front Door, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥17,300
68102-12850 note Glass Sub-assy, Front Door, LH
1992-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥21,500
68102-12850 note Glass Sub-assy, Front Door, LH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥21,500
68102-1A410 note Glass Sub-assy, Front Door, LH
1997-04 → —
AE109,CE10#,EE10# ¥18,100
68141C — Run, Front Door Glass, RH
68141-12390 Run, Front Door Glass, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥6,600
68141-13110 Run, Front Door Glass, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,650
68151C — Run, Front Door Glass, LH
68151-12110 Run, Front Door Glass, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥6,600
68151-13010 Run, Front Door Glass, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,650
68610 — Check Assy, Front Door
68610-12080 note Check Assy, Front Door
1991-09 → 1993-05 ended
CE106,108,109,EE106,107,108 ¥3,710
68610-12081 note Check Assy, Front Door
1993-05 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,720
68610-12090 note Check Assy, Front Door
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥3,710
68610-12091 note Check Assy, Front Door
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,710
68620-12010 note Check Assy, Front Door
1991-09 → 1993-05 ended
CE106,108,109,EE106,107,108 ¥3,710
68620-12011 note Check Assy, Front Door
1993-05 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,720
68620-12020 note Check Assy, Front Door
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥3,710
68620-12021 note Check Assy, Front Door
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,710
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
