Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

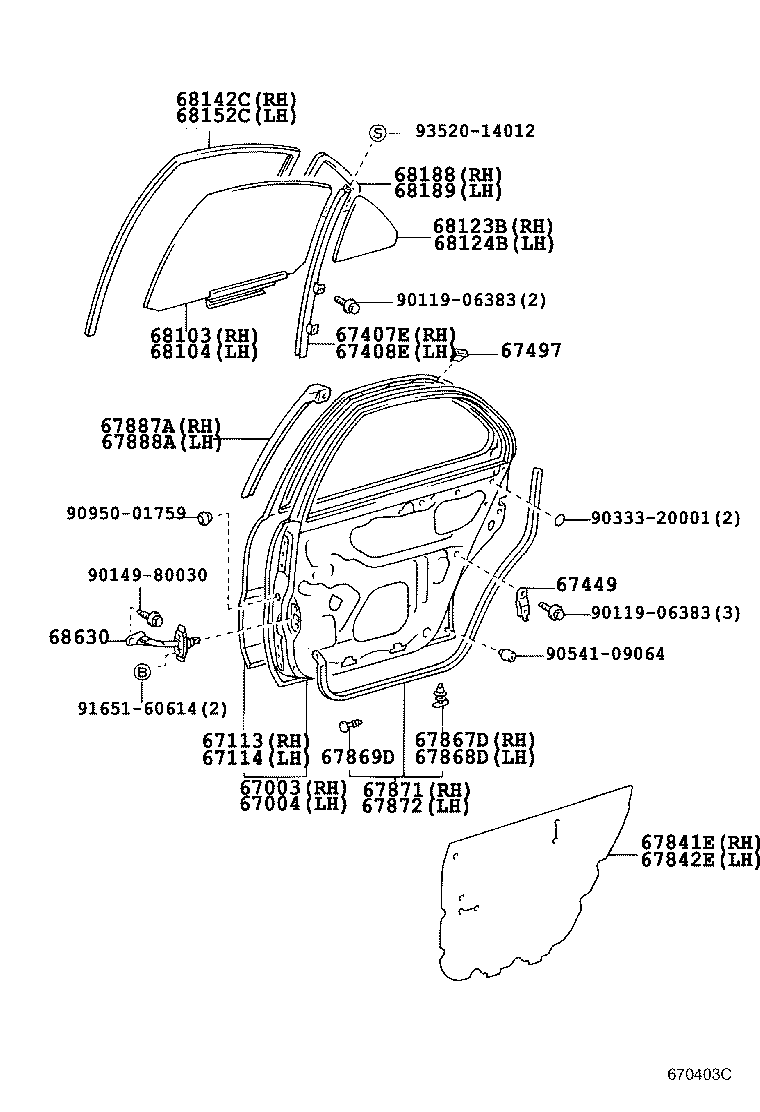

Exploded illustration 670403C 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (6 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (6 parts) 67887A — WEATHERSTRIP, REAR DOOR, NO.2 RH (1 parts) 67888A — WEATHERSTRIP, REAR DOOR, NO.2 LH (1 parts) 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (2 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (2 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (9 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (9 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (6 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (6 parts) 9011906383 — not listed in this catalogue 67497 — BRACKET, REAR DOOR FRAME (1 parts) 9352014012 — not listed in this catalogue 9033320001 — not listed in this catalogue 67449 — BRACKET, REAR DOOR INSIDE PANEL (1 parts) 9011906383 — not listed in this catalogue 9054109064 — not listed in this catalogue 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (4 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (4 parts) 67869D — CLIP, DOOR WEATHERSTRIP (1 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (4 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (4 parts) 67113 — PANEL, REAR DOOR, OUTER RH (10 parts) 67114 — PANEL, REAR DOOR, OUTER LH (10 parts) 9165160614 — not listed in this catalogue 68630 — CHECK ASSY, REAR DOOR (4 parts) 9014980030 — not listed in this catalogue 9095001759 — not listed in this catalogue 67842E — COVER, REAR DOOR SERVICE HOLE, LH (10 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (7 parts)
670403C · 26 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-12660 Panel Sub-assy, Rear Door, RH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥58,000
67003-12661 Panel Sub-assy, Rear Door, RH
1994-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥58,000
67003-13240 note Panel Sub-assy, Rear Door, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L,XL ¥55,900
67003-13250 Panel Sub-assy, Rear Door, RH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 CTD,DX,DXJ ¥55,900
67004 — Panel Sub-assy, Rear Door, LH
67004-12660 Panel Sub-assy, Rear Door, LH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥58,000
67004-12661 Panel Sub-assy, Rear Door, LH
1994-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥58,000
67004-13240 note Panel Sub-assy, Rear Door, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L,XL ¥55,900
67004-13250 Panel Sub-assy, Rear Door, LH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 CTD,DX,DXJ ¥55,900
67113 — Panel, Rear Door, Outer RH
67113-12210 note Panel, Rear Door, Outer RH
1997-04 → 1998-04 ended
CE106,109 DX ¥22,500
67113-12210 Panel, Rear Door, Outer RH
1997-04 → —
CE106 CTD;AE109,CE105,107,EE102,103 DX,DXJ ¥22,500
67113-12210 Panel, Rear Door, Outer RH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 CTD,DX,DXJ ¥22,500
67113-12210 note Panel, Rear Door, Outer RH
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX ¥22,500
67113-12210 Panel, Rear Door, Outer RH
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥22,500
67113-12220 Panel, Rear Door, Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥23,400
67113-12230 Panel, Rear Door, Outer RH
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥22,500
67113-12230 Panel, Rear Door, Outer RH
1994-01 → 1997-04 ended
CE106,108,109,EE103,104 L,XL ¥22,500
67113-12230 note Panel, Rear Door, Outer RH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX ¥22,500
67113-12230 note Panel, Rear Door, Outer RH
1997-04 → —
AE109,CE10#,EE10# DX,L,XL ¥22,500
67114 — Panel, Rear Door, Outer LH
67114-12210 Panel, Rear Door, Outer LH
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥22,500
67114-12210 note Panel, Rear Door, Outer LH
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX ¥22,500
67114-12210 Panel, Rear Door, Outer LH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 CTD,DX,DXJ ¥22,500
67114-12210 Panel, Rear Door, Outer LH
1997-04 → —
CE106 CTD;AE109,CE105,107,EE102,103 DX,DXJ ¥22,500
67114-12210 note Panel, Rear Door, Outer LH
1997-04 → 1998-04 ended
CE106,109 DX ¥22,500
67114-12220 Panel, Rear Door, Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥23,400
67114-12230 Panel, Rear Door, Outer LH
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥22,500
67114-12230 note Panel, Rear Door, Outer LH
1997-04 → —
AE109,CE10#,EE10# DX,L,XL ¥22,500
67114-12230 note Panel, Rear Door, Outer LH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX ¥22,500
67114-12230 Panel, Rear Door, Outer LH
1994-01 → 1997-04 ended
CE106,108,109,EE103,104 L,XL ¥22,500
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-12170 Bar Sub-assy, Rear Door Window Division, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,510
67407-13040 Bar Sub-assy, Rear Door Window Division, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,510
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-12180 Bar Sub-assy, Rear Door Window Division, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,510
67408-13040 Bar Sub-assy, Rear Door Window Division, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,510
67449 — Bracket, Rear Door Inside Panel
67449-12030 Bracket, Rear Door Inside Panel
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥520
67497 — Bracket, Rear Door Frame
67497-12020 Bracket, Rear Door Frame
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥170
67841E — Cover, Rear Door Service Hole, RH
67841-12250 note Cover, Rear Door Service Hole, RH
1994-01 → —
AE10#,CE100,102,104,105,106,107,109,EE101,102,103 DX,GT,L,LX,SEG,SEL,XE,XL ¥650
67841-12250 note Cover, Rear Door Service Hole, RH
1997-04 → —
EE104 ¥650
67841-12250 note Cover, Rear Door Service Hole, RH
1997-04 → 1998-04 ended
CE108 ¥650
67841-12250 note Cover, Rear Door Service Hole, RH
1994-01 → 1997-04 ended
CE108,EE104 ¥650
67841-12250 note Cover, Rear Door Service Hole, RH
1991-09 → 1994-01 ended
CE108,EE108 ¥650
67841-12250 Cover, Rear Door Service Hole, RH
1991-06 → 1994-01 ended
CE106,109,EE107 XL;AE10#,CE100,104,EE101 ¥650
67841-13020 Cover, Rear Door Service Hole, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥1,000
67842E — Cover, Rear Door Service Hole, LH
67841-12250 note Cover, Rear Door Service Hole, LH
1997-04 → —
EE104 ¥650
67841-12250 note Cover, Rear Door Service Hole, LH
1994-01 → —
AE10#,CE100,102,104,105,106,107,109,EE101,102,103 DX,GT,L,LX,SEG,SEL,XE,XL ¥650
67841-12250 note Cover, Rear Door Service Hole, LH
1992-09 → 1994-01 ended
CE108,EE108 ¥650
67841-12250 note Cover, Rear Door Service Hole, LH
1992-09 → 1994-01 ended
CE106,109,EE107 XL;AE10#,CE100,104,EE101 ¥650
67841-12250 note Cover, Rear Door Service Hole, LH
1994-01 → 1997-04 ended
CE108,EE104 ¥650
67841-12250 note Cover, Rear Door Service Hole, LH
1997-04 → 1998-04 ended
CE108 ¥650
67841-13020 Cover, Rear Door Service Hole, LH
1992-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥1,000
67842-12080 note Cover, Rear Door Service Hole, LH
1991-09 → 1992-09 ended
CE108,EE108 ¥640
67842-12080 Cover, Rear Door Service Hole, LH
1991-06 → 1992-09 ended
CE106,109,EE107 XL;AE10#,CE100,104,EE101 ¥640
67842-13010 Cover, Rear Door Service Hole, LH
1991-09 → 1992-01 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥1,000
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
1994-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
1994-03 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥100
67868-12050 Retainer, Rear Door Weatherstrip, RH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥210
67868-20140 Retainer, Rear Door Weatherstrip, RH
1991-09 → 1994-03 ended
CE106,108,109,EE102,103,104,106,107,108 ¥180
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
1994-03 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
1994-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥100
67868-12050 Retainer, Rear Door Weatherstrip, LH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥210
67868-20140 Retainer, Rear Door Weatherstrip, LH
1991-09 → 1994-03 ended
CE106,108,109,EE102,103,104,106,107,108 ¥180
67869D — Clip, Door Weatherstrip
67869-22010 Clip, Door Weatherstrip
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥100
67871 — Weatherstrip, Rear Door, RH
67871-12350 Weatherstrip, Rear Door, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,050
67871-13100 Weatherstrip, Rear Door, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥7,500
67872 — Weatherstrip, Rear Door, LH
67872-12350 Weatherstrip, Rear Door, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,050
67872-13090 Weatherstrip, Rear Door, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥7,500
67887A — Weatherstrip, Rear Door, NO.2 RH
67887-12010 Weatherstrip, Rear Door, NO.2 RH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥2,050
67888A — Weatherstrip, Rear Door, NO.2 LH
67888-12010 Weatherstrip, Rear Door, NO.2 LH
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 ¥2,050
68103 — Glass Sub-assy, Rear Door, RH
68103-12390 note Glass Sub-assy, Rear Door, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥16,900
68103-12400 note Glass Sub-assy, Rear Door, RH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥20,100
68103-12400 note Glass Sub-assy, Rear Door, RH
1992-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥20,100
68103-13150 note Glass Sub-assy, Rear Door, RH
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥16,900
68103-13160 note Glass Sub-assy, Rear Door, RH
1991-09 → 1997-05 ended
CE106,108,109,EE103,104,107,108 L,XL ¥17,300
68103-13220 note Glass Sub-assy, Rear Door, RH
1997-04 → —
AE109,CE10#,EE10# ¥18,100
68104 — Glass Sub-assy, Rear Door, LH
68104-12400 note Glass Sub-assy, Rear Door, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥16,900
68104-12410 note Glass Sub-assy, Rear Door, LH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥20,100
68104-12410 note Glass Sub-assy, Rear Door, LH
1992-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥20,100
68104-13140 note Glass Sub-assy, Rear Door, LH
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥16,900
68104-13150 note Glass Sub-assy, Rear Door, LH
1991-09 → 1997-05 ended
CE106,108,109,EE103,104,107,108 L,XL ¥17,300
68104-13210 note Glass Sub-assy, Rear Door, LH
1997-04 → —
AE109,CE10#,EE10# ¥18,100
68123B — Glass, Rear Door Quarter Window, RH
68123-12560 note Glass, Rear Door Quarter Window, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,780
68123-12570 note Glass, Rear Door Quarter Window, RH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥5,800
68123-12570 note Glass, Rear Door Quarter Window, RH
1992-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥5,800
68123-13150 note Glass, Rear Door Quarter Window, RH
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥4,550
68123-13160 note Glass, Rear Door Quarter Window, RH
1991-09 → 1997-05 ended
CE106,108,109,EE103,104,107,108 L,XL ¥4,960
68123-13200 note Glass, Rear Door Quarter Window, RH
1997-04 → —
AE109,CE10#,EE10# ¥4,950
68124B — Glass, Rear Door Quarter Window, LH
68124-12560 note Glass, Rear Door Quarter Window, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,780
68124-12570 note Glass, Rear Door Quarter Window, LH
1992-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥5,800
68124-12570 note Glass, Rear Door Quarter Window, LH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥5,800
68124-13140 note Glass, Rear Door Quarter Window, LH
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥4,550
68124-13150 note Glass, Rear Door Quarter Window, LH
1991-09 → 1997-05 ended
CE106,108,109,EE103,104,107,108 L,XL ¥4,960
68124-13190 note Glass, Rear Door Quarter Window, LH
1997-04 → —
AE109,CE10#,EE10# ¥4,950
68142C — Run, Rear Door Glass, RH
68142-12160 Run, Rear Door Glass, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,200
68142-13070 Run, Rear Door Glass, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,260
68152C — Run, Rear Door Glass, LH
68152-12070 Run, Rear Door Glass, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,200
68152-13030 Run, Rear Door Glass, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,260
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-12250 Weatherstrip, Rear Door Quarter Window, RH
1991-06 → 1992-01 ended
AE10#,CE100,104,EE101 ¥5,100
68188-12251 Weatherstrip, Rear Door Quarter Window, RH
1992-01 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,100
68188-13060 Weatherstrip, Rear Door Quarter Window, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥2,020
68188-13070 note Weatherstrip, Rear Door Quarter Window, RH
1994-01 → —
AE109,CE102,105,106,107,109,EE102,103 DX,L,XL ¥2,020
68188-13070 note Weatherstrip, Rear Door Quarter Window, RH
1997-04 → —
EE104 ¥2,020
68188-13070 note Weatherstrip, Rear Door Quarter Window, RH
1994-01 → 1997-04 ended
CE108,EE104 ¥2,020
68188-13070 note Weatherstrip, Rear Door Quarter Window, RH
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥2,020
68188-13070 note Weatherstrip, Rear Door Quarter Window, RH
1991-09 → 1994-01 ended
CE108,EE108 ¥2,020
68188-13070 note Weatherstrip, Rear Door Quarter Window, RH
1997-04 → 1998-04 ended
CE108 ¥2,020
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-12250 Weatherstrip, Rear Door Quarter Window, LH
1991-06 → 1992-01 ended
AE10#,CE100,104,EE101 ¥5,100
68189-12251 Weatherstrip, Rear Door Quarter Window, LH
1992-01 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,100
68189-13060 Weatherstrip, Rear Door Quarter Window, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥2,020
68189-13070 note Weatherstrip, Rear Door Quarter Window, LH
1994-01 → 1997-04 ended
CE108,EE104 ¥2,020
68189-13070 note Weatherstrip, Rear Door Quarter Window, LH
1997-04 → —
EE104 ¥2,020
68189-13070 note Weatherstrip, Rear Door Quarter Window, LH
1994-01 → —
AE109,CE102,105,106,107,109,EE102,103 DX,L,XL ¥2,020
68189-13070 note Weatherstrip, Rear Door Quarter Window, LH
1997-04 → 1998-04 ended
CE108 ¥2,020
68189-13070 note Weatherstrip, Rear Door Quarter Window, LH
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥2,020
68189-13070 note Weatherstrip, Rear Door Quarter Window, LH
1991-09 → 1994-01 ended
CE108,EE108 ¥2,020
68630 — Check Assy, Rear Door
68630-12050 note Check Assy, Rear Door
1991-06 → 1993-02 ended
AE10#,CE10#,EE10# ¥3,710
68630-12051 note Check Assy, Rear Door
1993-02 → —
AE10#,CE10#,EE10# ¥3,720
68640-12010 note Check Assy, Rear Door
1991-06 → 1993-02 ended
AE10#,CE10#,EE10# ¥3,710
68640-12011 note Check Assy, Rear Door
1993-02 → —
AE10#,CE10#,EE10# ¥3,720
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
