Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

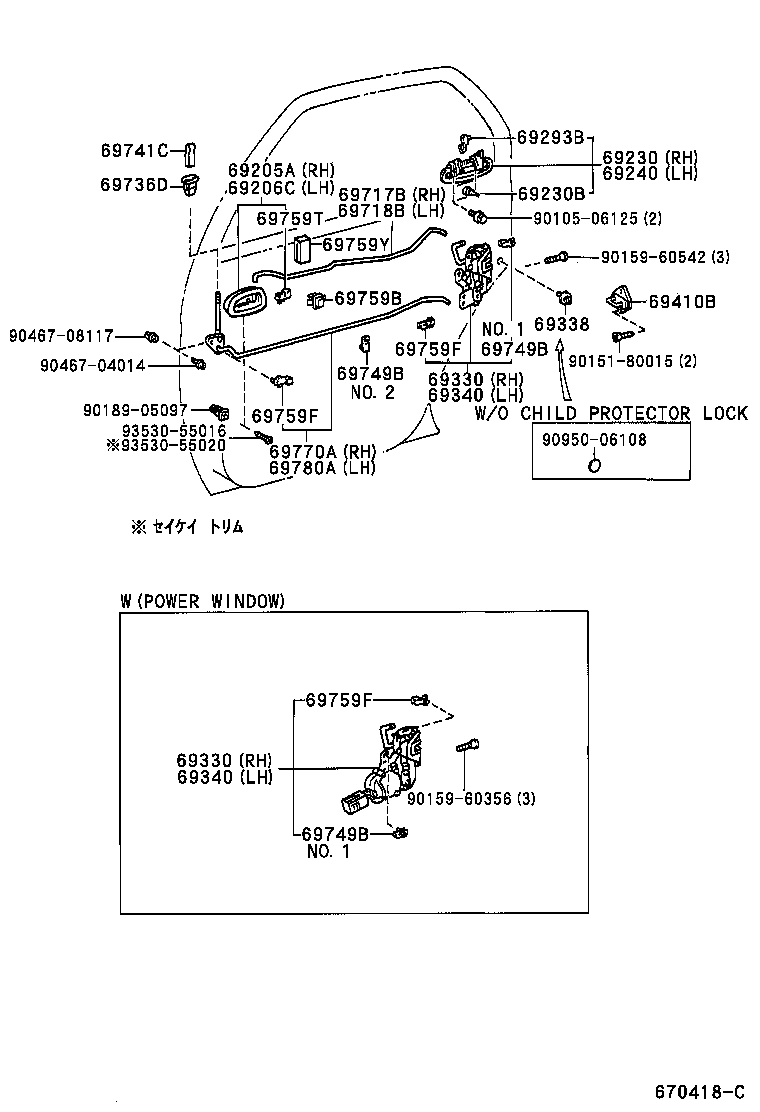

Exploded illustration 670418C 69293B — SNAP, REAR DOOR OUTSIDE HANDLE (4 parts) 69741C — KNOB, REAR DOOR LOCK CONTROL (13 parts) 69230 — HANDLE ASSY, REAR DOOR OUTSIDE, RH (39 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (9 parts) 69240 — HANDLE ASSY, REAR DOOR OUTSIDE, LH (39 parts) 69736D — GUIDE, REAR DOOR LOCKING LINK (10 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (9 parts) 69230B — CUSHION(FOR REAR DOOR OUTSIDE HANDLE) (4 parts) 69717B — LINK, REAR DOOR LOCK REMOTE CONTROL, RH (2 parts) 69718B — LINK, REAR DOOR LOCK REMOTE CONTROL, LH (2 parts) 69759T — SNAP, REAR DOOR INSIDE HANDLE (2 parts) 9010506125 — not listed in this catalogue 69759Y — SILENCER, REAR DOOR LOCK LINK (5 parts) 9015960542 — not listed in this catalogue 69759B — SNAP, REAR DOOR LOCK CYLINDER (1 parts) 69410B — PLATE ASSY, REAR DOOR LOCK STRIKER (2 parts) 69338 — KNOB, CHILD PROTECTOR LOCK LEVER (1 parts) 9046708117 — not listed in this catalogue 69759F — SNAP, REAR DOOR LOCK CONTROL LINK (4 parts) 69749B — CLAMP, REAR DOOR LOCK LINK (5 parts) 9015180015 — not listed in this catalogue 9046704014 — not listed in this catalogue 69749B — CLAMP, REAR DOOR LOCK LINK (5 parts) 69330 — LOCK ASSY, REAR DOOR, RH (5 parts) 69340 — LOCK ASSY, REAR DOOR, LH (5 parts) 9018905097 — not listed in this catalogue 69759F — SNAP, REAR DOOR LOCK CONTROL LINK (4 parts) 9353055016 — not listed in this catalogue 9095006108 — not listed in this catalogue 9353055020 — not listed in this catalogue 69770A — LINK ASSY, REAR DOOR INSIDE LOCKING, RH (2 parts) 69780A — LINK ASSY, REAR DOOR INSIDE LOCKING, LH (2 parts) 69759F — SNAP, REAR DOOR LOCK CONTROL LINK (4 parts) 69330 — LOCK ASSY, REAR DOOR, RH (5 parts) 69340 — LOCK ASSY, REAR DOOR, LH (5 parts) 9015960356 — not listed in this catalogue 69749B — CLAMP, REAR DOOR LOCK LINK (5 parts)
670418C · 27 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
165 parts on this figure
Part number Description Fitment Price
69205A — Handle Sub-assy, Rear Door Inside, RH
69205-12130-02 note Handle Sub-assy, Rear Door Inside, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69205-12130-03 note Handle Sub-assy, Rear Door Inside, RH
1991-06 → 1997-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥2,020
69205-12130-04 note Handle Sub-assy, Rear Door Inside, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,020
69205-12130-P0 note Handle Sub-assy, Rear Door Inside, RH
1997-04 → —
AE109,CE10#,EE10# ¥2,000
69207-12020-02 note Handle Sub-assy, Rear Door Inside, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69207-12020-03 note Handle Sub-assy, Rear Door Inside, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69207-12020-03 note Handle Sub-assy, Rear Door Inside, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥2,010
69207-12020-04 note Handle Sub-assy, Rear Door Inside, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69207-12020-04 note Handle Sub-assy, Rear Door Inside, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206C — Handle Sub-assy, Rear Door Inside, LH
69206-12130-02 note Handle Sub-assy, Rear Door Inside, LH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206-12130-03 note Handle Sub-assy, Rear Door Inside, LH
1991-06 → 1997-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥2,020
69206-12130-04 note Handle Sub-assy, Rear Door Inside, LH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,020
69206-12130-P0 note Handle Sub-assy, Rear Door Inside, LH
1997-04 → —
AE109,CE10#,EE10# ¥2,000
69208-12020-02 note Handle Sub-assy, Rear Door Inside, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69208-12020-03 note Handle Sub-assy, Rear Door Inside, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69208-12020-03 note Handle Sub-assy, Rear Door Inside, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥2,010
69208-12020-04 note Handle Sub-assy, Rear Door Inside, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69208-12020-04 note Handle Sub-assy, Rear Door Inside, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69230 — Handle Assy, Rear Door Outside, RH
69230-02010 note Handle Assy, Rear Door Outside, RH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# —
69230-12140 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12140 note Handle Assy, Rear Door Outside, RH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥6,600
69230-12140 Handle Assy, Rear Door Outside, RH
1993-05 → 1997-04 ended
AE100,109,CE100,106,108,109,EE10# CTD,DX,DXJ,L,XL ¥6,600
69230-12140 Handle Assy, Rear Door Outside, RH
1991-06 → 1993-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XL ¥6,600
69230-12150-03 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69230-12150-03 note Handle Assy, Rear Door Outside, RH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-03 note Handle Assy, Rear Door Outside, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-04 note Handle Assy, Rear Door Outside, RH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-04 note Handle Assy, Rear Door Outside, RH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-05 note Handle Assy, Rear Door Outside, RH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-05 note Handle Assy, Rear Door Outside, RH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69230-12150-07 note Handle Assy, Rear Door Outside, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-07 note Handle Assy, Rear Door Outside, RH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-07 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69230-12150-08 note Handle Assy, Rear Door Outside, RH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-08 note Handle Assy, Rear Door Outside, RH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-13 note Handle Assy, Rear Door Outside, RH
1992-05 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-13 note Handle Assy, Rear Door Outside, RH
1992-05 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-22 note Handle Assy, Rear Door Outside, RH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69230-12150-22 note Handle Assy, Rear Door Outside, RH
1991-10 → 1992-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-34 note Handle Assy, Rear Door Outside, RH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-34 note Handle Assy, Rear Door Outside, RH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-A0 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69230-12150-A0 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-A0 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-B0 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-B0 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-B0 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69230-12150-D2 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-D2 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-D4 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69230-12150-D4 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥6,600
69230-12150-D4 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-G1 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69230-12150-J1 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69230-12150-J1 note Handle Assy, Rear Door Outside, RH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69230-12150-J4 note Handle Assy, Rear Door Outside, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69230-42030 Handle Assy, Rear Door Outside, RH
2000-08 → —
AE109,CE10#,EE10# ¥6,600
69230B — Cushion(FOR REAR DOOR OUTSIDE HANDLE)
90080-54005 note Cushion(FOR REAR DOOR OUTSIDE HANDLE)
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥60
90541-04014 Cushion(FOR REAR DOOR OUTSIDE HANDLE)
1991-06 → 1997-04 ended
AE10#,CE10#,EE10# ¥100
90541-04014 Cushion(FOR REAR DOOR OUTSIDE HANDLE)
2000-08 → —
EE102,103 5F (DX,DXJ) ¥100
90541-04014 note Cushion(FOR REAR DOOR OUTSIDE HANDLE)
1997-04 → —
EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ) ¥100
69240 — Handle Assy, Rear Door Outside, LH
69240-02010 note Handle Assy, Rear Door Outside, LH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# —
69240-12140 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12140 Handle Assy, Rear Door Outside, LH
1993-05 → 1997-04 ended
AE100,109,CE100,106,108,109,EE10# CTD,DX,DXJ,L,XL ¥6,600
69240-12140 note Handle Assy, Rear Door Outside, LH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥6,600
69240-12140 Handle Assy, Rear Door Outside, LH
1991-06 → 1993-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XL ¥6,600
69240-12150-03 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69240-12150-03 note Handle Assy, Rear Door Outside, LH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-03 note Handle Assy, Rear Door Outside, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-04 note Handle Assy, Rear Door Outside, LH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-04 note Handle Assy, Rear Door Outside, LH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-05 note Handle Assy, Rear Door Outside, LH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69240-12150-05 note Handle Assy, Rear Door Outside, LH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-07 note Handle Assy, Rear Door Outside, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-07 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69240-12150-07 note Handle Assy, Rear Door Outside, LH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-08 note Handle Assy, Rear Door Outside, LH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-08 note Handle Assy, Rear Door Outside, LH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-13 note Handle Assy, Rear Door Outside, LH
1992-05 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-13 note Handle Assy, Rear Door Outside, LH
1992-05 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-22 note Handle Assy, Rear Door Outside, LH
1991-10 → 1992-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-22 note Handle Assy, Rear Door Outside, LH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69240-12150-34 note Handle Assy, Rear Door Outside, LH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-34 note Handle Assy, Rear Door Outside, LH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-A0 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-A0 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-A0 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69240-12150-B0 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-B0 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-B0 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69240-12150-D2 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-D2 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-D4 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥6,600
69240-12150-D4 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-D4 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69240-12150-G1 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69240-12150-J1 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69240-12150-J1 note Handle Assy, Rear Door Outside, LH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69240-12150-J4 note Handle Assy, Rear Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69240-42030 Handle Assy, Rear Door Outside, LH
2000-08 → —
AE109,CE10#,EE10# ¥6,600
69293B — Snap, Rear Door Outside Handle
69293-01050 note Snap, Rear Door Outside Handle
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥90
69293-01060 note Snap, Rear Door Outside Handle
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥90
69293-12030 note Snap, Rear Door Outside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥160
69293-12040 note Snap, Rear Door Outside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥160
69330 — Lock Assy, Rear Door, RH
69305-12010 Lock Assy, Rear Door, RH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥7,800
69305-12030 note Lock Assy, Rear Door, RH
1992-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥15,100
69305-12030 note Lock Assy, Rear Door, RH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥15,100
69305-12030 Lock Assy, Rear Door, RH
1991-06 → 1995-05 ended
AE101 GT ¥15,100
69305-12040 Lock Assy, Rear Door, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥15,100
69338 — Knob, Child Protector Lock Lever
69338-12020 Knob, Child Protector Lock Lever
1991-06 → —
AE10#,CE10#,EE10# ¥790
69340 — Lock Assy, Rear Door, LH
69306-12010 Lock Assy, Rear Door, LH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥7,800
69306-12030 note Lock Assy, Rear Door, LH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥15,100
69306-12030 Lock Assy, Rear Door, LH
1991-06 → 1995-05 ended
AE101 GT ¥15,100
69306-12030 note Lock Assy, Rear Door, LH
1992-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥15,100
69306-12040 Lock Assy, Rear Door, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥15,100
69410B — Plate Assy, Rear Door Lock Striker
69410-20070 Plate Assy, Rear Door Lock Striker
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# ¥1,710
69410-87001 Plate Assy, Rear Door Lock Striker
1993-05 → —
AE10#,CE10#,EE10# ¥710
69717B — Link, Rear Door Lock Remote Control, RH
69713-12050 Link, Rear Door Lock Remote Control, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥510
69713-12060 Link, Rear Door Lock Remote Control, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥510
69718B — Link, Rear Door Lock Remote Control, LH
69714-12060 Link, Rear Door Lock Remote Control, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥510
69714-12070 Link, Rear Door Lock Remote Control, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥530
69736D — Guide, Rear Door Locking Link
69736-12090 Guide, Rear Door Locking Link
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥300
69736-12100 note Guide, Rear Door Locking Link
1997-04 → —
EE102,103 (3FC,4F) DX;AE109,CE106,109,EE104 DX,L ¥680
69736-12100 Guide, Rear Door Locking Link
1991-09 → —
EE103 3FC XL;CE106,109,EE107 XL;CE102,105,107,EE102,103 +2 ¥680
69736-12100 note Guide, Rear Door Locking Link
1997-04 → 1998-04 ended
CE108 ¥680
69736-12100 note Guide, Rear Door Locking Link
1991-09 → 1994-01 ended
CE108 ¥680
69736-12100 note Guide, Rear Door Locking Link
1991-09 → 1994-01 ended
EE108 ¥680
69736-12100 note Guide, Rear Door Locking Link
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥680
69751-12020-03 note Guide, Rear Door Locking Link
1991-09 → 1992-06 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥270
69751-12060-B0 note Guide, Rear Door Locking Link
1992-06 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥300
69751-12060-B0 note Guide, Rear Door Locking Link
2000-08 → —
AE109,CE105,107,EE102,103 DX,DXJ ¥300
69741C — Knob, Rear Door Lock Control
69741-87003-02 note Knob, Rear Door Lock Control
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥340
69741-87003-13 note Knob, Rear Door Lock Control
1991-09 → 1994-01 ended
EE108 ¥350
69741-87003-13 note Knob, Rear Door Lock Control
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥350
69741-87003-13 note Knob, Rear Door Lock Control
1993-05 → 1997-04 ended
CE106,109,EE103,107 XL;AE100,101,104,CE100,104,EE101 ¥350
69741-87003-13 note Knob, Rear Door Lock Control
1991-09 → 1994-01 ended
CE108 ¥350
69741-87003-13 note Knob, Rear Door Lock Control
1991-06 → 1993-05 ended
CE106,109,EE107 XL;AE10#,CE100,104,EE101 DX,GT,LX,SEG,XE ¥350
69741-87003-14 note Knob, Rear Door Lock Control
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥350
69741-87003-P0 note Knob, Rear Door Lock Control
1997-04 → —
EE103 XL;EE102,103 (3FC,4F) DX;AE109,CE10#,EE104 +1 ¥330
69741-87003-P0 note Knob, Rear Door Lock Control
2000-08 → —
EE102,103 5F DX ¥330
69741-90K00 Knob, Rear Door Lock Control
2000-08 → —
CE102,EE104 ¥360
69741-90K00-43 note Knob, Rear Door Lock Control
1991-09 → 1996-05 ended
CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥360
69741-90K00-B2 note Knob, Rear Door Lock Control
1996-05 → 2000-08 ended
AE109,CE10#,EE10# CTD,DX,DXJ,L ¥360
69741-90K00-B2 note Knob, Rear Door Lock Control
2000-08 → —
AE109,CE105,107,EE102,103 DX,DXJ ¥360
69749B — Clamp, Rear Door Lock Link
69749-12040 note Clamp, Rear Door Lock Link
1991-06 → —
AE10#,CE10#,EE10# ¥300
69749-12070 note Clamp, Rear Door Lock Link
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥80
69749-12070 note Clamp, Rear Door Lock Link
2000-08 → —
EE103 5F;EE103 3FC XL;CE102,107 +2 ¥80
69749-50020 note Clamp, Rear Door Lock Link
1998-04 → 2000-08 ended
CE10# ¥180
69749-50020 note Clamp, Rear Door Lock Link
2000-08 → —
EE103 5F DX;CE102,107 DXJ,L,XL;AE109,CE105,EE102,104 +1 ¥180
69759B — Snap, Rear Door Lock Cylinder
69749-50020 Snap, Rear Door Lock Cylinder
1991-06 → —
EE103 107,108 XL;EE102,103 (3FC,4F) +1 ¥180
69759F — Snap, Rear Door Lock Control Link
69759-20020 note Snap, Rear Door Lock Control Link
1991-06 → —
AE10#,CE10#,EE10# ¥260
69759-20030 note Snap, Rear Door Lock Control Link
1991-06 → —
AE10#,CE10#,EE10# ¥250
69759-20040 note Snap, Rear Door Lock Control Link
1991-06 → —
AE10#,CE10#,EE10# ¥220
69759-20050 note Snap, Rear Door Lock Control Link
1991-06 → —
AE10#,CE10#,EE10# ¥160
69759T — Snap, Rear Door Inside Handle
69759-22040 note Snap, Rear Door Inside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥250
69759-22050 note Snap, Rear Door Inside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥250
69759Y — Silencer, Rear Door Lock Link
69759-20390 note Silencer, Rear Door Lock Link
1996-01 → 2000-08 ended
AE109,CE10#,EE10# ¥460
69759-20390 note Silencer, Rear Door Lock Link
2000-08 → —
EE103 5F;EE103 3FC XL;CE102,107 +2 ¥460
69759-30021 note Silencer, Rear Door Lock Link
1995-05 → 1995-11 ended
CE10#,EE10# DX,L ¥250
69759-30021 note Silencer, Rear Door Lock Link
2000-08 → —
EE103 5F;EE103 3FC XL;CE102,107 +2 ¥250
69759-30021 note Silencer, Rear Door Lock Link
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥250
69770A — Link Assy, Rear Door Inside Locking, RH
69770-12050 Link Assy, Rear Door Inside Locking, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥680
69770-12060 Link Assy, Rear Door Inside Locking, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥740
69780A — Link Assy, Rear Door Inside Locking, LH
69780-12050 Link Assy, Rear Door Inside Locking, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥740
69780-12060 Link Assy, Rear Door Inside Locking, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
