Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

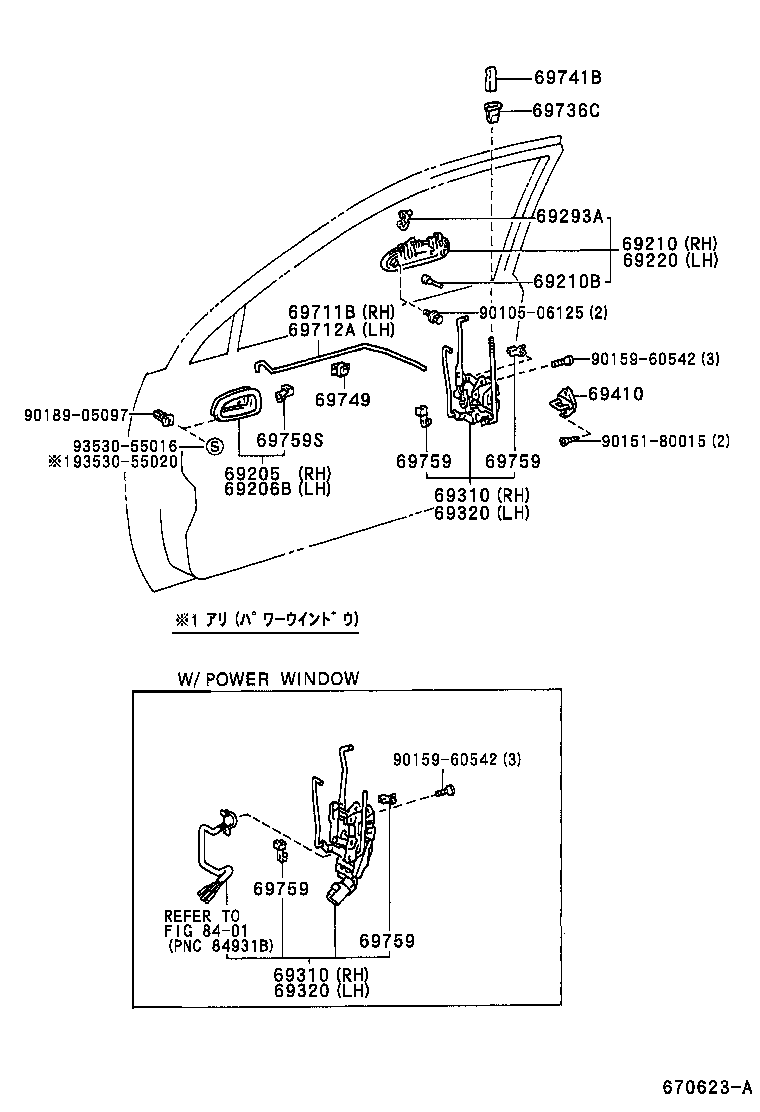

Exploded illustration 670623A 69741B — KNOB, FRONT DOOR LOCK CONTROL (13 parts) 69736C — GUIDE, FRONT DOOR LOCKING LINK (10 parts) 69293A — SNAP, FRONT DOOR OUTSIDE HANDLE (4 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (34 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (34 parts) 69210B — CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) (4 parts) 69711B — LINK, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 9010506125 — not listed in this catalogue 69712A — LINK, FRONT DOOR LOCK REMOTE CONTROL, LH (1 parts) 9015960542 — not listed in this catalogue 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (2 parts) 69749 — CLAMP, FRONT DOOR LOCK LINK (5 parts) 9018905097 — not listed in this catalogue 69759S — SNAP, FRONT DOOR INSIDE HANDLE (2 parts) 9015180015 — not listed in this catalogue 9353055016 — not listed in this catalogue 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (4 parts) 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (4 parts) 9353055020 — not listed in this catalogue 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (9 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (10 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (10 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (14 parts) 9015960542 — not listed in this catalogue 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (4 parts) 8401 — not listed in this catalogue 69759 — SNAP, DOOR LOCK CONTROL LINK, NO.1 (4 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (10 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (14 parts)
670623A · 21 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
157 parts on this figure
Part number Description Fitment Price
69205 — Handle Sub-assy, Front Door Inside, RH
69205-12130-02 note Handle Sub-assy, Front Door Inside, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69205-12130-03 note Handle Sub-assy, Front Door Inside, RH
1991-06 → 1997-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥2,020
69205-12130-04 note Handle Sub-assy, Front Door Inside, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,020
69205-12130-P0 note Handle Sub-assy, Front Door Inside, RH
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥2,000
69205-12140-02 note Handle Sub-assy, Front Door Inside, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69205-12140-03 note Handle Sub-assy, Front Door Inside, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69205-12140-03 note Handle Sub-assy, Front Door Inside, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥2,010
69205-12140-04 note Handle Sub-assy, Front Door Inside, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69205-12140-04 note Handle Sub-assy, Front Door Inside, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206B — Handle Sub-assy, Front Door Inside, LH
69206-12130-02 note Handle Sub-assy, Front Door Inside, LH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206-12130-03 note Handle Sub-assy, Front Door Inside, LH
1991-06 → 1997-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥2,020
69206-12130-04 note Handle Sub-assy, Front Door Inside, LH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,020
69206-12130-P0 note Handle Sub-assy, Front Door Inside, LH
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥2,000
69206-12140-02 note Handle Sub-assy, Front Door Inside, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206-12140-02 note Handle Sub-assy, Front Door Inside, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69206-12140-03 note Handle Sub-assy, Front Door Inside, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥2,010
69206-12140-03 note Handle Sub-assy, Front Door Inside, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206-12140-04 note Handle Sub-assy, Front Door Inside, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,010
69206-12140-04 note Handle Sub-assy, Front Door Inside, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,010
69210 — Handle Assy, Front Door, Outside RH
69210-02010 note Handle Assy, Front Door, Outside RH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# —
69210-12160 Handle Assy, Front Door, Outside RH
1991-06 → 1993-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XL ¥6,600
69210-12160 note Handle Assy, Front Door, Outside RH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥6,600
69210-12160 Handle Assy, Front Door, Outside RH
1993-05 → 1997-04 ended
AE100,109,CE100,106,108,109,EE10# CTD,DX,DXJ,L,XL ¥6,600
69210-12160 note Handle Assy, Front Door, Outside RH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-03 note Handle Assy, Front Door, Outside RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-03 note Handle Assy, Front Door, Outside RH
1991-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-04 note Handle Assy, Front Door, Outside RH
1991-06 → 1992-10 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-04 note Handle Assy, Front Door, Outside RH
1991-10 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-05 note Handle Assy, Front Door, Outside RH
1991-10 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-05 note Handle Assy, Front Door, Outside RH
1991-06 → 1992-10 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69210-12170-07 note Handle Assy, Front Door, Outside RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-07 note Handle Assy, Front Door, Outside RH
1991-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-08 note Handle Assy, Front Door, Outside RH
1991-10 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-08 note Handle Assy, Front Door, Outside RH
1991-06 → 1992-10 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-13 note Handle Assy, Front Door, Outside RH
1992-05 → 1992-10 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-13 note Handle Assy, Front Door, Outside RH
1992-05 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-22 note Handle Assy, Front Door, Outside RH
1991-10 → 1992-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-22 note Handle Assy, Front Door, Outside RH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69210-12170-34 note Handle Assy, Front Door, Outside RH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-34 note Handle Assy, Front Door, Outside RH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-A0 note Handle Assy, Front Door, Outside RH
1992-10 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-A0 note Handle Assy, Front Door, Outside RH
1992-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-B0 note Handle Assy, Front Door, Outside RH
1992-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-B0 note Handle Assy, Front Door, Outside RH
1992-10 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-D2 note Handle Assy, Front Door, Outside RH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-D2 note Handle Assy, Front Door, Outside RH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-D4 note Handle Assy, Front Door, Outside RH
1992-10 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69210-12170-D4 note Handle Assy, Front Door, Outside RH
1992-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-G2 note Handle Assy, Front Door, Outside RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69210-12170-J1 note Handle Assy, Front Door, Outside RH
1992-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69210-12170-J1 note Handle Assy, Front Door, Outside RH
1992-10 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69210-12170-J4 note Handle Assy, Front Door, Outside RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69210-42070 Handle Assy, Front Door, Outside RH
2000-08 → —
AE109,CE10#,EE10# ¥6,600
69210B — Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
90080-54005 note Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥60
90541-04014 note Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
1997-04 → —
EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ) ¥100
90541-04014 Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
2000-08 → —
EE102,103 5F (DX,DXJ) ¥100
90541-04014 Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
1991-06 → 1997-04 ended
AE10#,CE10#,EE10# ¥100
69220 — Handle Assy, Front Door Outside, LH
69220-02010 note Handle Assy, Front Door Outside, LH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# —
69220-12160 note Handle Assy, Front Door Outside, LH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12160 Handle Assy, Front Door Outside, LH
1993-05 → 1997-04 ended
AE100,109,CE100,106,108,109,EE10# CTD,DX,DXJ,L,XL ¥6,600
69220-12160 note Handle Assy, Front Door Outside, LH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥6,600
69220-12160 Handle Assy, Front Door Outside, LH
1991-06 → 1993-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XL ¥6,600
69220-12170-03 note Handle Assy, Front Door Outside, LH
1991-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-03 note Handle Assy, Front Door Outside, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-04 note Handle Assy, Front Door Outside, LH
1991-06 → 1992-10 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-04 note Handle Assy, Front Door Outside, LH
1991-10 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-05 note Handle Assy, Front Door Outside, LH
1991-10 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-05 note Handle Assy, Front Door Outside, LH
1991-06 → 1992-10 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69220-12170-07 note Handle Assy, Front Door Outside, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-07 note Handle Assy, Front Door Outside, LH
1991-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-08 note Handle Assy, Front Door Outside, LH
1991-10 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-08 note Handle Assy, Front Door Outside, LH
1991-06 → 1992-10 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-13 note Handle Assy, Front Door Outside, LH
1992-05 → 1992-10 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-13 note Handle Assy, Front Door Outside, LH
1992-05 → 1992-10 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-22 note Handle Assy, Front Door Outside, LH
1991-10 → 1992-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-22 note Handle Assy, Front Door Outside, LH
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69220-12170-34 note Handle Assy, Front Door Outside, LH
1991-10 → 1992-09 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-34 note Handle Assy, Front Door Outside, LH
1991-06 → 1992-09 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-A0 note Handle Assy, Front Door Outside, LH
1992-10 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-A0 note Handle Assy, Front Door Outside, LH
1992-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-B0 note Handle Assy, Front Door Outside, LH
1992-10 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-B0 note Handle Assy, Front Door Outside, LH
1992-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-D2 note Handle Assy, Front Door Outside, LH
1992-09 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-D2 note Handle Assy, Front Door Outside, LH
1992-09 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-D4 note Handle Assy, Front Door Outside, LH
1992-10 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥6,600
69220-12170-D4 note Handle Assy, Front Door Outside, LH
1992-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-G2 note Handle Assy, Front Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69220-12170-J1 note Handle Assy, Front Door Outside, LH
1992-10 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,600
69220-12170-J1 note Handle Assy, Front Door Outside, LH
1992-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥6,600
69220-12170-J4 note Handle Assy, Front Door Outside, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,600
69220-42070 Handle Assy, Front Door Outside, LH
2000-08 → —
AE109,CE10#,EE10# ¥6,600
69293A — Snap, Front Door Outside Handle
69293-01050 note Snap, Front Door Outside Handle
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥90
69293-01060 note Snap, Front Door Outside Handle
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥90
69293-12030 note Snap, Front Door Outside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥160
69293-12040 note Snap, Front Door Outside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥160
69310 — Lock Assy, Front Door, RH
69030-12190 note Lock Assy, Front Door, RH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥20,100
69030-12190 Lock Assy, Front Door, RH
1991-06 → 1993-07 ended
AE10#,CE100,104 GT,SEG,SEL ¥20,100
69030-12190 note Lock Assy, Front Door, RH
1992-05 → 1993-07 ended
AE100,104,CE100,104,EE101 LX,XE ¥20,100
69030-12191 Lock Assy, Front Door, RH
1993-07 → 1993-09 ended
AE10#,CE100,104 GT,SEG,SEL ¥20,500
69030-12191 note Lock Assy, Front Door, RH
1993-07 → 1993-09 ended
AE100,104,CE100,104,EE101 LX,XE ¥20,500
69030-12192 Lock Assy, Front Door, RH
1993-09 → 1994-02 ended
AE10#,CE100,104 GT,SEG,SEL ¥19,700
69030-12192 note Lock Assy, Front Door, RH
1993-09 → 1994-02 ended
AE100,104,CE100,104,EE101 LX,XE ¥19,700
69030-12193 Lock Assy, Front Door, RH
1994-02 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥19,700
69030-12193 note Lock Assy, Front Door, RH
1994-02 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥19,700
69310-12440 Lock Assy, Front Door, RH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥9,800
69320 — Lock Assy, Front Door, LH
69040-12190 note Lock Assy, Front Door, LH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥16,700
69040-12190 Lock Assy, Front Door, LH
1991-06 → 1993-07 ended
AE101 GT ¥16,700
69040-12190 note Lock Assy, Front Door, LH
1992-05 → 1993-07 ended
AE100,104,CE100,104,EE101 LX,XE ¥16,700
69040-12191 note Lock Assy, Front Door, LH
1993-07 → 1993-09 ended
AE100,104,CE100,104,EE101 LX,XE ¥17,000
69040-12191 Lock Assy, Front Door, LH
1993-07 → 1993-09 ended
AE101 GT ¥17,000
69040-12192 Lock Assy, Front Door, LH
1993-09 → 1994-02 ended
AE101 GT ¥16,500
69040-12192 note Lock Assy, Front Door, LH
1993-09 → 1994-02 ended
AE100,104,CE100,104,EE101 LX,XE ¥16,500
69040-12193 Lock Assy, Front Door, LH
1994-02 → 1995-05 ended
AE101 GT ¥16,700
69040-12193 note Lock Assy, Front Door, LH
1994-02 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥16,700
69040-12200 Lock Assy, Front Door, LH
1991-06 → 1993-07 ended
AE10#,CE100,104 SEG,SEL ¥16,700
69040-12201 Lock Assy, Front Door, LH
1993-07 → 1993-09 ended
AE10#,CE100,104 SEG,SEL ¥17,000
69040-12202 Lock Assy, Front Door, LH
1993-09 → 1994-02 ended
AE10#,CE100,104 SEG,SEL ¥16,500
69040-12203 Lock Assy, Front Door, LH
1994-02 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥16,500
69320-12450 Lock Assy, Front Door, LH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥9,800
69410 — Plate Assy, Front Door Lock Striker
69410-20070 Plate Assy, Front Door Lock Striker
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# ¥1,710
69410-87001 Plate Assy, Front Door Lock Striker
1993-05 → —
AE10#,CE10#,EE10# ¥710
69711B — Link, Front Door Lock Remote Control, RH
69711-12130 Link, Front Door Lock Remote Control, RH
1991-06 → —
AE10#,CE10#,EE10# ¥460
69712A — Link, Front Door Lock Remote Control, LH
69712-12140 Link, Front Door Lock Remote Control, LH
1991-06 → —
AE10#,CE10#,EE10# ¥460
69736C — Guide, Front Door Locking Link
69736-12090 Guide, Front Door Locking Link
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥300
69736-12100 Guide, Front Door Locking Link
2000-08 → 2002-06 ended
CE10#,EE102,103 4FC,5F;EE102,103 3FC (DXJ,XL) ¥680
69736-12100 note Guide, Front Door Locking Link
1997-04 → 2002-06 ended
EE102,103 (3FC,4F) DX;AE109,CE106,109,EE104 DX,L ¥680
69736-12100 Guide, Front Door Locking Link
1991-09 → 2000-08 ended
CE102,105,107 DX,L,XL;CE106,109,EE103,107 XL ¥680
69736-12100 note Guide, Front Door Locking Link
1997-04 → 1998-04 ended
CE108 ¥680
69736-12100 note Guide, Front Door Locking Link
1991-09 → 1994-01 ended
CE108 ¥680
69736-12100 note Guide, Front Door Locking Link
1991-09 → 1994-01 ended
EE108 ¥680
69736-12100 note Guide, Front Door Locking Link
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥680
69751-12020-03 note Guide, Front Door Locking Link
1991-09 → 1992-06 ended
CE106,108,109,EE106,107,108 CTD,DX,L ¥270
69751-12060-B0 note Guide, Front Door Locking Link
1992-06 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥300
69741B — Knob, Front Door Lock Control
69741-87003-02 note Knob, Front Door Lock Control
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥340
69741-87003-13 note Knob, Front Door Lock Control
1991-09 → 1994-01 ended
CE108 ¥350
69741-87003-13 note Knob, Front Door Lock Control
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥350
69741-87003-13 note Knob, Front Door Lock Control
1993-05 → 1997-04 ended
CE106,109,EE103,107 XL;AE100,101,104,CE100,104,EE101 ¥350
69741-87003-13 note Knob, Front Door Lock Control
1991-09 → 1994-01 ended
EE108 ¥350
69741-87003-13 note Knob, Front Door Lock Control
1991-06 → 1993-05 ended
CE106,109,EE107 XL;AE10#,CE100,104,EE101 DX,GT,LX,SEG,XE ¥350
69741-87003-14 note Knob, Front Door Lock Control
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥350
69741-87003-P0 note Knob, Front Door Lock Control
2000-08 → 2002-06 ended
EE102 3FC DXJ;CE105,107 DXJ,XL;EE102,103 +2 ¥330
69741-87003-P0 note Knob, Front Door Lock Control
1998-04 → 2000-08 ended
CE105,107 XL ¥330
69741-87003-P0 note Knob, Front Door Lock Control
1997-04 → 2002-06 ended
EE103 XL;EE102,103 (3FC,4F) DX;AE109,CE106,108,109,EE104 +1 ¥330
69741-87003-P0 note Knob, Front Door Lock Control
1998-04 → 2002-06 ended
CE10# DX,L ¥330
69741-90K00-43 note Knob, Front Door Lock Control
1991-09 → 1996-05 ended
CE106,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥360
69741-90K00-B2 note Knob, Front Door Lock Control
1996-05 → 2000-08 ended
AE109,CE10#,EE10# CTD,DX,DXJ,L ¥360
69749 — Clamp, Front Door Lock Link
69749-12070 note Clamp, Front Door Lock Link
1992-05 → 1993-03 ended
AE10#,CE10#,EE10# ¥80
69749-12070 note Clamp, Front Door Lock Link
1993-03 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥80
69749-12070 Clamp, Front Door Lock Link
1997-04 → —
AE109,CE10#,EE10# ¥80
69749-50020 Clamp, Front Door Lock Link
1991-06 → 1992-05 ended
AE10#,CE10#,EE10# ¥180
69749-50020 note Clamp, Front Door Lock Link
1992-05 → 1997-05 ended
AE10#,CE10#,EE10# ¥180
69759 — Snap, Door Lock Control Link, NO.1
69759-24010 note Snap, Door Lock Control Link, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥180
69759-24020 note Snap, Door Lock Control Link, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥180
69759-24050 note Snap, Door Lock Control Link, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥240
69759-24060 note Snap, Door Lock Control Link, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥290
69759S — Snap, Front Door Inside Handle
69759-22040 note Snap, Front Door Inside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥250
69759-22050 note Snap, Front Door Inside Handle
1991-06 → —
AE10#,CE10#,EE10# ¥250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
