Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

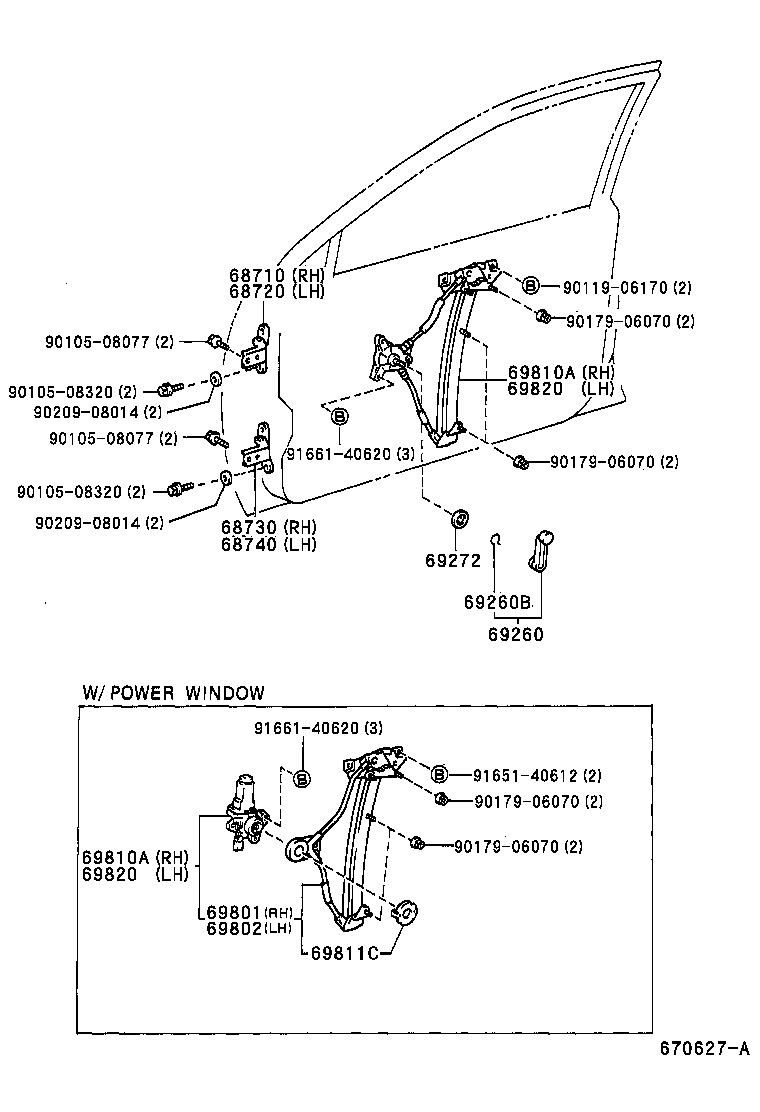

Exploded illustration 670627A 68710 — HINGE ASSY, FRONT DOOR, UPPER RH (2 parts) 9011906170 — not listed in this catalogue 68720 — HINGE ASSY, FRONT DOOR, UPPER LH (2 parts) 9017906070 — not listed in this catalogue 9010508077 — not listed in this catalogue 69810A — REGULATOR ASSY, FRONT DOOR WINDOW, RH (12 parts) 69820 — REGULATOR ASSY, FRONT DOOR WINDOW, LH (12 parts) 9010508320 — not listed in this catalogue 9020908014 — not listed in this catalogue 9010508077 — not listed in this catalogue 9166140620 — not listed in this catalogue 9017906070 — not listed in this catalogue 9010508320 — not listed in this catalogue 9020908014 — not listed in this catalogue 68730 — HINGE ASSY, FRONT DOOR, LOWER RH (2 parts) 68740 — HINGE ASSY, FRONT DOOR, LOWER LH (2 parts) 69272 — PLATE, FRONT DOOR REGULATOR INSIDE HANDLE (2 parts) 69260B — RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE) (3 parts) 69260 — HANDLE ASSY, FRONT DOOR WINDOW REGULATOR (8 parts) 9166140620 — not listed in this catalogue 9165140612 — not listed in this catalogue 9017906070 — not listed in this catalogue 9017906070 — not listed in this catalogue 69810A — REGULATOR ASSY, FRONT DOOR WINDOW, RH (12 parts) 69820 — REGULATOR ASSY, FRONT DOOR WINDOW, LH (12 parts) 69801 — REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH (5 parts) 69802 — REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH (5 parts) 69811C — PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE (4 parts)
670627A · 14 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
68710 — Hinge Assy, Front Door, Upper RH
68710-12130 Hinge Assy, Front Door, Upper RH
1991-06 → 1995-10 ended
AE10#,CE10#,EE10# ¥3,240
68710-12150 Hinge Assy, Front Door, Upper RH
1995-10 → —
AE109,CE10#,EE10# ¥3,250
68720 — Hinge Assy, Front Door, Upper LH
68720-12130 Hinge Assy, Front Door, Upper LH
1991-06 → 1995-10 ended
AE10#,CE10#,EE10# ¥3,240
68720-12150 Hinge Assy, Front Door, Upper LH
1995-10 → —
AE109,CE10#,EE10# ¥3,250
68730 — Hinge Assy, Front Door, Lower RH
68730-12090 Hinge Assy, Front Door, Lower RH
1991-06 → 1995-10 ended
AE10#,CE10#,EE10# ¥3,560
68730-12110 Hinge Assy, Front Door, Lower RH
1995-10 → —
AE109,CE10#,EE10# ¥3,600
68740 — Hinge Assy, Front Door, Lower LH
68740-12090 Hinge Assy, Front Door, Lower LH
1991-06 → 1995-10 ended
AE10#,CE10#,EE10# ¥3,560
68740-12110 Hinge Assy, Front Door, Lower LH
1995-10 → —
AE109,CE10#,EE10# ¥3,600
69260 — Handle Assy, Front Door Window Regulator
69260-10040-07 note Handle Assy, Front Door Window Regulator
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥1,610
69260-10040-42 note Handle Assy, Front Door Window Regulator
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥1,610
69260-10040-43 note Handle Assy, Front Door Window Regulator
1996-01 → 1997-05 ended
AE109,CE10#,EE10# DX,L,XL ¥1,610
69260-10040-43 note Handle Assy, Front Door Window Regulator
1991-06 → 1997-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥1,610
69260-10040-P0 note Handle Assy, Front Door Window Regulator
1997-04 → —
AE109,CE10#,EE10# ¥1,610
69260-12080-03 note Handle Assy, Front Door Window Regulator
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥1,600
69260-12080-12 note Handle Assy, Front Door Window Regulator
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥1,610
69260-12080-14 note Handle Assy, Front Door Window Regulator
1991-06 → 1991-08 ended
AE100,CE100,EE101 XE ¥1,600
69260B — Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
90520-01005 Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥110
90520-01274 note Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
1994-01 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104 DX,L,XL ¥160
90520-01274 Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥160
69272 — Plate, Front Door Regulator Inside Handle
69268-20020 note Plate, Front Door Regulator Inside Handle
1996-01 → 1997-05 ended
AE109,CE10#,EE10# DX,L,XL ¥180
69268-20020 Plate, Front Door Regulator Inside Handle
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥180
69801 — Regulator Sub-assy, Front Door Window, RH
69801-12140 Regulator Sub-assy, Front Door Window, RH
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥5,100
69801-12140 Regulator Sub-assy, Front Door Window, RH
1992-05 → 1994-01 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥5,100
69801-12140 Regulator Sub-assy, Front Door Window, RH
1994-01 → 2000-08 ended
CE106,109,EE103 GT,L,LX,SEG,SEL,XE DX;AE109,CE105,107,EE102 DX,XL;AE100,101,104,CE100,102,104,EE101 ¥5,100
69801-12140 note Regulator Sub-assy, Front Door Window, RH
1994-01 → —
CE106,108,109,EE103,104 L,XL ¥5,100
69801-12140 Regulator Sub-assy, Front Door Window, RH
2000-08 → —
EE103 DX;AE109,CE10#,EE102 ¥5,100
69802 — Regulator Sub-assy, Front Door Window, LH
69802-12140 Regulator Sub-assy, Front Door Window, LH
2000-08 → —
EE103 DX;AE109,CE10#,EE102 ¥5,100
69802-12140 note Regulator Sub-assy, Front Door Window, LH
1994-01 → —
CE106,108,109,EE103,104 L,XL ¥5,100
69802-12140 Regulator Sub-assy, Front Door Window, LH
1992-05 → 1994-01 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥5,100
69802-12140 Regulator Sub-assy, Front Door Window, LH
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥5,100
69802-12140 Regulator Sub-assy, Front Door Window, LH
1994-01 → 2000-08 ended
CE106,109,EE103 GT,L,LX,SEG,SEL,XE DX;AE109,CE105,107,EE102 DX,XL;AE100,101,104,CE100,102,104,EE101 ¥5,100
69810A — Regulator Assy, Front Door Window, RH
69810-02032 note Regulator Assy, Front Door Window, RH
1997-04 → —
AE109,CE10#,EE10# ¥6,300
69810-12380 Regulator Assy, Front Door Window, RH
1991-06 → 1993-10 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL ¥5,000
69810-12381 Regulator Assy, Front Door Window, RH
1993-10 → 1996-07 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥5,000
69810-12382 Regulator Assy, Front Door Window, RH
1996-07 → 1997-04 ended
AE109,CE10#,EE10# ¥5,100
69810-12382 note Regulator Assy, Front Door Window, RH
1997-04 → —
AE109,CE10#,EE10# ¥5,100
69810-12390 note Regulator Assy, Front Door Window, RH
1994-01 → 1997-05 ended
AE109,CE106,109,EE102,103 DX,XL;AE100,104,CE100,104,108,EE101,104 L,LX,XE ¥25,200
69810-12390 Regulator Assy, Front Door Window, RH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥25,200
69810-12390 note Regulator Assy, Front Door Window, RH
1992-05 → 1994-01 ended
AE100,104,CE100,104,EE101 LX,XE ¥25,200
69810-12390 note Regulator Assy, Front Door Window, RH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥25,200
69810-12540 Regulator Assy, Front Door Window, RH
1998-04 → 2000-08 ended
CE10# DX,L,XL ¥28,700
69810-12540 note Regulator Assy, Front Door Window, RH
1997-04 → —
EE103 XL;EE102,103 (3FC,4F) DX;AE109,CE106,108,109,EE104 +1 ¥28,700
69810-12540 Regulator Assy, Front Door Window, RH
2000-08 → —
EE103 5F DX;EE102 3FC +2 ¥28,700
69811C — Plate, Front Door Power Window Regulator Base
69811-32040 Plate, Front Door Power Window Regulator Base
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥500
69811-32040 Plate, Front Door Power Window Regulator Base
2000-08 → —
AE109,CE10#,EE10# ¥500
69811-32040 Plate, Front Door Power Window Regulator Base
1994-01 → 2000-08 ended
AE109,CE105,106,107,109,EE102,103 GT,L,LX,SEG,SEL,XE DX,XL;AE100,101,104,CE100,102,104,108,EE101,104 ¥500
69811-32040 Plate, Front Door Power Window Regulator Base
1992-05 → 1994-01 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥500
69820 — Regulator Assy, Front Door Window, LH
69820-02032 note Regulator Assy, Front Door Window, LH
1997-04 → —
AE109,CE10#,EE10# ¥6,300
69820-12380 Regulator Assy, Front Door Window, LH
1991-06 → 1993-10 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL ¥5,000
69820-12381 Regulator Assy, Front Door Window, LH
1993-10 → 1996-07 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥5,000
69820-12382 Regulator Assy, Front Door Window, LH
1996-07 → 1997-04 ended
AE109,CE10#,EE10# ¥5,100
69820-12382 note Regulator Assy, Front Door Window, LH
1997-04 → —
AE109,CE10#,EE10# ¥5,100
69820-12390 note Regulator Assy, Front Door Window, LH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥25,200
69820-12390 note Regulator Assy, Front Door Window, LH
1992-05 → 1994-01 ended
AE100,104,CE100,104,EE101 LX,XE ¥25,200
69820-12390 Regulator Assy, Front Door Window, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥25,200
69820-12390 note Regulator Assy, Front Door Window, LH
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX,XL;AE100,104,CE100,104,108,EE101,104 L,LX,XE ¥25,200
69820-12580 Regulator Assy, Front Door Window, LH
1998-04 → 2000-08 ended
CE10# DX,L,XL ¥28,700
69820-12580 note Regulator Assy, Front Door Window, LH
1997-04 → —
EE103 XL;EE102,103 (3FC,4F) DX;AE109,CE106,108,109,EE104 +1 ¥28,700
69820-12580 Regulator Assy, Front Door Window, LH
2000-08 → —
EE103 5F DX;EE102 3FC +2 ¥28,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
