Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

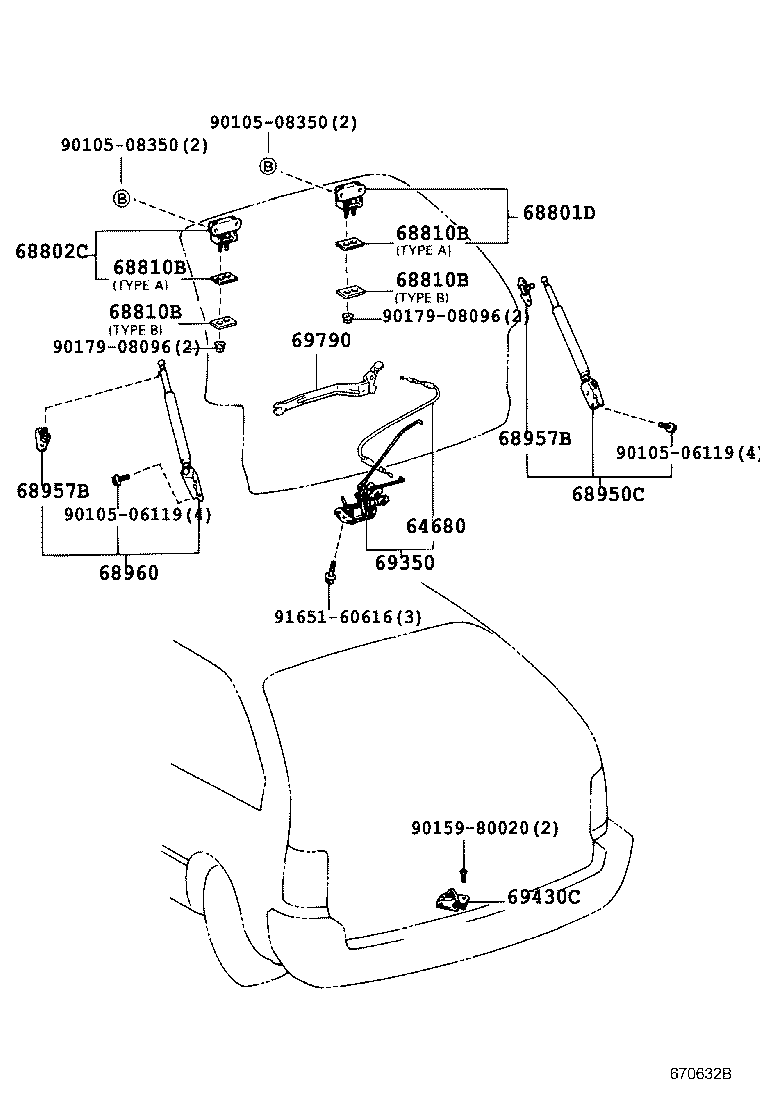

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

43 parts on this figure

Part number	Description	Fitment	Price
64680 — Cable Assy, Back Door Lock Control
64680-13010	Cable Assy, Back Door Lock Control 1991-09 → 1995-10 ended	CE106,108,109,EE102,103,104,106,107,108	¥520
64680-13011	Cable Assy, Back Door Lock Control 1995-10 → 1996-03 ended	CE10#,EE10#	¥520
64680-13031	Cable Assy, Back Door Lock Control 1996-03 → 1998-04 ended	AE109,CE10#,EE10#	¥520
64680-13032	Cable Assy, Back Door Lock Control 1998-04 → —	AE109,CE10#,EE10#	¥520
68801D — Hinge Sub-assy, Back Door, RH
68801-13090	Hinge Sub-assy, Back Door, RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,000
68802C — Hinge Sub-assy, Back Door, LH
68801-13090	Hinge Sub-assy, Back Door, LH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,000
68810B — Pad, Back Door Hinge
68838-13010	Pad, Back Door Hinge 1991-09 → 1992-05 ended	CE106,108,109,EE106,107,108	¥260
68838-13010 note	Pad, Back Door Hinge 1992-05 → —	EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE109,CE106,108,109,EE104,106,107,108	¥260
68838-13010 note	Pad, Back Door Hinge 1998-04 → —	EE103 5F DX;CE10#,EE102 4FC,5F	¥260
68863-13010 note	Pad, Back Door Hinge 1992-05 → —	EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE109,CE106,108,109,EE104,106,107,108	¥130
68863-13010 note	Pad, Back Door Hinge 1998-04 → —	EE103 5F DX;CE10#,EE102 4FC,5F	¥130
68950C — Stay Assy, Back Door, RH
68950-19775	Stay Assy, Back Door, RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L	¥7,800
68950-19785 note	Stay Assy, Back Door, RH 1991-09 → 1992-01 ended	CE106,108,109,EE106,107,108	¥7,800
68950-19785 note	Stay Assy, Back Door, RH 1997-04 → —	EE102 3FC,5F;EE102 4F DXJ;AE109,CE10#,EE103	¥7,800
68950-19785 note	Stay Assy, Back Door, RH 1994-01 → —	EE104	¥7,800
68950-19785 note	Stay Assy, Back Door, RH 1997-04 → 2000-08 ended	EE102 4F DX	¥7,800
68950-19785 note	Stay Assy, Back Door, RH 1992-01 → 1997-04 ended	CE106,EE102,106 MTM DX	¥7,800
68950-19785 note	Stay Assy, Back Door, RH 1992-01 → 1997-04 ended	EE106 2,106 CTD;AE109,CE108,109,EE103,107,108;CE106,EE102 ATM +3	¥7,800
68957B — Bracket, Back Door Stay, Lower
68957-13020	Bracket, Back Door Stay, Lower 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥430
68960 — Stay Assy, Back Door, LH
68960-19465	Stay Assy, Back Door, LH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L	¥7,800
68960-19475 note	Stay Assy, Back Door, LH 1997-04 → —	EE102 3FC,5F;EE102 4F DXJ;AE109,CE10#,EE103	¥7,800
68960-19475 note	Stay Assy, Back Door, LH 1994-01 → —	EE104	¥7,800
68960-19475 note	Stay Assy, Back Door, LH 1992-01 → 1997-04 ended	CE106,EE102,106 MTM DX	¥7,800
68960-19475 note	Stay Assy, Back Door, LH 1992-01 → 1997-04 ended	EE106 2,106 CTD;AE109,CE108,109,EE103,107,108;CE106,EE102 ATM +3	¥7,800
68960-19475 note	Stay Assy, Back Door, LH 1991-09 → 1992-01 ended	CE106,108,109,EE106,107,108	¥7,800
68960-19475 note	Stay Assy, Back Door, LH 1997-04 → 2000-08 ended	EE102 4F DX	¥7,800
69350 — Lock Assy, Back Door
69350-13110	Lock Assy, Back Door 1991-09 → 1994-01 ended	CE106,108,109,EE106,107,108 DX,L,XL	¥8,200
69350-13110 note	Lock Assy, Back Door 1991-09 → 1994-01 ended	CE106,EE106 CTD	¥8,200
69350-13130	Lock Assy, Back Door 1991-09 → 1994-01 ended	CE106,EE106 CTD	¥8,200
69350-13170	Lock Assy, Back Door 1994-01 → 1996-03 ended	CE106,EE102 CTD,DXJ	¥8,200
69350-13172	Lock Assy, Back Door 1996-03 → 1997-09 ended	CE106,EE102 CTD,DXJ	¥8,500
69350-13173	Lock Assy, Back Door 1997-09 → 1998-04 ended	CE106,EE102 CTD,DXJ	¥8,500
69350-13174	Lock Assy, Back Door 1998-04 → —	CE107,EE102 DXJ	¥8,500
69350-13180	Lock Assy, Back Door 1994-01 → 1996-03 ended	CE106,108,109,EE102,103,104 DX,L,XL	¥9,300
69350-13180 note	Lock Assy, Back Door 1994-01 → 1996-03 ended	CE106,EE102 CTD,DXJ	¥9,300
69350-13182	Lock Assy, Back Door 1996-03 → 1997-09 ended	AE109,CE10#,EE10# DX,L,XL	¥9,300
69350-13182 note	Lock Assy, Back Door 1996-03 → 1997-09 ended	CE106,EE102 CTD,DXJ	¥9,300
69350-13183 note	Lock Assy, Back Door 1997-09 → 1998-04 ended	AE109,CE10#,EE10#	¥9,300
69350-13184 note	Lock Assy, Back Door 1998-04 → —	EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ)	¥9,300
69350-13184	Lock Assy, Back Door 2000-08 → —	EE102,103 5F DX	¥9,300
69350-13184 note	Lock Assy, Back Door 2000-08 → —	EE102 5F DXJ	¥9,300
69430C — Striker Assy, Back Door Lock
69430-13010	Striker Assy, Back Door Lock 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,030
69790 — Control Assy, Back Door Lock
69790-13010	Control Assy, Back Door Lock 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥3,990

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
