Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

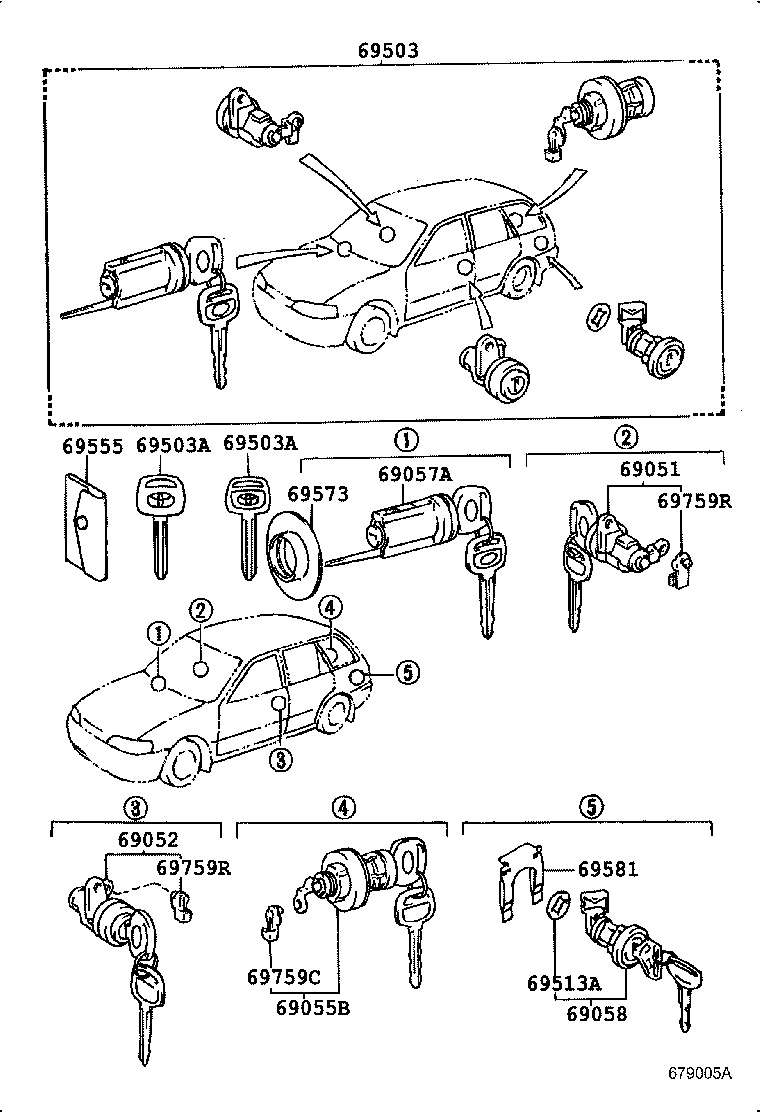

36 parts on this figure

Part number	Description	Fitment	Price
69051 — Cylinder & Key Set, Door Lock, RH
69051-12320	Cylinder & Key Set, Door Lock, RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥4,010
69051-13130	Cylinder & Key Set, Door Lock, RH 1991-09 → 1998-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108	¥4,010
69051-13200	Cylinder & Key Set, Door Lock, RH 1998-04 → —	AE109,CE10#,EE10#	¥4,010
69052 — Cylinder & Key Set, Door Lock, LH
69052-12320	Cylinder & Key Set, Door Lock, LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥4,010
69052-13130	Cylinder & Key Set, Door Lock, LH 1991-09 → 1998-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108	¥4,010
69052-13190	Cylinder & Key Set, Door Lock, LH 1998-04 → —	AE109,CE10#,EE10#	¥4,010
69055B — Cylinder & Key Set, Back Door Lock
69055-13140	Cylinder & Key Set, Back Door Lock 1991-09 → 1998-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108	¥4,010
69055-13250	Cylinder & Key Set, Back Door Lock 1998-04 → —	AE109,CE10#,EE10#	¥4,010
69057A — Cylinder & Key Set, Ignition Switch Lock
69057-12180	Cylinder & Key Set, Ignition Switch Lock 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥7,100
69057-13100	Cylinder & Key Set, Ignition Switch Lock 1991-09 → 1993-02 ended	CE106,EE106 CTD	¥7,100
69057-13110	Cylinder & Key Set, Ignition Switch Lock 1991-09 → 1993-02 ended	CE106,108,109,EE106,107,108 DX,L,XL	¥7,200
69057-13110	Cylinder & Key Set, Ignition Switch Lock 1993-02 → 1998-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108	¥7,200
69057-13190	Cylinder & Key Set, Ignition Switch Lock 1998-04 → —	CE107,EE102 DXJ	¥7,100
69057-13200	Cylinder & Key Set, Ignition Switch Lock 1998-04 → —	AE109,CE10#,EE10# DX,L,XL	¥7,100
69058 — Cylinder & Key Set, Fuel Filler Lid
69058-13100	Cylinder & Key Set, Fuel Filler Lid 1991-09 → 1998-04 ended	CE106,EE102,106 CTD,DXJ	¥4,010
69058-13130	Cylinder & Key Set, Fuel Filler Lid 1998-04 → —	CE107,EE102 DXJ	¥4,010
69503 — Cylinder Set, Lock
69005-13210	Cylinder Set, Lock 1991-09 → 1998-04 ended	CE106,EE102,106 CTD,DXJ	¥18,200
69005-13220	Cylinder Set, Lock 1991-09 → 1998-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108 DX,L,XL	¥15,300
69005-13470	Cylinder Set, Lock 1998-04 → —	CE107,EE102 DXJ	¥18,400
69005-13480	Cylinder Set, Lock 1998-04 → —	AE109,CE10#,EE10# DX,L,XL	¥16,100
69005-1A330	Cylinder Set, Lock 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101 DX,GT,LX,SEL,XE	¥15,300
69503A — Key, Blank
90999-00185 note	Key, Blank 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101 DX,GT,LX,SEL,XE	¥1,790
90999-00186 note	Key, Blank 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥1,430
90999-00192 note	Key, Blank 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,060
90999-00193 note	Key, Blank 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,570
69513A — Pad, Door Cylinder
69513-13010	Pad, Door Cylinder 1991-09 → —	CE106,107,EE102,106 CTD,DXJ	¥140
69555 — Cover, Key
69555-17020	Cover, Key 1992-10 → 1995-08 ended	AE10#,CE10#,EE10#	¥810
69555-17020	Cover, Key 1992-09 → 1992-10 ended	AE10#,CE100,104,EE101	¥810
69555-20030	Cover, Key 1992-05 → 1992-09 ended	AE10#,CE100,104,EE101	¥820
69555-95J00	Cover, Key 1992-05 → 1992-10 ended	CE106,108,109,EE106,107,108	¥820
69555-95J00	Cover, Key 1991-06 → 1992-05 ended	AE10#,CE10#,EE10#	¥820
69573 — Pad, Ignition Switch Lock Cylinder
69573-12010	Pad, Ignition Switch Lock Cylinder 1991-06 → —	AE10#,CE10#,EE10#	¥390
69581 — Retainer, Fuel Filler Lid Cylinder
69581-13010	Retainer, Fuel Filler Lid Cylinder 1991-09 → —	CE106,107,EE102,106 CTD,DXJ	¥120
69759C — Snap, Back Door Lock Cylinder
69759-24080	Snap, Back Door Lock Cylinder 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥200
69759R — Snap, Front Door Lock Cylinder
69759-12080 note	Snap, Front Door Lock Cylinder 1991-06 → —	AE10#,CE10#,EE10#	¥240
69759-12090 note	Snap, Front Door Lock Cylinder 1991-06 → —	AE10#,CE10#,EE10#	¥240

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
