Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

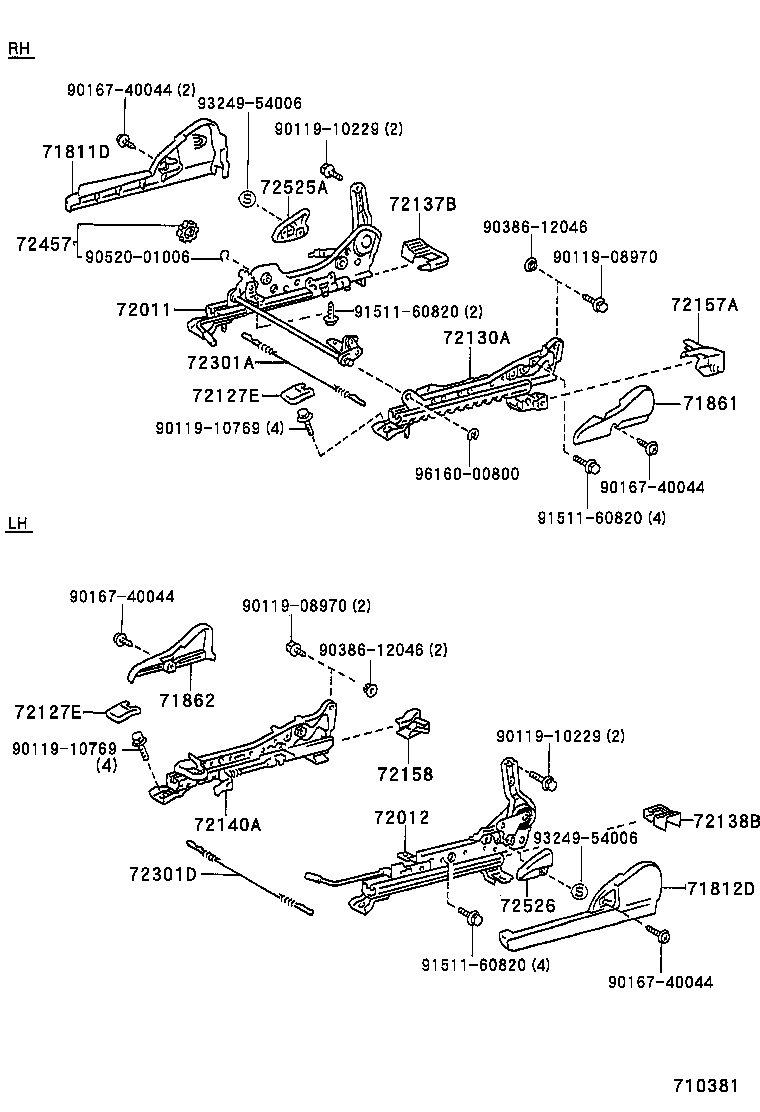

Exploded illustration 710381 9016740044 — not listed in this catalogue 9324954006 — not listed in this catalogue 9011910229 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (13 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (7 parts) 72137B — COVER, SEAT TRACK, RH (9 parts) 9038612046 — not listed in this catalogue 72457 — KNOB, VERTICAL SEAT ADJUSTER (3 parts) 9052001006 — not listed in this catalogue 9011908970 — not listed in this catalogue 72157A — COVER, SEAT TRACK BRACKET, INNER RH (15 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (5 parts) 9151160820 — not listed in this catalogue 72130A — TRACK ASSY, FRONT SEAT, INNER RH (6 parts) 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (4 parts) 72127E — COVER, SEAT TRACK BRACKET, INNER FRONT (14 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 9011910769 — not listed in this catalogue 9616000800 — not listed in this catalogue 9016740044 — not listed in this catalogue 9151160820 — not listed in this catalogue 9016740044 — not listed in this catalogue 9011908970 — not listed in this catalogue 9038612046 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (3 parts) 72127E — COVER, SEAT TRACK BRACKET, INNER FRONT (14 parts) 9011910229 — not listed in this catalogue 9011910769 — not listed in this catalogue 72158 — COVER, SEAT TRACK BRACKET, INNER LH (15 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (4 parts) 72138B — COVER, SEAT TRACK, LH (9 parts) 72140A — TRACK ASSY, FRONT SEAT,INNER LH (8 parts) 9324954006 — not listed in this catalogue 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (5 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (8 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (3 parts) 9151160820 — not listed in this catalogue 9016740044 — not listed in this catalogue
710381 · 19 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
136 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-12260-K0 note Shield, Front Seat Cushion, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥2,290
71811-12260-P0 note Shield, Front Seat Cushion, RH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥2,290
71811-12260-W3 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥2,290
71811-12280-K0 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 SEL,XE ¥2,290
71811-12280-K0 note Shield, Front Seat Cushion, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,290
71811-12280-P0 note Shield, Front Seat Cushion, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥2,290
71811-12280-P0 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEL,XE ¥2,290
71811-12280-W3 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 SEL,XE ¥2,290
71811-12300-K0 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE101 SEG ¥2,290
71811-12300-P0 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE101 SEG ¥2,290
71811-12300-W3 note Shield, Front Seat Cushion, RH
1991-06 → 1993-05 ended
AE101 SEG ¥2,290
71811-12410-B0 note Shield, Front Seat Cushion, RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥2,320
71811-12410-K0 note Shield, Front Seat Cushion, RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥2,320
71812D — Shield, Front Seat Cushion, LH
71812-12220-K0 note Shield, Front Seat Cushion, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥2,290
71812-12220-P0 note Shield, Front Seat Cushion, LH
1991-06 → —
AE10#,CE10#,EE10# ¥2,290
71812-12220-W3 note Shield, Front Seat Cushion, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥2,290
71812-12260-B0 note Shield, Front Seat Cushion, LH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥3,340
71812-12260-B0 note Shield, Front Seat Cushion, LH
1992-05 → 1993-08 ended
AE100,104 4FC SEL ¥3,340
71812-12260-J0 note Shield, Front Seat Cushion, LH
1992-05 → 1993-05 ended
AE100,104 4FC SEL ¥3,340
71812-12260-K0 note Shield, Front Seat Cushion, LH
1992-05 → 1993-08 ended
AE100,104 4FC SEL ¥3,340
71812-12260-K0 note Shield, Front Seat Cushion, LH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥3,340
71861 — Shield, Front Seat Cushion, Inner RH
71861-12220-K0 note Shield, Front Seat Cushion, Inner RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,550
71861-12220-P0 note Shield, Front Seat Cushion, Inner RH
1991-06 → —
AE10#,CE10#,EE10# ¥1,550
71861-12220-W3 note Shield, Front Seat Cushion, Inner RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,550
71861-12270-B0 note Shield, Front Seat Cushion, Inner RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥2,320
71861-12270-K0 note Shield, Front Seat Cushion, Inner RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥2,320
71862 — Shield, Front Seat Cushion, Inner LH
71862-12210-K0 note Shield, Front Seat Cushion, Inner LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,550
71862-12210-P0 note Shield, Front Seat Cushion, Inner LH
1991-06 → —
AE10#,CE10#,EE10# ¥1,550
71862-12210-W3 note Shield, Front Seat Cushion, Inner LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,550
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-12580 Adjuster Sub-assy, Front Seat, Outer RH
1991-06 → 1993-05 ended
AE101 SEG ¥71,500
72010-12590 Adjuster Sub-assy, Front Seat, Outer RH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥23,000
72010-12610 Adjuster Sub-assy, Front Seat, Outer RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEL,XE ¥28,000
72010-12610 Adjuster Sub-assy, Front Seat, Outer RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥28,000
72011-12280 note Adjuster Sub-assy, Front Seat, Outer RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥22,900
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72020-12560 Adjuster Sub-assy, Front Seat, Outer LH
1991-06 → —
AE100,101,104,CE100,102,104,108,EE101,104,108 ¥23,000
72020-12650 note Adjuster Sub-assy, Front Seat, Outer LH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥23,000
72020-12650 note Adjuster Sub-assy, Front Seat, Outer LH
1992-05 → 1993-08 ended
AE100,104 4FC SEL ¥23,000
72020-13050 Adjuster Sub-assy, Front Seat, Outer LH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 ¥23,000
72127E — Cover, Seat Track Bracket, Inner Front
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1995-08 → —
AE109,CE10#,EE10# ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1995-05 → 1995-08 ended
CE106,108,EE10# ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1993-08 → 1993-11 ended
AE101 GT ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1993-08 → 1993-11 ended
AE100,CE100,EE101 DX ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1995-05 → 1995-08 ended
CE109 ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1993-11 → 1995-05 ended
AE100,CE100,EE101 DX;CE106,EE102,106 CTD,DXJ ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1993-08 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥380
72127-12010-C0 note Cover, Seat Track Bracket, Inner Front
1993-11 → 1995-05 ended
AE101,CE106,108,109,EE102,103,104,106,107,108 DX,GT,L,XL ¥380
72127-12010-K0 note Cover, Seat Track Bracket, Inner Front
1991-06 → 1993-08 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥380
72127-12010-P0 note Cover, Seat Track Bracket, Inner Front
1993-08 → 1993-11 ended
CE106,EE106 CTD ¥380
72127-12010-P0 note Cover, Seat Track Bracket, Inner Front
1993-08 → 1993-11 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥380
72127-12010-P0 note Cover, Seat Track Bracket, Inner Front
1991-06 → 1993-08 ended
CE106,EE106 CTD;AE100,CE100,EE101 DX ¥380
72127-12010-P0 note Cover, Seat Track Bracket, Inner Front
1991-06 → 1993-08 ended
CE106,109,EE106,107 DX,XL;AE10#,CE100,104,108,EE101,108 GT,L,LX,SEG,SEL,XE ¥380
72127-12010-W3 note Cover, Seat Track Bracket, Inner Front
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥380
72130A — Track Assy, Front Seat, Inner RH
72130-12570 Track Assy, Front Seat, Inner RH
1991-09 → 1995-05 ended
AE104,CE104,109 DX,LX,XL ¥9,200
72130-12580 Track Assy, Front Seat, Inner RH
1991-09 → 1995-05 ended
AE104,CE104 SEL,XE ¥9,200
72130-12590 Track Assy, Front Seat, Inner RH
1991-06 → —
AE100,CE100,102,106,107,108,EE10# CTD,DX,DXJ,L,LX,XL ¥9,200
72130-12600 Track Assy, Front Seat, Inner RH
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 GT,SEL,XE ¥9,200
72130-12600 Track Assy, Front Seat, Inner RH
1993-05 → 1995-05 ended
AE100,101,CE100,EE101 GT,SEG,SEL,XE ¥9,200
72130-13060 Track Assy, Front Seat, Inner RH
1995-05 → —
AE109,CE105,109 ¥10,000
72137B — Cover, Seat Track, RH
72137-12030-C0 note Cover, Seat Track, RH
1993-08 → 1993-11 ended
AE100,101,CE100,EE101 DX,GT ¥760
72137-12030-C0 note Cover, Seat Track, RH
1993-08 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥760
72137-12030-C0 note Cover, Seat Track, RH
1993-11 → 1995-05 ended
AE100,101,CE100,106,108,109,EE10# CTD,DX,DXJ,GT,L,XL ¥760
72137-12030-C0 note Cover, Seat Track, RH
1995-05 → 1995-08 ended
CE106,108,EE10# ¥760
72137-12030-C0 note Cover, Seat Track, RH
1995-08 → —
AE109,CE10#,EE10# ¥760
72137-12030-K0 note Cover, Seat Track, RH
1991-06 → 1993-08 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥760
72137-12030-P0 note Cover, Seat Track, RH
1991-06 → 1993-08 ended
AE10#,CE10#,EE10# ¥760
72137-12030-P0 note Cover, Seat Track, RH
1993-08 → 1993-11 ended
CE106,108,109,EE106,107,108 ¥760
72137-12030-W3 note Cover, Seat Track, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥760
72138B — Cover, Seat Track, LH
72138-12040-C0 note Cover, Seat Track, LH
1993-11 → 1995-05 ended
AE100,101,CE100,106,108,109,EE10# CTD,DX,DXJ,GT,L,XL ¥780
72138-12040-C0 note Cover, Seat Track, LH
1993-08 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥780
72138-12040-C0 note Cover, Seat Track, LH
1993-08 → 1993-11 ended
AE100,101,CE100,EE101 DX,GT ¥780
72138-12040-C0 note Cover, Seat Track, LH
1995-05 → 1995-08 ended
CE106,108,EE10# ¥780
72138-12040-C0 note Cover, Seat Track, LH
1995-08 → —
AE109,CE10#,EE10# ¥780
72138-12040-K0 note Cover, Seat Track, LH
1991-06 → 1993-08 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥780
72138-12040-P0 note Cover, Seat Track, LH
1991-06 → 1993-08 ended
AE10#,CE10#,EE10# ¥780
72138-12040-P0 note Cover, Seat Track, LH
1993-08 → 1993-11 ended
CE106,108,109,EE106,107,108 ¥780
72138-12040-W3 note Cover, Seat Track, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥780
72140A — Track Assy, Front Seat,Inner LH
72140-12480 Track Assy, Front Seat,Inner LH
1991-09 → 1995-05 ended
AE104,CE104 ¥9,200
72140-12500 Track Assy, Front Seat,Inner LH
1991-06 → —
AE100,101,CE100,102,108,EE101,104,108 ¥9,200
72140-12550 note Track Assy, Front Seat,Inner LH
1992-05 → 1993-08 ended
AE100 4FC SEL ¥10,900
72140-12550 note Track Assy, Front Seat,Inner LH
1993-08 → 1995-05 ended
AE100 ATM (LX,SEL) ¥10,900
72140-12650 note Track Assy, Front Seat,Inner LH
1992-05 → 1995-05 ended
AE104 4FC SEL ¥10,900
72140-13040 Track Assy, Front Seat,Inner LH
1991-09 → —
CE106,107,EE102,103,106,107 ¥9,200
72140-13050 Track Assy, Front Seat,Inner LH
1991-09 → 1995-08 ended
CE109 ¥9,200
72140-13070 Track Assy, Front Seat,Inner LH
1995-08 → —
AE109,CE105,109 ¥10,000
72157A — Cover, Seat Track Bracket, Inner RH
72157-12030-C0 note Cover, Seat Track Bracket, Inner RH
1993-11 → —
AE100,101,CE100,102,106,107,108,EE10# CTD,DX,DXJ,GT,L,XL ¥570
72157-12030-C0 note Cover, Seat Track Bracket, Inner RH
1993-08 → 1995-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥570
72157-12030-C0 note Cover, Seat Track Bracket, Inner RH
1993-08 → 1993-11 ended
AE100,101,CE100,EE101 DX,GT ¥570
72157-12030-K0 note Cover, Seat Track Bracket, Inner RH
1991-06 → 1993-08 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥580
72157-12030-P0 note Cover, Seat Track Bracket, Inner RH
1993-08 → 1993-11 ended
CE106,108,EE106,107,108 ¥580
72157-12030-P0 note Cover, Seat Track Bracket, Inner RH
1991-06 → 1993-08 ended
AE100,101,CE100,106,108,EE10# ¥580
72157-12030-W3 note Cover, Seat Track Bracket, Inner RH
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥580
72157-12040-C0 note Cover, Seat Track Bracket, Inner RH
1993-08 → 1995-05 ended
AE104,CE104 ¥550
72157-12040-C0 note Cover, Seat Track Bracket, Inner RH
1993-11 → 1995-08 ended
CE109 ¥550
72157-12040-K0 note Cover, Seat Track Bracket, Inner RH
1991-09 → 1993-08 ended
AE104,CE104 ¥580
72157-12040-P0 note Cover, Seat Track Bracket, Inner RH
1993-08 → 1993-11 ended
CE109 ¥580
72157-12040-P0 note Cover, Seat Track Bracket, Inner RH
1991-09 → 1993-08 ended
AE104,CE104,109 ¥580
72157-12040-W3 note Cover, Seat Track Bracket, Inner RH
1991-09 → 1993-05 ended
AE104,CE104 ¥580
72157-12060-C0 note Cover, Seat Track Bracket, Inner RH
1997-04 → —
AE109,CE105,109 ¥620
72157-12060-C0 note Cover, Seat Track Bracket, Inner RH
1995-08 → 1997-04 ended
AE109,CE109 ¥620
72158 — Cover, Seat Track Bracket, Inner LH
72158-12030-C0 note Cover, Seat Track Bracket, Inner LH
1993-11 → —
AE100,101,CE100,102,106,107,108,EE10# CTD,DX,DXJ,GT,L,XL ¥570
72158-12030-C0 note Cover, Seat Track Bracket, Inner LH
1993-08 → 1995-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥570
72158-12030-C0 note Cover, Seat Track Bracket, Inner LH
1993-08 → 1993-11 ended
AE100,101,CE100,EE101 DX,GT ¥570
72158-12030-K0 note Cover, Seat Track Bracket, Inner LH
1991-06 → 1993-08 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥580
72158-12030-P0 note Cover, Seat Track Bracket, Inner LH
1991-06 → 1993-08 ended
AE100,101,CE100,106,108,EE10# ¥580
72158-12030-P0 note Cover, Seat Track Bracket, Inner LH
1993-08 → 1993-11 ended
CE106,108,EE106,107,108 ¥580
72158-12030-W3 note Cover, Seat Track Bracket, Inner LH
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥580
72158-12040-C0 note Cover, Seat Track Bracket, Inner LH
1993-11 → 1995-08 ended
CE109 ¥650
72158-12040-C0 note Cover, Seat Track Bracket, Inner LH
1993-08 → 1995-05 ended
AE104,CE104 ¥650
72158-12040-K0 note Cover, Seat Track Bracket, Inner LH
1991-09 → 1993-08 ended
AE104,CE104 ¥650
72158-12040-P0 note Cover, Seat Track Bracket, Inner LH
1991-09 → 1993-08 ended
AE104,CE104,109 ¥580
72158-12040-P0 note Cover, Seat Track Bracket, Inner LH
1993-08 → 1993-11 ended
CE109 ¥580
72158-12040-W3 note Cover, Seat Track Bracket, Inner LH
1991-09 → 1993-05 ended
AE104,CE104 ¥580
72158-12060-C0 note Cover, Seat Track Bracket, Inner LH
1995-08 → 1997-04 ended
AE109,CE109 ¥620
72158-12060-C0 note Cover, Seat Track Bracket, Inner LH
1997-04 → —
AE109,CE105,109 ¥620
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-12090 Wire Sub-assy, Seat Track Equalizing, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEL,XE ¥350
72301-12090 Wire Sub-assy, Seat Track Equalizing, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥350
72301-12160 Wire Sub-assy, Seat Track Equalizing, RH
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥220
72301-12230 note Wire Sub-assy, Seat Track Equalizing, RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥330
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-12090 Wire Sub-assy, Seat Track Equalizing, LH
1991-09 → 1995-08 ended
CE106,109,EE102,103,106,107 ¥350
72301-12140 note Wire Sub-assy, Seat Track Equalizing, LH
1992-05 → 1993-08 ended
AE100,104 4FC SEL ¥350
72301-12140 note Wire Sub-assy, Seat Track Equalizing, LH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥350
72301-12160 Wire Sub-assy, Seat Track Equalizing, LH
1991-06 → 1995-08 ended
AE10#,CE100,104,108,EE101,104,108 ¥220
72301-12160 Wire Sub-assy, Seat Track Equalizing, LH
1995-08 → —
AE109,CE10#,EE10# ¥220
72457 — Knob, Vertical Seat Adjuster
72457-22020-B1 note Knob, Vertical Seat Adjuster
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥1,140
72457-22020-J0 note Knob, Vertical Seat Adjuster
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥1,140
72457-22020-K0 note Knob, Vertical Seat Adjuster
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥1,140
72525A — Handle, Reclining Adjuster Release, RH
72525-12090-K0 note Handle, Reclining Adjuster Release, RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥940
72525-12090-P0 note Handle, Reclining Adjuster Release, RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥940
72525-12100-K0 note Handle, Reclining Adjuster Release, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥760
72525-12100-K0 note Handle, Reclining Adjuster Release, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥760
72525-12100-P0 note Handle, Reclining Adjuster Release, RH
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥480
72525-12100-P0 note Handle, Reclining Adjuster Release, RH
1993-05 → —
AE10#,CE10#,EE10# ¥480
72525-12100-W3 note Handle, Reclining Adjuster Release, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥760
72526 — Handle, Reclining Adjuster Release, LH
72526-12040-K0 note Handle, Reclining Adjuster Release, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥760
72526-12040-P0 note Handle, Reclining Adjuster Release, LH
1991-06 → —
AE10#,CE10#,EE10# ¥480
72526-12040-W3 note Handle, Reclining Adjuster Release, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
