Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

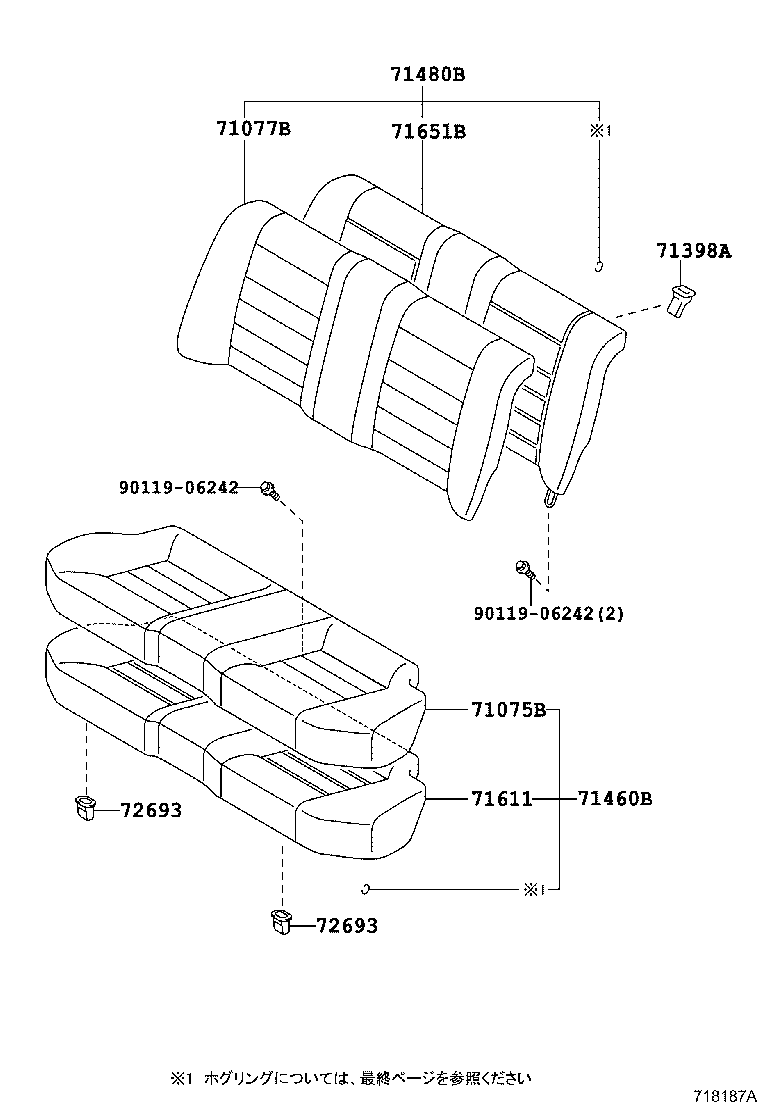

Exploded illustration 718187A 71398A — HOLDER, REAR SEATBACK (5 parts) 9011906242 — not listed in this catalogue 9011906242 — not listed in this catalogue 71460B — CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) (49 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (1 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (38 parts) 71480B — BACK ASSY, REAR SEAT (FOR BENCH TYPE) (65 parts) 71651B — PAD, REAR SEATBACK(FOR BENCH TYPE) (4 parts) 71077B — COVER, REAR SEATBACK (FOR BENCH TYPE) (49 parts) 71611 — PAD, REAR SEAT CUSHION (4 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (1 parts)
718187A · 9 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
215 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71065-1E120-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥46,900
71075-13420-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-09 → 1991-10 ended
CE106,108,109,EE106,107,108 DX,L ¥23,700
71075-13420-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-10 → 1994-01 ended
CE106,109,EE106,107 DX ¥23,700
71075-13421-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX ¥23,800
71075-13421-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1997-04 → 2002-06 ended
AE109,CE105,107,EE102,103 DX ¥23,800
71075-13421-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1997-04 → 1998-04 ended
CE106,109 DX ¥23,800
71075-13430-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥23,700
71075-13431-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥23,800
71075-13431-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1997-04 → 1998-04 ended
CE106 CTD ¥23,800
71075-13431-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE107,EE102 DXJ ¥23,800
71075-13480-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥35,800
71075-13480-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 ¥35,800
71075-13481-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE108,EE104 ¥35,800
71075-13481-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥35,800
71075-13510-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-10 → 1994-01 ended
CE108,EE108 ¥23,700
71075-13511-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE108,EE104 ¥23,800
71075-13511-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2000-08 → 2002-06 ended
CE102,EE104 ¥23,800
71075-13511-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1997-04 → 2000-08 ended
CE102,108,EE104 ¥23,800
71075-13570-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥35,500
71075-13570-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥35,500
71075-13730-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1998-04 → 2000-08 ended
CE10# L,XL ¥35,600
71075-13730-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,108,109,EE103,104 L,XL ¥35,600
71075-13730-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2000-08 → 2002-06 ended
CE105 XL;EE103 DX;AE109,CE102,107,EE102 ¥35,600
71075-1E820-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥35,800
71075-1E820-J0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥35,800
71075-1E820-K0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥35,800
71075-1E821-B2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥46,900
71075-1E821-K1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥46,900
71075-1E830-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥43,000
71075-1E830-J0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥43,000
71075-1E830-K0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥43,000
71075-1E831-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥43,000
71075-1E831-K0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥43,000
71075-1E860-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1992-05 ended
AE101 GT ¥50,200
71075-1E860-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1992-05 → 1993-05 ended
AE101 GT ¥50,200
71075-1E861-B2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE101 GT ¥50,200
71075-1E870-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,CE100,EE101 DX ¥28,700
71075-1E871-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,CE100,EE101 DX ¥28,700
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
71077-13460-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX ¥27,700
71077-13461-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1997-04 ended
AE109,CE106,109,EE102,103 DX ¥27,800
71077-13461-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE108,EE104 ¥27,800
71077-13461-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
AE109,CE105,106,107,109,EE102,103 DX ¥27,800
71077-13470-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥39,100
71077-13471-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥39,100
71077-13472-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥39,200
71077-13490-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥27,700
71077-13491-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥27,800
71077-13570-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥27,700
71077-13571-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥27,800
71077-13571-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1998-04 → 2002-06 ended
CE107 DXJ ¥27,800
71077-13571-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,EE102 CTD,DXJ ¥27,800
71077-13580-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 ¥27,700
71077-13580-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX ¥27,700
71077-13581-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥27,800
71077-13581-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# DX,L ¥27,800
71077-13590-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 ¥39,100
71077-13590-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥39,100
71077-13591-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥39,100
71077-13591-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE108,EE104 ¥39,100
71077-13720-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥39,200
71077-13720-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥39,200
71077-13860-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE102,105,106,107,109,EE103 L,XL ¥37,600
71077-13860-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE108,EE104 ¥37,600
71077-13860-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
2000-08 → 2002-06 ended
AE109,CE107,EE102,103 DX,DXJ ¥37,600
71077-13870-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1998-04 → 2002-06 ended
CE105,107 XL ¥37,600
71077-13870-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,109,EE103 XL ¥37,600
71077-13870-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
2000-08 → 2002-06 ended
EE102 5F;AE109,CE107,EE103 DX ¥37,600
71077-1K600-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥39,100
71077-1K600-J0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥39,100
71077-1K600-K0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥39,100
71077-1K610-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥46,900
71077-1K610-J0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥46,900
71077-1K610-K0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥46,900
71077-1K620-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K620-J0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K620-K0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K621-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K621-K1 note Cover, Rear Seatback (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K630-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE101 SEG ¥64,000
71077-1K630-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥64,000
71077-1K630-J0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE101 SEG ¥64,000
71077-1K630-K0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE101 SEG ¥64,000
71077-1K630-K0 note Cover, Rear Seatback (FOR BENCH TYPE)
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥64,000
71077-1K650-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥31,700
71077-1K720-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K720-K0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥55,200
71077-1K730-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥39,100
71398A — Holder, Rear Seatback
71398-12030 Holder, Rear Seatback
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE ¥300
71398-12040 Holder, Rear Seatback
1991-06 → 1992-05 ended
AE101 GT ¥440
71398-12050 Holder, Rear Seatback
1992-05 → 1995-05 ended
AE101 GT ¥510
71398-13030-03 note Holder, Rear Seatback
1991-09 → 1994-02 ended
CE106,108,109,EE102,103,104,106,107,108 ¥670
71398-13030-P0 note Holder, Rear Seatback
1994-02 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥650
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-13590-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 —
71460-13591-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE108,EE104 ¥61,900
71460-13591-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE102,108,EE104 ¥61,900
71460-13610-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 —
71460-13611-P0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE108,EE104 ¥74,900
71460-13620-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-04 ended
CE106,EE103 XL ¥66,200
71460-13620-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥66,200
71460-13630-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106,107 DX —
71460-13631-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,EE102,103 DX ¥61,900
71460-13631-B2 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102,103 DX ¥62,000
71460-13640-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE107 XL —
71460-13641-P0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,EE103 XL ¥74,900
71460-13680-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE109 DX —
71460-13681-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
AE109,CE109 DX ¥61,900
71460-13681-B2 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
AE109,CE105,109 DX ¥61,900
71460-13690-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE109 XL —
71460-13691-P0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE109 XL ¥74,900
71460-13692-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-04 ended
CE109 XL ¥75,100
71460-13700-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD —
71460-13701-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥61,900
71460-13701-B2 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥62,000
71460-1E800-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥77,400
71460-1E800-J0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥77,400
71460-1E800-K1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥77,400
71460-1E801-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥77,400
71460-1E801-K2 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥77,400
71460-1E810-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥85,000
71460-1E810-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE101 SEG ¥85,000
71460-1E810-J0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE101 SEG ¥85,000
71460-1E810-K1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE101 SEG ¥85,000
71460-1E810-K1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥85,000
71460-1E830-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX —
71460-1E830-J0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX —
71460-1E830-K1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX —
71460-1E840-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71460-1E840-J0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE —
71460-1E840-K1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71460-1E850-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1992-05 ended
AE101 GT ¥85,000
71460-1E850-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1992-05 → 1993-05 ended
AE101 GT ¥85,000
71460-1E851-B2 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE101 GT ¥85,000
71460-1E860-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX —
71560-13110-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2000-08 ended
CE106,108,EE103,104 L,XL ¥69,600
71560-13110-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1998-04 → 2002-06 ended
CE102,107 L,XL ¥69,600
71560-13110-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-06 ended
EE103 XL;EE102 3FC;CE107,EE104 DXJ,L ¥69,600
71560-13110-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-06 ended
EE102 5F;CE107,EE103 DX ¥69,600
71560-13120-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE105,109 XL ¥69,600
71560-13120-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-06 ended
AE109 ¥69,600
71560-1E040-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥77,400
71560-1E040-K0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥77,400
71480B — Back Assy, Rear Seat (FOR BENCH TYPE)
71480-13690-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 —
71480-13691-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE108,EE104 ¥103,000
71480-13691-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE102,108,EE104 ¥103,000
71480-13710-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE108,EE108 —
71480-13711-P0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE108,EE104 ¥116,000
71480-13712-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥116,000
71480-13730-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL —
71480-13731-P0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥116,000
71480-13732-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE106,109,EE103 XL ¥116,000
71480-13740-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX —
71480-13741-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,109,EE102,103 DX ¥103,000
71480-13741-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE105,106,107,109,EE102,103 DX ¥104,000
71480-13750-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL —
71480-13751-P0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥116,000
71480-13752-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥116,000
71480-13780-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD —
71480-13830-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD —
71480-13840-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE106,107 DX —
71480-13841-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,109,EE102,103 DX ¥103,000
71480-13841-B3 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE105,106,107,109,EE102,103 DX ¥104,000
71480-13850-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL —
71480-13851-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥116,000
71480-13852-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE106,109,EE103 XL ¥116,000
71480-13860-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
CE106,109,EE107 XL —
71480-13861-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥116,000
71480-13862-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1995-08 → 1997-05 ended
CE106,109,EE103 XL ¥116,000
71480-13870-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
EE106 4F CTD —
71480-13880-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
EE106 4F DX —
71480-13890-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
EE106 4F CTD —
71480-1F010-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-09 → 1994-01 ended
EE106 4F DX —
71480-1F120-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1992-05 → 1994-01 ended
CE106,EE106 CTD ¥72,900
71480-1F121-B3 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥73,600
71480-1F130-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1992-05 → 1994-01 ended
CE106,EE106 CTD ¥72,900
71480-1F131-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥73,400
71480-1F131-B3 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥73,600
71480-1F200-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1996-05 → 1997-04 ended
AE109 ¥103,000
71480-1F200-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
AE109 ¥103,000
71480-1F210-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1996-05 → 1997-04 ended
CE108,EE104 ¥103,000
71480-1F210-B2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
AE109 ¥103,000
71480-1F330-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1998-04 → 2002-06 ended
CE105,107 XL ¥73,500
71480-1F330-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,109 XL;EE102,103 5F;EE103 3FC +1 ¥73,500
71480-1F340-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE105,106,107,109,EE103 XL ¥73,500
71480-1F350-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2000-08 ended
CE105,106,107,109,EE103 XL ¥73,500
71480-1F350-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-06 ended
CE105 XL;CE107,EE102,103 ¥73,500
71480-1F360-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE106,109,EE103 XL ¥73,500
71480-1F360-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1998-04 → 2002-06 ended
CE105,107 XL ¥73,500
71480-1F370-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1997-04 → 2002-06 ended
CE108,EE104 ¥73,500
71480-1F370-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1998-04 → 2002-06 ended
CE102 ¥73,500
71480-1F860-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-06 ended
AE109 ¥73,700
71480-1F870-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-06 ended
AE109 ¥73,500
71480-1K600-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71480-1K600-J0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71480-1K600-K1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71480-1K601-B1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥118,000
71480-1K601-K2 note Back Assy, Rear Seat (FOR BENCH TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥118,000
71480-1K610-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE101 SEG —
71480-1K610-J0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE101 SEG —
71480-1K610-K1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE101 SEG —
71480-1K630-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX —
71480-1K630-J0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX —
71480-1K630-K1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX —
71480-1K640-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71480-1K640-J0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE —
71480-1K640-K1 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71480-1K660-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX —
71611 — Pad, Rear Seat Cushion
71503-12040 Pad, Rear Seat Cushion
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,XE ¥31,400
71503-12060 Pad, Rear Seat Cushion
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX ¥31,400
71611-13160 Pad, Rear Seat Cushion
1991-09 → 2002-06 ended
CE102,106,107,108,EE102,103,104,106,107,108 ¥19,600
71611-13170 Pad, Rear Seat Cushion
1991-09 → 2002-06 ended
AE109,CE105,109 ¥19,600
71651B — Pad, Rear Seatback(FOR BENCH TYPE)
71507-12100 Pad, Rear Seatback(FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX,XE ¥34,000
71507-12110 Pad, Rear Seatback(FOR BENCH TYPE)
1991-06 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥34,000
71651-13180 Pad, Rear Seatback(FOR BENCH TYPE)
1991-09 → 2002-06 ended
AE109,CE105,106,107,109,EE102,103,106,107 ¥20,200
71651-13200 note Pad, Rear Seatback(FOR BENCH TYPE)
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥20,200
72693 — Hook, Rear Seat Cushion Lock
72693-32020 Hook, Rear Seat Cushion Lock
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
