Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

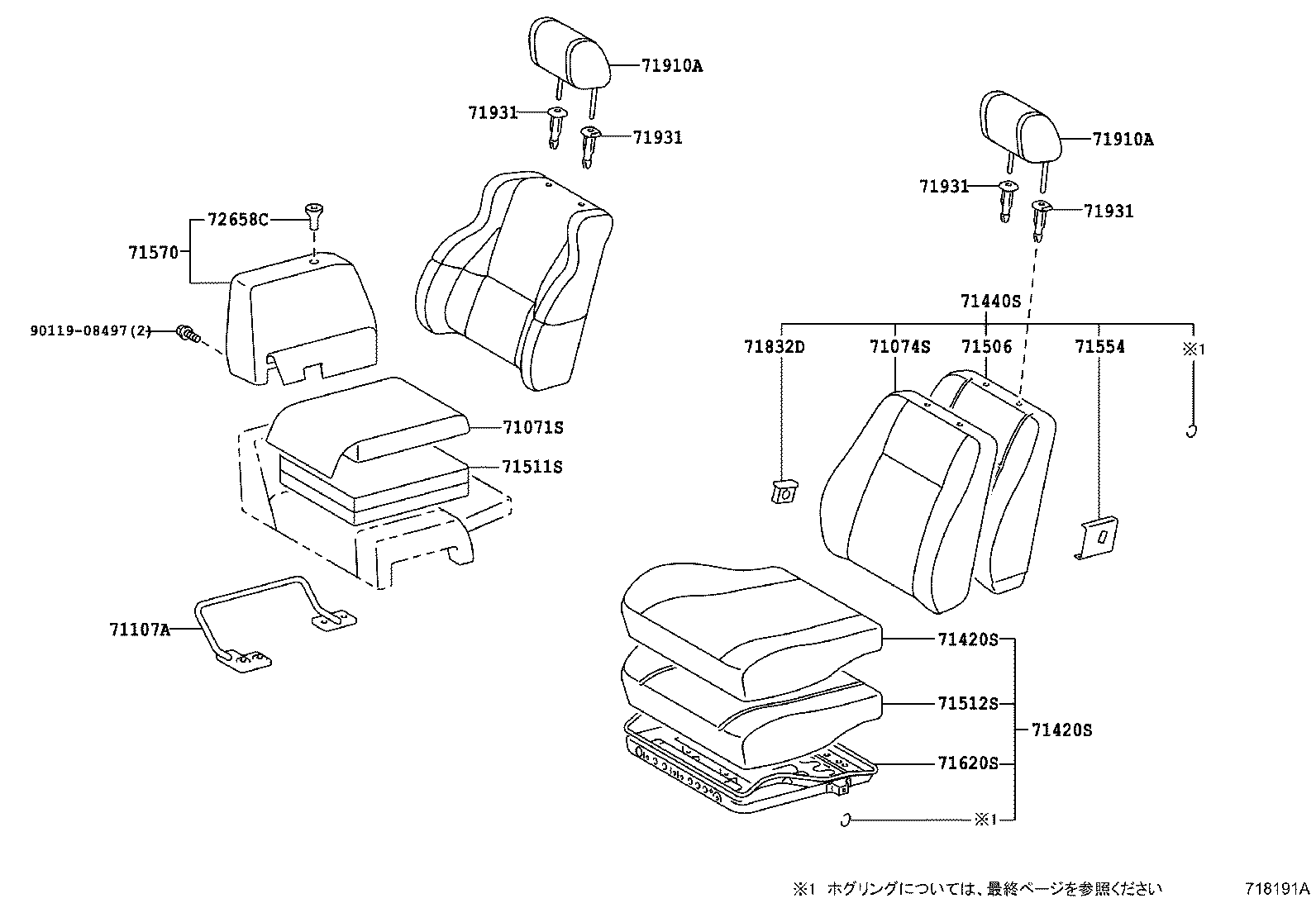

Exploded illustration 718191A 71931 — SUPPORT, FRONT SEAT HEADREST (28 parts) 71570 — CUSHION ASSY, SIDE SEAT, FRONT (2 parts) 71107A — HOLDER SUB-ASSY, FRONT SEAT ARMREST, RH (1 parts) 72658C — KNOB, FRONT SEAT LOCK HANDLE (2 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (28 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (29 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (6 parts) 71910A — HEADREST ASSY, FRONT SEAT (34 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (28 parts) 71832D — COVER, FRONT SEAT HINGE, LH (2 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (37 parts) 71506 — PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH (10 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (35 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (38 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (38 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (8 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (3 parts) 71554 — PAD, FRONT SEATBACK, C (6 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (28 parts) 71910A — HEADREST ASSY, FRONT SEAT (34 parts) 9011908497 — not listed in this catalogue
718191A · 20 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
241 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-13240-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥14,100
71071-13241-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥14,100
71071-13241-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥14,100
71071-13260-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L ¥14,100
71071-13261-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥14,100
71071-13261-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# DX,L ¥14,100
71071-13320-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥20,000
71071-13320-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥20,000
71071-13360-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
CE10# L,XL ¥20,100
71071-13360-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
CE106,108,109,EE103,104 L,XL ¥20,100
71071-13360-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE103 XL;EE102 3FC;CE107,EE104 DXJ,L ¥20,100
71071-13360-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE102 5F;AE109,CE107,EE103 DX ¥20,100
71071-1K410-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1995-08 ended
AE100,104,CE100,104,106,109,EE101,103,107 LX,XL ¥20,100
71071-1K410-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-09 → 1995-08 ended
CE108,EE104,108 ¥20,100
71071-1K410-J0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥20,100
71071-1K410-K0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥20,100
71071-1K420-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥23,700
71071-1K420-J0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥23,700
71071-1K420-K0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥23,700
71071-1K421-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥23,700
71071-1K421-K1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥23,700
71071-1K450-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1992-04 ended
AE101 GT ¥27,700
71071-1K451-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-04 → 1992-05 ended
AE101 GT —
71071-1K451-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-05 → 1993-05 ended
AE101 GT ¥27,600
71071-1K460-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥16,100
71071-1K800-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥20,100
71071-1L330-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE101 GT ¥27,700
71072-1H110-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥14,200
71072-1H110-K0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥14,200
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-13160-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L ¥18,700
71074-13161-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥18,800
71074-13161-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# DX,L ¥18,800
71074-13170-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD ¥18,700
71074-13171-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥18,800
71074-13171-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥18,800
71074-13280-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
CE10# L,XL ¥25,000
71074-13280-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
CE106,108,109,EE103,104 L,XL ¥25,000
71074-13280-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE103 XL;EE102 3FC;CE107,EE104 DXJ,L ¥25,000
71074-13280-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE102 5F;AE109,CE107,EE103 DX ¥25,000
71074-1H030-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-09 → 1995-05 ended
CE108,EE104,108 ¥24,900
71074-1H030-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,106,109,EE101,103,107 LX,XL ¥24,900
71074-1H030-J0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥24,900
71074-1H030-K0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥24,900
71074-1H031-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1997-04 → 1997-05 ended
CE106,109,EE103 XL ¥25,000
71074-1H031-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1995-05 → 1997-05 ended
CE108,EE104 ¥25,000
71074-1H031-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1995-05 → 1997-04 ended
CE106,109,EE103 XL ¥25,000
71074-1H040-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥29,800
71074-1H040-J0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥29,800
71074-1H040-K0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥29,800
71074-1H050-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H050-J0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H050-K0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H051-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H051-K1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H060-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥34,800
71074-1H060-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE101 SEG ¥34,800
71074-1H060-J0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE101 SEG ¥34,700
71074-1H060-K0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥34,800
71074-1H060-K0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE101 SEG ¥34,800
71074-1H070-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1992-05 ended
AE101 GT ¥34,800
71074-1H070-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-05 → 1993-05 ended
AE101 GT ¥34,800
71074-1H071-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE101 GT ¥34,800
71074-1H080-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥20,100
71074-1H150-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H150-K0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥29,800
71074-1H340-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥24,900
71107A — Holder Sub-assy, Front Seat Armrest, RH
71107-12010 note Holder Sub-assy, Front Seat Armrest, RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥1,600
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-13200-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD —
71420-13201-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥45,900
71420-13201-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1997-04 → 2002-06 ended
CE106,107,EE102 CTD,DXJ ¥45,900
71420-13220-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L —
71420-13221-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥45,900
71420-13221-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1997-04 → 1998-04 ended
AE109,CE10#,EE10# DX,L ¥45,900
71420-13221-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
AE109,CE105,107,EE102,103 DX ¥45,900
71420-13250-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥52,200
71420-13250-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥52,200
71420-13430-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE102 3FC;CE105,107 DXJ,XL ¥53,200
71420-13430-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1997-04 → 1998-04 ended
CE10#,EE103,104 L,XL ¥53,200
71420-13430-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-04 → 2000-08 ended
CE105,107 XL ¥53,200
71420-13430-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-04 → 2000-08 ended
EE103 XL ¥53,200
71420-13430-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE103;EE102 5F;AE109,CE107 DX ¥53,200
71420-13540-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
CE102,EE104 ¥45,900
71420-13550-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
CE102,EE104 ¥53,200
71420-1E530-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71420-1E530-J0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71420-1E530-K0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71420-1E531-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥56,200
71420-1E531-K1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥56,200
71420-1E540-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1992-04 ended
AE101 SEG —
71420-1E540-J0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1992-04 ended
AE101 SEG —
71420-1E540-K0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1992-04 ended
AE101 SEG —
71420-1E541-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-04 → 1995-05 ended
AE101 SEG ¥60,100
71420-1E541-J0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-04 → 1993-05 ended
AE101 SEG ¥60,100
71420-1E541-K0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-04 → 1995-05 ended
AE101 SEG ¥60,100
71420-1E560-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1995-08 ended
AE100,104,CE100,104,106,109,EE101,103,107 LX,XL —
71420-1E560-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-09 → 1995-08 ended
CE108,EE104,108 —
71420-1E560-J0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX —
71420-1E560-K0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX —
71420-1E570-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71420-1E570-J0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE —
71420-1E570-K0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71420-1E580-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1992-04 ended
AE101 GT ¥61,300
71420-1E581-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-04 → 1993-05 ended
AE101 GT ¥61,300
71420-1E582-B2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE101 GT ¥41,000
71420-1E590-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-13200-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 DX,L —
71440-13201-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L ¥50,400
71440-13201-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1998-04 → 2000-08 ended
CE107 5F DX ¥50,400
71440-13201-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
CE107 4FC DX;AE109,CE102,105,106,108,109,EE10# DX,L ¥50,400
71440-13202-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
AE109,CE10#,EE10# DX,L ¥50,400
71440-13210-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-09 → 1994-01 ended
CE106,EE106 CTD —
71440-13211-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1994-01 → 1997-04 ended
CE106,EE102 CTD,DXJ ¥50,400
71440-13211-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
CE106,107,EE102 CTD,DXJ ¥50,400
71440-13212-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
CE107,EE102 5F DXJ ¥50,400
71440-13460-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
CE102,105,106,107,109 L,XL ¥69,600
71440-13460-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
CE108,EE104 ¥69,600
71440-13460-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1997-04 → 2000-08 ended
EE103 XL ¥69,600
71440-13461-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE102 5F DX ¥69,600
71440-13461-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
EE102 3FC DX;CE105,EE102 DXJ,XL;AE109,CE102,107,EE103 ¥69,600
71440-1K270-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71440-1K270-J0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71440-1K270-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL —
71440-1K271-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥60,600
71440-1K271-K1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥60,600
71440-1K280-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE101 SEG —
71440-1K280-J0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE101 SEG —
71440-1K280-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE101 SEG —
71440-1K300-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-09 → 1995-05 ended
CE108,EE104,108 —
71440-1K300-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,106,109,EE101,103,107 LX,XL —
71440-1K300-J0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX —
71440-1K300-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX —
71440-1K301-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥55,700
71440-1K301-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1995-08 → 1997-05 ended
CE108,EE104 ¥55,700
71440-1K310-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71440-1K310-J0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE —
71440-1K310-K0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE —
71440-1K320-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1992-05 ended
AE101 GT ¥66,000
71440-1K320-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-05 → 1993-05 ended
AE101 GT ¥66,000
71440-1K321-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-05 → 1995-05 ended
AE101 GT ¥66,000
71440-1K330-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX —
71506 — Pad Sub-assy, Front Seatback W/Frame, LH
71506-12110 note Pad Sub-assy, Front Seatback W/Frame, LH
1991-06 → 2000-08 ended
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,104,EE101 DX,LX,XE ¥29,200
71506-12110 note Pad Sub-assy, Front Seatback W/Frame, LH
1991-09 → 2000-08 ended
CE108,EE104,108 ¥29,200
71506-12110 note Pad Sub-assy, Front Seatback W/Frame, LH
1998-04 → 2000-08 ended
CE102 ¥29,200
71506-12110 note Pad Sub-assy, Front Seatback W/Frame, LH
2000-08 → 2002-06 ended
CE105,107 XL ¥29,200
71506-12110 note Pad Sub-assy, Front Seatback W/Frame, LH
2000-08 → 2002-06 ended
EE102 3FC;CE102,107 DXJ,L ¥29,200
71506-12120 Pad Sub-assy, Front Seatback W/Frame, LH
1991-06 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥29,000
71506-12130 Pad Sub-assy, Front Seatback W/Frame, LH
1991-06 → 1995-05 ended
AE101 GT ¥29,200
71506-13030 Pad Sub-assy, Front Seatback W/Frame, LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥30,400
71506-13031 Pad Sub-assy, Front Seatback W/Frame, LH
2000-08 → 2002-06 ended
AE109,CE10#,EE10# DX,DXJ,L ¥30,400
71506-13040 note Pad Sub-assy, Front Seatback W/Frame, LH
2000-08 → 2002-06 ended
EE103;AE109,CE102,107,EE102,104 DX,DXJ,L ¥29,600
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-12760 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
AE109,CE10#,EE102,103 ¥12,200
71511-12760 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1998-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥12,200
71511-12760 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-04 → 2000-08 ended
AE109,CE10#,EE102,103 ¥12,200
71511-12780 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE101 GT ¥13,300
71511-12800 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥13,400
71511-12850 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥17,800
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71052-13010 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
CE102 ¥21,500
71052-13010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1998-04 → 2002-06 ended
EE104 ¥21,500
71511-12760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
AE109,CE105,107,EE102,103 ¥12,200
71511-12760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1991-06 → 1998-04 ended
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥12,200
71511-12760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1998-04 → 2000-08 ended
AE109,CE105,107,EE102,103 ¥12,200
71511-12780 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE101 GT ¥13,300
71511-12800 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥13,400
71511-13050 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1998-04 → 2000-08 ended
CE102 —
71554 — Pad, Front Seatback, C
71554-12130 note Pad, Front Seatback, C
1991-06 → 2000-08 ended
AE100,101,104,CE100,104,EE101;CE105,106,107,109,EE103,107 XL ¥940
71554-12130 note Pad, Front Seatback, C
1991-09 → 2002-06 ended
CE108,EE104,108 ¥940
71554-12130 note Pad, Front Seatback, C
1998-04 → 2002-06 ended
CE102 ¥940
71554-12130 note Pad, Front Seatback, C
2000-08 → 2002-06 ended
CE105 XL;AE109,CE107,EE102,103 ¥940
71554-13020 Pad, Front Seatback, C
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 CTD,DX,DXJ,L ¥940
71554-13020 Pad, Front Seatback, C
2000-08 → 2002-06 ended
AE109,CE10#,EE10# DX,DXJ,L ¥940
71570 — Cushion Assy, Side Seat, Front
71570-12010-B0 note Cushion Assy, Side Seat, Front
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥13,900
71570-12010-K0 note Cushion Assy, Side Seat, Front
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥13,900
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71620-12240 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1991-06 → 1991-11 ended
AE10#,CE10#,EE10# ¥19,000
71620-12280 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1991-11 → 2000-08 ended
AE10#,CE10#,EE10# ¥20,300
71620-12280 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-08 → 2002-06 ended
AE109,CE10#,EE10# ¥20,300
71832D — Cover, Front Seat Hinge, LH
71831-16010 Cover, Front Seat Hinge, LH
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥210
71831-16010 Cover, Front Seat Hinge, LH
2000-08 → 2002-06 ended
AE109,CE10#,EE10# ¥210
71910A — Headrest Assy, Front Seat
71910-1A260-16 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE101 SEG ¥29,700
71910-1A260-16 note Headrest Assy, Front Seat
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥29,700
71910-1A260-J0 note Headrest Assy, Front Seat
1991-06 → 1993-05 ended
AE101 SEG ¥29,700
71910-1A260-K1 note Headrest Assy, Front Seat
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥29,700
71910-1A260-K1 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE101 SEG ¥29,700
71910-1A270-C0 note Headrest Assy, Front Seat
1991-06 → 1992-05 ended
AE101 GT ¥29,800
71910-1A270-C1 note Headrest Assy, Front Seat
1992-05 → 1993-05 ended
AE101 GT ¥29,800
71910-1A300-16 note Headrest Assy, Front Seat
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,700
71910-1A300-J0 note Headrest Assy, Front Seat
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,700
71910-1A300-K1 note Headrest Assy, Front Seat
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,700
71910-1A301-B0 note Headrest Assy, Front Seat
1993-08 → 1995-05 ended
AE100,104 4FC SEL ¥27,400
71910-1A301-B0 note Headrest Assy, Front Seat
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥27,400
71910-1A301-K2 note Headrest Assy, Front Seat
1993-08 → 1995-05 ended
AE100,104 4FC SEL ¥27,400
71910-1A301-K2 note Headrest Assy, Front Seat
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥27,400
71910-1A310-P0 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥14,100
71910-1A320-B1 note Headrest Assy, Front Seat
1993-08 → 1995-05 ended
AE100 3FC LX ¥21,600
71910-1A320-B1 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE100,104,CE100,104,106,109,EE101,103,107 LX,XL ¥21,600
71910-1A320-B1 note Headrest Assy, Front Seat
1991-09 → 1995-05 ended
CE108,EE104,108 ¥21,600
71910-1A320-J1 note Headrest Assy, Front Seat
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥21,600
71910-1A320-K1 note Headrest Assy, Front Seat
1993-08 → 1995-05 ended
AE100 3FC LX ¥21,600
71910-1A320-K1 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥21,600
71910-1A321-B2 note Headrest Assy, Front Seat
1995-05 → 1997-04 ended
CE108,EE104 ¥27,600
71910-1A321-B2 note Headrest Assy, Front Seat
1995-05 → 1997-04 ended
CE106,109,EE103 XL ¥27,600
71910-1A321-B4 note Headrest Assy, Front Seat
1997-04 → 2000-08 ended
CE10#,EE103,104 L,XL ¥27,600
71910-1A321-B4 note Headrest Assy, Front Seat
2000-08 → 2002-06 ended
CE105 XL;EE102 5F;AE109,CE102,107,EE103,104 DX,L,XL ¥27,600
71910-1A330-B0 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥27,700
71910-1A330-J0 note Headrest Assy, Front Seat
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥27,700
71910-1A330-K0 note Headrest Assy, Front Seat
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 XE ¥27,700
71910-1A350-B0 note Headrest Assy, Front Seat
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥27,400
71910-1A350-K0 note Headrest Assy, Front Seat
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥27,400
71910-1A360-B0 note Headrest Assy, Front Seat
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥21,600
71910-1A620-C0 note Headrest Assy, Front Seat
1993-05 → 1995-05 ended
AE101 GT ¥28,200
71910-1A640-B0 note Headrest Assy, Front Seat
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥21,600
71910-1A640-K0 note Headrest Assy, Front Seat
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥21,600
71931 — Support, Front Seat Headrest
71930-12070-B0 note Support, Front Seat Headrest
1991-09 → 1995-08 ended
CE106,109,EE103,107 XL;AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE ¥1,240
71930-12070-B0 note Support, Front Seat Headrest
1991-09 → 1995-08 ended
CE108,EE104,108 ¥1,240
71930-12070-B0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100 3FC LX ¥1,240
71930-12070-B0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥1,240
71930-12070-B0 note Support, Front Seat Headrest
1991-06 → 1991-09 ended
AE10#,CE100,EE101 SEG,SEL,XE ¥1,240
71930-12070-J0 note Support, Front Seat Headrest
1991-09 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,240
71930-12070-J0 note Support, Front Seat Headrest
1991-06 → 1991-09 ended
AE10#,CE100,EE101 SEG,SEL,XE ¥1,240
71930-12070-K0 note Support, Front Seat Headrest
1991-09 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,240
71930-12070-K0 note Support, Front Seat Headrest
1991-06 → 1991-09 ended
AE10#,CE100,EE101 SEG,SEL,XE ¥1,240
71930-12070-K0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥1,240
71930-12070-K0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100 3FC LX ¥1,240
71930-12080-B0 note Support, Front Seat Headrest
1991-06 → 1995-05 ended
AE101 GT ¥1,260
71930-32020-B0 note Support, Front Seat Headrest
1995-08 → 1997-05 ended
CE108,EE104 ¥1,260
71930-32020-B0 note Support, Front Seat Headrest
1995-08 → 1997-04 ended
CE106,109,EE103 XL ¥1,260
71930-44010-B1 note Support, Front Seat Headrest
1997-04 → 2000-08 ended
CE10#,EE103,104 L,XL ¥1,240
71930-44010-B1 note Support, Front Seat Headrest
2000-08 → —
CE105 XL;EE102 5F;AE109,CE102,107,EE103,104 DX,L,XL ¥1,240
71931-12040-B0 note Support, Front Seat Headrest
1991-09 → 1995-08 ended
CE108,EE104,108 ¥920
71931-12040-B0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥920
71931-12040-B0 note Support, Front Seat Headrest
1991-06 → 1995-08 ended
CE106,109,EE103,107 XL;AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE ¥920
71931-12040-B0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100 3FC LX ¥920
71931-12040-J0 note Support, Front Seat Headrest
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥920
71931-12040-K0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100 3FC LX ¥920
71931-12040-K0 note Support, Front Seat Headrest
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥920
71931-12040-K0 note Support, Front Seat Headrest
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥920
71931-12060-B0 note Support, Front Seat Headrest
1991-06 → 1995-05 ended
AE101 GT ¥920
71931-32020-B0 note Support, Front Seat Headrest
1995-08 → 2000-08 ended
CE102,105,106,107,109,EE103 L,XL ¥920
71931-32020-B0 note Support, Front Seat Headrest
1995-08 → —
CE108,EE104 ¥920
71931-32020-B0 note Support, Front Seat Headrest
2000-08 → —
CE105 XL;EE102 5F;AE109,CE102,107,EE103 DX,L,XL ¥920
72658C — Knob, Front Seat Lock Handle
72658-20040-K0 note Knob, Front Seat Lock Handle
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥740
72658-20040-P0 note Knob, Front Seat Lock Handle
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
