Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

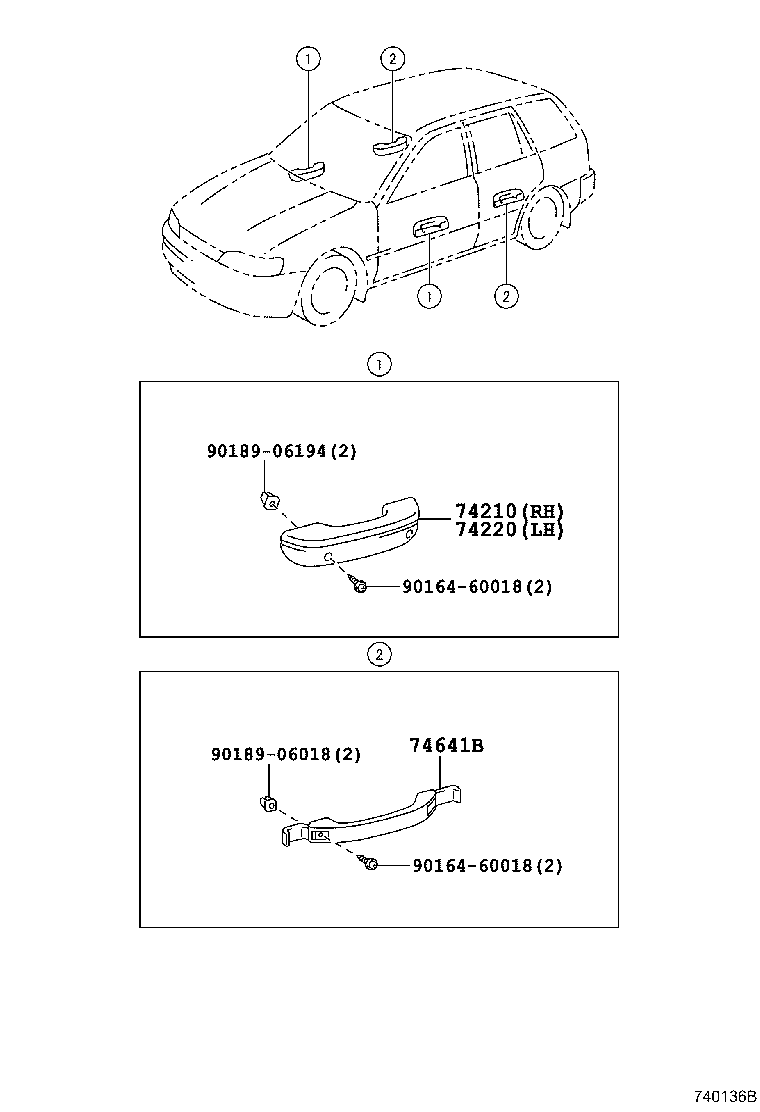

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74210 — Armrest Assy, Front, RH | ||||
| 74210-12220-B0 note |
Armrest Assy, Front, RH
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥4,560 | |
| 74210-12220-B0 note |
Armrest Assy, Front, RH
1994-01 → 2000-08
ended
|
AE109,CE106,108,109,EE102,103,104 DX,L,XL | ¥4,560 | |
| 74210-12220-B0 note |
Armrest Assy, Front, RH
1998-04 → 2000-08
ended
|
CE10# DX,L,XL | ¥4,560 | |
| 74210-12220-K0 note |
Armrest Assy, Front, RH
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥7,400 | |
| 74210-16060-K0 note |
Armrest Assy, Front, RH
1991-06 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,410 | |
| 74210-16060-P0 note |
Armrest Assy, Front, RH
1991-06 → 2000-08
ended
|
AE100,104,109,CE10#,EE10# DX,L,LX,XL | ¥3,410 | |
| 74210-16060-W3 note |
Armrest Assy, Front, RH
1991-06 → 1993-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,420 | |
| 74210-16120-B1 note |
Armrest Assy, Front, RH
2000-08 → —
|
AE109,CE10#,EE10# | ¥3,420 | |
| 74220 — Armrest Assy, Front, LH | ||||
| 74210-16060-K0 note |
Armrest Assy, Front, LH
1991-06 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,410 | |
| 74210-16060-P0 note |
Armrest Assy, Front, LH
1991-06 → 2000-08
ended
|
AE100,104,109,CE10#,EE10# DX,L,LX,XL | ¥3,410 | |
| 74210-16060-W3 note |
Armrest Assy, Front, LH
1991-06 → 1993-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,420 | |
| 74220-12150-B0 note |
Armrest Assy, Front, LH
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥7,500 | |
| 74220-12150-K0 note |
Armrest Assy, Front, LH
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥7,500 | |
| 74220-16100-B1 note |
Armrest Assy, Front, LH
2000-08 → —
|
AE109,CE10#,EE10# | ¥3,420 | |
| 74641B — Grip, Door Assist | ||||
| 74641-16010-23 note |
Grip, Door Assist
1991-09 → 1997-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 DX,L,XL | ¥680 | |
| 74641-16010-23 note |
Grip, Door Assist
1991-09 → 1997-04
ended
|
CE106,EE102,106 CTD,DXJ | ¥680 | |
| 74641-16010-P0 note |
Grip, Door Assist
1997-04 → 2000-08
ended
|
AE109,CE10#,EE10# DX,L,XL | ¥680 | |
| 74641-16010-P0 note |
Grip, Door Assist
1997-04 → 2000-08
ended
|
CE106,107,EE102 CTD,DXJ | ¥680 | |
| 74641-16010-P0 note |
Grip, Door Assist
2000-08 → —
|
AE109,CE10#,EE10# | ¥680 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
