Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

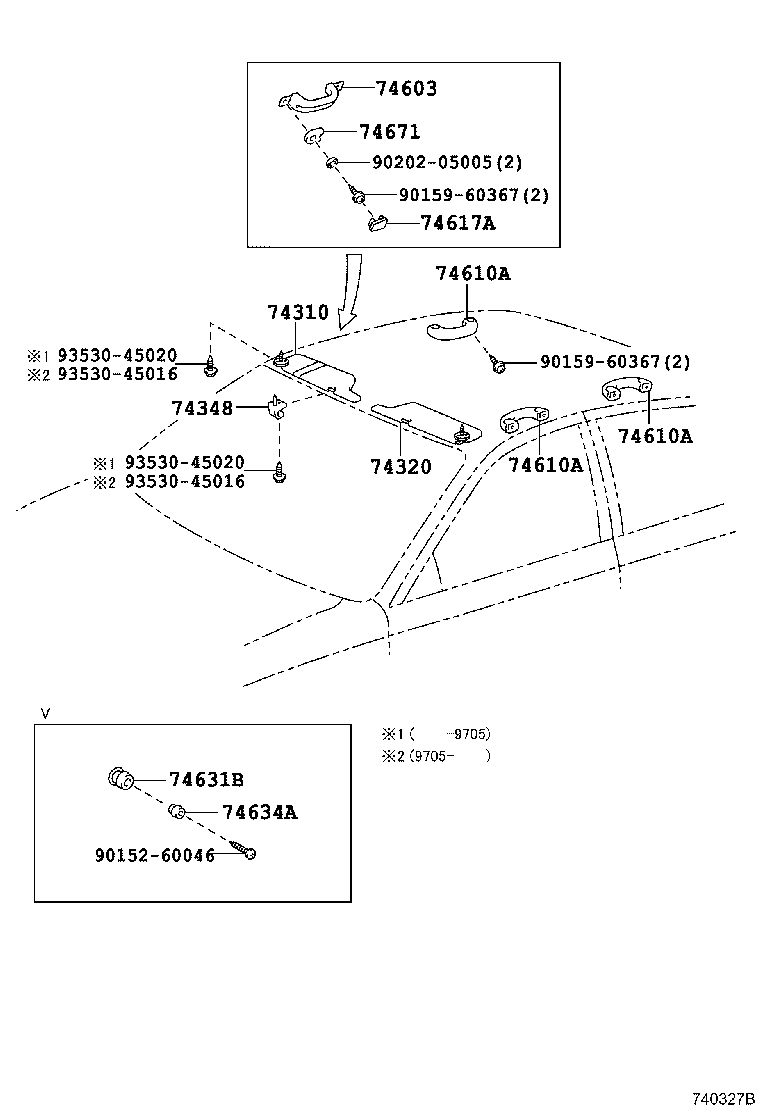

Exploded illustration 740327B 74603 — GRIP SUB-ASSY, ASSIST, FRONT (3 parts) 74671 — SUPPORT, ASSIST GRIP (3 parts) 9020205005 — not listed in this catalogue 9015960367 — not listed in this catalogue 74617A — PLUG, ASSIST GRIP (3 parts) 74310 — VISOR ASSY, RH (43 parts) 9353045020 — not listed in this catalogue 9353045016 — not listed in this catalogue 9353045016 — not listed in this catalogue 9353045020 — not listed in this catalogue 74348 — HOLDER, VISOR (11 parts) 74320 — VISOR ASSY, LH (22 parts) 74610A — GRIP SUB-ASSY, ASSIST (21 parts) 74610A — GRIP SUB-ASSY, ASSIST (21 parts) 9015960367 — not listed in this catalogue 74610A — GRIP SUB-ASSY, ASSIST (21 parts) 74631B — HOOK, COAT (4 parts) 74634A — COLLAR, COAT HOOK (3 parts) 9015260046 — not listed in this catalogue
740327B · 11 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-13100-B0 note Visor Assy, RH
1991-09 → 1995-06 ended
CE106,EE102,106 CTD,DXJ ¥2,830
74310-13101-B0 note Visor Assy, RH
1995-06 → 1996-10 ended
CE106,EE102 CTD,DXJ ¥2,820
74310-13110-B0 note Visor Assy, RH
1991-09 → 1995-06 ended
CE106,EE102,106 CTD,DXJ ¥2,830
74310-13111-B0 note Visor Assy, RH
1995-06 → 1996-10 ended
CE106,EE102 CTD,DXJ ¥2,820
74310-13120-B0 note Visor Assy, RH
1991-09 → 1995-06 ended
CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥3,040
74310-13121-B0 note Visor Assy, RH
1995-06 → 1996-05 ended
CE10#,EE10# DX,L,XL ¥3,040
74310-13121-B0 note Visor Assy, RH
1996-05 → 1996-10 ended
AE109,CE106,109,EE102,103 DX,XL ¥3,040
74310-13130-B0 note Visor Assy, RH
1991-09 → 1995-06 ended
CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥3,040
74310-13131-B0 note Visor Assy, RH
1995-06 → 1996-05 ended
CE10#,EE10# DX,L,XL ¥3,040
74310-13131-B0 note Visor Assy, RH
1996-05 → 1996-10 ended
CE108,EE104 ¥3,040
74310-13131-B0 note Visor Assy, RH
1996-05 → 1996-10 ended
AE109,CE106,109,EE102,103 DX,XL ¥3,040
74310-13220-B0 note Visor Assy, RH
1997-04 → 1997-08 ended
AE109,CE10#,EE10# ¥3,040
74310-13220-B0 note Visor Assy, RH
1996-10 → 1997-04 ended
CE108,EE104 ¥3,040
74310-13221-B0 note Visor Assy, RH
1997-08 → 1998-04 ended
AE109,CE10#,EE10# ¥3,050
74310-13221-B2 note Visor Assy, RH
1998-04 → —
AE109,CE10#,EE10# ¥3,040
74310-13230-B0 note Visor Assy, RH
1996-10 → 1998-04 ended
AE109,CE106,109,EE102,103 DX,XL ¥3,060
74310-13230-B2 note Visor Assy, RH
1998-04 → —
AE109,CE105,107,EE102,103 DX,XL ¥3,050
74310-13240-B0 note Visor Assy, RH
1997-08 → 1998-04 ended
CE106,EE102 CTD,DXJ ¥2,830
74310-13240-B3 note Visor Assy, RH
1998-04 → —
CE107,EE102 DXJ ¥2,820
74310-13250-B0 note Visor Assy, RH
1996-10 → 1997-08 ended
CE106,EE102 CTD,DXJ ¥2,820
74310-13251-B0 note Visor Assy, RH
1997-08 → 1998-04 ended
CE106,EE102 CTD,DXJ ¥2,830
74310-13251-B2 note Visor Assy, RH
1998-04 → —
CE107,EE102 DXJ ¥2,820
74310-13260-B0 note Visor Assy, RH
1996-10 → 1997-08 ended
AE109,CE10#,EE10# DX,L,XL ¥3,040
74310-1A290-K1 note Visor Assy, RH
1991-06 → 1993-05 ended
AE10#,CE100,104 SEG,SEL ¥3,340
74310-1A290-S3 note Visor Assy, RH
1991-06 → 1993-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,340
74310-1A290-W5 note Visor Assy, RH
1991-06 → 1993-05 ended
AE10#,CE100,104 SEG,SEL ¥3,340
74310-1A300-K1 note Visor Assy, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥3,250
74310-1A300-S3 note Visor Assy, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX,XE ¥3,250
74310-1A300-W5 note Visor Assy, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥3,250
74310-1A340-K1 note Visor Assy, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥3,040
74310-1A340-S3 note Visor Assy, RH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX,XE ¥3,040
74310-1A340-W5 note Visor Assy, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥3,040
74310-1A350-K1 note Visor Assy, RH
1991-06 → 1993-05 ended
AE10#,CE100,104 SEG,SEL ¥3,560
74310-1A350-S3 note Visor Assy, RH
1991-06 → 1993-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,560
74310-1A350-W5 note Visor Assy, RH
1991-06 → 1993-05 ended
AE10#,CE100,104 SEG,SEL ¥3,560
74310-1A790-B0 note Visor Assy, RH
1993-08 → 1995-05 ended
AE100 3FC LX ¥3,550
74310-1A790-B0 note Visor Assy, RH
1993-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,550
74310-1A790-K0 note Visor Assy, RH
1993-08 → 1995-05 ended
AE100 3FC LX ¥3,550
74310-1A790-K0 note Visor Assy, RH
1993-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥3,550
74310-1A800-B0 note Visor Assy, RH
1993-08 → 1995-05 ended
AE100 3FC LX ¥3,550
74310-1A800-B0 note Visor Assy, RH
1993-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,550
74310-1A800-K0 note Visor Assy, RH
1993-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥3,550
74310-1A800-K0 note Visor Assy, RH
1993-08 → 1995-05 ended
AE100 3FC LX ¥3,550
74320 — Visor Assy, LH
74320-12820-B0 note Visor Assy, LH
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥3,640
74320-12890-K1 note Visor Assy, LH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥2,630
74320-12890-S3 note Visor Assy, LH
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX,XE ¥2,620
74320-12890-W5 note Visor Assy, LH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥2,620
74320-13060-B0 note Visor Assy, LH
1991-09 → 1998-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥2,630
74320-13060-B0 note Visor Assy, LH
1992-05 → 1994-01 ended
CE106,EE106 CTD ¥2,630
74320-13060-B2 note Visor Assy, LH
1998-04 → —
AE109,CE10#,EE10# DX,L,XL ¥2,590
74320-13160-B0 note Visor Assy, LH
1997-04 → 1997-08 ended
AE109,CE10#,EE10# ¥2,820
74320-13160-B0 note Visor Assy, LH
1996-10 → 1997-04 ended
CE108,EE104 ¥2,820
74320-13161-B0 note Visor Assy, LH
1997-08 → 1998-04 ended
AE109,CE10#,EE10# ¥2,830
74320-13161-B2 note Visor Assy, LH
1998-04 → —
AE109,CE10#,EE10# ¥2,820
74320-1A010-K1 note Visor Assy, LH
1991-06 → 1993-05 ended
AE10#,CE100,104 SEG,SEL ¥3,140
74320-1A010-S3 note Visor Assy, LH
1991-06 → 1993-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,140
74320-1A010-W5 note Visor Assy, LH
1991-06 → 1993-05 ended
AE10#,CE100,104 SEG,SEL ¥3,140
74320-1A340-B0 note Visor Assy, LH
1993-05 → 1994-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,150
74320-1A340-B0 note Visor Assy, LH
1993-08 → 1995-05 ended
AE100 3FC LX ¥3,150
74320-1A340-K0 note Visor Assy, LH
1993-08 → 1995-05 ended
AE100 3FC LX ¥3,140
74320-1A340-K0 note Visor Assy, LH
1993-05 → 1994-05 ended
AE10#,CE100,104 SEG,SEL ¥3,140
74320-1A520-B0 note Visor Assy, LH
1994-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥3,640
74320-1A520-B0 note Visor Assy, LH
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥3,640
74320-1A520-K0 note Visor Assy, LH
1994-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥3,640
74320-1A520-K0 note Visor Assy, LH
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥3,640
74348 — Holder, Visor
74348-13010-B0 note Holder, Visor
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥800
74348-13010-B0 note Holder, Visor
1991-09 → 1998-04 ended
CE106,EE102,106 CTD,DXJ ¥800
74348-13010-B0 note Holder, Visor
1997-04 → 1998-04 ended
AE109,CE10#,EE10# ¥800
74348-13010-B1 note Holder, Visor
1998-04 → —
CE107,EE102 DXJ ¥800
74348-13010-B1 note Holder, Visor
1998-04 → —
AE109,CE10#,EE10# ¥800
74348-33010-J0 note Holder, Visor
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥800
74348-33010-K0 note Holder, Visor
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥800
74348-33010-S3 note Holder, Visor
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 ¥800
74348-33020-B0 note Holder, Visor
1992-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥910
74348-33020-J0 note Holder, Visor
1992-05 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥910
74348-33020-K0 note Holder, Visor
1992-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥910
74603 — Grip Sub-assy, Assist, Front
74603-95800-J0 note Grip Sub-assy, Assist, Front
1991-06 → 1993-05 ended
AE100,104 4FC SEL ¥2,230
74603-95800-K0 note Grip Sub-assy, Assist, Front
1991-06 → 1995-05 ended
AE100,104 4FC SEL ¥2,230
74603-95800-S3 note Grip Sub-assy, Assist, Front
1991-06 → 1995-05 ended
AE100,104 4FC SEL ¥2,230
74610A — Grip Sub-assy, Assist
74610-12060-K1 note Grip Sub-assy, Assist
1991-06 → 1992-04 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,780
74610-12060-S3 note Grip Sub-assy, Assist
1991-06 → 1992-04 ended
AE10#,CE100,104,EE101 ¥2,350
74610-12060-S3 note Grip Sub-assy, Assist
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥2,350
74610-12060-S3 note Grip Sub-assy, Assist
1991-09 → 1992-05 ended
CE106,108,109,EE107,108 L,XL ¥2,350
74610-12060-W5 note Grip Sub-assy, Assist
1991-06 → 1992-04 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,780
74610-12090-B0 note Grip Sub-assy, Assist
1992-05 → 1998-04 ended
CE108,EE108 ¥2,360
74610-12090-B0 note Grip Sub-assy, Assist
1994-01 → 1998-04 ended
EE104 ¥2,360
74610-12090-B0 note Grip Sub-assy, Assist
1992-05 → 1998-04 ended
CE106,109,EE103,107 XL ¥2,360
74610-12090-B0 note Grip Sub-assy, Assist
1992-05 → 1998-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥2,360
74610-12090-B0 note Grip Sub-assy, Assist
1992-04 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,360
74610-12090-B2 note Grip Sub-assy, Assist
1998-04 → 2001-10 ended
AE109,CE105,107,EE102,103 DX,XL ¥2,360
74610-12090-B2 note Grip Sub-assy, Assist
1998-04 → 2001-10 ended
CE102,EE104 ¥2,360
74610-12090-B2 note Grip Sub-assy, Assist
1998-04 → 2001-10 ended
CE102 ¥2,360
74610-12090-B2 note Grip Sub-assy, Assist
1998-04 → 2001-10 ended
EE103 XL ¥2,360
74610-12090-B2 note Grip Sub-assy, Assist
1998-04 → 2001-10 ended
EE104 ¥2,360
74610-12090-B2 note Grip Sub-assy, Assist
1998-04 → 2001-10 ended
CE105,107 XL ¥2,360
74610-12090-J0 note Grip Sub-assy, Assist
1992-04 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥2,360
74610-12090-K0 note Grip Sub-assy, Assist
1992-04 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥2,360
74611-20030-B3 note Grip Sub-assy, Assist
2001-10 → —
AE109,CE10#,EE10# DX,L,XL ¥1,840
74611-20030-B3 note Grip Sub-assy, Assist
2001-10 → —
CE105,107,EE103 XL ¥1,840
74611-20030-B3 note Grip Sub-assy, Assist
2001-10 → —
CE102,EE104 ¥1,840
74617A — Plug, Assist Grip
74617-22010-53 note Plug, Assist Grip
1991-06 → 1995-05 ended
AE100,104 4FC SEL ¥330
74617-22010-J0 note Plug, Assist Grip
1991-06 → 1993-05 ended
AE100,104 4FC SEL ¥330
74617-22010-K0 note Plug, Assist Grip
1991-06 → 1995-05 ended
AE100,104 4FC SEL ¥330
74631B — Hook, Coat
74631-12060-B2 note Hook, Coat
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥320
74631-12060-B2 note Hook, Coat
1992-05 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥320
74631-12060-B2 note Hook, Coat
1994-01 → 1998-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L,XL ¥320
74631-12060-B4 note Hook, Coat
1998-04 → —
AE109,CE10#,EE10# DX,L,XL ¥300
74634A — Collar, Coat Hook
74634-12010 Collar, Coat Hook
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥240
74634-12010 Collar, Coat Hook
1992-05 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥240
74634-12010 Collar, Coat Hook
1994-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 DX,L,XL ¥240
74671 — Support, Assist Grip
74671-22010-53 note Support, Assist Grip
1991-06 → 1995-05 ended
AE100,104 4FC SEL ¥460
74671-22010-J0 note Support, Assist Grip
1991-06 → 1993-05 ended
AE100,104 4FC SEL ¥460
74671-22010-K0 note Support, Assist Grip
1991-06 → 1995-05 ended
AE100,104 4FC SEL ¥460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
