Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

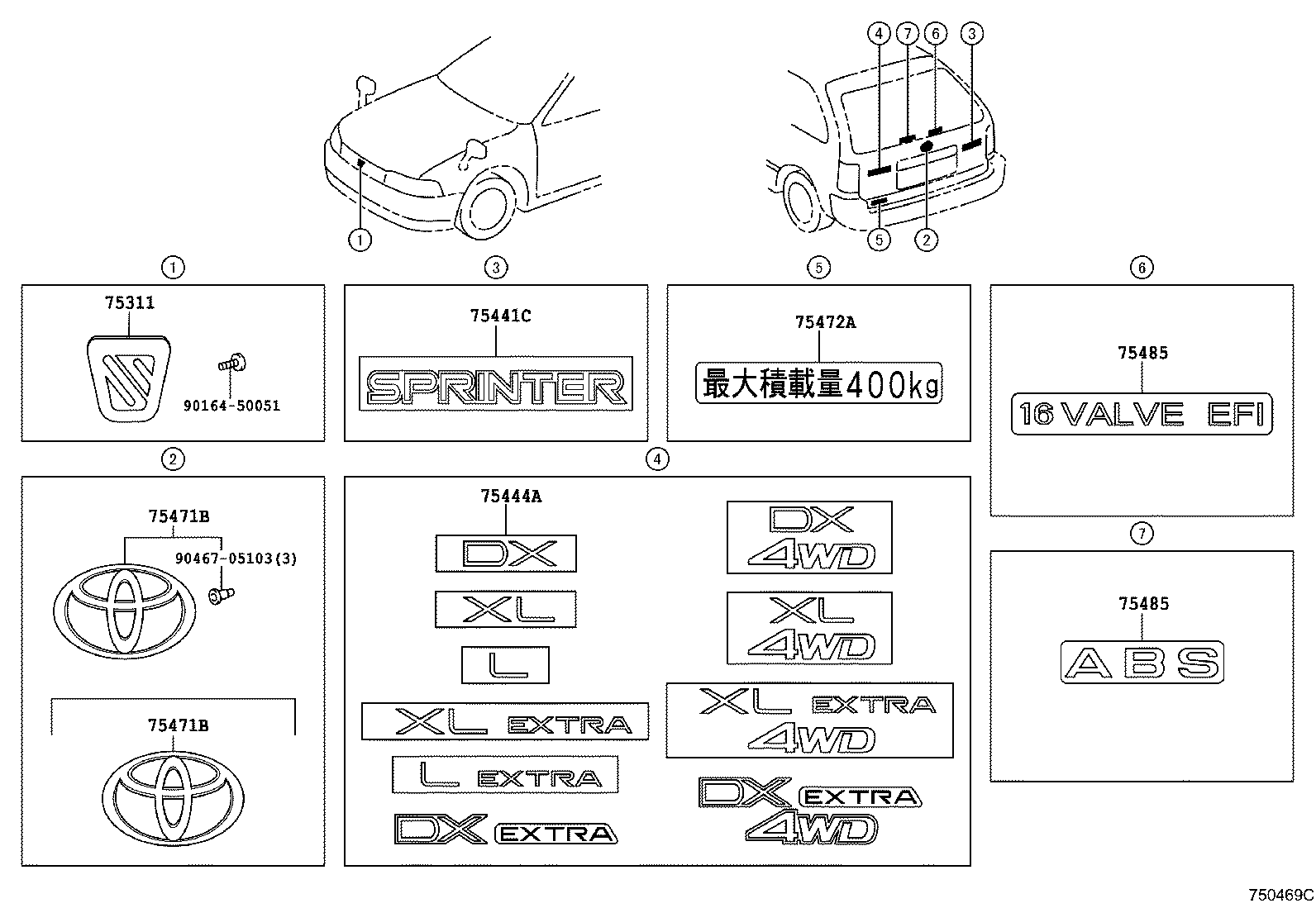

Exploded illustration 750469C 9046705103 — not listed in this catalogue 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 75441C — PLATE, BACK DOOR NAME (1 parts) 75444A — PLATE, BACK DOOR NAME, NO.4 (33 parts) 75485 — PLATE, BACK WINDOW NAME (3 parts) 75472A — PLATE, REAR BODY NAME, NO.2 (1 parts) 75485 — PLATE, BACK WINDOW NAME (3 parts) 75471B — PLATE, REAR BODY NAME, NO.1 (4 parts) 75471B — PLATE, REAR BODY NAME, NO.1 (4 parts) 9016450051 — not listed in this catalogue
750469C · 8 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75311-13080 Emblem, Radiator Grille (OR FRONT PANEL)
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥1,700
75311-13120 Emblem, Radiator Grille (OR FRONT PANEL)
1994-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥1,700
75311-1A690 Emblem, Radiator Grille (OR FRONT PANEL)
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥2,970
75311-1A790 Emblem, Radiator Grille (OR FRONT PANEL)
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,080
75441C — Plate, Back Door Name
75441-13120 note Plate, Back Door Name
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,530
75444A — Plate, Back Door Name, NO.4
75444-13030 note Plate, Back Door Name, NO.4
1991-09 → 1994-01 ended
CE106,EE106,107 CTD,DX ¥1,170
75444-13030 note Plate, Back Door Name, NO.4
1994-01 → —
CE106,107,EE102,103 DX ¥1,170
75444-13050 note Plate, Back Door Name, NO.4
1991-09 → —
CE106,107,EE103,107 XL ¥1,170
75444-13070 note Plate, Back Door Name, NO.4
1991-09 → —
CE106,EE103,107 XL ¥1,370
75444-13070 note Plate, Back Door Name, NO.4
1998-04 → —
CE107 XL ¥1,370
75444-13080 note Plate, Back Door Name, NO.4
1991-09 → —
CE102,108,EE104,108 ¥1,170
75444-13090 note Plate, Back Door Name, NO.4
1994-01 → 1997-04 ended
CE108,EE104 ¥1,370
75444-13090 note Plate, Back Door Name, NO.4
1998-04 → —
CE102 ¥1,370
75444-13090 note Plate, Back Door Name, NO.4
1991-09 → 1994-01 ended
CE108,EE108 ¥1,370
75444-13090 note Plate, Back Door Name, NO.4
1997-04 → 1998-04 ended
CE108 ¥1,370
75444-13090 note Plate, Back Door Name, NO.4
1997-04 → —
EE104 ¥1,370
75444-13120-C0 note Plate, Back Door Name, NO.4
1998-04 → —
AE109,CE105 DX ¥1,530
75444-13120-C0 note Plate, Back Door Name, NO.4
1995-08 → 1998-04 ended
AE109,CE109 DX ¥1,530
75444-13120-C0 note Plate, Back Door Name, NO.4
1991-09 → 1995-08 ended
CE109 DX ¥1,530
75444-13120-D0 note Plate, Back Door Name, NO.4
1994-01 → 1997-04 ended
AE109,CE109 DX ¥1,530
75444-13120-D0 note Plate, Back Door Name, NO.4
1997-04 → —
AE109,CE105,109 DX ¥1,530
75444-13120-D0 note Plate, Back Door Name, NO.4
1991-09 → 1994-01 ended
CE109 DX ¥1,530
75444-13140-C0 note Plate, Back Door Name, NO.4
1991-09 → 1995-08 ended
CE109 XL ¥1,530
75444-13140-C0 note Plate, Back Door Name, NO.4
1998-04 → —
CE105 XL ¥1,530
75444-13140-C0 note Plate, Back Door Name, NO.4
1995-08 → 1998-04 ended
CE109 XL ¥1,530
75444-13140-D0 note Plate, Back Door Name, NO.4
1997-04 → —
CE105,109 XL ¥1,530
75444-13140-D0 note Plate, Back Door Name, NO.4
1994-01 → 1997-04 ended
CE109 XL ¥1,530
75444-13140-D0 note Plate, Back Door Name, NO.4
1991-09 → 1994-01 ended
CE109 XL ¥1,530
75444-13160-C0 note Plate, Back Door Name, NO.4
1995-08 → 1998-04 ended
CE109 XL ¥1,900
75444-13160-C0 note Plate, Back Door Name, NO.4
1991-09 → 1995-08 ended
CE109 XL ¥1,900
75444-13160-C0 note Plate, Back Door Name, NO.4
1998-04 → —
CE105 XL ¥1,900
75444-13160-D0 note Plate, Back Door Name, NO.4
1991-09 → 1994-01 ended
CE109 XL ¥1,900
75444-13160-D0 note Plate, Back Door Name, NO.4
1997-04 → 1998-04 ended
CE109 XL ¥1,900
75444-13160-D0 note Plate, Back Door Name, NO.4
1994-01 → 1997-04 ended
CE109 XL ¥1,900
75444-13160-D0 note Plate, Back Door Name, NO.4
1998-04 → —
CE105 XL ¥1,900
75444-13340 note Plate, Back Door Name, NO.4
2000-08 → —
EE102 DX ¥1,360
75444-13350-B0 note Plate, Back Door Name, NO.4
2000-08 → —
AE109 ¥1,900
75444-13350-D0 note Plate, Back Door Name, NO.4
2000-08 → —
AE109 ¥1,900
75471B — Plate, Rear Body Name, NO.1
75471-13040 Plate, Rear Body Name, NO.1
1991-09 → 1993-11 ended
CE106,108,109,EE106,107,108 ¥2,200
75471-13041 Plate, Rear Body Name, NO.1
1993-11 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥2,200
75471-13041 Plate, Rear Body Name, NO.1
1994-01 → —
CE102,108,EE104 ¥2,200
75471-13050 Plate, Rear Body Name, NO.1
1994-01 → —
AE109,CE105,106,107,109,EE102,103 ¥1,520
75472A — Plate, Rear Body Name, NO.2
75472-13020 note Plate, Rear Body Name, NO.2
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 ¥710
75485 — Plate, Back Window Name
75485-12210 note Plate, Back Window Name
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥1,180
75485-12320 note Plate, Back Window Name
1998-04 → —
AE109,CE10#,EE10# ¥710
75485-13020 note Plate, Back Window Name
1994-01 → —
AE109,EE102,103,104 ¥1,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
