Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

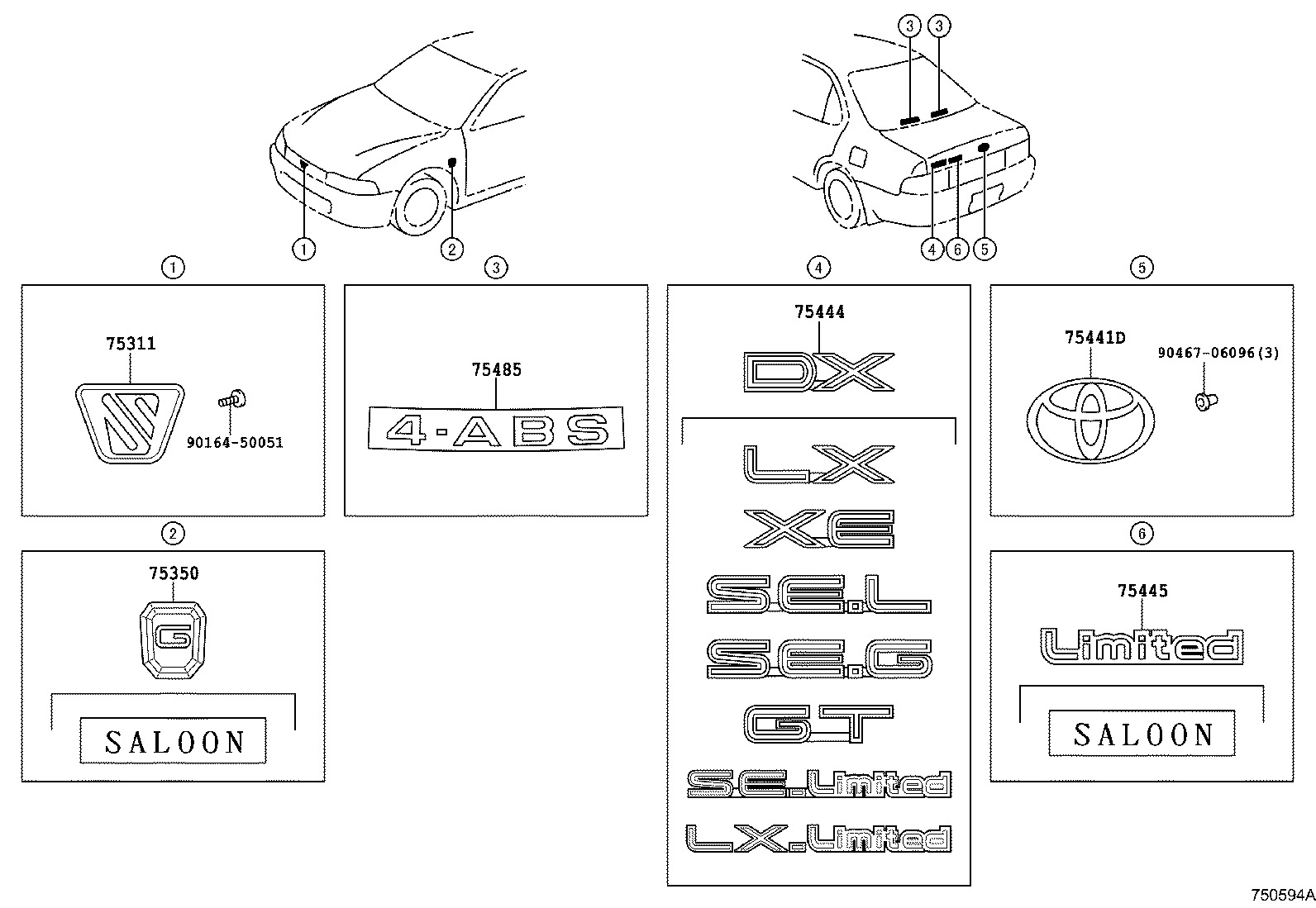

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75311 — Emblem, Radiator Grille (OR FRONT PANEL) | ||||
| 75311-13080 |
Emblem, Radiator Grille (OR FRONT PANEL)
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥1,700 | |
| 75311-13120 |
Emblem, Radiator Grille (OR FRONT PANEL)
1994-01 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104 | ¥1,700 | |
| 75311-1A690 |
Emblem, Radiator Grille (OR FRONT PANEL)
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥2,970 | |
| 75311-1A790 |
Emblem, Radiator Grille (OR FRONT PANEL)
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥3,080 | |
| 75350 — Emblem Assy, Front Fender | ||||
| 75350-12040 |
Emblem Assy, Front Fender
1991-06 → 1995-05
ended
|
AE101 SEG | ¥3,090 | |
| 75445-12190 note |
Emblem Assy, Front Fender
1993-12 → 1995-04
ended
|
AE100,104,CE100,104 SEL | ¥980 | |
| 75445-12190 note |
Emblem Assy, Front Fender
1994-08 → 1995-04
ended
|
AE100,104,CE100,104,EE101 LX | ¥980 | |
| 75441D — Plate, Luggage Compartment Door Name, NO.1 | ||||
| 75441-12690 |
Plate, Luggage Compartment Door Name, NO.1
1991-11 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,200 | |
| 75441-12740 note |
Plate, Luggage Compartment Door Name, NO.1
1993-12 → 1995-04
ended
|
AE100,104,CE100,104 SEL | ¥2,200 | |
| 75441-12740 note |
Plate, Luggage Compartment Door Name, NO.1
1994-08 → 1995-04
ended
|
AE100,104,CE100,104,EE101 LX | ¥2,200 | |
| 75441-16300 |
Plate, Luggage Compartment Door Name, NO.1
1991-06 → 1991-11
ended
|
AE10#,CE100,104,EE101 | ¥2,510 | |
| 75444 — Plate, Luggage Compartment Door, NO.4 | ||||
| 75444-12550 note |
Plate, Luggage Compartment Door, NO.4
1991-06 → 1995-05
ended
|
AE100,CE100,EE101 DX | ¥2,420 | |
| 75444-12690 note |
Plate, Luggage Compartment Door, NO.4
1991-06 → 1995-05
ended
|
AE100,104,CE100,104,EE101 XE | ¥2,420 | |
| 75444-12710 note |
Plate, Luggage Compartment Door, NO.4
1991-06 → 1991-09
ended
|
AE100,CE100 SEL | ¥2,440 | |
| 75444-12720 note |
Plate, Luggage Compartment Door, NO.4
1991-06 → 1995-05
ended
|
AE101 SEG | ¥2,660 | |
| 75444-12740 note |
Plate, Luggage Compartment Door, NO.4
1991-06 → 1995-05
ended
|
AE101 GT | ¥2,420 | |
| 75444-12760 note |
Plate, Luggage Compartment Door, NO.4
1991-09 → 1995-05
ended
|
AE100,104,CE100,104 SEL | ¥3,120 | |
| 75444-12810 note |
Plate, Luggage Compartment Door, NO.4
1991-06 → 1993-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥2,420 | |
| 75444-12830 note |
Plate, Luggage Compartment Door, NO.4
1994-08 → 1995-04
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,120 | |
| 75444-1A160 note |
Plate, Luggage Compartment Door, NO.4
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,120 | |
| 75444-1A180 note |
Plate, Luggage Compartment Door, NO.4
1993-12 → 1995-04
ended
|
AE100,104,CE100,104 SEL | ¥3,120 | |
| 75445 — Plate, Luggage Compartment Door Name, NO.5 | ||||
| 75445-12180 note |
Plate, Luggage Compartment Door Name, NO.5
1991-10 → 1993-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥1,170 | |
| 75445-12190 note |
Plate, Luggage Compartment Door Name, NO.5
1993-12 → 1995-04
ended
|
AE100,104,CE100,104 SEL | ¥980 | |
| 75445-12190 note |
Plate, Luggage Compartment Door Name, NO.5
1994-08 → 1995-04
ended
|
AE100,104,CE100,104,EE101 LX | ¥980 | |
| 75485 — Plate, Back Window Name | ||||
| 75485-12210 note |
Plate, Back Window Name
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,180 | |
| 75485-12320 note |
Plate, Back Window Name
1998-04 → —
|
AE109,CE10#,EE10# | ¥710 | |
| 75485-13020 note |
Plate, Back Window Name
1994-01 → —
|
AE109,EE102,103,104 | ¥1,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
