Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

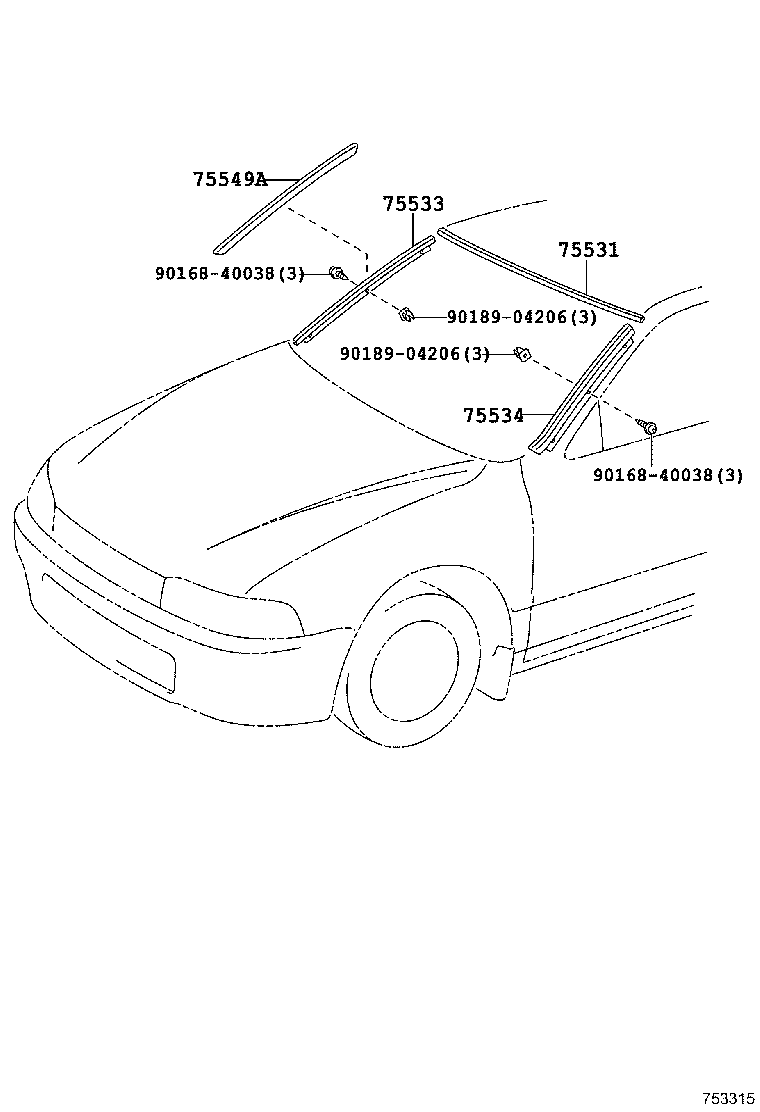

Exploded illustration 753315 75549A — MOULDING, WINDSHIELD OUTSIDE SUB (1 parts) 75533 — MOULDING, WINDSHIELD, OUTSIDE RH (3 parts) 75531 — MOULDING, WINDSHIELD, OUTER UPPER (8 parts) 9016840038 — not listed in this catalogue 9018904206 — not listed in this catalogue 9018904206 — not listed in this catalogue 9016840038 — not listed in this catalogue 75534 — MOULDING, WINDSHIELD, OUTSIDE LH (3 parts)
753315 · 4 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
75531 — Moulding, Windshield, Outer Upper
75503-12020 note Moulding, Windshield, Outer Upper
1991-09 → 1993-12 ended
CE106,108,109,EE106,107,108 ¥7,400
75503-12040 note Moulding, Windshield, Outer Upper
1992-06 → 1993-12 ended
CE106,108,109,EE106,107,108 ¥7,400
75503-12080 note Moulding, Windshield, Outer Upper
1993-12 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥7,400
75503-12080 note Moulding, Windshield, Outer Upper
1995-05 → —
AE109,CE10#,EE10# ¥7,400
75503-12090 note Moulding, Windshield, Outer Upper
1993-12 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥7,400
75531-12490 Moulding, Windshield, Outer Upper
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥5,200
75531-12500 Moulding, Windshield, Outer Upper
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥5,200
75531-12510 note Moulding, Windshield, Outer Upper
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥5,200
75533 — Moulding, Windshield, Outside RH
75533-12500 Moulding, Windshield, Outside RH
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥4,200
75533-12510 Moulding, Windshield, Outside RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥4,200
75533-12520 note Moulding, Windshield, Outside RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥4,200
75534 — Moulding, Windshield, Outside LH
75534-12430 Moulding, Windshield, Outside LH
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥4,200
75534-12440 Moulding, Windshield, Outside LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥4,200
75534-12450 note Moulding, Windshield, Outside LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥4,200
75549A — Moulding, Windshield Outside Sub
75539-12090 Moulding, Windshield Outside Sub
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,270
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
