Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

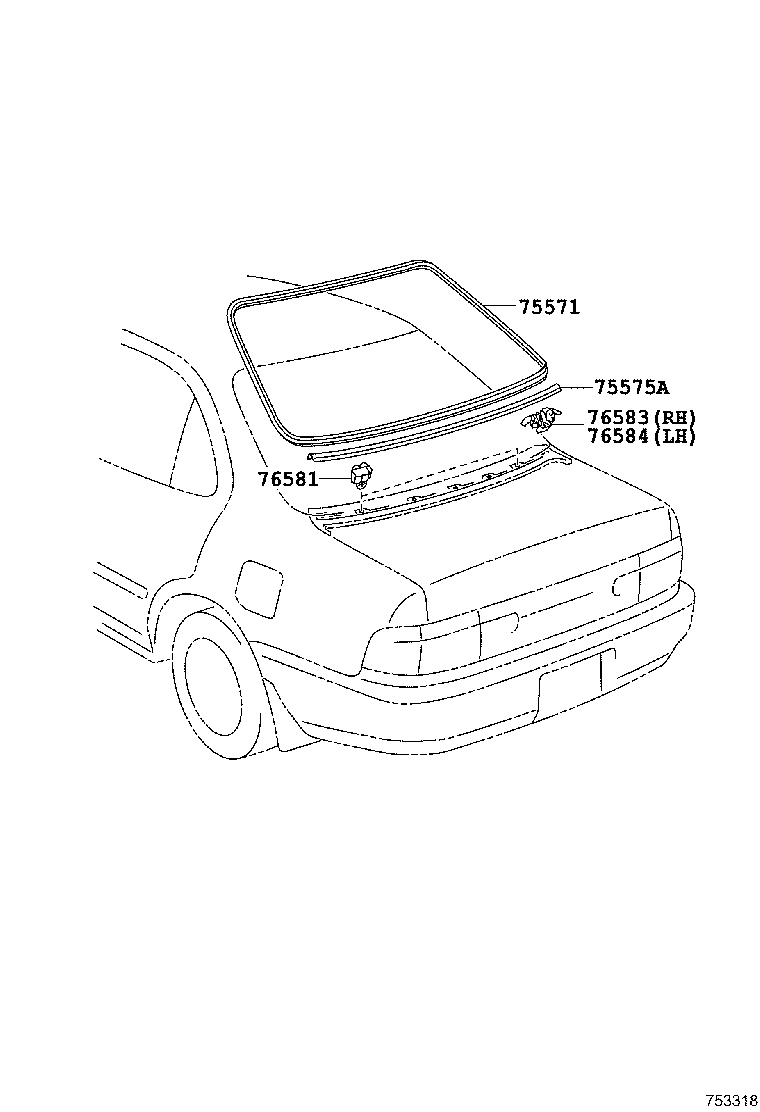

Exploded illustration 753318 75571 — MOULDING, BACK WINDOW, OUTSIDE UPPER (3 parts) 75575A — MOULDING, BACK WINDOW, OUTSIDE LOWER (1 parts) 76583 — RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH (1 parts) 76584 — RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH (1 parts) 76581 — RETAINER, BACK WINDOW OUTSIDE MOULDING (1 parts)
753318 · 5 callouts Full size ↗
7 parts on this figure
Part number Description Fitment Price
75571 — Moulding, Back Window, Outside Upper
75571-12590 Moulding, Back Window, Outside Upper
1991-06 → 1995-05 ended
AE100,CE100,EE101 DX ¥5,400
75571-12600 Moulding, Back Window, Outside Upper
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥5,400
75571-13040 Moulding, Back Window, Outside Upper
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥4,860
75575A — Moulding, Back Window, Outside Lower
75575-12370 Moulding, Back Window, Outside Lower
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,690
76581 — Retainer, Back Window Outside Moulding
76581-12080 Retainer, Back Window Outside Moulding
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥270
76583 — Retainer, Back Window Outside Lower Moulding, RH
76583-12080 Retainer, Back Window Outside Lower Moulding, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥350
76584 — Retainer, Back Window Outside Lower Moulding, LH
76584-12050 Retainer, Back Window Outside Lower Moulding, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
