Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

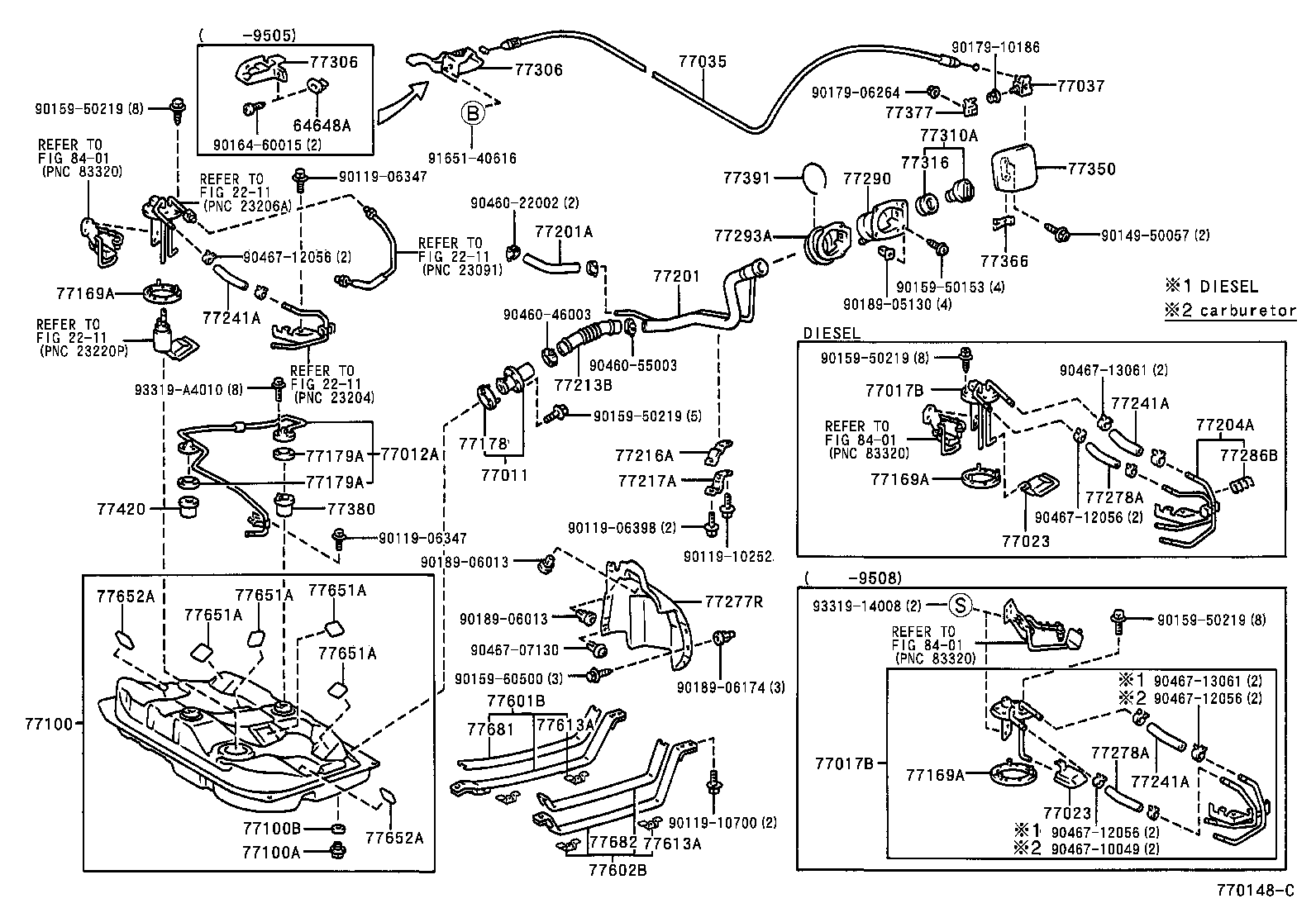

Exploded illustration 770148C 9017910186 — not listed in this catalogue 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (3 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (3 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (3 parts) 77037 — LOCK SUB-ASSY, FUEL FILLER OPENING LID (1 parts) 9017906264 — not listed in this catalogue 9015950219 — not listed in this catalogue 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (1 parts) 64648A — GROMMET, LUGGAGE DOOR LOCK OPENER (1 parts) 77310A — CAP ASSY, FUEL TANK (4 parts) 9016460015 — not listed in this catalogue 8401 — not listed in this catalogue 9165140616 — not listed in this catalogue 77316 — GASKET, FUEL TANK CAP (1 parts) 77350 — LID ASSY, FUEL FILLER OPENING (3 parts) 9011906347 — not listed in this catalogue 77391 — RING, FUEL INLET BOX (1 parts) 77290 — SHIELD ASSY, FUEL TANK FILLER PIPE (4 parts) 2211 — not listed in this catalogue 9046022002 — not listed in this catalogue 77201A — HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) (4 parts) 9014950057 — not listed in this catalogue 77293A — SHIELD, FUEL TANK FILLER PIPE, NO.3 (2 parts) 2211 — not listed in this catalogue 9046712056 — not listed in this catalogue 77366 — SPRING, FUEL FILLER OPENING LID HINGE (2 parts) 77201 — PIPE SUB-ASSY, FUEL TANK INLET (6 parts) 9015950153 — not listed in this catalogue 77169A — GASKET, FUEL SUCTION TUBE SET (3 parts) 9018905130 — not listed in this catalogue 9046046003 — not listed in this catalogue 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (4 parts) 2211 — not listed in this catalogue 9015950219 — not listed in this catalogue 9046055003 — not listed in this catalogue 9046713061 — not listed in this catalogue 2211 — not listed in this catalogue 77213B — HOSE, FUEL TANK TO FILLER PIPE (6 parts) 93319A4010 — not listed in this catalogue 77017B — TUBE SUB-ASSY, FUEL TANK VENT (5 parts) 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (4 parts) 9015950219 — not listed in this catalogue 77204A — TUBE, FUEL TANK RETURN (1 parts) 8401 — not listed in this catalogue 77178 — GASKET, FUEL TANK FILLER PIPE, LOWER (3 parts) 77012A — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 (7 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (4 parts) 77286B — CLAMP, FUEL TUBE W/GROMMET, NO.2 (7 parts) 77179A — GASKET, FUEL TANK BREATHER TUBE (1 parts) 77011 — PIPE SUB-ASSY, FUEL TANK FILLER, LOWER (3 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (3 parts) 77217A — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (2 parts) 77179A — GASKET, FUEL TANK BREATHER TUBE (1 parts) 77278A — HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) (4 parts) 77420 — VALVE ASSY, FUEL CUT OFF, NO.2 (1 parts) 77380 — VALVE ASSY, FUEL CUT OFF (1 parts) 9046712056 — not listed in this catalogue 9011906398 — not listed in this catalogue 9011906347 — not listed in this catalogue 77023 — FILTER SUB-ASSY, FUEL SUCTION TUBE (7 parts) 9011910252 — not listed in this catalogue 9018906013 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (7 parts) 77651A — CUSHION, FUEL TANK, NO.1 (7 parts) 77652A — CUSHION, FUEL TANK, NO.2 (3 parts) 77277R — PROTECTOR, FUEL TANK FILLER PIPE (3 parts) 9331914008 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (7 parts) 9018906013 — not listed in this catalogue 9015950219 — not listed in this catalogue 8401 — not listed in this catalogue 9046707130 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (7 parts) 9015960500 — not listed in this catalogue 9046713061 — not listed in this catalogue 9018906174 — not listed in this catalogue 9046712056 — not listed in this catalogue 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (4 parts) 77100 — TANK ASSY, FUEL (13 parts) 77613A — BRACKET, FUEL TANK BAND, NO.1 (1 parts) 77681 — SEAT, FUEL TANK BAND, RH (6 parts) 77278A — HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) (4 parts) 77017B — TUBE SUB-ASSY, FUEL TANK VENT (5 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (3 parts) 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (4 parts) 77023 — FILTER SUB-ASSY, FUEL SUCTION TUBE (7 parts) 9011910700 — not listed in this catalogue 77100B — GASKET(FOR FUEL TANK) (7 parts) 9046712056 — not listed in this catalogue 77652A — CUSHION, FUEL TANK, NO.2 (3 parts) 77682 — SEAT, FUEL TANK BAND, LH (7 parts) 77613A — BRACKET, FUEL TANK BAND, NO.1 (1 parts) 9046710049 — not listed in this catalogue 77100A — PLUG(FOR FUEL TANK) (6 parts) 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (3 parts)
770148C · 55 callouts, 40 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
155 parts on this figure
Part number Description Fitment Price
64648A — Grommet, Luggage Door Lock Opener
64648-12010 Grommet, Luggage Door Lock Opener
1991-09 → 1995-05 ended
CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥300
77011 — Pipe Sub-assy, Fuel Tank Filler, Lower
77011-12090 Pipe Sub-assy, Fuel Tank Filler, Lower
1991-06 → 2002-06 ended
AE100,101,CE100,102,106,107,108,EE10# ¥2,250
77011-12130 Pipe Sub-assy, Fuel Tank Filler, Lower
1991-09 → 1995-05 ended
AE104,CE104,109 ¥2,060
77011-12130 Pipe Sub-assy, Fuel Tank Filler, Lower
1995-08 → 2002-06 ended
AE109,CE105,109 ¥2,060
77012A — Tube Sub-assy, Fuel Tank Breather, NO.1
77012-12070 Tube Sub-assy, Fuel Tank Breather, NO.1
1991-06 → 1995-08 ended
AE100,101,CE100,106,108,EE10# ¥5,300
77012-12080 note Tube Sub-assy, Fuel Tank Breather, NO.1
1991-06 → 1995-05 ended
AE100,101,CE100,106,108,EE10# ¥5,300
77012-12090 Tube Sub-assy, Fuel Tank Breather, NO.1
1991-09 → 1995-05 ended
AE104 ¥4,870
77012-12100 note Tube Sub-assy, Fuel Tank Breather, NO.1
1991-09 → 1995-05 ended
AE104 ¥4,850
77012-12120 Tube Sub-assy, Fuel Tank Breather, NO.1
1991-09 → 1995-05 ended
CE104 ¥4,870
77012-12140 Tube Sub-assy, Fuel Tank Breather, NO.1
1995-08 → 2002-06 ended
CE102,106,107,108,EE10# ¥4,370
77012-13030 Tube Sub-assy, Fuel Tank Breather, NO.1
1991-09 → 2002-06 ended
AE109,CE105,109 ¥3,420
77017B — Tube Sub-assy, Fuel Tank Vent
77017-12450 Tube Sub-assy, Fuel Tank Vent
1991-09 → 1994-01 ended
EE106,107,108 ¥9,100
77017-12470 Tube Sub-assy, Fuel Tank Vent
1991-06 → 1995-08 ended
CE100,106,108 ¥9,100
77017-12500 Tube Sub-assy, Fuel Tank Vent
1991-09 → 1995-05 ended
AE104,CE104 ¥6,000
77017-12600 Tube Sub-assy, Fuel Tank Vent
1995-08 → —
CE102,106,107,108 ¥9,200
77017-13020 Tube Sub-assy, Fuel Tank Vent
1991-09 → —
CE105,109 ¥6,400
77023 — Filter Sub-assy, Fuel Suction Tube
77023-10010 Filter Sub-assy, Fuel Suction Tube
1991-09 → 1994-01 ended
EE106,107,108 ¥1,020
77023-32030 Filter Sub-assy, Fuel Suction Tube
1991-09 → 1991-10 ended
AE104 ¥1,020
77023-32030 Filter Sub-assy, Fuel Suction Tube
1991-10 → 1995-05 ended
AE104;CE104 SEL,XE ¥1,020
77023-32030 note Filter Sub-assy, Fuel Suction Tube
1991-10 → 1995-05 ended
CE104 LX ¥1,020
77023-32040 Filter Sub-assy, Fuel Suction Tube
1991-09 → 1991-10 ended
CE104 ¥870
77023-32040 note Filter Sub-assy, Fuel Suction Tube
1991-10 → 1995-05 ended
CE104 LX ¥870
77023-32040 Filter Sub-assy, Fuel Suction Tube
1991-06 → —
CE100,102,105,106,107,108,109 ¥870
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-12190 Cable Sub-assy, Fuel Lid Lock Control
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,440
77035-13020 Cable Sub-assy, Fuel Lid Lock Control
1991-09 → 1995-05 ended
CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥2,440
77035-13050 Cable Sub-assy, Fuel Lid Lock Control
1995-05 → —
AE109,CE10#,EE10# DX,L,XL ¥2,460
77037 — Lock Sub-assy, Fuel Filler Opening Lid
77037-12050 Lock Sub-assy, Fuel Filler Opening Lid
1991-06 → —
AE10#,CE10#,EE10# DX,GT,L,LX,SEG,SEL,XE,XL ¥850
77100 — Tank Assy, Fuel
77001-12660 Tank Assy, Fuel
1991-06 → 1994-01 ended
AE100,101,EE101 ¥46,200
77001-12660 Tank Assy, Fuel
1994-01 → 1994-02 ended
AE100,101,EE101 GT,SEG,SEL,XE ¥46,200
77001-12930 note Tank Assy, Fuel
1991-09 → 1993-07 ended
AE104 ¥42,200
77001-12931 Tank Assy, Fuel
1994-01 → 1994-02 ended
CE100;AE100,CE106,108,EE10# CTD,DX,DXJ,L,LX,XL ¥46,300
77001-12931 Tank Assy, Fuel
1994-02 → 2002-06 ended
AE100,101,CE100,102,106,107,108,EE10# ¥46,300
77001-12931 note Tank Assy, Fuel
1994-01 → 1994-02 ended
AE100,101,EE101 GT,SEG,SEL,XE ¥46,300
77001-12931 note Tank Assy, Fuel
1991-06 → 1994-01 ended
AE100,101,EE101 ¥46,300
77001-12931 Tank Assy, Fuel
1991-06 → 1994-01 ended
CE100,106,108,EE106,107,108 ¥46,300
77001-12933 Tank Assy, Fuel
1991-09 → 1995-05 ended
AE104,CE104 ¥42,400
77001-19615 Tank Assy, Fuel
1991-09 → 1997-04 ended
CE109 ¥43,700
77001-19625 Tank Assy, Fuel
1996-05 → 1997-04 ended
AE109 ¥43,600
77001-19625 Tank Assy, Fuel
1997-04 → 2002-06 ended
AE109,CE105,109 ¥43,600
77100-13440 note Tank Assy, Fuel
1991-09 → 1994-01 ended
EE106 4F ¥129,000
77100A — Plug(FOR FUEL TANK)
90341-20004 Plug(FOR FUEL TANK)
1991-06 → 1993-07 ended
CE100,106,108,109 ¥360
90341-20004 note Plug(FOR FUEL TANK)
1993-07 → 1994-01 ended
EE106,107,108 ¥360
90341-20004 Plug(FOR FUEL TANK)
1993-07 → 1993-08 ended
CE109 ¥360
90341-20004 Plug(FOR FUEL TANK)
1991-09 → 1993-07 ended
CE104 ¥360
90341-20004 note Plug(FOR FUEL TANK)
1991-06 → 1993-07 ended
AE100,101,EE10# ¥360
90341-20004 note Plug(FOR FUEL TANK)
1991-09 → 1993-07 ended
AE104 ¥360
77100B — Gasket(FOR FUEL TANK)
90430-20007 Gasket(FOR FUEL TANK)
1991-06 → 1993-07 ended
CE100,106,108,109 ¥220
90430-20007 note Gasket(FOR FUEL TANK)
1991-06 → 1993-07 ended
AE100,101,EE10# ¥220
90430-20007 Gasket(FOR FUEL TANK)
1991-09 → 1993-07 ended
CE104 ¥220
90430-20007 note Gasket(FOR FUEL TANK)
1991-09 → 1993-07 ended
AE104 ¥220
90430-20007 Gasket(FOR FUEL TANK)
1993-07 → 1993-08 ended
CE109 ¥220
90430-20007 note Gasket(FOR FUEL TANK)
1993-07 → 1994-01 ended
EE106,107,108 ¥220
90430-42255 note Gasket(FOR FUEL TANK)
1991-09 → 1994-01 ended
EE106 4F ¥200
77169A — Gasket, Fuel Suction Tube Set
77169-12020 Gasket, Fuel Suction Tube Set
1991-09 → —
CE105,109 ¥480
77169-12030 Gasket, Fuel Suction Tube Set
1991-06 → —
CE100,102,106,107,108,EE106,107,108 ¥630
77169-14010 Gasket, Fuel Suction Tube Set
1991-09 → 1995-05 ended
AE104,CE104 ¥230
77178 — Gasket, Fuel Tank Filler Pipe, Lower
77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
1991-06 → 1995-05 ended
AE10#,CE10#,EE10# ¥120
77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
1995-05 → 1995-08 ended
CE106,108,EE10# ¥120
77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
1995-08 → 2002-06 ended
AE109,CE10#,EE10# ¥120
77179A — Gasket, Fuel Tank Breather Tube
77179-26010 Gasket, Fuel Tank Breather Tube
1991-06 → 2002-06 ended
AE100,101,109,CE100,102,105,106,107,108,109,EE10# ¥230
77201 — Pipe Sub-assy, Fuel Tank Inlet
77201-12430 Pipe Sub-assy, Fuel Tank Inlet
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 ¥10,300
77201-12460 Pipe Sub-assy, Fuel Tank Inlet
1991-09 → 1995-05 ended
AE104,CE104 ¥11,600
77201-13150 Pipe Sub-assy, Fuel Tank Inlet
1991-09 → —
AE109,CE105,109 ¥5,500
77201-13160 Pipe Sub-assy, Fuel Tank Inlet
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥11,200
77201-13180 note Pipe Sub-assy, Fuel Tank Inlet
1991-09 → 1994-01 ended
EE106 4F DX ¥51,000
77201-13190 note Pipe Sub-assy, Fuel Tank Inlet
1991-09 → 1994-01 ended
EE106 4F CTD ¥51,000
77201A — Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77269-13030 Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
2000-08 → —
EE10# ¥1,630
95311-13022 note Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥590
95311-13028 note Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
1991-09 → 2000-08 ended
CE102,106,107,108,EE102,103,104,106,107,108 ¥740
95311-13028 note Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
2000-08 → —
CE102,107 ¥740
77204A — Tube, Fuel Tank Return
77204-12010 Tube, Fuel Tank Return
1995-08 → 2002-06 ended
CE102,106,107,108 ¥2,360
77213B — Hose, Fuel Tank TO Filler Pipe
77213-12150 Hose, Fuel Tank TO Filler Pipe
1991-09 → 1995-05 ended
AE104,CE104 ¥4,190
77213-12160 Hose, Fuel Tank TO Filler Pipe
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 ¥3,910
77213-13070 Hose, Fuel Tank TO Filler Pipe
1991-09 → 2000-08 ended
CE102,106,107,108,EE102,103,104,106,107,108 ¥3,640
77213-13070 Hose, Fuel Tank TO Filler Pipe
2000-08 → —
CE102,107 ¥3,640
77213-13080 Hose, Fuel Tank TO Filler Pipe
1991-09 → —
AE109,CE105,109 ¥3,760
77213-13090 Hose, Fuel Tank TO Filler Pipe
2000-08 → —
EE10# ¥3,500
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-12070 Support, Fuel Tank Filler Pipe, NO.1
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 ¥840
77216-12080 Support, Fuel Tank Filler Pipe, NO.1
1991-09 → 1995-05 ended
AE104,CE104 ¥620
77216-13030 Support, Fuel Tank Filler Pipe, NO.1
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥1,080
77216-13050 Support, Fuel Tank Filler Pipe, NO.1
1991-09 → —
AE109,CE105,109 ¥1,120
77217A — Support, Fuel Tank Filler Pipe, NO.2
77217-13010 Support, Fuel Tank Filler Pipe, NO.2
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥1,070
77217-13030 Support, Fuel Tank Filler Pipe, NO.2
1991-09 → —
AE109,CE105,109 ¥1,270
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
95333-06020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1991-09 → 1993-08 ended
EE106,107,108 ¥480
95333-08020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1991-09 → 1995-05 ended
CE104 ¥320
95333-08020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1991-06 → —
CE100,102,106,107,108 ¥320
95333-08020 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1994-01 → —
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥320
77277R — Protector, Fuel Tank Filler Pipe
77277-12130 Protector, Fuel Tank Filler Pipe
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,820
77277-13040 Protector, Fuel Tank Filler Pipe
1991-09 → 1991-11 ended
CE106,108,109,EE106,107,108 ¥3,710
77277-13041 Protector, Fuel Tank Filler Pipe
1991-11 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,720
77278A — Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77259-12210 Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
1991-09 → 1995-05 ended
CE104 ¥750
95333-04011 note Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
1991-09 → 1993-08 ended
EE106,107,108 ¥180
95333-04020 note Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
1993-08 → 1994-01 ended
EE106,107,108 ¥510
95333-06020 note Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
1991-06 → —
CE100,102,106,107,108 ¥480
77286B — Clamp, Fuel Tube W/Grommet, NO.2
77285-12040 note Clamp, Fuel Tube W/Grommet, NO.2
1995-08 → —
CE106,108,EE10# ¥620
77286-12020 note Clamp, Fuel Tube W/Grommet, NO.2
1991-09 → 1994-01 ended
EE106 4F ¥990
77286-12020 Clamp, Fuel Tube W/Grommet, NO.2
1991-06 → 1995-05 ended
AE10#,CE10#,EE101,102,103,104 ¥990
77286-12020 Clamp, Fuel Tube W/Grommet, NO.2
1995-05 → 1995-08 ended
CE109 ¥990
77286-12030 Clamp, Fuel Tube W/Grommet, NO.2
1991-09 → 1994-01 ended
EE106,107,108 ¥1,000
77286-12040 Clamp, Fuel Tube W/Grommet, NO.2
1995-05 → 1995-08 ended
CE106,108,EE10# ¥620
77286-12040 note Clamp, Fuel Tube W/Grommet, NO.2
1995-08 → —
AE109,CE10#,EE10# ¥620
77290 — Shield Assy, Fuel Tank Filler Pipe
77290-12040 Shield Assy, Fuel Tank Filler Pipe
1991-09 → —
CE106,107,EE102,106 CTD,DXJ ¥2,770
77290-13010 note Shield Assy, Fuel Tank Filler Pipe
1991-09 → 1994-01 ended
EE106 4F CTD —
77291-12090 Shield Assy, Fuel Tank Filler Pipe
1991-06 → —
AE10#,CE10#,EE10# DX,GT,L,LX,SEG,SEL,XE,XL ¥2,360
77291-13010 note Shield Assy, Fuel Tank Filler Pipe
1991-09 → 1994-01 ended
EE106 4F DX —
77293A — Shield, Fuel Tank Filler Pipe, NO.3
77293-12050 Shield, Fuel Tank Filler Pipe, NO.3
1991-09 → —
CE106,107,EE102,106 CTD,DXJ ¥2,760
77293-12060 Shield, Fuel Tank Filler Pipe, NO.3
1991-06 → —
AE10#,CE10#,EE10# DX,GT,L,LX,SEG,SEL,XE,XL ¥2,760
77306 — Lever Sub-assy, Fuel Lid Lock Open
77306-13040-P0 note Lever Sub-assy, Fuel Lid Lock Open
1991-09 → 1995-05 ended
CE106,108,109,EE102,103,104,106,107,108 DX,L,XL ¥4,560
77306-13070-C0 note Lever Sub-assy, Fuel Lid Lock Open
1995-05 → 1995-08 ended
CE10#,EE10# DX,L,XL ¥1,850
77306-13071 Lever Sub-assy, Fuel Lid Lock Open
1995-08 → —
AE109,CE10#,EE10# DX,L,XL ¥1,870
77310A — Cap Assy, Fuel Tank
77310-12150 Cap Assy, Fuel Tank
1998-03 → —
CE10# ¥2,780
77310-16011 Cap Assy, Fuel Tank
1991-06 → 1998-03 ended
AE10#,EE10# ¥2,790
77310-32011 Cap Assy, Fuel Tank
1991-06 → 1998-03 ended
CE10# ¥1,940
77310-48010 Cap Assy, Fuel Tank
1998-03 → —
AE109,EE10# ¥2,800
77316 — Gasket, Fuel Tank Cap
77316-16010 Gasket, Fuel Tank Cap
1991-06 → —
AE10#,CE10#,EE10# ¥660
77350 — Lid Assy, Fuel Filler Opening
77350-12310 Lid Assy, Fuel Filler Opening
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,590
77350-13040 Lid Assy, Fuel Filler Opening
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L,XL ¥4,090
77350-13050 Lid Assy, Fuel Filler Opening
1991-09 → —
CE106,107,EE102,106 CTD,DXJ ¥3,590
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-12040 Spring, Fuel Filler Opening Lid Hinge
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥380
77360-12050 Spring, Fuel Filler Opening Lid Hinge
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥370
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-20050 Retainer, Fuel Filler Opening Lid Lock
1991-06 → —
AE10#,CE10#,EE10# DX,GT,L,LX,SEG,SEL,XE,XL ¥910
77380 — Valve Assy, Fuel Cut Off
77380-26010 Valve Assy, Fuel Cut Off
1991-06 → 2002-06 ended
AE100,101,109,CE100,102,105,106,107,108,109,EE10# ¥780
77391 — Ring, Fuel Inlet Box
77391-14020 Ring, Fuel Inlet Box
1991-06 → —
AE10#,CE10#,EE10# ¥160
77420 — Valve Assy, Fuel Cut Off, NO.2
77420-26010 Valve Assy, Fuel Cut Off, NO.2
1991-06 → 2002-06 ended
AE100,101,109,CE100,102,105,106,107,108,109,EE10# ¥780
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-12180 Band Sub-assy, Fuel Tank, NO.1 RH
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 ¥2,470
77601-12190 Band Sub-assy, Fuel Tank, NO.1 RH
1991-09 → 1995-05 ended
AE104,CE104 ¥2,470
77601-13040 Band Sub-assy, Fuel Tank, NO.1 RH
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥2,470
77601-13050 note Band Sub-assy, Fuel Tank, NO.1 RH
1991-09 → 1994-01 ended
EE106 4F ¥20,500
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-12130 Band Sub-assy, Fuel Tank, NO.1 LH
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 ¥2,470
77602-12140 Band Sub-assy, Fuel Tank, NO.1 LH
1991-09 → 1995-05 ended
AE104,CE104 ¥2,470
77602-13020 Band Sub-assy, Fuel Tank, NO.1 LH
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥2,470
77613A — Bracket, Fuel Tank Band, NO.1
77613-16030 Bracket, Fuel Tank Band, NO.1
1997-04 → —
CE102,106,107,108,EE10# ¥350
77651A — Cushion, Fuel Tank, NO.1
77651-13040 Cushion, Fuel Tank, NO.1
1991-09 → 2002-06 ended
AE109,CE105,109 ¥740
77651-20090 Cushion, Fuel Tank, NO.1
1997-04 → 2002-06 ended
CE102,106,107,108,EE10# ¥250
77651-20090 Cushion, Fuel Tank, NO.1
1991-09 → 1995-05 ended
AE104,CE104 ¥250
77651-20090 note Cushion, Fuel Tank, NO.1
1991-06 → 1997-04 ended
AE100,101,CE100,106,108,EE10# ¥250
77652-12100 note Cushion, Fuel Tank, NO.1
1991-09 → 1997-04 ended
AE100,101,CE100,106,108,EE10# ¥590
77652-12100 note Cushion, Fuel Tank, NO.1
1991-06 → 1991-09 ended
AE10#,EE101;CE100 SEL,XE ¥590
77652-12100 note Cushion, Fuel Tank, NO.1
1991-06 → 1991-09 ended
CE100 DX,LX ¥590
77652A — Cushion, Fuel Tank, NO.2
77652-12100 Cushion, Fuel Tank, NO.2
1991-06 → 1997-04 ended
AE100,101,104,CE100,104,106,108,EE10# ¥590
77652-12100 Cushion, Fuel Tank, NO.2
1997-04 → 2002-06 ended
CE102,106,107,108,EE10# ¥590
77652-13010 Cushion, Fuel Tank, NO.2
1991-09 → 2002-06 ended
AE109,CE105,109 ¥1,840
77681 — Seat, Fuel Tank Band, RH
77681-12030 Seat, Fuel Tank Band, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,106,108,EE10# ¥860
77681-32060 Seat, Fuel Tank Band, RH
1993-05 → 1994-01 ended
AE104,CE104 ¥1,900
77681-32060 Seat, Fuel Tank Band, RH
1994-09 → —
AE100,101,104,CE100,102,104,106,107,108,EE10# ¥1,900
77681-32060 Seat, Fuel Tank Band, RH
1994-01 → 1994-09 ended
AE104,CE104,106,108,EE102,103,104 ¥1,900
77682-12030 Seat, Fuel Tank Band, RH
1994-01 → 1994-09 ended
AE100,101,CE100,EE101 ¥1,800
77682-12030 Seat, Fuel Tank Band, RH
1993-05 → 1994-01 ended
AE100,101,CE100,106,108,EE10# ¥1,800
77682 — Seat, Fuel Tank Band, LH
77681-12030 Seat, Fuel Tank Band, LH
1992-03 → 1993-05 ended
AE10#,CE100,104,106,108,EE10# ¥860
77681-32060 Seat, Fuel Tank Band, LH
1993-05 → 1994-01 ended
AE104,CE104 ¥1,900
77681-32060 Seat, Fuel Tank Band, LH
1994-01 → 1994-09 ended
AE104,CE104,106,108,EE102,103,104 ¥1,900
77681-32060 Seat, Fuel Tank Band, LH
1994-09 → —
AE100,101,104,CE100,102,104,106,107,108,EE10# ¥1,900
77681-32070 Seat, Fuel Tank Band, LH
1993-05 → 1994-01 ended
AE100,101,CE100,106,108,EE10# ¥1,640
77681-32070 Seat, Fuel Tank Band, LH
1994-01 → 1994-09 ended
AE100,101,CE100,EE101 ¥1,640
77682-12020 Seat, Fuel Tank Band, LH
1991-06 → 1992-03 ended
AE10#,CE100,104,106,108,EE10# ¥860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
