Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

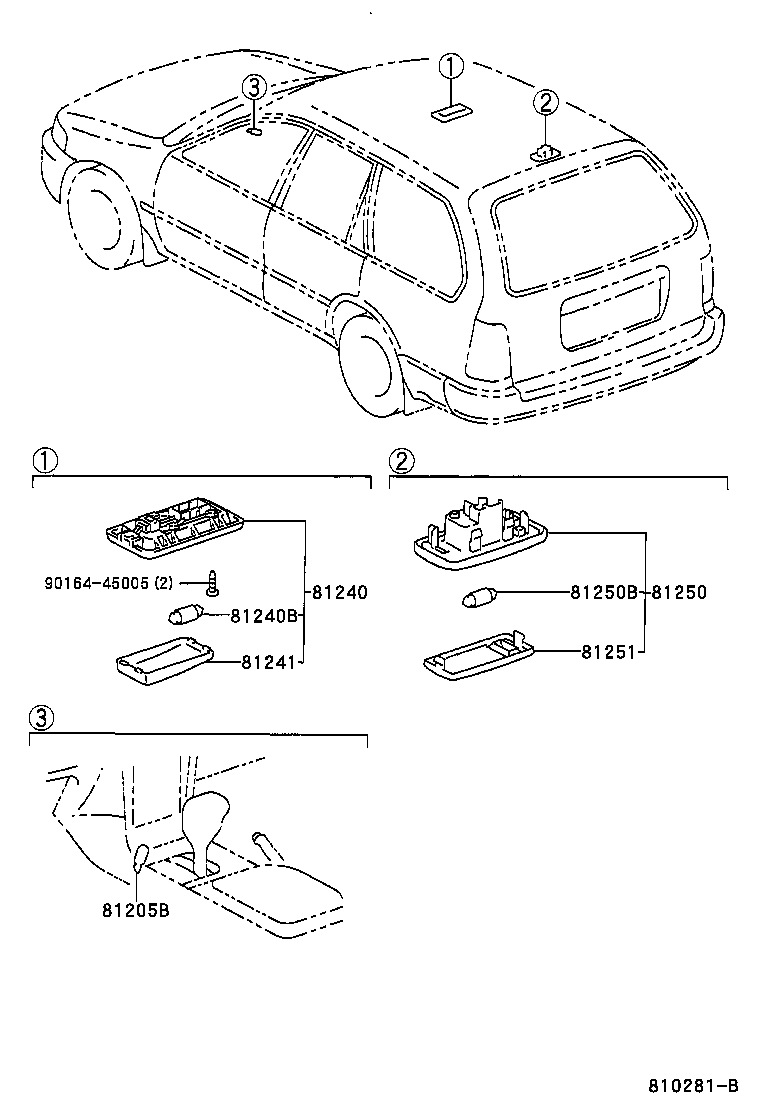

Exploded illustration 810281B 9016445005 — not listed in this catalogue 81240 — LAMP ASSY, ROOM, NO.1 (8 parts) 81250B — BULB, ROOM LAMP, NO.2 (3 parts) 81250 — LAMP ASSY, ROOM, NO.2 (4 parts) 81240B — BULB, ROOM LAMP, NO.1 (2 parts) 81251 — LENS, ROOM LAMP, NO.2 (3 parts) 81241 — LENS, ROOM LAMP, NO.1 (1 parts) 81205B — BULB, ASH RECEPTACLE LAMP (2 parts)
810281B · 7 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
81205B — Bulb, Ash Receptacle Lamp
90981-11018 note Bulb, Ash Receptacle Lamp
2000-08 → —
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L ¥140
90981-11018 note Bulb, Ash Receptacle Lamp
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥140
81240 — Lamp Assy, Room, NO.1
81240-12040-B0 note Lamp Assy, Room, NO.1
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥3,110
81240-12040-J0 note Lamp Assy, Room, NO.1
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,110
81240-12040-K0 note Lamp Assy, Room, NO.1
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,110
81240-12050-B0 note Lamp Assy, Room, NO.1
1991-09 → 1993-07 ended
CE106,108,109,EE106,107,108 ¥3,110
81240-12051-B0 note Lamp Assy, Room, NO.1
1993-07 → 1998-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥3,140
81240-12051-B1 note Lamp Assy, Room, NO.1
1998-04 → —
AE109,CE10#,EE10# ¥3,110
81240-12060-B0 note Lamp Assy, Room, NO.1
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥1,960
81240-12060-K0 note Lamp Assy, Room, NO.1
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥3,110
81240B — Bulb, Room Lamp, NO.1
90981-14011 note Bulb, Room Lamp, NO.1
1993-05 → —
AE10#,CE10#,EE10# ¥180
99132-12100 note Bulb, Room Lamp, NO.1
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# ¥150
81241 — Lens, Room Lamp, NO.1
81241-12020 Lens, Room Lamp, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥400
81250 — Lamp Assy, Room, NO.2
81250-13030-B0 note Lamp Assy, Room, NO.2
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥3,450
81250-13030-B0 note Lamp Assy, Room, NO.2
1992-05 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥3,450
81250-13030-B0 note Lamp Assy, Room, NO.2
1994-01 → 1998-04 ended
AE109,CE106,108,109,EE102,103,104 DX,L,XL ¥3,450
81250-13030-B1 note Lamp Assy, Room, NO.2
1998-04 → —
AE109,CE10#,EE10# DX,L,XL ¥3,430
81250B — Bulb, Room Lamp, NO.2
99132-13050 note Bulb, Room Lamp, NO.2
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥150
99132-13050 note Bulb, Room Lamp, NO.2
1992-05 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥150
99132-13050 note Bulb, Room Lamp, NO.2
1994-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 DX,L,XL ¥150
81251 — Lens, Room Lamp, NO.2
81251-14030 Lens, Room Lamp, NO.2
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 DX,L,XL ¥350
81251-14030 Lens, Room Lamp, NO.2
1992-05 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥350
81251-14030 Lens, Room Lamp, NO.2
1994-01 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104 DX,L,XL ¥350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
