Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

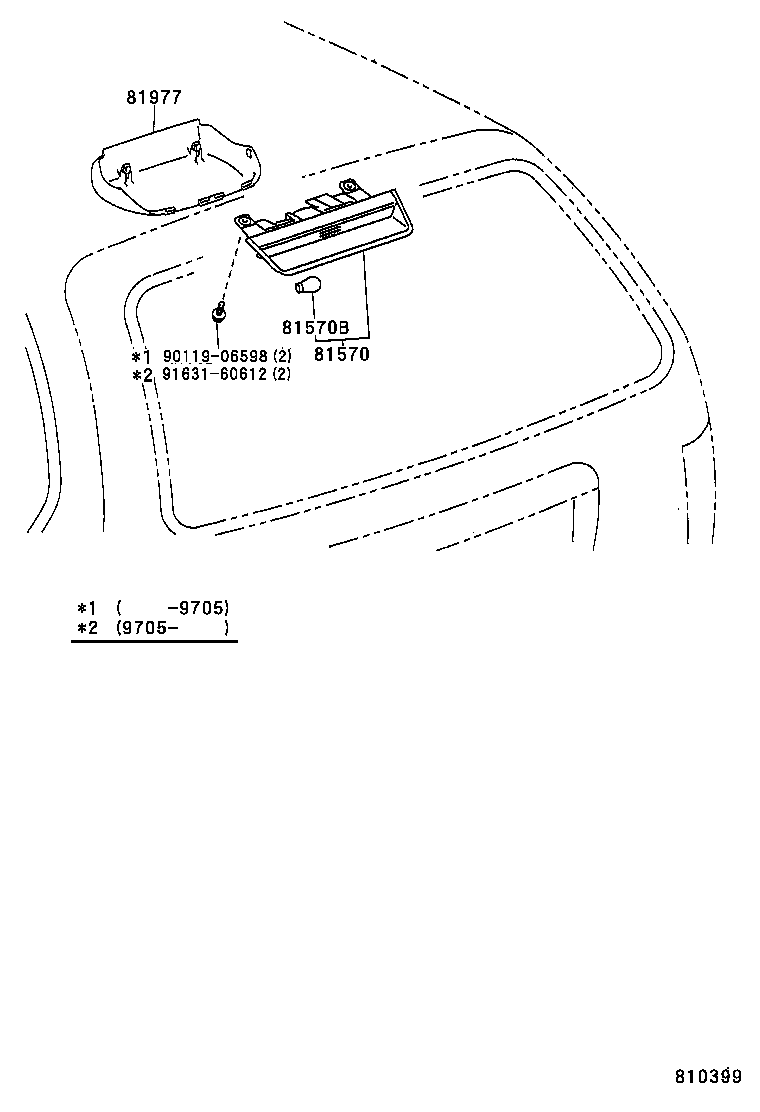

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-12180-K0 note |
Lamp Assy, Center Stop
1991-06 → 1993-12
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥9,100 | |
| 81570-12180-P0 note |
Lamp Assy, Center Stop
1991-06 → 1993-12
ended
|
AE10#,CE100,104,EE101 | ¥9,100 | |
| 81570-12180-W3 note |
Lamp Assy, Center Stop
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥9,100 | |
| 81570-12181-K0 note |
Lamp Assy, Center Stop
1993-12 → 1995-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥9,100 | |
| 81570-12181-P0 note |
Lamp Assy, Center Stop
1993-12 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥9,100 | |
| 81570-13040-04 note |
Lamp Assy, Center Stop
1998-04 → —
|
CE102 | ¥28,700 | |
| 81570-13040-04 note |
Lamp Assy, Center Stop
1994-01 → —
|
CE108,EE104 | ¥28,700 | |
| 81570-13040-13 note |
Lamp Assy, Center Stop
1994-01 → 1995-08
ended
|
CE108,EE104 | ¥28,600 | |
| 81570-13040-B1 note |
Lamp Assy, Center Stop
1995-08 → —
|
CE102,108,EE104 | ¥28,600 | |
| 81570-13040-B2 note |
Lamp Assy, Center Stop
1997-04 → 1998-04
ended
|
CE108,EE104 | ¥28,600 | |
| 81570-13040-B3 note |
Lamp Assy, Center Stop
1998-04 → —
|
CE102 | ¥28,600 | |
| 81570-13040-B3 note |
Lamp Assy, Center Stop
1998-04 → —
|
EE104 | ¥28,600 | |
| 81570-13040-G1 note |
Lamp Assy, Center Stop
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥28,600 | |
| 81570-13040-G3 note |
Lamp Assy, Center Stop
1997-04 → —
|
CE102,108,EE104 | ¥28,700 | |
| 81570-13040-J2 note |
Lamp Assy, Center Stop
1996-05 → 1997-04
ended
|
CE108,EE104 | ¥28,600 | |
| 81570-13040-J2 note |
Lamp Assy, Center Stop
1995-08 → 1996-05
ended
|
CE108,EE104 | ¥28,600 | |
| 81570-13040-J3 note |
Lamp Assy, Center Stop
1997-04 → 1998-04
ended
|
CE108,EE104 | ¥28,600 | |
| 81570-13040-J4 note |
Lamp Assy, Center Stop
1998-04 → —
|
EE104 | ¥28,700 | |
| 81570-13040-J4 note |
Lamp Assy, Center Stop
1998-04 → —
|
CE102 | ¥28,700 | |
| 81570-13050 |
Lamp Assy, Center Stop
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥9,700 | |
| 81570-13080 |
Lamp Assy, Center Stop
1994-01 → 1995-08
ended
|
CE106,108,109,EE102,103,104 | ¥9,700 | |
| 81570-13110 |
Lamp Assy, Center Stop
1995-08 → —
|
AE109,CE10#,EE10# | ¥10,100 | |
| 81570B — Bulb (FOR CENTER STOP LAMP) | ||||
| 90981-11039 note |
Bulb (FOR CENTER STOP LAMP)
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥200 | |
| 90981-11039 note |
Bulb (FOR CENTER STOP LAMP)
1991-09 → 1995-08
ended
|
CE106,108,109,EE102,103,104,106,107,108 | ¥200 | |
| 99132-11210 note |
Bulb (FOR CENTER STOP LAMP)
1995-08 → —
|
AE109,CE10#,EE10# | ¥170 | |
| 81977 — Cover, Center Stop Lamp | ||||
| 81977-12130-K0 note |
Cover, Center Stop Lamp
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,270 | |
| 81977-12130-P0 note |
Cover, Center Stop Lamp
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥3,270 | |
| 81977-12130-W3 note |
Cover, Center Stop Lamp
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,270 | |
| 81977-13030-P0 note |
Cover, Center Stop Lamp
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥2,150 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
