Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

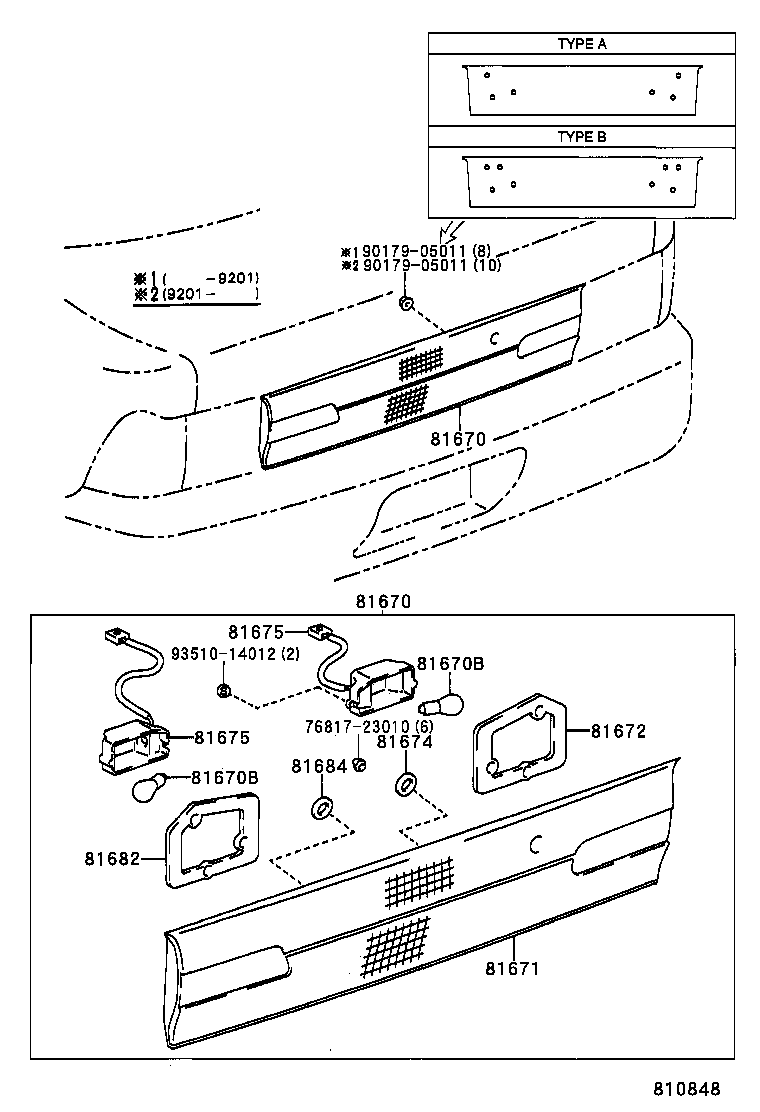

11 parts on this figure

Part number	Description	Fitment	Price
81670 — Lamp Assy, Back-up, RH
81670-12040 note	Lamp Assy, Back-up, RH 1991-06 → 1992-01 ended	AE10#,CE100,104,EE101	¥33,900
81670-12041 note	Lamp Assy, Back-up, RH 1992-01 → 1993-05 ended	AE10#,CE100,104,EE101	¥30,800
81670B — Bulb(FOR BACK-UP LAMP)
99132-11210 note	Bulb(FOR BACK-UP LAMP) 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥170
81671 — Lens, Back-up Lamp, RH
81671-12040 note	Lens, Back-up Lamp, RH 1991-06 → 1992-01 ended	AE10#,CE100,104,EE101	¥28,600
81671-12041 note	Lens, Back-up Lamp, RH 1992-01 → 1993-05 ended	AE10#,CE100,104,EE101	¥26,000
81672 — Gasket, Back-up Lamp Lens, RH
81672-12040	Gasket, Back-up Lamp Lens, RH 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥330
81674 — Gasket, Back-up Lamp Body, RH
81554-32150	Gasket, Back-up Lamp Body, RH 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥300
81675 — Socket & Wire, Back-up Lamp
81675-12040 note	Socket & Wire, Back-up Lamp 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥1,130
81685-12040 note	Socket & Wire, Back-up Lamp 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥1,130
81682 — Gasket, Back UP Lamp Lens, LH
81672-12040	Gasket, Back UP Lamp Lens, LH 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥330
81684 — Gasket, Back UP Lamp Body, LH
81554-32150	Gasket, Back UP Lamp Body, LH 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥300

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
