Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

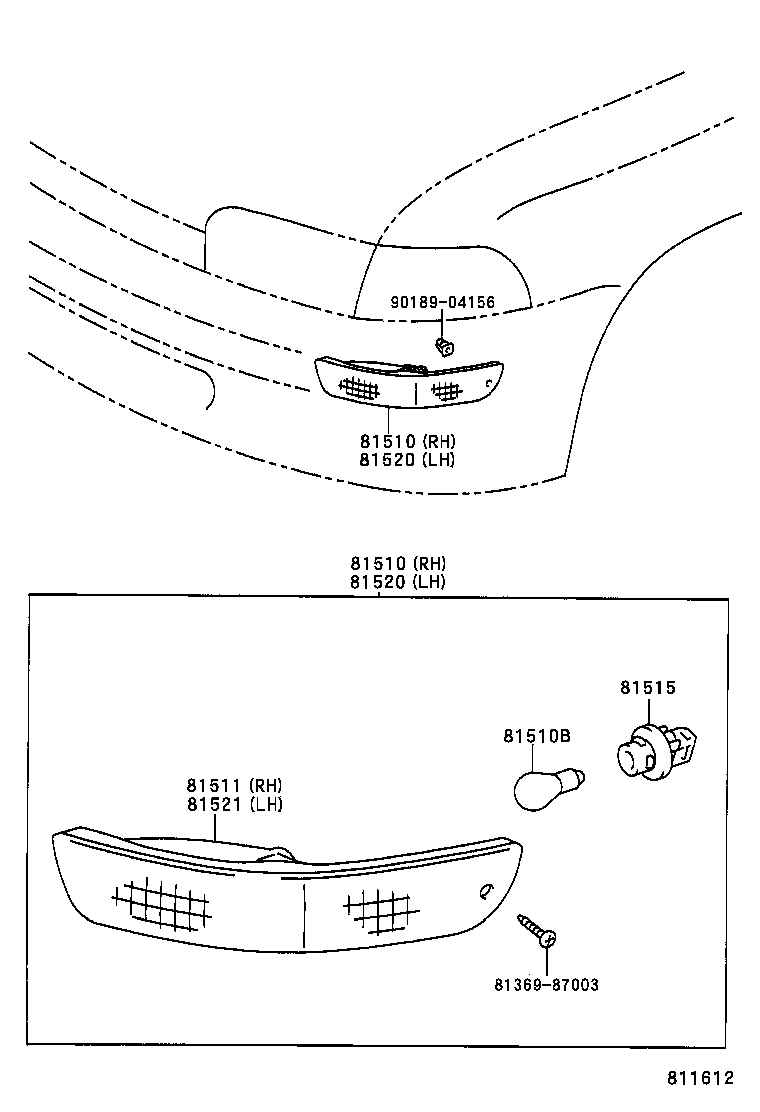

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81510 — Lamp Assy, Front Turn Signal, RH | ||||
| 81510-12670 |
Lamp Assy, Front Turn Signal, RH
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥4,940 | |
| 81510-12680 |
Lamp Assy, Front Turn Signal, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥4,940 | |
| 81510-12770 |
Lamp Assy, Front Turn Signal, RH
1994-01 → 1995-05
ended
|
CE106,108,109,EE102,103,104 | ¥4,400 | |
| 81510-12771 |
Lamp Assy, Front Turn Signal, RH
1995-05 → —
|
AE109,CE10#,EE10# | ¥4,410 | |
| 81510-12780 |
Lamp Assy, Front Turn Signal, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥4,400 | |
| 81510B — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1991-06 → —
|
AE10#,CE10#,EE10# | ¥170 | |
| 81511 — Lens, Front Turn Signal Lamp, RH | ||||
| 81511-12670 |
Lens, Front Turn Signal Lamp, RH
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥3,990 | |
| 81511-12680 |
Lens, Front Turn Signal Lamp, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥3,980 | |
| 81511-12770 |
Lens, Front Turn Signal Lamp, RH
1994-01 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104 | ¥3,510 | |
| 81511-12780 |
Lens, Front Turn Signal Lamp, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥3,510 | |
| 81515 — Wire Sub-assy, Front Turn Signal Lamp Body | ||||
| 81515-12520 |
Wire Sub-assy, Front Turn Signal Lamp Body
1991-09 → 1995-03
ended
|
CE106,108,109,EE102,103,104,106,107,108 | ¥720 | |
| 90075-99020 |
Wire Sub-assy, Front Turn Signal Lamp Body
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥980 | |
| 90075-99078 |
Wire Sub-assy, Front Turn Signal Lamp Body
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥610 | |
| 90075-99092 |
Wire Sub-assy, Front Turn Signal Lamp Body
1995-03 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104 | ¥610 | |
| 81520 — Lamp Assy, Front Turn Signal, LH | ||||
| 81520-12520 |
Lamp Assy, Front Turn Signal, LH
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥4,940 | |
| 81520-12640 |
Lamp Assy, Front Turn Signal, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥4,940 | |
| 81520-12750 |
Lamp Assy, Front Turn Signal, LH
1994-01 → 1995-05
ended
|
CE106,108,109,EE102,103,104 | ¥4,400 | |
| 81520-12751 |
Lamp Assy, Front Turn Signal, LH
1995-05 → —
|
AE109,CE10#,EE10# | ¥4,410 | |
| 81520-12760 |
Lamp Assy, Front Turn Signal, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥4,400 | |
| 81521 — Lens, Front Turn Signal Lamp, LH | ||||
| 81521-12520 |
Lens, Front Turn Signal Lamp, LH
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥3,990 | |
| 81521-12640 |
Lens, Front Turn Signal Lamp, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥3,980 | |
| 81521-12750 |
Lens, Front Turn Signal Lamp, LH
1994-01 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104 | ¥3,510 | |
| 81521-12760 |
Lens, Front Turn Signal Lamp, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥3,510 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
