Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

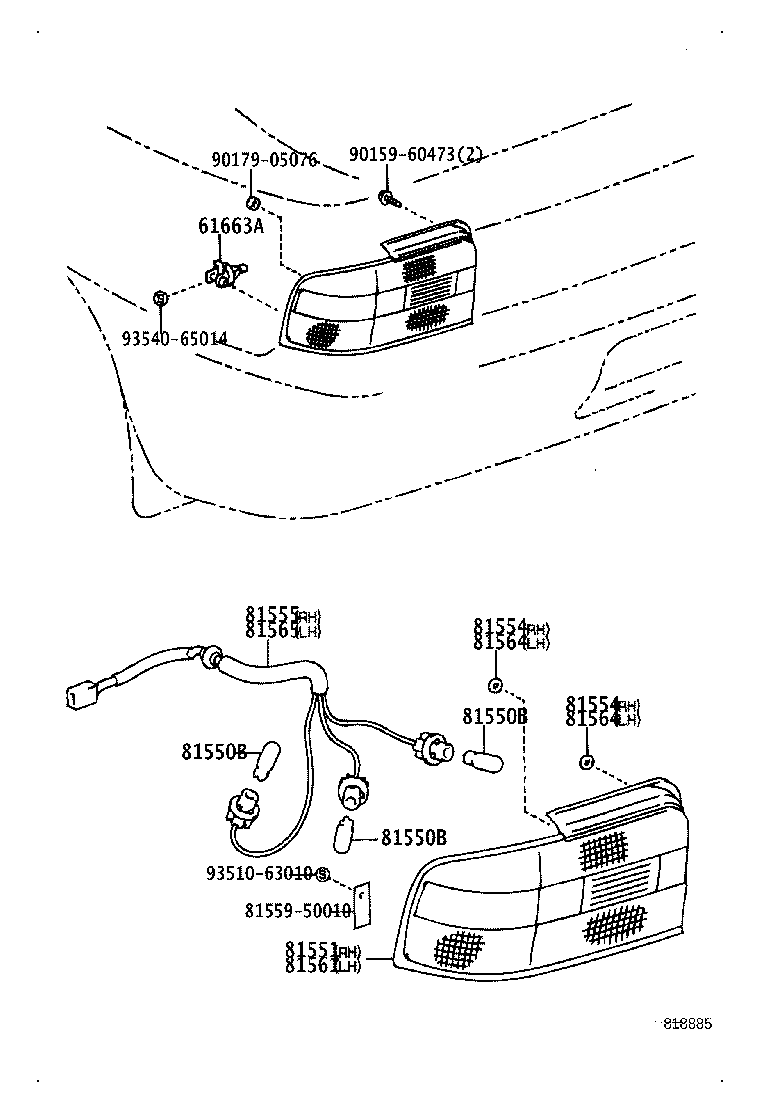

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 61663A — Bracket, Rear Combination Lamp Mounting | ||||
| 61663-12010 |
Bracket, Rear Combination Lamp Mounting
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥380 | |
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-11039 note |
Bulb(FOR REAR COMBINATION LAMP)
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥200 | |
| 90981-13050 note |
Bulb(FOR REAR COMBINATION LAMP)
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥220 | |
| 90981-13051 note |
Bulb(FOR REAR COMBINATION LAMP)
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥230 | |
| 90981-13051 note |
Bulb(FOR REAR COMBINATION LAMP)
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥230 | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1991-09 → —
|
EE103 107,108 XL;EE102,103 (3FC,4F) +1 | ¥170 | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥170 | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1991-09 → —
|
EE103 107,108 XL;EE102,103 (3FC,4F) +1 | ¥190 | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥190 | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-13320 |
Lens, Rear Combination Lamp, RH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥10,500 | |
| 81551-1A730 |
Lens, Rear Combination Lamp, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥17,400 | |
| 81551-1A880 |
Lens, Rear Combination Lamp, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥20,700 | |
| 81554 — Gasket, Rear Combination Lamp Body, RH | ||||
| 81554-32150 |
Gasket, Rear Combination Lamp Body, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥300 | |
| 81554-32150 |
Gasket, Rear Combination Lamp Body, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥300 | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-13340 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥2,600 | |
| 81555-1A730 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥2,440 | |
| 81555-1A880 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,440 | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81561-13320 |
Lens, Rear Combination Lamp, LH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥10,500 | |
| 81561-1A670 |
Lens, Rear Combination Lamp, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥17,400 | |
| 81561-1A840 |
Lens, Rear Combination Lamp, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥20,700 | |
| 81564 — Gasket, Rear Combination Lamp Body, LH | ||||
| 81554-32150 |
Gasket, Rear Combination Lamp Body, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥300 | |
| 81554-32150 |
Gasket, Rear Combination Lamp Body, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥300 | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-13340 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥2,600 | |
| 81555-1A730 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥2,440 | |
| 81555-1A880 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,440 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
