Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

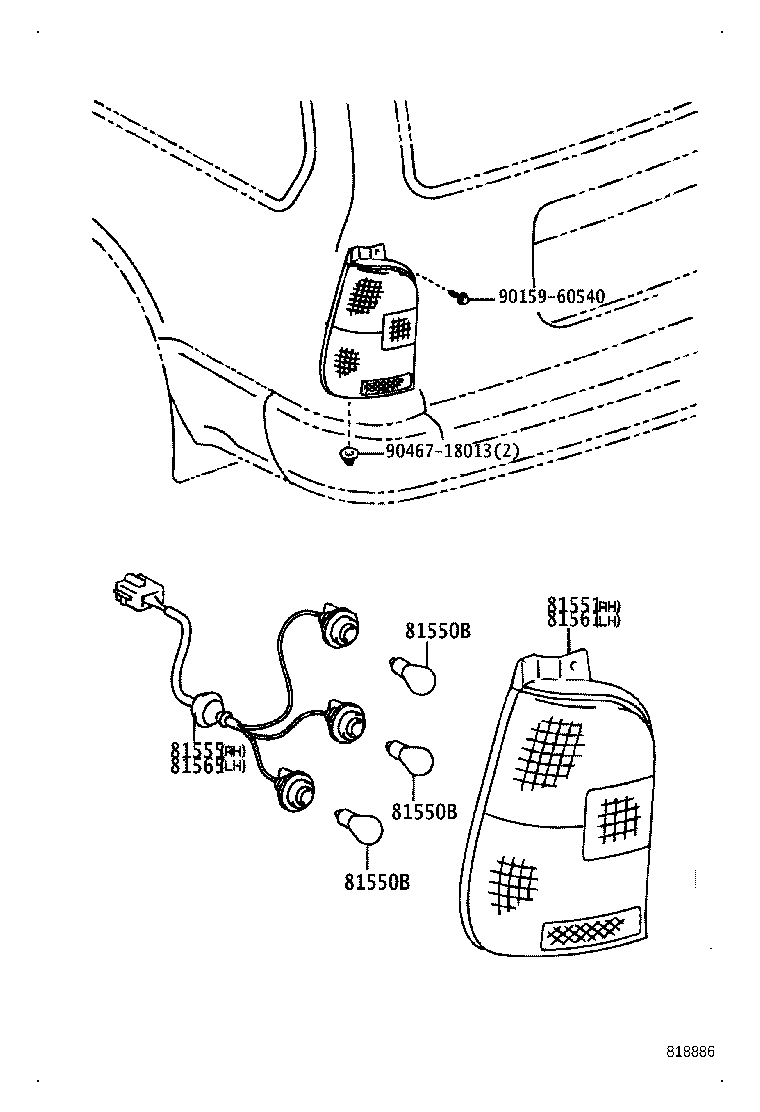

Exploded illustration 818886 9015960540 — not listed in this catalogue 9046718013 — not listed in this catalogue 81551 — LENS, REAR COMBINATION LAMP, RH (3 parts) 81561 — LENS, REAR COMBINATION LAMP, LH (3 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (8 parts) 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (3 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (3 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (8 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (8 parts)
818886 · 7 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
81550B — Bulb(FOR REAR COMBINATION LAMP)
90981-11039 note Bulb(FOR REAR COMBINATION LAMP)
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥200
90981-13050 note Bulb(FOR REAR COMBINATION LAMP)
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥220
90981-13051 note Bulb(FOR REAR COMBINATION LAMP)
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥230
90981-13051 note Bulb(FOR REAR COMBINATION LAMP)
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥230
99132-11210 note Bulb(FOR REAR COMBINATION LAMP)
1991-09 → —
EE103 107,108 XL;EE102,103 (3FC,4F) +1 ¥170
99132-11210 note Bulb(FOR REAR COMBINATION LAMP)
2000-08 → —
EE102,103 5F (DX,DXJ) ¥170
99132-21210 note Bulb(FOR REAR COMBINATION LAMP)
1991-09 → —
EE103 107,108 XL;EE102,103 (3FC,4F) +1 ¥190
99132-21210 note Bulb(FOR REAR COMBINATION LAMP)
2000-08 → —
EE102,103 5F (DX,DXJ) ¥190
81551 — Lens, Rear Combination Lamp, RH
81551-13320 Lens, Rear Combination Lamp, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥10,500
81551-1A730 Lens, Rear Combination Lamp, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥17,400
81551-1A880 Lens, Rear Combination Lamp, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥20,700
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-13340 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,600
81555-1A730 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥2,440
81555-1A880 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,440
81561 — Lens, Rear Combination Lamp, LH
81561-13320 Lens, Rear Combination Lamp, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥10,500
81561-1A670 Lens, Rear Combination Lamp, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥17,400
81561-1A840 Lens, Rear Combination Lamp, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥20,700
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-13340 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,600
81555-1A730 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥2,440
81555-1A880 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,440
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
