Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

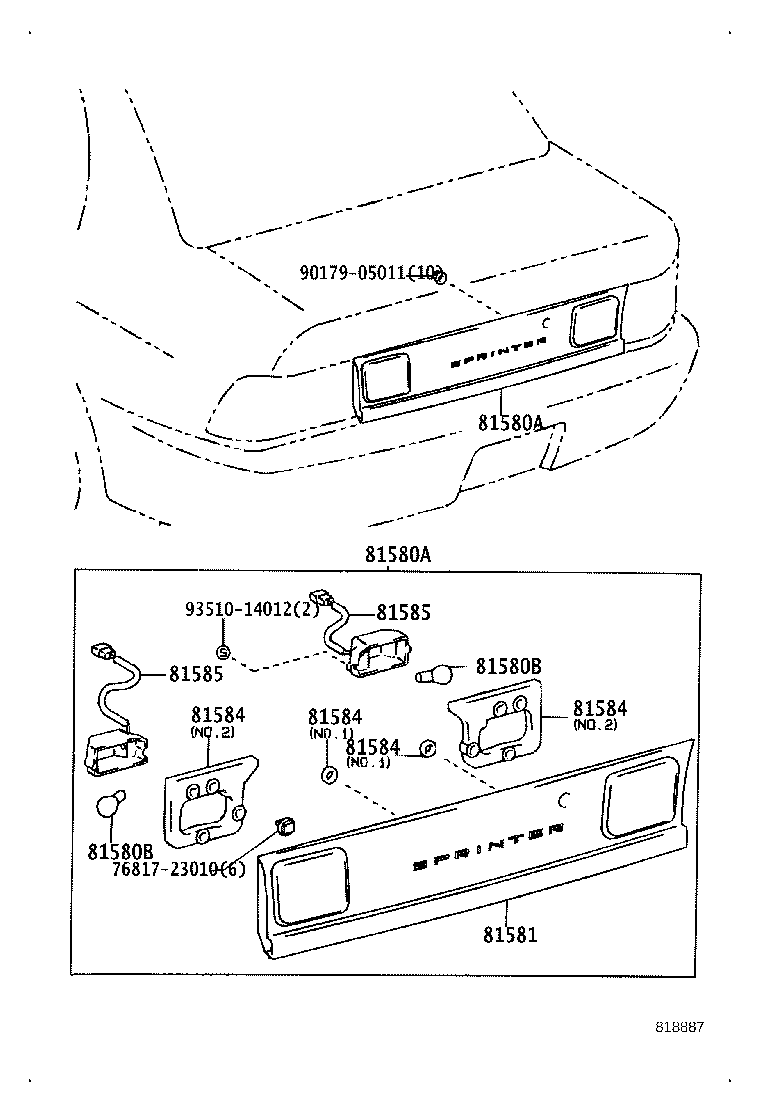

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81580A — Lamp Assy, Rear | ||||
| 81580-12020 |
Lamp Assy, Rear
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥30,800 | |
| 81580B — Bulb (FOR REAR LAMP) | ||||
| 90981-13051 note |
Bulb (FOR REAR LAMP)
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥230 | |
| 81581 — Lens, Rear Lamp | ||||
| 81581-12020 |
Lens, Rear Lamp
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥26,000 | |
| 81584 — Packing, Rear Lamp RH | ||||
| 81554-32150 note |
Packing, Rear Lamp RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥300 | |
| 81672-12040 note |
Packing, Rear Lamp RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥330 | |
| 81585 — Socket & Wire, Rear Lamp | ||||
| 81585-12020 note |
Socket & Wire, Rear Lamp
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,130 | |
| 81595-12020 note |
Socket & Wire, Rear Lamp
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
