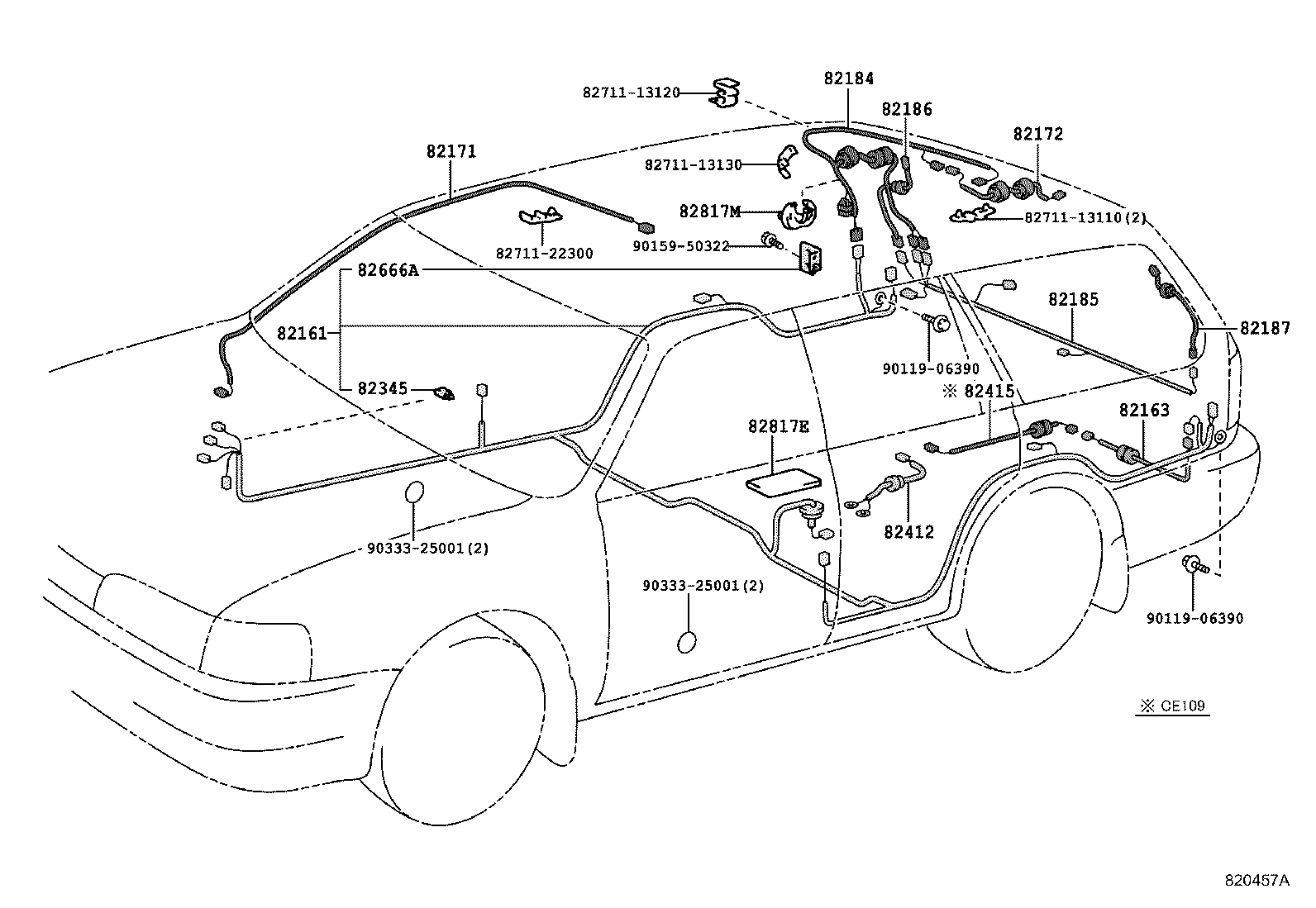

158 parts on this figure

Part number	Description	Fitment	Price
82161 — Wire, Floor
82161-13690	Wire, Floor 1991-09 → 1994-11 ended	CE106,108,EE106,107,108 CTD,DX,L	¥14,200
82161-13691	Wire, Floor 1994-11 → 1997-04 ended	CE106,108 CTD,DX,L	¥13,400
82161-13720 note	Wire, Floor 1991-09 → 1991-12 ended	CE106,108,EE106,107,108 CTD,DX,L	¥18,800
82161-13720	Wire, Floor 1991-09 → 1991-12 ended	CE106,EE107 XL	¥18,800
82161-13721 note	Wire, Floor 1991-12 → 1994-11 ended	CE106,108,EE106,107,108 CTD,DX,L	¥18,800
82161-13721	Wire, Floor 1991-12 → 1994-11 ended	CE106,EE107 XL	¥18,800
82161-13722	Wire, Floor 1994-11 → 1995-08 ended	CE106 XL	¥18,000
82161-13722 note	Wire, Floor 1994-11 → 1995-08 ended	CE106,108 CTD,DX,L	¥18,000
82161-13723	Wire, Floor 1995-08 → 1997-04 ended	CE106 XL	¥18,100
82161-13723 note	Wire, Floor 1995-08 → 1997-05 ended	CE106,108 CTD,DX,L	¥18,100
82161-13740	Wire, Floor 1991-09 → 1994-11 ended	CE109	¥17,000
82161-13741	Wire, Floor 1994-11 → 1997-04 ended	CE109	¥16,200
82161-13810 note	Wire, Floor 1991-09 → 1994-01 ended	EE106 4F	¥18,800
82161-1F120	Wire, Floor 1994-01 → 1994-11 ended	EE102,103,104 DX,DXJ,L	¥13,400
82161-1F121	Wire, Floor 1994-11 → 1997-04 ended	EE102,103,104 DX,DXJ,L	¥13,400
82161-1F130 note	Wire, Floor 1994-01 → 1994-11 ended	EE102,103,104 DX,DXJ,L	¥18,000
82161-1F130	Wire, Floor 1994-01 → 1994-11 ended	EE103 XL	¥18,000
82161-1F131 note	Wire, Floor 1994-11 → 1996-12 ended	EE102,103,104 DX,DXJ,L	¥18,000
82161-1F131	Wire, Floor 1994-11 → 1996-12 ended	EE103 XL	¥18,000
82161-1F132 note	Wire, Floor 1996-12 → 1997-05 ended	EE10# DX,DXJ,L	¥18,000
82161-1F132	Wire, Floor 1996-12 → 1997-04 ended	EE103 XL	¥18,000
82161-1F290	Wire, Floor 1996-05 → 1997-04 ended	AE109	¥16,200
82161-1F410	Wire, Floor 1997-04 → 1998-04 ended	CE106,108 CTD,DX,L	¥14,900
82161-1F420 note	Wire, Floor 1997-04 → 1998-04 ended	CE106,108 CTD,DX,L	¥16,300
82161-1F420	Wire, Floor 1997-04 → 1998-04 ended	CE106 XL	¥16,300
82161-1F430	Wire, Floor 1997-04 → 1998-04 ended	CE109	¥21,000
82161-1F450 note	Wire, Floor 1997-04 → 1998-04 ended	EE104	¥14,900
82161-1F450	Wire, Floor 1997-04 → —	CE107,EE102,103 DX,DXJ	¥14,900
82161-1F460 note	Wire, Floor 1997-04 → 1998-04 ended	EE10# DX,DXJ,L	¥22,300
82161-1F460	Wire, Floor 1997-04 → 1998-04 ended	EE103 XL	¥22,300
82161-1F461	Wire, Floor 1998-04 → —	CE107,EE103 XL	¥18,100
82161-1F461 note	Wire, Floor 1998-04 → —	CE102	¥18,100
82161-1F461 note	Wire, Floor 1998-04 → —	EE10# DX,DXJ,L	¥18,100
82161-1F461 note	Wire, Floor 1998-04 → —	CE107 DX,DXJ	¥18,100
82161-1F470	Wire, Floor 1997-04 → —	AE109,CE105	¥19,500
82161-1F620 note	Wire, Floor 1998-04 → —	CE107,EE102,103	¥18,100
82161-1F620	Wire, Floor 1998-04 → —	CE102,EE104	¥18,100
82161-1F630 note	Wire, Floor 1998-04 → —	AE109,CE105	¥18,100
82161-1H820	Wire, Floor 1991-09 → 1993-05 ended	AE104,CE104 SEL,XE	¥17,000
82161-1H840	Wire, Floor 1991-06 → 1993-05 ended	AE100,CE100,EE101 SEL,XE	¥17,000
82161-1H850 note	Wire, Floor 1991-06 → 1992-05 ended	AE100,CE100 SEL	¥20,200
82161-1H851 note	Wire, Floor 1992-05 → 1993-05 ended	AE100,CE100 SEL	¥20,200
82161-1H880 note	Wire, Floor 1991-06 → 1993-05 ended	AE100,CE100,EE101 SEL,XE	¥18,800
82161-1K010 note	Wire, Floor 1991-09 → 1992-05 ended	AE104,CE104 SEL	¥18,800
82161-1K011 note	Wire, Floor 1992-05 → 1993-05 ended	AE104,CE104 SEL	¥18,800
82161-1K020	Wire, Floor 1991-06 → 1993-05 ended	AE100,CE100,EE101 DX,LX	¥15,600
82161-1K030 note	Wire, Floor 1991-06 → 1993-05 ended	AE100,CE100,EE101 DX,LX	¥15,600
82161-1K040	Wire, Floor 1991-06 → 1993-05 ended	AE101 SEG	¥32,800
82161-1K230 note	Wire, Floor 1991-09 → 1993-05 ended	AE104,CE104 SEL,XE	¥18,800
82161-1K240	Wire, Floor 1991-06 → 1993-05 ended	AE101 GT	¥29,400
82161-1K250 note	Wire, Floor 1991-06 → 1993-05 ended	AE101 GT	¥32,800
82161-1K260 note	Wire, Floor 1991-09 → 1993-05 ended	AE104,CE104 LX	¥15,600
82161-1K270	Wire, Floor 1991-09 → 1993-05 ended	AE104,CE104 LX	¥15,600
82161-1K790	Wire, Floor 1993-05 → 1994-11 ended	AE100,CE100,EE101 DX,LX	¥19,400
82161-1K791	Wire, Floor 1994-11 → 1995-05 ended	AE100,CE100,EE101 DX,LX	¥19,400
82161-1K800 note	Wire, Floor 1993-05 → 1994-11 ended	AE100,CE100,EE101 DX,LX	¥19,400
82161-1K801 note	Wire, Floor 1994-11 → 1995-05 ended	AE100,CE100,EE101 DX,LX	¥22,300
82161-1K810	Wire, Floor 1993-05 → 1994-11 ended	AE100,CE100,EE101 SEL,XE	¥19,400
82161-1K811	Wire, Floor 1994-11 → 1995-05 ended	AE100,CE100,EE101 SEL,XE	¥22,300
82161-1K820 note	Wire, Floor 1993-05 → 1994-11 ended	AE100,CE100,EE101 SEL,XE	¥22,300
82161-1K821 note	Wire, Floor 1994-11 → 1995-05 ended	AE100,CE100,EE101 SEL,XE	¥27,900
82161-1K840	Wire, Floor 1993-05 → 1995-05 ended	AE101 GT	¥27,900
82161-1K850 note	Wire, Floor 1993-05 → 1995-05 ended	AE101 GT	¥31,000
82161-1K860	Wire, Floor 1993-05 → 1995-05 ended	AE101 SEG	¥31,000
82161-1L010	Wire, Floor 1993-05 → 1994-11 ended	AE104,CE104 LX	¥19,400
82161-1L011	Wire, Floor 1994-11 → 1995-05 ended	AE104,CE104 LX	¥19,400
82161-1L020 note	Wire, Floor 1993-05 → 1994-11 ended	AE104,CE104 LX	¥25,200
82161-1L021 note	Wire, Floor 1994-11 → 1995-05 ended	AE104,CE104 LX	¥25,200
82161-1L030	Wire, Floor 1993-05 → 1994-11 ended	AE104,CE104 SEL,XE	¥19,400
82161-1L031	Wire, Floor 1994-11 → 1995-05 ended	AE104,CE104 SEL,XE	¥20,900
82161-1L040 note	Wire, Floor 1993-05 → 1994-11 ended	AE104,CE104 SEL,XE	¥25,200
82161-1L041 note	Wire, Floor 1994-11 → 1995-05 ended	AE104,CE104 SEL,XE	¥25,200
82163 — Wire, Floor, NO.3
82163-13110	Wire, Floor, NO.3 1991-09 → 1998-09 ended	CE105,109	¥2,760
82163-13120 note	Wire, Floor, NO.3 1991-09 → 1994-01 ended	EE106 4F	¥2,740
82163-13130	Wire, Floor, NO.3 1996-05 → 1998-09 ended	AE109	¥2,630
82163-13140	Wire, Floor, NO.3 1998-04 → —	CE102,107,EE10#	¥3,890
82163-13150	Wire, Floor, NO.3 1998-09 → —	AE109	¥2,290
82163-13160 note	Wire, Floor, NO.3 1998-09 → —	AE109,CE105	¥2,290
82171 — Wire, Roof, NO.1
82171-12460	Wire, Roof, NO.1 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥2,760
82171-13100	Wire, Roof, NO.1 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,320
82171-13110 note	Wire, Roof, NO.1 1994-01 → —	CE102,108,EE104	¥2,320
82172 — Wire, Roof, NO.2
82172-13020	Wire, Roof, NO.2 1991-09 → 1994-01 ended	CE106,108,109,EE106,107,108	¥2,740
82172-13020	Wire, Roof, NO.2 1994-01 → 1995-05 ended	CE106,109,EE102,103	¥2,740
82172-13020 note	Wire, Roof, NO.2 1994-01 → 1995-05 ended	CE108,EE104	¥2,740
82172-13021 note	Wire, Roof, NO.2 1995-05 → —	EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ)	¥2,630
82172-13021	Wire, Roof, NO.2 2000-08 → —	EE102,103 5F (DX,DXJ)	¥2,630
82172-13030 note	Wire, Roof, NO.2 1994-01 → 1995-08 ended	CE108,EE104	¥2,630
82172-13030 note	Wire, Roof, NO.2 1995-08 → 1997-04 ended	CE108,EE104	¥2,630
82172-13030 note	Wire, Roof, NO.2 1997-04 → —	CE102,108,EE104	¥2,630
82184 — Wire, Back Door, NO.1
82184-13150	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,EE106 CTD	¥6,000
82184-13151	Wire, Back Door, NO.1 1991-12 → —	CE106,107,EE102,106 CTD,DXJ	¥6,000
82184-13160 note	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,EE106 CTD	¥6,000
82184-13161 note	Wire, Back Door, NO.1 1991-12 → —	EE102 (3FC,4F) DXJ;CE106,107,EE106 CTD,DXJ	¥6,000
82184-13161 note	Wire, Back Door, NO.1 2000-08 → —	EE102 5F DXJ	¥6,000
82184-13170 note	Wire, Back Door, NO.1 1992-05 → 1994-01 ended	CE106,EE106 CTD	¥6,800
82184-13170	Wire, Back Door, NO.1 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L	¥6,800
82184-13180 note	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,108,109,EE106,107,108 DX,L	¥9,200
82184-13180	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,109,EE107 XL	¥9,200
82184-13181 note	Wire, Back Door, NO.1 1992-05 → 1994-01 ended	CE106,EE106 CTD	¥9,300
82184-13181 note	Wire, Back Door, NO.1 1991-12 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 DX,L	¥9,300
82184-13181	Wire, Back Door, NO.1 1991-12 → —	CE105,106,107,109,EE103,107 XL	¥9,300
82184-13190 note	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,108,109,EE106,107,108 DX,L,XL	¥6,000
82184-13191 note	Wire, Back Door, NO.1 2000-08 → —	EE102,103 5F DX	¥6,000
82184-13191 note	Wire, Back Door, NO.1 1998-04 → —	CE10# DX,L,XL	¥6,000
82184-13191 note	Wire, Back Door, NO.1 1991-12 → —	EE103 XL;EE102,103 (3FC,4F) DX;AE109,CE106,108,109,EE104,106,107,108 +1	¥6,000
82184-13191 note	Wire, Back Door, NO.1 1992-05 → 1994-01 ended	CE106,EE106 CTD	¥6,000
82184-13230 note	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,EE106 CTD	¥6,000
82184-13231 note	Wire, Back Door, NO.1 1991-12 → —	EE102 (3FC,4F) DXJ;CE106,107,EE106 CTD,DXJ	¥6,000
82184-13231 note	Wire, Back Door, NO.1 2000-08 → —	EE102 5F DXJ	¥6,000
82184-13240 note	Wire, Back Door, NO.1 1991-09 → 1991-12 ended	CE106,EE106 CTD	¥6,000
82184-13241 note	Wire, Back Door, NO.1 1991-12 → —	EE102 (3FC,4F) DXJ;CE106,107,EE106 CTD,DXJ	¥6,000
82184-13241 note	Wire, Back Door, NO.1 2000-08 → —	EE102 5F DXJ	¥6,000
82184-13310 note	Wire, Back Door, NO.1 1992-05 → 1994-01 ended	CE106,EE106 CTD	¥6,000
82184-13320 note	Wire, Back Door, NO.1 1992-05 → 1994-01 ended	CE106,EE106 CTD	¥5,300
82184-13330 note	Wire, Back Door, NO.1 1992-01 → 1993-12 ended	CE106,EE106 CTD	¥6,000
82184-13340 note	Wire, Back Door, NO.1 1992-01 → 1993-12 ended	CE106,EE106 CTD	¥6,000
82185 — Wire, Back Door, NO.2
82185-13210	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,EE106 CTD	¥2,740
82185-13220 note	Wire, Back Door, NO.2 1991-09 → 1991-12 ended	CE106,EE106 CTD	¥3,190
82185-13221 note	Wire, Back Door, NO.2 1991-12 → 1994-01 ended	CE106,EE106 CTD	¥3,190
82185-13230 note	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,EE106 CTD	¥3,640
82185-13240	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,108,109,EE106,107,108 DX,L	¥4,090
82185-13240 note	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,EE106 CTD	¥4,090
82185-13250 note	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,108,109,EE106,107,108 DX,L	¥4,090
82185-13250	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,109,EE107 XL	¥4,090
82185-13250 note	Wire, Back Door, NO.2 1991-09 → 1994-01 ended	CE106,EE106 CTD	¥4,090
82185-13400	Wire, Back Door, NO.2 1994-01 → —	CE106,107,EE102 CTD,DXJ	¥2,630
82185-13410 note	Wire, Back Door, NO.2 1994-01 → —	CE106,107,EE102 CTD,DXJ	¥3,060
82185-13420 note	Wire, Back Door, NO.2 1994-01 → 1997-04 ended	CE106,EE102 CTD,DXJ	¥3,470
82185-13430 note	Wire, Back Door, NO.2 1994-01 → —	CE107,EE102 DX,L 5F DXJ;EE102,103 +3	¥3,890
82185-13430	Wire, Back Door, NO.2 1998-04 → —	CE10#,EE102,103 (4FC,5F) (DX,L)	¥3,890
82185-13440	Wire, Back Door, NO.2 1994-01 → 1997-04 ended	CE106,109,EE103 XL	¥3,890
82185-13440 note	Wire, Back Door, NO.2 1994-01 → 1997-05 ended	AE109,CE106,108,109,EE102,103,104 DX,L	¥3,890
82185-13440 note	Wire, Back Door, NO.2 1994-01 → 1997-05 ended	CE106,EE102 CTD,DXJ	¥3,890
82185-13450 note	Wire, Back Door, NO.2 1997-04 → —	CE106,107,EE102 CTD,DXJ	¥3,480
82185-13510 note	Wire, Back Door, NO.2 1996-12 → —	CE108,EE104	¥4,330
82185-13510 note	Wire, Back Door, NO.2 1997-04 → —	CE107 DXJ;AE109,CE106,109,EE102,103	¥4,330
82185-13510	Wire, Back Door, NO.2 1998-04 → —	CE105,107 XL	¥4,330
82185-13510 note	Wire, Back Door, NO.2 1998-04 → —	CE10# DX,L	¥4,330
82186 — Wire, Rear Window, NO.1
82186-13020	Wire, Rear Window, NO.1 1997-04 → —	AE109,CE10#,EE10#	¥980
82186-13020	Wire, Rear Window, NO.1 1991-09 → 1997-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108	¥980
82187 — Wire, Rear Window, NO.2
82186-13020	Wire, Rear Window, NO.2 1991-09 → 1997-05 ended	AE109,CE106,108,109,EE102,103,104,106,107,108	¥980
82187-12150	Wire, Rear Window, NO.2 1991-06 → 1993-05 ended	AE100,104,CE100,104,EE101 DX,LX	¥300
82187-12150	Wire, Rear Window, NO.2 1993-05 → 1995-05 ended	AE100,104,CE100,104,EE101 DX,LX,XE	¥300
82345 — Diode
82345-12030 note	Diode 1991-09 → 1997-05 ended	AE109,CE10#,EE10#	¥850
82345-12050 note	Diode 1991-06 → 1997-05 ended	AE10#,CE10#,EE10#	¥790
82345-32020 note	Diode 1991-06 → 1997-05 ended	AE10#,CE10#,EE10#	¥1,030
82412 — Wire, Fuel Gage
82412-12120	Wire, Fuel Gage 1991-09 → 1995-05 ended	AE104,CE104	¥980
82412-13110 note	Wire, Fuel Gage 1991-09 → 1994-01 ended	EE106 4F	¥3,190
82415 — Wire, Fuel Pump
82415-13010	Wire, Fuel Pump 1991-09 → 1998-09 ended	CE105,109	¥2,760
82415-13020	Wire, Fuel Pump 1996-05 → 1998-09 ended	AE109	¥3,480
82415-13030	Wire, Fuel Pump 1998-09 → —	AE109	¥2,290
82415-13040 note	Wire, Fuel Pump 1998-09 → —	AE109,CE105	¥1,160
82666A — Holder, Connector NO.2
82666-13010	Holder, Connector NO.2 1991-09 → 1991-12 ended	CE106,108,109,EE106,107,108	¥1,050
82666-13011	Holder, Connector NO.2 1991-12 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥1,060
82817E — Protector, Wiring Harness, NO.6
82817-13130	Protector, Wiring Harness, NO.6 1994-01 → 1998-04 ended	CE106,108,EE102,103,104	¥550
82817-13130	Protector, Wiring Harness, NO.6 1998-04 → —	AE109,CE10#,EE10#	¥550
82817-16100	Protector, Wiring Harness, NO.6 1991-09 → 1994-01 ended	CE106,108,EE106,107,108	¥410
82817M — Protector, Wiring Harness, NO.12
82817-13100	Protector, Wiring Harness, NO.12 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥250

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
