Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

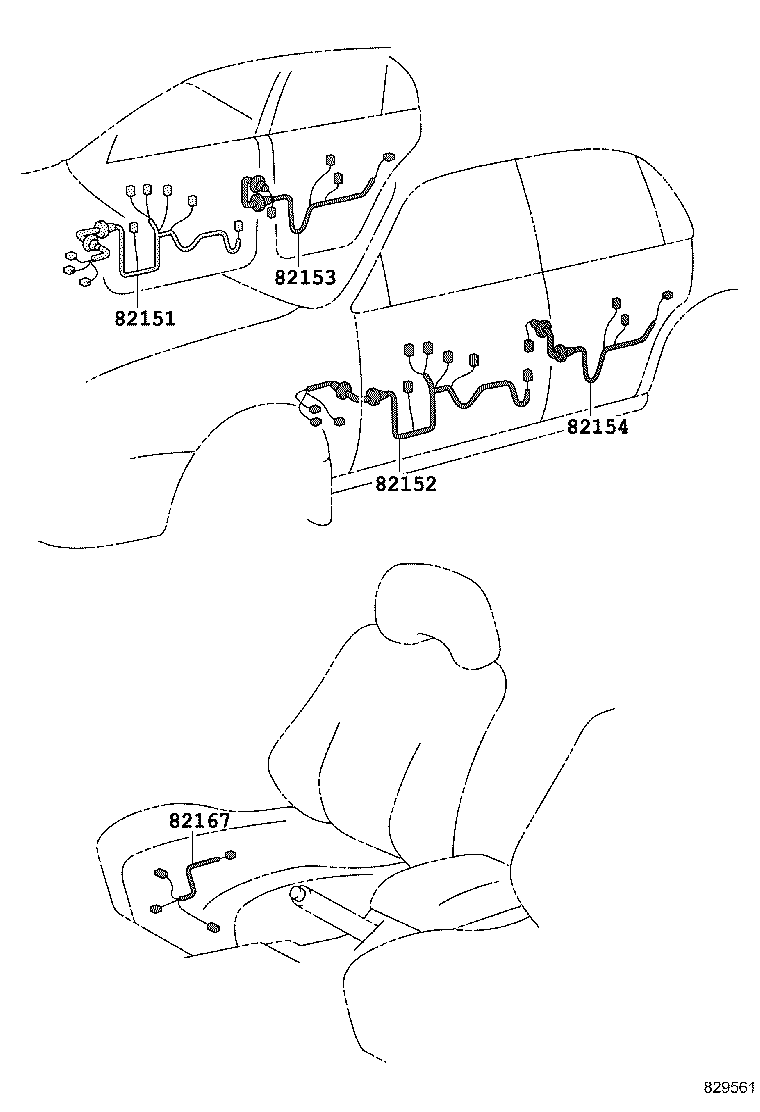

Exploded illustration 829561 82153 — WIRE, REAR DOOR, NO.1 (4 parts) 82151 — WIRE, FRONT DOOR, RH (49 parts) 82154 — WIRE, REAR DOOR, NO.2 (4 parts) 82152 — WIRE, FRONT DOOR, LH (43 parts) 82167 — WIRE, SEAT, NO.1 (2 parts)
829561 · 5 callouts Full size ↗
102 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-12810 note Wire, Front Door, RH
1991-09 → 1991-10 ended
CE106,109,EE107 XL ¥3,200
82151-12810 Wire, Front Door, RH
1991-06 → 1991-10 ended
AE100,104,CE100,104,108,EE101,108 DX,L,LX ¥3,200
82151-12810 Wire, Front Door, RH
2000-08 → —
AE109,CE105,107,EE102,103 ¥3,200
82151-12810 note Wire, Front Door, RH
1997-04 → —
EE104 ¥3,200
82151-12810 note Wire, Front Door, RH
1997-04 → —
CE102,108 ¥3,200
82151-12810 note Wire, Front Door, RH
1995-08 → 1997-04 ended
CE108,EE104 ¥3,200
82151-12810 note Wire, Front Door, RH
1994-01 → 1995-08 ended
CE108,EE104 ¥3,200
82151-12810 Wire, Front Door, RH
1994-01 → 1995-05 ended
AE100,CE100,EE101 DX ¥3,200
82151-12810 note Wire, Front Door, RH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥3,200
82151-12810 note Wire, Front Door, RH
1993-05 → 1994-01 ended
CE106,109,EE107 XL ¥3,200
82151-12810 Wire, Front Door, RH
1991-10 → 1994-01 ended
AE100,CE100,108,EE101,108 DX,L ¥3,200
82151-12810 note Wire, Front Door, RH
1991-10 → 1993-05 ended
AE100,104,CE100,104,106,109,EE101,107 LX,XL ¥3,200
82151-12820 note Wire, Front Door, RH
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥4,100
82151-12820 note Wire, Front Door, RH
2000-08 → —
AE109,CE10#,EE10# DX,L,XL ¥4,100
82151-12820 Wire, Front Door, RH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥4,100
82151-12820 note Wire, Front Door, RH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥4,100
82151-12820 Wire, Front Door, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥4,100
82151-12830 note Wire, Front Door, RH
1993-05 → 1993-09 ended
AE100,104,CE100,104,EE101 LX ¥12,600
82151-12830 note Wire, Front Door, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥12,600
82151-12831 note Wire, Front Door, RH
1993-09 → 1993-12 ended
AE100,104,CE100,104,EE101 LX ¥12,000
82151-12832 note Wire, Front Door, RH
1993-12 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥11,900
82151-12850 Wire, Front Door, RH
1991-06 → 1992-05 ended
AE101 GT ¥14,200
82151-12850 note Wire, Front Door, RH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥14,200
82151-12851 note Wire, Front Door, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥14,200
82151-12851 note Wire, Front Door, RH
1993-05 → 1993-09 ended
AE100,104,CE100,104,EE101 LX,XE ¥14,200
82151-12851 Wire, Front Door, RH
1992-05 → 1993-09 ended
AE101 GT ¥14,200
82151-12851 note Wire, Front Door, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥14,200
82151-12852 Wire, Front Door, RH
1993-09 → 1993-12 ended
AE101 GT ¥12,000
82151-12852 note Wire, Front Door, RH
1993-09 → 1993-12 ended
AE100,104,CE100,104,EE101 LX,XE ¥12,000
82151-12853 Wire, Front Door, RH
1993-12 → 1995-05 ended
AE101 GT ¥12,000
82151-12853 note Wire, Front Door, RH
1993-12 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥12,000
82151-12860 Wire, Front Door, RH
1991-06 → 1993-09 ended
AE10#,CE100,104 SEG,SEL ¥12,600
82151-12861 Wire, Front Door, RH
1993-09 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥12,000
82151-12870 note Wire, Front Door, RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥4,100
82151-12880 note Wire, Front Door, RH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥14,200
82151-12880 note Wire, Front Door, RH
1991-06 → 1993-09 ended
AE101 GT ¥14,200
82151-12880 note Wire, Front Door, RH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥14,200
82151-12881 note Wire, Front Door, RH
1993-09 → 1993-12 ended
AE101 GT ¥12,000
82151-12882 note Wire, Front Door, RH
1993-12 → 1995-05 ended
AE101 GT ¥12,000
82151-12890 note Wire, Front Door, RH
1991-06 → 1993-09 ended
AE10#,CE100,104 SEG,SEL ¥12,600
82151-12891 note Wire, Front Door, RH
1993-09 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥13,400
82151-13050 note Wire, Front Door, RH
1991-09 → 1997-05 ended
CE106,109,EE107 XL ¥3,190
82151-13070 Wire, Front Door, RH
1995-08 → 1997-04 ended
EE103;AE109,CE106,109,EE102 DX ¥8,900
82151-13070 note Wire, Front Door, RH
1995-08 → 1997-05 ended
CE10#,EE104 L,XL ¥8,900
82151-13070 note Wire, Front Door, RH
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥8,900
82151-13070 note Wire, Front Door, RH
1994-01 → 1995-08 ended
CE108,EE104 ¥8,900
82151-13070 Wire, Front Door, RH
1994-01 → 1995-08 ended
CE106,109,EE102,103 DX ¥8,900
82151-13130 note Wire, Front Door, RH
2000-08 → —
AE109,CE10#,EE10# ¥9,100
82151-13130 note Wire, Front Door, RH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# DX,L,XL ¥9,100
82152 — Wire, Front Door, LH
82151-12810 Wire, Front Door, LH
1991-10 → 1994-01 ended
AE100,CE100,108,EE101,108 DX,L ¥3,200
82151-12810 note Wire, Front Door, LH
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥3,200
82151-12810 note Wire, Front Door, LH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥3,200
82151-12810 Wire, Front Door, LH
1994-01 → 1995-05 ended
AE100,CE100,EE101 DX ¥3,200
82151-12810 note Wire, Front Door, LH
1994-01 → 1995-08 ended
CE108,EE104 ¥3,200
82151-12810 note Wire, Front Door, LH
1995-08 → 1997-04 ended
CE108,EE104 ¥3,200
82151-12810 note Wire, Front Door, LH
1997-04 → —
CE102,108 ¥3,200
82151-12810 note Wire, Front Door, LH
1997-04 → —
EE104 ¥3,200
82151-12810 note Wire, Front Door, LH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥3,200
82151-12810 Wire, Front Door, LH
2000-08 → —
AE109,CE105,107,EE102,103 ¥3,200
82151-12810 Wire, Front Door, LH
1991-06 → 1991-10 ended
AE100,104,CE100,104,108,EE101,108 DX,L,LX ¥3,200
82151-12820 note Wire, Front Door, LH
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥4,100
82151-12820 Wire, Front Door, LH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥4,100
82151-12820 Wire, Front Door, LH
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥4,100
82151-12820 note Wire, Front Door, LH
2000-08 → —
AE109,CE10#,EE10# DX,L,XL ¥4,100
82151-12820 note Wire, Front Door, LH
1991-09 → 1994-01 ended
CE106,109,EE107 XL ¥4,100
82151-12870 note Wire, Front Door, LH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥4,100
82152-12740 note Wire, Front Door, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥9,200
82152-12740 note Wire, Front Door, LH
1993-05 → 1993-09 ended
AE100,104,CE100,104,EE101 LX ¥9,200
82152-12741 note Wire, Front Door, LH
1993-09 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥8,800
82152-12780 note Wire, Front Door, LH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥10,900
82152-12780 Wire, Front Door, LH
1991-06 → 1992-05 ended
AE101 GT ¥10,900
82152-12781 Wire, Front Door, LH
1992-05 → 1993-09 ended
AE101 GT ¥10,900
82152-12781 note Wire, Front Door, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥10,900
82152-12781 note Wire, Front Door, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥10,900
82152-12781 note Wire, Front Door, LH
1993-05 → 1993-09 ended
AE100,104,CE100,104,EE101 LX,XE ¥10,900
82152-12782 note Wire, Front Door, LH
1993-09 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥10,500
82152-12782 Wire, Front Door, LH
1993-09 → 1995-05 ended
AE101 GT ¥10,500
82152-12790 Wire, Front Door, LH
1991-06 → 1993-09 ended
AE10#,CE100,104 SEG,SEL ¥9,200
82152-12791 Wire, Front Door, LH
1993-09 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥8,900
82152-12800 note Wire, Front Door, LH
1991-06 → 1993-09 ended
AE101 GT ¥10,900
82152-12800 note Wire, Front Door, LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 XE ¥10,900
82152-12800 note Wire, Front Door, LH
1991-06 → 1992-05 ended
AE100,104,CE100,104 XE ¥10,900
82152-12801 note Wire, Front Door, LH
1993-09 → 1995-05 ended
AE101 GT ¥10,500
82152-12810 note Wire, Front Door, LH
1991-06 → 1993-09 ended
AE10#,CE100,104 SEG,SEL ¥9,200
82152-12811 note Wire, Front Door, LH
1993-09 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥8,900
82152-13060 note Wire, Front Door, LH
1997-04 → —
CE106,109,EE103 XL ¥8,900
82152-13060 note Wire, Front Door, LH
2000-08 → —
EE103 DX;AE109,CE10#,EE102 ¥8,900
82152-13060 note Wire, Front Door, LH
1994-01 → —
CE108,EE104 ¥8,900
82152-13060 note Wire, Front Door, LH
1997-04 → 2000-08 ended
CE106,109,EE103 DX;AE109,CE102,105,107,EE102 DX,L,XL ¥8,900
82152-13060 Wire, Front Door, LH
1995-08 → 1997-04 ended
AE109,CE106,109,EE102,103 DX,XL ¥8,900
82152-13060 note Wire, Front Door, LH
1994-01 → 1995-08 ended
CE106,109,EE103 XL ¥8,900
82152-13060 Wire, Front Door, LH
1994-01 → 1995-08 ended
CE106,109,EE102,103 DX ¥8,900
82153 — Wire, Rear Door, NO.1
82153-12210 Wire, Rear Door, NO.1
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥6,000
82153-12210 Wire, Rear Door, NO.1
1992-05 → 1993-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,000
82153-12210 Wire, Rear Door, NO.1
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,000
82153-12250 Wire, Rear Door, NO.1
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥5,300
82154 — Wire, Rear Door, NO.2
82154-12210 Wire, Rear Door, NO.2
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥6,000
82154-12210 Wire, Rear Door, NO.2
1992-05 → 1993-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥6,000
82154-12210 Wire, Rear Door, NO.2
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥6,000
82154-12250 Wire, Rear Door, NO.2
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥5,300
82167 — Wire, Seat, NO.1
82167-12010 Wire, Seat, NO.1
1991-06 → 1992-01 ended
AE101 SEG ¥2,740
82167-12011 Wire, Seat, NO.1
1992-01 → 1995-05 ended
AE101 SEG ¥2,740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
