Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

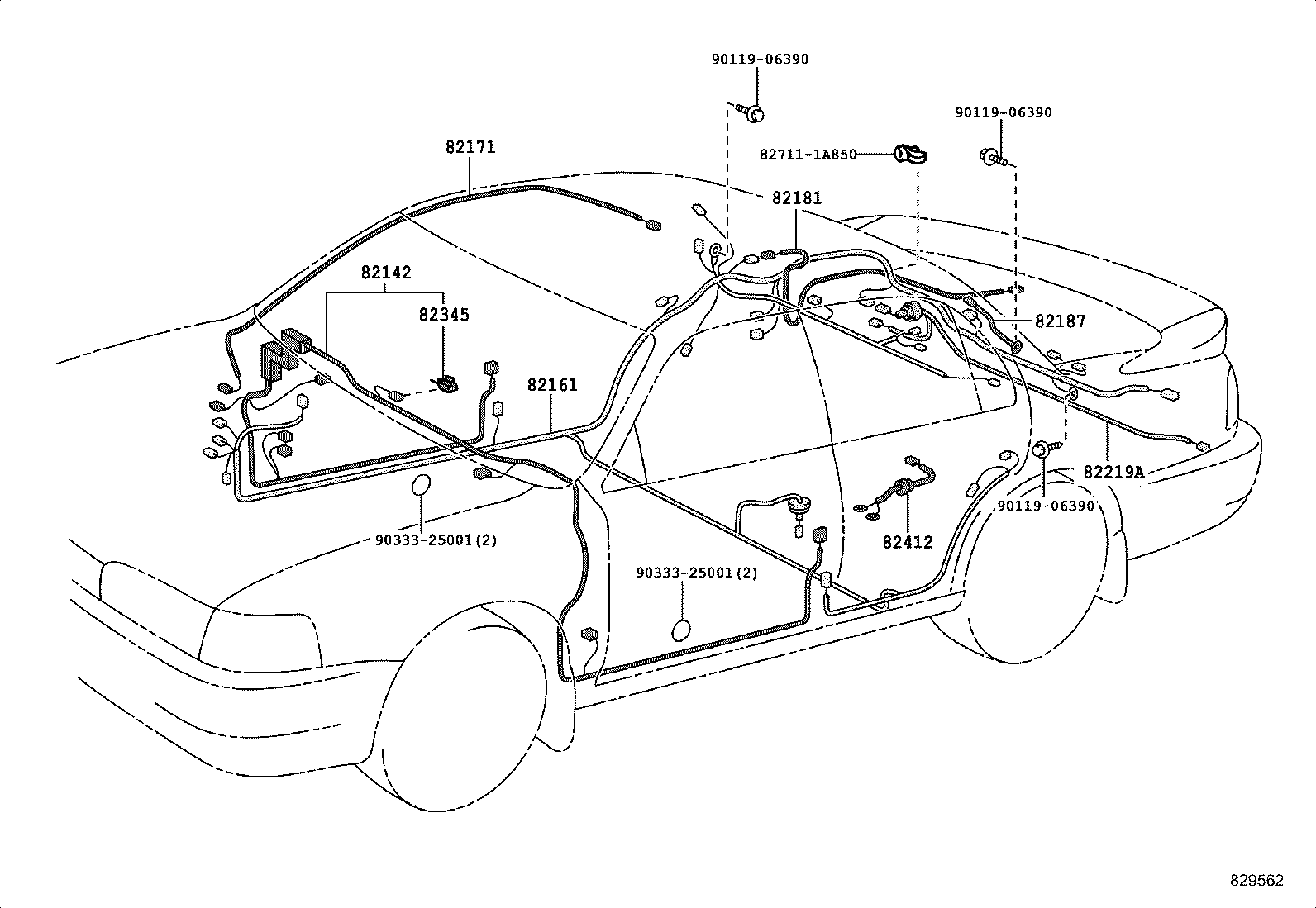

Exploded illustration 829562 82161 — WIRE, FLOOR (72 parts) 82412 — WIRE, FUEL GAGE (2 parts) 82219A — WIRE, SENSOR (2 parts) 82142 — WIRE, INSTRUMENT PANEL, NO.2 (8 parts) 82171 — WIRE, ROOF, NO.1 (3 parts) 82345 — DIODE (3 parts) 9033325001 — not listed in this catalogue 9033325001 — not listed in this catalogue 9011906390 — not listed in this catalogue 827111A850 — not listed in this catalogue 82187 — WIRE, REAR WINDOW, NO.2 (3 parts) 82181 — WIRE, LUGGAGE ROOM, NO.1 (2 parts) 9011906390 — not listed in this catalogue 9011906390 — not listed in this catalogue
829562 · 8 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
82142 — Wire, Instrument Panel, NO.2
82142-12010 Wire, Instrument Panel, NO.2
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,XE ¥25,000
82142-12020 Wire, Instrument Panel, NO.2
1992-05 → 1993-05 ended
AE10#,CE100,104,EE101 GT,LX,XE ¥25,000
82142-12020 Wire, Instrument Panel, NO.2
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,XE ¥25,000
82142-12030 Wire, Instrument Panel, NO.2
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,400
82142-12031 Wire, Instrument Panel, NO.2
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥27,900
82142-12040 Wire, Instrument Panel, NO.2
1991-06 → 1993-05 ended
AE101 SEG ¥29,400
82142-12040 note Wire, Instrument Panel, NO.2
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥29,400
82142-12041 Wire, Instrument Panel, NO.2
1993-05 → 1995-05 ended
AE101 SEG ¥27,900
82161 — Wire, Floor
82161-13690 Wire, Floor
1991-09 → 1994-11 ended
CE106,108,EE106,107,108 CTD,DX,L ¥14,200
82161-13691 Wire, Floor
1994-11 → 1997-04 ended
CE106,108 CTD,DX,L ¥13,400
82161-13720 note Wire, Floor
1991-09 → 1991-12 ended
CE106,108,EE106,107,108 CTD,DX,L ¥18,800
82161-13720 Wire, Floor
1991-09 → 1991-12 ended
CE106,EE107 XL ¥18,800
82161-13721 note Wire, Floor
1991-12 → 1994-11 ended
CE106,108,EE106,107,108 CTD,DX,L ¥18,800
82161-13721 Wire, Floor
1991-12 → 1994-11 ended
CE106,EE107 XL ¥18,800
82161-13722 Wire, Floor
1994-11 → 1995-08 ended
CE106 XL ¥18,000
82161-13722 note Wire, Floor
1994-11 → 1995-08 ended
CE106,108 CTD,DX,L ¥18,000
82161-13723 Wire, Floor
1995-08 → 1997-04 ended
CE106 XL ¥18,100
82161-13723 note Wire, Floor
1995-08 → 1997-05 ended
CE106,108 CTD,DX,L ¥18,100
82161-13740 Wire, Floor
1991-09 → 1994-11 ended
CE109 ¥17,000
82161-13741 Wire, Floor
1994-11 → 1997-04 ended
CE109 ¥16,200
82161-13810 note Wire, Floor
1991-09 → 1994-01 ended
EE106 4F ¥18,800
82161-1F120 Wire, Floor
1994-01 → 1994-11 ended
EE102,103,104 DX,DXJ,L ¥13,400
82161-1F121 Wire, Floor
1994-11 → 1997-04 ended
EE102,103,104 DX,DXJ,L ¥13,400
82161-1F130 Wire, Floor
1994-01 → 1994-11 ended
EE103 XL ¥18,000
82161-1F130 note Wire, Floor
1994-01 → 1994-11 ended
EE102,103,104 DX,DXJ,L ¥18,000
82161-1F131 note Wire, Floor
1994-11 → 1996-12 ended
EE102,103,104 DX,DXJ,L ¥18,000
82161-1F131 Wire, Floor
1994-11 → 1996-12 ended
EE103 XL ¥18,000
82161-1F132 note Wire, Floor
1996-12 → 1997-05 ended
EE10# DX,DXJ,L ¥18,000
82161-1F132 Wire, Floor
1996-12 → 1997-04 ended
EE103 XL ¥18,000
82161-1F290 Wire, Floor
1996-05 → 1997-04 ended
AE109 ¥16,200
82161-1F410 Wire, Floor
1997-04 → 1998-04 ended
CE106,108 CTD,DX,L ¥14,900
82161-1F420 Wire, Floor
1997-04 → 1998-04 ended
CE106 XL ¥16,300
82161-1F420 note Wire, Floor
1997-04 → 1998-04 ended
CE106,108 CTD,DX,L ¥16,300
82161-1F430 Wire, Floor
1997-04 → 1998-04 ended
CE109 ¥21,000
82161-1F450 Wire, Floor
1997-04 → —
CE107,EE102,103 DX,DXJ ¥14,900
82161-1F450 note Wire, Floor
1997-04 → 1998-04 ended
EE104 ¥14,900
82161-1F460 Wire, Floor
1997-04 → 1998-04 ended
EE103 XL ¥22,300
82161-1F460 note Wire, Floor
1997-04 → 1998-04 ended
EE10# DX,DXJ,L ¥22,300
82161-1F461 note Wire, Floor
1998-04 → —
CE107 DX,DXJ ¥18,100
82161-1F461 note Wire, Floor
1998-04 → —
EE10# DX,DXJ,L ¥18,100
82161-1F461 note Wire, Floor
1998-04 → —
CE102 ¥18,100
82161-1F461 Wire, Floor
1998-04 → —
CE107,EE103 XL ¥18,100
82161-1F470 Wire, Floor
1997-04 → —
AE109,CE105 ¥19,500
82161-1F620 note Wire, Floor
1998-04 → —
CE107,EE102,103 ¥18,100
82161-1F620 Wire, Floor
1998-04 → —
CE102,EE104 ¥18,100
82161-1F630 note Wire, Floor
1998-04 → —
AE109,CE105 ¥18,100
82161-1H820 Wire, Floor
1991-09 → 1993-05 ended
AE104,CE104 SEL,XE ¥17,000
82161-1H840 Wire, Floor
1991-06 → 1993-05 ended
AE100,CE100,EE101 SEL,XE ¥17,000
82161-1H850 note Wire, Floor
1991-06 → 1992-05 ended
AE100,CE100 SEL ¥20,200
82161-1H851 note Wire, Floor
1992-05 → 1993-05 ended
AE100,CE100 SEL ¥20,200
82161-1H880 note Wire, Floor
1991-06 → 1993-05 ended
AE100,CE100,EE101 SEL,XE ¥18,800
82161-1K010 note Wire, Floor
1991-09 → 1992-05 ended
AE104,CE104 SEL ¥18,800
82161-1K011 note Wire, Floor
1992-05 → 1993-05 ended
AE104,CE104 SEL ¥18,800
82161-1K020 Wire, Floor
1991-06 → 1993-05 ended
AE100,CE100,EE101 DX,LX ¥15,600
82161-1K030 note Wire, Floor
1991-06 → 1993-05 ended
AE100,CE100,EE101 DX,LX ¥15,600
82161-1K040 Wire, Floor
1991-06 → 1993-05 ended
AE101 SEG ¥32,800
82161-1K230 note Wire, Floor
1991-09 → 1993-05 ended
AE104,CE104 SEL,XE ¥18,800
82161-1K240 Wire, Floor
1991-06 → 1993-05 ended
AE101 GT ¥29,400
82161-1K250 note Wire, Floor
1991-06 → 1993-05 ended
AE101 GT ¥32,800
82161-1K260 note Wire, Floor
1991-09 → 1993-05 ended
AE104,CE104 LX ¥15,600
82161-1K270 Wire, Floor
1991-09 → 1993-05 ended
AE104,CE104 LX ¥15,600
82161-1K790 Wire, Floor
1993-05 → 1994-11 ended
AE100,CE100,EE101 DX,LX ¥19,400
82161-1K791 Wire, Floor
1994-11 → 1995-05 ended
AE100,CE100,EE101 DX,LX ¥19,400
82161-1K800 note Wire, Floor
1993-05 → 1994-11 ended
AE100,CE100,EE101 DX,LX ¥19,400
82161-1K801 note Wire, Floor
1994-11 → 1995-05 ended
AE100,CE100,EE101 DX,LX ¥22,300
82161-1K810 Wire, Floor
1993-05 → 1994-11 ended
AE100,CE100,EE101 SEL,XE ¥19,400
82161-1K811 Wire, Floor
1994-11 → 1995-05 ended
AE100,CE100,EE101 SEL,XE ¥22,300
82161-1K820 note Wire, Floor
1993-05 → 1994-11 ended
AE100,CE100,EE101 SEL,XE ¥22,300
82161-1K821 note Wire, Floor
1994-11 → 1995-05 ended
AE100,CE100,EE101 SEL,XE ¥27,900
82161-1K840 Wire, Floor
1993-05 → 1995-05 ended
AE101 GT ¥27,900
82161-1K850 note Wire, Floor
1993-05 → 1995-05 ended
AE101 GT ¥31,000
82161-1K860 Wire, Floor
1993-05 → 1995-05 ended
AE101 SEG ¥31,000
82161-1L010 Wire, Floor
1993-05 → 1994-11 ended
AE104,CE104 LX ¥19,400
82161-1L011 Wire, Floor
1994-11 → 1995-05 ended
AE104,CE104 LX ¥19,400
82161-1L020 note Wire, Floor
1993-05 → 1994-11 ended
AE104,CE104 LX ¥25,200
82161-1L021 note Wire, Floor
1994-11 → 1995-05 ended
AE104,CE104 LX ¥25,200
82161-1L030 Wire, Floor
1993-05 → 1994-11 ended
AE104,CE104 SEL,XE ¥19,400
82161-1L031 Wire, Floor
1994-11 → 1995-05 ended
AE104,CE104 SEL,XE ¥20,900
82161-1L040 note Wire, Floor
1993-05 → 1994-11 ended
AE104,CE104 SEL,XE ¥25,200
82161-1L041 note Wire, Floor
1994-11 → 1995-05 ended
AE104,CE104 SEL,XE ¥25,200
82171 — Wire, Roof, NO.1
82171-12460 Wire, Roof, NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,760
82171-13100 Wire, Roof, NO.1
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,320
82171-13110 note Wire, Roof, NO.1
1994-01 → —
CE102,108,EE104 ¥2,320
82181 — Wire, Luggage Room, NO.1
82181-12170 Wire, Luggage Room, NO.1
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥3,640
82181-12250 Wire, Luggage Room, NO.1
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,470
82187 — Wire, Rear Window, NO.2
82186-13020 Wire, Rear Window, NO.2
1991-09 → 1997-05 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥980
82187-12150 Wire, Rear Window, NO.2
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 DX,LX ¥300
82187-12150 Wire, Rear Window, NO.2
1993-05 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX,XE ¥300
82219A — Wire, Sensor
82219-12110 Wire, Sensor
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥4,090
82219-12110 Wire, Sensor
1992-05 → 1993-05 ended
AE101 SEG ¥4,090
82345 — Diode
82345-12030 note Diode
1991-09 → 1997-05 ended
AE109,CE10#,EE10# ¥850
82345-12050 note Diode
1991-06 → 1997-05 ended
AE10#,CE10#,EE10# ¥790
82345-32020 note Diode
1991-06 → 1997-05 ended
AE10#,CE10#,EE10# ¥1,030
82412 — Wire, Fuel Gage
82412-12120 Wire, Fuel Gage
1991-09 → 1995-05 ended
AE104,CE104 ¥980
82412-13110 note Wire, Fuel Gage
1991-09 → 1994-01 ended
EE106 4F ¥3,190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
