Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

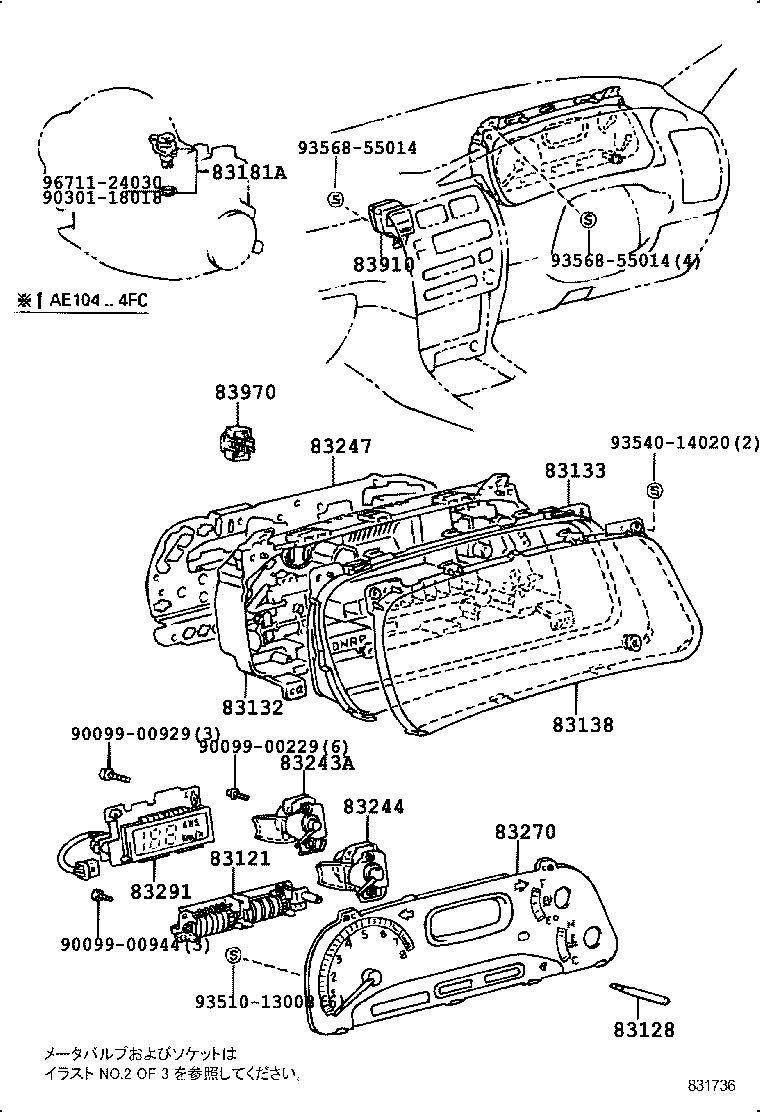

Exploded illustration 831736 9356855014 — not listed in this catalogue 83181A — SENSOR, SPEEDOMETER (6 parts) 9671124030 — not listed in this catalogue 9030118018 — not listed in this catalogue 9356855014 — not listed in this catalogue 83910 — CLOCK ASSY (3 parts) 83970 — BUZZER ASSY, REVERSE WARNING (3 parts) 9354014020 — not listed in this catalogue 83247 — PLATE, METER CIRCUIT (48 parts) 83133 — PLATE, COMBINATION METER, NO.1 (3 parts) 83132 — CASE, COMBINATION METER (17 parts) 83138 — GLASS, SPEEDOMETER (2 parts) 9009900929 — not listed in this catalogue 9009900229 — not listed in this catalogue 83243A — GAUGE SUB-ASSY, FUEL RECEIVER (56 parts) 83244 — GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER (26 parts) 83270 — TACHOMETER ASSY, ENGINE (6 parts) 83121 — COUNTER, TOTAL (1 parts) 83291 — COMPUTER, COMBINATION METER (1 parts) 9009900944 — not listed in this catalogue 9351013008 — not listed in this catalogue 83128 — KNOB, TRIP COUNTER (1 parts)
831736 · 13 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
173 parts on this figure
Part number Description Fitment Price
83121 — Counter, Total
83121-12070 Counter, Total
1991-06 → 1993-05 ended
AE101 SEG —
83128 — Knob, Trip Counter
83128-12770 Knob, Trip Counter
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE —
83132 — Case, Combination Meter
83132-0W010 note Case, Combination Meter
1992-05 → 1993-05 ended
AE100,CE100,106,108,EE10# MTM (CTD,DX,L,LX,XL) ¥5,800
83132-0W010 note Case, Combination Meter
1997-05 → 2002-06 ended
CE10#,EE102,103 MTM ¥5,800
83132-0W010 note Case, Combination Meter
1993-05 → 1996-05 ended
AE100,CE100,104,106,108,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥5,800
83132-0W010 note Case, Combination Meter
1996-05 → 1997-05 ended
CE10#,EE10# MTM ¥5,800
83132-1A450 note Case, Combination Meter
1991-06 → 1993-05 ended
AE101 5F SEG —
83132-1A470 note Case, Combination Meter
1991-06 → 1993-05 ended
AE101 4FC SEG —
83132-1A530 Case, Combination Meter
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE —
83132-1E020 Case, Combination Meter
1998-04 → 2002-06 ended
AE109,EE104;CE102,107,EE102,103 ATM ¥3,090
83132-1E020 note Case, Combination Meter
1997-05 → 2002-06 ended
CE10#,EE102,103 MTM ¥3,090
83132-1E020 Case, Combination Meter
1996-05 → 1998-04 ended
AE109,EE102 3FC,4FC,5F;CE106,108,EE103,104 ATM ¥3,090
83132-1E020 note Case, Combination Meter
1996-05 → 1997-05 ended
CE10#,EE10# MTM ¥3,090
83132-1E020 Case, Combination Meter
1993-05 → 1996-05 ended
CE109;AE100,CE100,106,108,EE10# ATM (CTD,DX,DXJ,L,LX,XL) ¥3,090
83132-1E020 note Case, Combination Meter
1993-05 → 1994-05 ended
EE102,106 4F ¥3,090
83132-1E020 note Case, Combination Meter
1992-05 → 1993-05 ended
AE100,CE100,106,108,EE10# MTM (CTD,DX,L,LX,XL) ¥3,090
83132-1E020 Case, Combination Meter
1992-05 → 1993-05 ended
CE104,109,EE101,106 (DX,L,LX,XL) (3FC,5F) (CTD,DX,LX,XL);AE100,CE100,106,108,EE107,108 +1 ¥3,090
83132-1E020 Case, Combination Meter
1991-06 → 1992-05 ended
AE100,CE10#,EE10# CTD,DX,L,LX,XL ¥3,090
83132-1E020 note Case, Combination Meter
1993-05 → 1996-05 ended
AE100,CE100,104,106,108,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥3,090
83133 — Plate, Combination Meter, NO.1
83133-13270 note Plate, Combination Meter, NO.1
1991-06 → 1993-05 ended
AE101 SEG —
83133-1H010 Plate, Combination Meter, NO.1
1991-06 → 1995-05 ended
AE101 4FC;AE100,104,CE100,EE101 SEL,XE —
83133-1H030 Plate, Combination Meter, NO.1
1991-06 → 1995-05 ended
AE101,CE104 5F (GT,SEG,SEL,XE) —
83138 — Glass, Speedometer
83138-1A070 note Glass, Speedometer
1991-06 → 1993-05 ended
AE101 SEG —
83138-1A110 Glass, Speedometer
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥0
83181A — Sensor, Speedometer
83181-12010 Sensor, Speedometer
1991-09 → —
AE104,109 4FC ¥0
83181-12020 Sensor, Speedometer
1991-06 → —
AE100,101,EE10# 4F,4FC,5F ¥0
83181-12030 Sensor, Speedometer
1991-06 → —
CE100,102,106,107,108 5F ¥0
83181-12040 Sensor, Speedometer
1991-06 → —
AE100,EE10# 3FC ¥16,800
83181-12050 Sensor, Speedometer
1991-09 → —
AE104,109,CE104,105,109 5F ¥0
83181-12060 Sensor, Speedometer
1991-06 → —
CE100,102,106,107,108 4FC —
83243A — Gauge Sub-assy, Fuel Receiver
83243-0W010 note Gauge Sub-assy, Fuel Receiver
1992-05 → 1997-04 ended
AE100,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥6,600
83243-0W020 note Gauge Sub-assy, Fuel Receiver
1996-05 → 1997-04 ended
CE10# 5F ¥6,600
83243-0W020 note Gauge Sub-assy, Fuel Receiver
1993-05 → 1996-05 ended
CE100,104,106,108 5F (CTD,DX,L,LX,XL) ¥6,600
83243-0W020 note Gauge Sub-assy, Fuel Receiver
1992-05 → 1993-05 ended
CE100,106,108 5F (CTD,DX,L,LX,XL) ¥6,600
83243-1E020 note Gauge Sub-assy, Fuel Receiver
1993-05 → 1994-05 ended
EE102,106 4F ¥5,700
83243-1E020 Gauge Sub-assy, Fuel Receiver
1992-05 → 1993-05 ended
AE100,EE10# 3FC (CTD,DX,L,LX,XL) ¥5,700
83243-1E020 note Gauge Sub-assy, Fuel Receiver
1992-05 → 1993-05 ended
AE100,EE10# MTM (CTD,DX,L,LX,XL) ¥5,700
83243-1E020 Gauge Sub-assy, Fuel Receiver
1991-06 → 1992-05 ended
AE100,EE10# CTD,DX,L,LX,XL ¥5,700
83243-1E040 note Gauge Sub-assy, Fuel Receiver
1992-05 → 1993-05 ended
CE100,106,108 5F (CTD,DX,L,LX,XL) ¥5,700
83243-1E040 Gauge Sub-assy, Fuel Receiver
1992-05 → 1993-05 ended
CE100,106,108 4FC (DX,L,LX,XL) ¥5,700
83243-1E040 Gauge Sub-assy, Fuel Receiver
1991-06 → 1992-05 ended
CE100,106,108 CTD,DX,L,LX,XL ¥5,700
83243-1E060 note Gauge Sub-assy, Fuel Receiver
1993-05 → 1997-04 ended
AE100,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥5,800
83243-1E060 Gauge Sub-assy, Fuel Receiver
1993-05 → 1997-04 ended
AE104,109 5F (DX,LX);AE100,EE10# 3FC +1 ¥5,800
83243-1E060 Gauge Sub-assy, Fuel Receiver
1991-09 → 1993-05 ended
AE104 LX ¥5,800
83243-1E080 note Gauge Sub-assy, Fuel Receiver
1996-05 → 1997-04 ended
CE10# 5F ¥5,800
83243-1E080 Gauge Sub-assy, Fuel Receiver
1993-05 → 1997-04 ended
CE100,106,108 4FC (DX,L,LX,XL) ¥5,800
83243-1E080 Gauge Sub-assy, Fuel Receiver
1991-09 → 1993-05 ended
CE104 LX ¥5,800
83243-1E080 note Gauge Sub-assy, Fuel Receiver
1993-05 → 1996-05 ended
CE100,104,106,108 5F (CTD,DX,L,LX,XL) ¥5,800
83243-1E120 Gauge Sub-assy, Fuel Receiver
1991-09 → 1996-05 ended
CE109 ¥5,700
83243-1E710 note Gauge Sub-assy, Fuel Receiver
1991-06 → 1992-01 ended
AE101 SEG ¥5,700
83243-1E890 Gauge Sub-assy, Fuel Receiver
1991-06 → 1992-02 ended
AE100,EE101 SEL,XE ¥5,700
83243-1E891 Gauge Sub-assy, Fuel Receiver
1992-02 → 1993-05 ended
AE100,EE101 SEL,XE ¥5,700
83243-1H010 Gauge Sub-assy, Fuel Receiver
1991-06 → 1992-02 ended
AE101 ¥5,700
83243-1H011 Gauge Sub-assy, Fuel Receiver
1992-02 → 1993-05 ended
AE101 ¥5,700
83243-1H012 Gauge Sub-assy, Fuel Receiver
1993-05 → 1995-05 ended
AE101 ¥5,700
83243-1H030 Gauge Sub-assy, Fuel Receiver
1991-06 → 1992-02 ended
CE100 SEL,XE ¥5,700
83243-1H031 Gauge Sub-assy, Fuel Receiver
1992-02 → 1993-05 ended
CE100 SEL,XE ¥5,700
83243-1H050 Gauge Sub-assy, Fuel Receiver
1991-09 → 1995-05 ended
AE104 5F (SEL,XE) ¥5,800
83243-1H070 Gauge Sub-assy, Fuel Receiver
1991-09 → 1993-05 ended
AE104 4FC ¥5,800
83243-1H070 Gauge Sub-assy, Fuel Receiver
1993-05 → 1995-05 ended
AE104 4FC;AE100,EE101 SEL,XE ¥5,800
83243-1H090 Gauge Sub-assy, Fuel Receiver
1993-05 → 1995-05 ended
CE100,104 SEL,XE ¥5,800
83243-1H090 Gauge Sub-assy, Fuel Receiver
1991-09 → 1993-05 ended
CE104 SEL,XE ¥5,800
83243-1H530 note Gauge Sub-assy, Fuel Receiver
1992-01 → 1993-05 ended
AE101 SEG ¥5,700
83882-0W010 note Gauge Sub-assy, Fuel Receiver
1996-12 → 1997-04 ended
EE104 5F ¥6,600
83882-0W010 note Gauge Sub-assy, Fuel Receiver
1997-04 → 1997-05 ended
EE10# MTM ¥6,600
83882-0W010 note Gauge Sub-assy, Fuel Receiver
1997-05 → 1998-04 ended
EE102,103 MTM ¥6,600
83882-0W011 Gauge Sub-assy, Fuel Receiver
1998-06 → 2002-06 ended
CE10# 5F ¥6,600
83882-0W011 note Gauge Sub-assy, Fuel Receiver
1998-04 → 2002-06 ended
EE102,103 MTM ¥6,600
83882-0W020 note Gauge Sub-assy, Fuel Receiver
1996-12 → 1998-04 ended
CE108 5F ¥6,600
83882-0W020 note Gauge Sub-assy, Fuel Receiver
1997-04 → 1998-04 ended
CE106,109 5F ¥6,600
83882-0W021 note Gauge Sub-assy, Fuel Receiver
1998-04 → 1998-06 ended
CE10# 5F ¥6,500
83882-12080 Gauge Sub-assy, Fuel Receiver
1996-05 → 1997-04 ended
AE109 4FC ¥6,600
83882-1A420 note Gauge Sub-assy, Fuel Receiver
1996-12 → 1998-04 ended
EE104 5F ¥6,100
83882-1A420 Gauge Sub-assy, Fuel Receiver
1997-04 → 1998-04 ended
EE102,103 ¥6,100
83882-1A420 note Gauge Sub-assy, Fuel Receiver
1996-12 → 1998-04 ended
EE104 3FC ¥6,100
83882-1A430 note Gauge Sub-assy, Fuel Receiver
1997-04 → 1998-04 ended
CE106,109 5F ¥6,100
83882-1A430 note Gauge Sub-assy, Fuel Receiver
1996-12 → 1998-04 ended
CE108 5F ¥6,100
83882-1A430 note Gauge Sub-assy, Fuel Receiver
1996-12 → 1998-04 ended
CE108 4FC ¥6,100
83882-1A430 Gauge Sub-assy, Fuel Receiver
1997-04 → 1998-04 ended
CE106 4FC ¥6,100
83882-1A431 Gauge Sub-assy, Fuel Receiver
1998-04 → 2002-06 ended
CE102,107 4FC ¥6,500
83882-1A431 note Gauge Sub-assy, Fuel Receiver
1998-04 → 2002-06 ended
CE10# 5F ¥6,500
83882-1A600 Gauge Sub-assy, Fuel Receiver
1997-04 → 1998-04 ended
AE109 5F ¥6,600
83882-1A602 note Gauge Sub-assy, Fuel Receiver
1998-04 → 2002-06 ended
EE102,103 MTM ¥6,500
83882-1A602 Gauge Sub-assy, Fuel Receiver
1998-04 → 2002-06 ended
EE102,103 3FC;AE109,EE104 3FC,5F ¥6,500
83882-1A610 Gauge Sub-assy, Fuel Receiver
1997-04 → 1998-04 ended
AE109 4FC ¥6,600
83882-1A612 Gauge Sub-assy, Fuel Receiver
1998-04 → 2002-06 ended
AE109 4FC ¥6,500
83244 — Gauge Sub-assy, Water Temperature Receiver
83244-0W010 note Gauge Sub-assy, Water Temperature Receiver
1992-05 → 1997-05 ended
AE100,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥6,300
83244-0W010 note Gauge Sub-assy, Water Temperature Receiver
1997-05 → 1998-04 ended
EE10# MTM ¥6,300
83244-0W011 note Gauge Sub-assy, Water Temperature Receiver
1998-04 → 2002-06 ended
EE102,103 MTM ¥6,600
83244-0W020 note Gauge Sub-assy, Water Temperature Receiver
1992-05 → 1993-05 ended
CE100,106,108 5F (CTD,DX,L,LX,XL) ¥6,300
83244-0W020 note Gauge Sub-assy, Water Temperature Receiver
1993-05 → 1996-05 ended
CE100,104,106,108 5F (CTD,DX,L,LX,XL) ¥6,300
83244-0W020 note Gauge Sub-assy, Water Temperature Receiver
1996-05 → 1998-04 ended
CE10# 5F ¥6,300
83244-0W021 note Gauge Sub-assy, Water Temperature Receiver
1998-04 → 2002-06 ended
CE10# 5F ¥6,600
83244-1A810 note Gauge Sub-assy, Water Temperature Receiver
1991-06 → 1993-05 ended
AE101 SEG ¥5,300
83244-1A830 Gauge Sub-assy, Water Temperature Receiver
1991-06 → 1995-05 ended
AE10#,EE101 GT,SEG,SEL,XE ¥5,300
83244-1A850 Gauge Sub-assy, Water Temperature Receiver
1991-06 → 1995-05 ended
CE100,104 SEL,XE ¥5,300
83244-1E020 note Gauge Sub-assy, Water Temperature Receiver
1997-05 → 1998-04 ended
EE10# MTM ¥5,800
83244-1E020 Gauge Sub-assy, Water Temperature Receiver
1992-05 → 1998-04 ended
AE100,EE103,104,107,108 (CTD,DX,DXJ,LX) 3FC (DX,L,LX,XL);AE104,109,EE101,102,106 +1 ¥5,800
83244-1E020 Gauge Sub-assy, Water Temperature Receiver
1991-06 → 1992-05 ended
AE100,104,EE10# CTD,DX,L,LX,XL ¥5,800
83244-1E020 note Gauge Sub-assy, Water Temperature Receiver
1993-05 → 1994-05 ended
EE102,106 4F ¥5,800
83244-1E020 note Gauge Sub-assy, Water Temperature Receiver
1992-05 → 1997-05 ended
AE100,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥5,800
83244-1E040 note Gauge Sub-assy, Water Temperature Receiver
1993-05 → 1996-05 ended
CE100,104,106,108 5F (CTD,DX,L,LX,XL) ¥5,800
83244-1E040 Gauge Sub-assy, Water Temperature Receiver
1993-05 → 1996-05 ended
CE109;CE100,106,108 4FC (DX,L,LX,XL) ¥5,800
83244-1E040 Gauge Sub-assy, Water Temperature Receiver
1996-05 → 1998-04 ended
CE106,108 4FC ¥5,800
83244-1E040 note Gauge Sub-assy, Water Temperature Receiver
1996-05 → 1998-04 ended
CE10# 5F ¥5,800
83244-1E040 note Gauge Sub-assy, Water Temperature Receiver
1992-05 → 1993-05 ended
CE100,106,108 5F (CTD,DX,L,LX,XL) ¥5,800
83244-1E040 Gauge Sub-assy, Water Temperature Receiver
1992-05 → 1993-05 ended
CE104,109 DX,LX,XL;CE100,106,108 4FC (DX,L,LX,XL) ¥5,800
83244-1E040 Gauge Sub-assy, Water Temperature Receiver
1991-06 → 1992-05 ended
CE10# CTD,DX,L,LX,XL ¥5,800
83883-1A431 Gauge Sub-assy, Water Temperature Receiver
1998-04 → 2002-06 ended
CE102,107 4FC ¥6,500
83883-1A431 note Gauge Sub-assy, Water Temperature Receiver
1998-04 → 2002-06 ended
CE10# 5F ¥6,500
83883-1A602 note Gauge Sub-assy, Water Temperature Receiver
1998-04 → 2002-06 ended
EE102,103 MTM ¥6,500
83883-1A602 Gauge Sub-assy, Water Temperature Receiver
1998-04 → 2002-06 ended
AE109,EE104;EE102,103 3FC ¥6,500
83247 — Plate, Meter Circuit
83149-1E020 note Plate, Meter Circuit
1996-05 → 1997-04 ended
CE10#,EE10# MTM ¥4,300
83149-1E020 Plate, Meter Circuit
1996-05 → 1997-04 ended
AE109,EE102 3FC,5F;CE106,108,EE103,104 ATM ¥4,300
83149-1E020 note Plate, Meter Circuit
1993-05 → 1996-05 ended
AE100,CE100,104,106,108,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥4,300
83149-1E020 Plate, Meter Circuit
1993-05 → 1996-05 ended
AE104,CE109 DX,LX,XL;AE100,CE100,106,108,EE10# ATM (CTD,DX,DXJ,L,LX,XL) ¥4,300
83149-1E020 note Plate, Meter Circuit
1993-05 → 1994-05 ended
EE102,106 4F ¥4,300
83149-1E020 note Plate, Meter Circuit
1992-05 → 1993-05 ended
AE100,CE100,106,108,EE10# MTM (CTD,DX,L,LX,XL) ¥4,300
83149-1E020 Plate, Meter Circuit
1992-05 → 1993-05 ended
AE100,CE100,106,108,EE107,108 F) ATM (CTD,DX,LX,XL) +2 ¥4,300
83149-1E020 Plate, Meter Circuit
1991-06 → 1992-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XL ¥4,300
83247-0W010 note Plate, Meter Circuit
1993-05 → 1996-05 ended
AE100,CE100,104,106,108,EE10# MTM (CTD,DX,DXJ,L,LX,XL) ¥4,300
83247-0W010 note Plate, Meter Circuit
1996-05 → 1997-04 ended
CE10#,EE10# MTM ¥4,300
83247-0W010 note Plate, Meter Circuit
1992-05 → 1993-05 ended
AE100,CE100,106,108,EE10# MTM (CTD,DX,L,LX,XL) ¥4,300
83247-1H050 note Plate, Meter Circuit
1991-06 → 1993-05 ended
AE101 5F SEG ¥0
83247-1H070 note Plate, Meter Circuit
1991-06 → 1993-05 ended
AE101 4FC SEG ¥0
83247-1H330 Plate, Meter Circuit
1991-06 → 1995-05 ended
AE100,CE100,104,EE101 SEL,XE ¥0
83247-1H350 Plate, Meter Circuit
1991-06 → 1995-05 ended
AE101 ¥0
83247-1H370 Plate, Meter Circuit
1991-09 → 1995-05 ended
AE104 5F (SEL,XE) ¥0
83247-1H390 Plate, Meter Circuit
1991-09 → 1995-05 ended
AE104 4FC ¥0
83861-0W010 note Plate, Meter Circuit
1997-11 → 1998-04 ended
CE106,109 5F ¥4,120
83861-0W010 note Plate, Meter Circuit
1997-04 → 1998-04 ended
CE108 5F ¥4,120
83861-0W010 note Plate, Meter Circuit
1997-05 → 1997-11 ended
CE106,109,EE102,103 MTM ¥4,120
83861-0W010 note Plate, Meter Circuit
1997-04 → 1997-05 ended
CE106,109,EE10# MTM ¥4,120
83861-0W010 note Plate, Meter Circuit
1996-12 → 1997-04 ended
CE108,EE104 5F ¥4,120
83861-0W011 note Plate, Meter Circuit
1998-04 → 2002-06 ended
CE10# 5F ¥4,130
83861-0W030 note Plate, Meter Circuit
1997-11 → 1998-04 ended
EE10# MTM ¥4,120
83861-0W031 note Plate, Meter Circuit
1998-04 → 2002-06 ended
EE102,103 MTM ¥4,320
83861-12080 Plate, Meter Circuit
1996-05 → 1997-04 ended
AE109 4FC ¥4,290
83861-1A420 note Plate, Meter Circuit
1997-11 → 1998-04 ended
CE108 4FC ¥4,300
83861-1A420 note Plate, Meter Circuit
1997-11 → 1998-04 ended
CE106,109 5F ¥4,300
83861-1A420 Plate, Meter Circuit
1997-11 → 1998-04 ended
CE106 4FC ¥4,300
83861-1A420 Plate, Meter Circuit
1997-04 → 1997-11 ended
CE106,EE102,103 ATM ¥4,300
83861-1A420 note Plate, Meter Circuit
1997-04 → 1998-04 ended
CE108 5F ¥4,300
83861-1A420 note Plate, Meter Circuit
1997-05 → 1997-11 ended
CE106,109,EE102,103 MTM ¥4,300
83861-1A420 note Plate, Meter Circuit
1996-12 → 1997-11 ended
CE108,EE104 ATM ¥4,300
83861-1A420 note Plate, Meter Circuit
1997-04 → 1997-05 ended
CE106,109,EE10# MTM ¥4,300
83861-1A420 note Plate, Meter Circuit
1996-12 → 1997-04 ended
CE108,EE104 5F ¥4,300
83861-1A421 Plate, Meter Circuit
1997-11 → 1998-04 ended
EE10# 3FC ¥4,300
83861-1A421 note Plate, Meter Circuit
1997-11 → 1998-04 ended
EE10# MTM ¥4,300
83861-1A422 note Plate, Meter Circuit
1998-04 → 2002-06 ended
EE102,103 MTM ¥4,300
83861-1A422 Plate, Meter Circuit
1998-04 → 2002-06 ended
EE102,103 3FC ¥4,300
83861-1A431 note Plate, Meter Circuit
1998-04 → 2002-06 ended
CE10# 5F ¥4,300
83861-1A431 Plate, Meter Circuit
1998-04 → 2002-06 ended
CE102,107 4FC ¥4,300
83861-1A600 Plate, Meter Circuit
1997-04 → 1997-11 ended
AE109 5F ¥4,290
83861-1A601 Plate, Meter Circuit
1997-11 → 1998-04 ended
AE109 5F ¥4,300
83861-1A602 Plate, Meter Circuit
1998-04 → 2002-06 ended
AE109 5F ¥4,300
83861-1A610 Plate, Meter Circuit
1997-04 → 1997-11 ended
AE109 4FC ¥4,290
83861-1A611 Plate, Meter Circuit
1997-11 → 1998-04 ended
AE109 4FC ¥4,300
83861-1A612 Plate, Meter Circuit
1998-04 → 2002-06 ended
AE109 4FC ¥4,300
83861-1E110 Plate, Meter Circuit
1998-04 → 2002-06 ended
EE104 ¥4,300
83270 — Tachometer Assy, Engine
83242-1E550 note Tachometer Assy, Engine
1991-06 → 1993-05 ended
AE101 5F SEG ¥35,900
83242-1E570 note Tachometer Assy, Engine
1991-06 → 1993-05 ended
AE101 4FC SEG ¥39,100
83242-1E710 Tachometer Assy, Engine
1991-06 → 1995-05 ended
AE10# SEG,SEL,XE ¥39,200
83242-1E730 Tachometer Assy, Engine
1991-06 → 1995-05 ended
AE101 GT ¥39,200
83242-1E750 Tachometer Assy, Engine
1991-06 → 1995-05 ended
CE100,104 SEL,XE ¥39,400
83242-1E770 Tachometer Assy, Engine
1991-06 → 1995-05 ended
EE101 XE ¥39,200
83291 — Computer, Combination Meter
83291-12100 note Computer, Combination Meter
1991-06 → 1993-05 ended
AE101 SEG ¥94,600
83910 — Clock Assy
83910-12460 note Clock Assy
1991-06 → —
AE10#,CE10#,EE10# ¥31,700
83910-12480 note Clock Assy
1991-06 → —
AE10#,CE10#,EE10# ¥31,700
83910-12490 note Clock Assy
1991-06 → 1993-05 ended
AE101 SEG ¥33,300
83970 — Buzzer Assy, Reverse Warning
83970-12020 Buzzer Assy, Reverse Warning
1991-06 → 1995-05 ended
AE10#,CE100,EE101 ATM (GT,SEG,SEL,XE) ¥2,950
83970-12030 Buzzer Assy, Reverse Warning
1991-06 → 2002-06 ended
AE100,109,CE100,102,106,107,108,EE10# ATM (CTD,DX,DXJ,L,LX,XL) ¥3,100
83970-20010 note Buzzer Assy, Reverse Warning
1991-06 → 1993-05 ended
AE101 4FC SEG ¥2,950
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
