Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

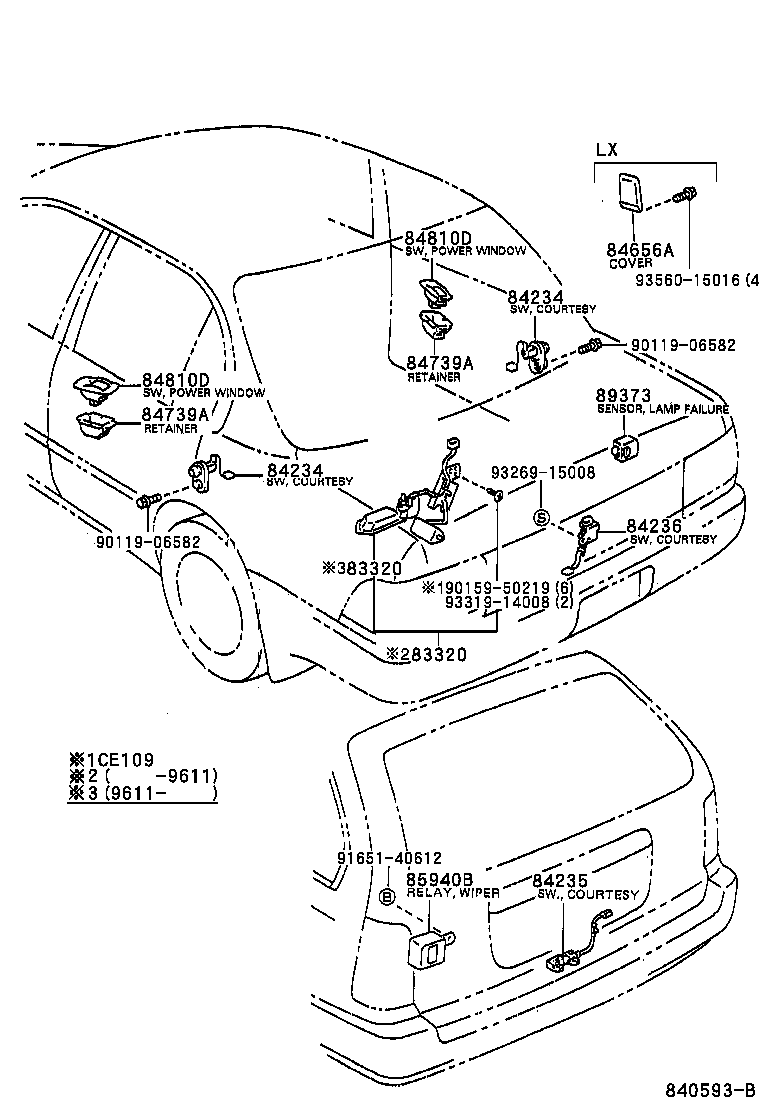

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-12581 |
Gage Assy, Fuel Sender
1996-11 → 1998-09
ended
|
CE102,106,107,108,EE10# | ¥4,330 | |
| 83320-12582 |
Gage Assy, Fuel Sender
1998-09 → —
|
CE102,107,EE10# | ¥4,330 | |
| 83320-13110 note |
Gage Assy, Fuel Sender
1991-09 → 1994-01
ended
|
EE106 4F | ¥4,360 | |
| 83320-80196 |
Gage Assy, Fuel Sender
1991-06 → 1993-05
ended
|
CE100 SEL,XE | ¥7,900 | |
| 83320-80197 |
Gage Assy, Fuel Sender
1991-06 → 1993-05
ended
|
AE100,101,EE101 GT,SEG,SEL,XE | ¥7,900 | |
| 83320-80198 |
Gage Assy, Fuel Sender
1991-06 → 1993-05
ended
|
AE100,CE100,106,108,EE10# CTD,DX,L,LX,XL | ¥4,320 | |
| 83320-80199 note |
Gage Assy, Fuel Sender
1991-09 → 1995-05
ended
|
CE104 SEL,XE | ¥7,900 | |
| 83320-80200 note |
Gage Assy, Fuel Sender
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥4,330 | |
| 83320-80201 note |
Gage Assy, Fuel Sender
1991-09 → 1995-05
ended
|
AE104 SEL,XE | ¥7,900 | |
| 83320-80202 note |
Gage Assy, Fuel Sender
1991-09 → 1995-05
ended
|
AE104,CE104 LX | ¥7,900 | |
| 83320-80240 |
Gage Assy, Fuel Sender
1991-09 → 1996-05
ended
|
CE109 | ¥4,320 | |
| 83320-80270 |
Gage Assy, Fuel Sender
1993-05 → 1995-05
ended
|
CE100 SEL,XE | ¥7,900 | |
| 83320-80271 |
Gage Assy, Fuel Sender
1993-05 → 1995-05
ended
|
AE100,101,EE101 GT,SEG,SEL,XE | ¥7,900 | |
| 83320-80272 |
Gage Assy, Fuel Sender
1993-05 → 1996-11
ended
|
AE100,CE100,106,108,EE10# CTD,DX,DXJ,L,LX,XL | ¥4,330 | |
| 83320-80338 |
Gage Assy, Fuel Sender
1996-05 → —
|
AE109,CE105,109 | ¥4,330 | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-12080 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# | ¥1,070 | |
| 84231-12080 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1997-04 → —
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84231-12080 note |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1995-12 → 1997-04
ended
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84231-12080 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1992-05 → 1995-12
ended
|
CE106,108,109,EE102,103,104,106,107,108 | ¥1,070 | |
| 84231-12080 note |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1992-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,070 | |
| 84231-12120 note |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1992-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,070 | |
| 84231-12120 note |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1995-12 → 1997-05
ended
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84231-13020 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥1,070 | |
| 84231-13040 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1994-01 → 1997-09
ended
|
AE109,CE106,108,109,EE102,103,104 | ¥1,070 | |
| 84231-13041 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1997-09 → —
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-12090 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥890 | |
| 84231-12090 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1993-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | ¥890 | |
| 84656A — Bezel, Switch | ||||
| 84656-12010-B1 note |
Bezel, Switch
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥510 | |
| 84656-12010-K0 note |
Bezel, Switch
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥510 | |
| 84656-13010 |
Bezel, Switch
1991-09 → 1994-01
ended
|
EE106 4F | ¥380 | |
| 84739A — Retainer, Switch | ||||
| 84739-12010 |
Retainer, Switch
1992-05 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥510 | |
| 84739-12010 |
Retainer, Switch
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥510 | |
| 84739-12010 |
Retainer, Switch
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥510 | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-12060-B1 note |
Switch Assy, Power Window Regulator, Rear
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,560 | |
| 84810-12060-K0 note |
Switch Assy, Power Window Regulator, Rear
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥3,560 | |
| 84810-12090-K0 note |
Switch Assy, Power Window Regulator, Rear
1992-05 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,550 | |
| 84810-12090-K0 note |
Switch Assy, Power Window Regulator, Rear
1993-05 → 1993-10
ended
|
AE10#,CE100,104,EE101 SEG,SEL,XE | ¥3,550 | |
| 84810-12090-K0 note |
Switch Assy, Power Window Regulator, Rear
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL,XE | ¥3,550 | |
| 84810-12090-P0 note |
Switch Assy, Power Window Regulator, Rear
1992-05 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥3,550 | |
| 84810-12090-P0 note |
Switch Assy, Power Window Regulator, Rear
1993-05 → 1993-10
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥3,550 | |
| 84810-12090-P0 note |
Switch Assy, Power Window Regulator, Rear
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥3,550 | |
| 84810-12090-W3 note |
Switch Assy, Power Window Regulator, Rear
1992-05 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,550 | |
| 84810-12090-W3 note |
Switch Assy, Power Window Regulator, Rear
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL,XE | ¥3,550 | |
| 84810-20220-B0 note |
Switch Assy, Power Window Regulator, Rear
1993-10 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥3,560 | |
| 84810-20220-K0 note |
Switch Assy, Power Window Regulator, Rear
1993-10 → 1995-05
ended
|
AE10#,CE100,104,EE101 SEG,SEL,XE | ¥3,560 | |
| 85940B — Relay Assy, Rear Wiper | ||||
| 85940-12060 |
Relay Assy, Rear Wiper
1991-09 → 1997-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥10,200 | |
| 85940-12072 note |
Relay Assy, Rear Wiper
1996-12 → —
|
CE108,EE104 | ¥13,000 | |
| 85940-12072 |
Relay Assy, Rear Wiper
1997-04 → —
|
AE109,CE102,105,106,107,109,EE102,103 | ¥13,000 | |
| 89373 — Sensor, Lamp Failure Indicator | ||||
| 89373-12130 |
Sensor, Lamp Failure Indicator
1992-10 → 1994-05
ended
|
AE101 | ¥17,800 | |
| 89373-12130 note |
Sensor, Lamp Failure Indicator
1994-05 → 1995-05
ended
|
AE101 | ¥17,800 | |
| 89373-12140 note |
Sensor, Lamp Failure Indicator
1992-10 → 1994-05
ended
|
AE101 | ¥17,800 | |
| 89373-12140 |
Sensor, Lamp Failure Indicator
1994-05 → 1995-05
ended
|
AE101 | ¥17,800 | |
| 89373-22270 note |
Sensor, Lamp Failure Indicator
1991-06 → 1992-10
ended
|
AE101 | ¥17,400 | |
| 89373-28020 |
Sensor, Lamp Failure Indicator
1991-06 → 1992-10
ended
|
AE101 | ¥16,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
