Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

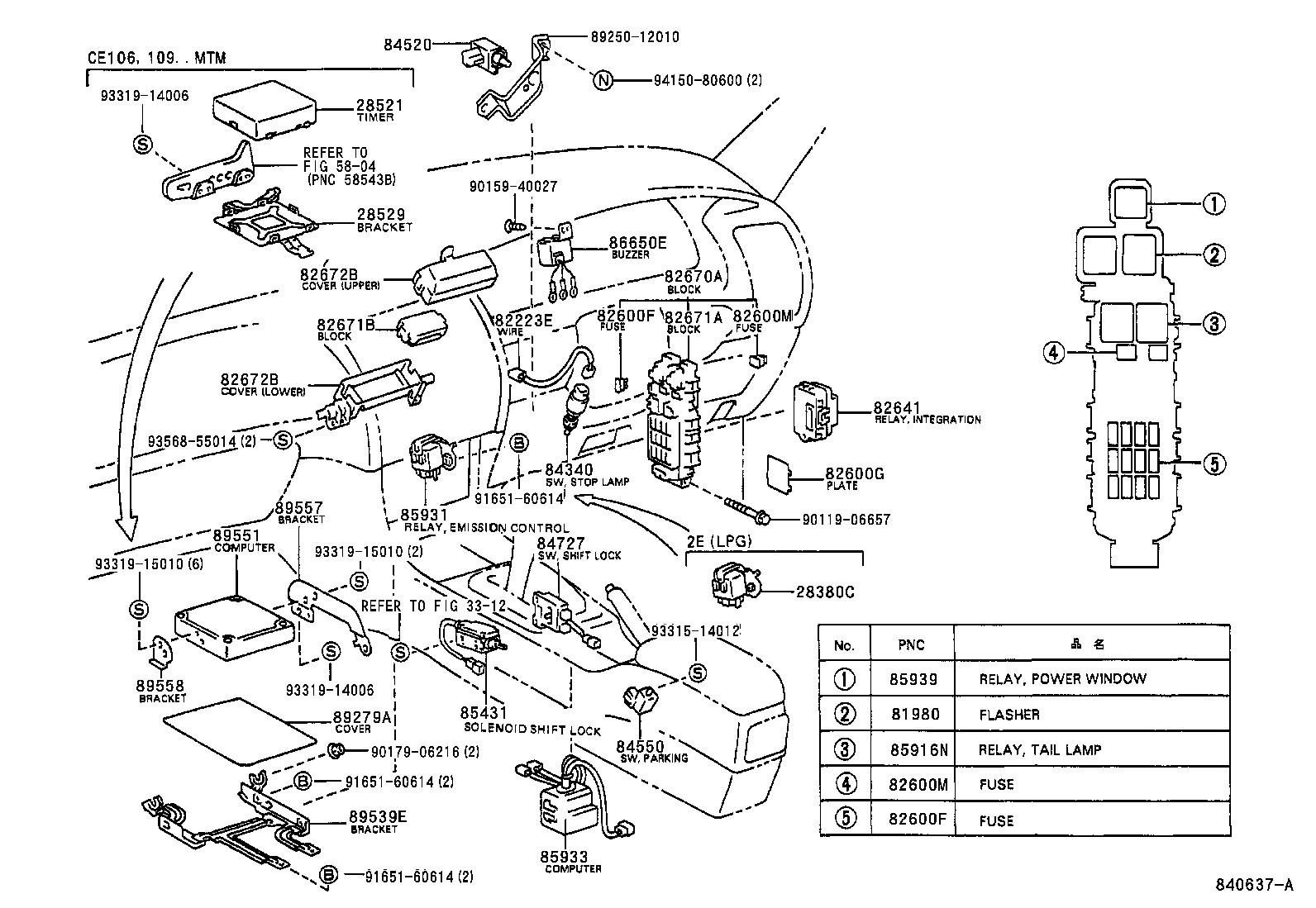

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28380C — Relay Assy, Fuel Pump | ||||
| 28380-10040 |
Relay Assy, Fuel Pump
1991-09 → 1994-01
ended
|
2E EE106 4F | ¥5,900 | |
| 28521 — Timer, Preheating | ||||
| 28521-64380 |
Timer, Preheating
1991-09 → 1994-01
ended
|
2C CE106,109 | ¥35,800 | |
| 28521-64380 |
Timer, Preheating
1994-01 → 1998-04
ended
|
2C CE106,109 5F | ¥35,800 | |
| 28529 — Bracket, Preheating Timer, NO.1 | ||||
| 28529-64220 |
Bracket, Preheating Timer, NO.1
1991-09 → 1994-01
ended
|
2C CE106,109 | ¥800 | |
| 28529-64220 |
Bracket, Preheating Timer, NO.1
1994-01 → 1995-08
ended
|
2C CE106,109 5F | ¥800 | |
| 28529-64300 |
Bracket, Preheating Timer, NO.1
1995-08 → 1998-04
ended
|
2C CE106,109 5F | ¥740 | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-0W010 note |
Flasher Assy, Turn Signal
1998-03 → —
|
AE109,CE10#,EE10# | ¥7,600 | |
| 81980-12070 |
Flasher Assy, Turn Signal
1991-06 → 1997-04
ended
|
AE10#,CE10#,EE10# | ¥7,800 | |
| 81980-12110 |
Flasher Assy, Turn Signal
1997-04 → 1998-03
ended
|
AE109,CE10#,EE10# | ¥7,900 | |
| 81980-12110 note |
Flasher Assy, Turn Signal
1998-03 → 1999-06
ended
|
AE109,CE10#,EE10# | ¥7,900 | |
| 81980-32010 note |
Flasher Assy, Turn Signal
1999-06 → —
|
AE109,CE10#,EE10# | ¥7,600 | |
| 82223E — Wire, Clutch Start Switch | ||||
| 82223-12530 |
Wire, Clutch Start Switch
1991-06 → 1998-11
ended
|
AE10#,CE10#,EE10# | ¥980 | |
| 82223-16030 |
Wire, Clutch Start Switch
1998-11 → —
|
AE109,CE10#,EE10# | ¥470 | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥120 | |
| 90982-07011 note |
Fuse, Fuse Block
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥120 | |
| 90982-09002 note |
Fuse, Fuse Block
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥120 | |
| 90982-09002 note |
Fuse, Fuse Block
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥120 | |
| 90982-09003 note |
Fuse, Fuse Block
1991-06 → 1997-04
ended
|
AE10#,CE10#,EE10# | ¥120 | |
| 90982-09003 note |
Fuse, Fuse Block
2000-08 → —
|
CE107,EE10# 3FC,5F | ¥120 | |
| 90982-09003 note |
Fuse, Fuse Block
1997-04 → —
|
EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ) | ¥120 | |
| 90982-09003 note |
Fuse, Fuse Block
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥120 | |
| 90982-09004 note |
Fuse, Fuse Block
2000-08 → —
|
CE107,EE10# 3FC,5F | ¥120 | |
| 90982-09004 note |
Fuse, Fuse Block
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥120 | |
| 90982-09004 note |
Fuse, Fuse Block
1997-04 → —
|
EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ) | ¥120 | |
| 90982-09004 note |
Fuse, Fuse Block
1991-06 → 1997-04
ended
|
AE10#,CE10#,EE10# | ¥120 | |
| 90982-09005 note |
Fuse, Fuse Block
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥120 | |
| 90982-09005 note |
Fuse, Fuse Block
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥120 | |
| 90982-09005 note |
Fuse, Fuse Block
1998-04 → —
|
CE10# | ¥120 | |
| 90982-09005 note |
Fuse, Fuse Block
1991-06 → —
|
EE103 107,108 XL;EE102,103 (3FC,4F) +1 | ¥120 | |
| 90982-09005 note |
Fuse, Fuse Block
2000-08 → —
|
EE103 XL;CE107,EE104 3FC,5F;EE102,103 3FC +1 | ¥120 | |
| 82600G — Plate, Caution(FOR FUSE) | ||||
| 82683-12160 |
Plate, Caution(FOR FUSE)
1991-06 → 1996-05
ended
|
AE10#,CE10#,EE10# | ¥300 | |
| 82683-12161 |
Plate, Caution(FOR FUSE)
1996-05 → —
|
AE109,CE10#,EE10# | ¥270 | |
| 82600M — Fuse, Medium Current | ||||
| 90982-10001 note |
Fuse, Medium Current
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥240 | |
| 90982-10001 note |
Fuse, Medium Current
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥240 | |
| 90982-10002 note |
Fuse, Medium Current
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥280 | |
| 90982-10002 note |
Fuse, Medium Current
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥280 | |
| 82641 — Relay, Integration NO.1 | ||||
| 82641-12060 |
Relay, Integration NO.1
1991-06 → 1992-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥13,200 | |
| 82641-12060 |
Relay, Integration NO.1
1992-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | ¥13,200 | |
| 82641-12060 note |
Relay, Integration NO.1
1991-09 → 1996-08
ended
|
CE106,109,EE103,107 XL | ¥13,200 | |
| 82641-12061 note |
Relay, Integration NO.1
1996-08 → 1997-04
ended
|
CE106,109,EE103 XL | ¥13,200 | |
| 82641-12080 |
Relay, Integration NO.1
1992-05 → 1996-08
ended
|
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL | ¥10,900 | |
| 82641-12080 |
Relay, Integration NO.1
1991-06 → 1992-05
ended
|
AE100,104,CE10#,EE10# CTD,DX,L,LX,XL | ¥10,900 | |
| 82641-12081 |
Relay, Integration NO.1
1996-08 → 1997-04
ended
|
AE109,CE10#,EE10# | ¥10,900 | |
| 82641-12110 |
Relay, Integration NO.1
1997-04 → —
|
AE109,CE10#,EE10# | ¥13,200 | |
| 82641-12120 note |
Relay, Integration NO.1
1997-04 → —
|
CE105,106,107,109,EE103 XL | ¥17,800 | |
| 82670A — Block Assy, Junction, NO.1 | ||||
| 82670-12290 |
Block Assy, Junction, NO.1
1991-06 → 1998-04
ended
|
AE10#,CE10#,EE10# | ¥20,300 | |
| 82670-12290 |
Block Assy, Junction, NO.1
1998-04 → —
|
AE109,CE105,107,EE102,103 | ¥20,300 | |
| 82670-13050 note |
Block Assy, Junction, NO.1
1996-10 → 1997-04
ended
|
CE108,EE104 | ¥20,600 | |
| 82670-13050 note |
Block Assy, Junction, NO.1
1997-04 → —
|
EE103 XL;AE109,CE10#,EE104;EE102,103 (3FC,4F) (DX,DXJ) | ¥20,600 | |
| 82670-13050 note |
Block Assy, Junction, NO.1
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥20,600 | |
| 82671A — Block, Junction | ||||
| 82671-12130 |
Block, Junction
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥9,400 | |
| 82671-12130 |
Block, Junction
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥9,400 | |
| 82671B — Block, Junction | ||||
| 82671-12150 |
Block, Junction
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥4,570 | |
| 82671-12150 |
Block, Junction
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥4,570 | |
| 82672B — Cover, Junction Block | ||||
| 82672-12200 note |
Cover, Junction Block
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥2,120 | |
| 82672-12200 note |
Cover, Junction Block
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥2,120 | |
| 82672-12210 note |
Cover, Junction Block
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥2,120 | |
| 82672-12210 note |
Cover, Junction Block
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥2,120 | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-32050 |
Switch Assy, Stop Lamp
1993-03 → —
|
AE10#,CE10#,EE10# | ¥2,240 | |
| 84340-32090 |
Switch Assy, Stop Lamp
1991-06 → 1993-03
ended
|
AE10#,CE10#,EE10# | ¥2,240 | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-24010 |
Switch Assy, Clutch Start
2000-08 → —
|
AE109,CE10#,EE10# 5F | ¥3,590 | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-33010 |
Switch Assy, Parking Brake
1991-06 → —
|
AE10#,CE10#,EE10# | ¥1,210 | |
| 84727 — Switch, Shift Lock Control | ||||
| 84727-12030 |
Switch, Shift Lock Control
1991-06 → 1995-08
ended
|
AE10#,CE100,106,108 4FC | ¥3,590 | |
| 84727-12050 |
Switch, Shift Lock Control
1991-06 → 1995-05
ended
|
AE100,EE10# 3FC | ¥3,580 | |
| 84727-12070 |
Switch, Shift Lock Control
1995-08 → —
|
AE109,CE102,106,107,108,EE10# ATM | ¥3,590 | |
| 85431 — Solenoid, Shift Lock | ||||
| 85431-12040 |
Solenoid, Shift Lock
1991-06 → 1995-05
ended
|
AE100,EE10# 3FC | ¥3,040 | |
| 85916N — Relay, Taillamp | ||||
| 90987-02009 |
Relay, Taillamp
1991-06 → —
|
AE10#,CE10#,EE10# | ¥4,250 | |
| 85931 — Relay, Emission Control | ||||
| 85931-13010 |
Relay, Emission Control
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥6,300 | |
| 85933 — Computer, Shift Lock Control | ||||
| 85933-12040 |
Computer, Shift Lock Control
1991-06 → 1993-08
ended
|
AE10#,CE100,106,108 4FC | ¥8,000 | |
| 85933-12050 |
Computer, Shift Lock Control
1991-06 → 1993-08
ended
|
AE100,EE10# 3FC | ¥8,000 | |
| 85933-12090 |
Computer, Shift Lock Control
1993-08 → 1995-08
ended
|
AE10#,CE100,106,108 4FC | ¥8,000 | |
| 85933-12100 |
Computer, Shift Lock Control
1993-08 → 1995-08
ended
|
AE100,EE10# 3FC | ¥8,000 | |
| 85933-12120 |
Computer, Shift Lock Control
1995-08 → 1996-05
ended
|
CE106,108,EE10# ATM | ¥8,000 | |
| 85933-12121 |
Computer, Shift Lock Control
1996-05 → —
|
AE109,CE102,106,107,108,EE10# ATM | ¥8,100 | |
| 85939 — Relay, Power Window | ||||
| 90987-02009 |
Relay, Power Window
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥4,250 | |
| 90987-02009 |
Relay, Power Window
1992-05 → 1994-01
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥4,250 | |
| 90987-02009 |
Relay, Power Window
1994-01 → 2000-08
ended
|
AE109,CE105,106,107,109,EE102,103 GT,L,LX,SEG,SEL,XE DX,XL;AE100,101,104,CE100,102,104,108,EE101,104 | ¥4,250 | |
| 90987-02009 |
Relay, Power Window
2000-08 → —
|
AE109,CE10#,EE10# | ¥4,250 | |
| 86650E — Buzzer Assy | ||||
| 86650-12030 |
Buzzer Assy
1991-06 → 1992-05
ended
|
CE100,104;AE10#,CE106,108,109,EE10# CTD,DX,GT,L,LX,XE,XL | ¥2,940 | |
| 86650-12030 note |
Buzzer Assy
1991-06 → 1992-05
ended
|
AE10# SEG,SEL | ¥2,940 | |
| 86650-12030 |
Buzzer Assy
1993-05 → —
|
AE10#,CE10#,EE10# | ¥2,940 | |
| 86650-12030 |
Buzzer Assy
1992-05 → 1993-05
ended
|
AE10#,CE10#,EE10# CTD,DX,GT,L,LX,SEL,XE,XL | ¥2,940 | |
| 86650-12030 note |
Buzzer Assy
1992-05 → 1993-05
ended
|
AE101 SEG | ¥2,940 | |
| 86650-12040 note |
Buzzer Assy
1992-05 → 1993-05
ended
|
AE101 SEG | ¥2,940 | |
| 86650-12040 note |
Buzzer Assy
1991-06 → 1992-05
ended
|
AE10# SEG,SEL | ¥2,940 | |
| 89279A — Cover, Computer | ||||
| 89279-12030 note |
Cover, Computer
1991-09 → 1994-01
ended
|
EE106 4F | ¥310 | |
| 89279-12080 |
Cover, Computer
1991-06 → 1994-01
ended
|
CE100,104,108 | ¥320 | |
| 89279-12080 |
Cover, Computer
1995-05 → 1998-04
ended
|
CE108;CE106 4FC | ¥320 | |
| 89279-12080 |
Cover, Computer
1994-02 → 1994-07
ended
|
CE104 | ¥320 | |
| 89279-12080 |
Cover, Computer
1994-01 → 1994-02
ended
|
CE106 4FC;CE100,104,108 | ¥320 | |
| 89279-12090 |
Cover, Computer
1994-01 → 1998-04
ended
|
CE106,109 5F | ¥260 | |
| 89279-12090 |
Cover, Computer
1991-09 → 1994-01
ended
|
CE106,109 | ¥260 | |
| 89279-12110 |
Cover, Computer
1994-02 → 1994-07
ended
|
CE100,108;CE106 4FC | ¥320 | |
| 89279-12110 |
Cover, Computer
1994-07 → 1995-05
ended
|
CE106 4FC;CE100,104,108 | ¥320 | |
| 89279-13010 |
Cover, Computer
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥240 | |
| 89539E — Bracket, Computer | ||||
| 89539-12050 |
Bracket, Computer
1991-06 → 1995-05
ended
|
CE10#,EE106,107,108 | ¥1,670 | |
| 89539-12050 |
Bracket, Computer
1995-05 → 1995-08
ended
|
CE106,109 5F | ¥1,670 | |
| 89551 — Computer, Emission Control | ||||
| 89551-12150 |
Computer, Emission Control
1991-06 → 1993-05
ended
|
CE100,108 | ¥37,900 | |
| 89551-12150 |
Computer, Emission Control
1993-05 → 1994-01
ended
|
CE108 | ¥37,900 | |
| 89551-12160 |
Computer, Emission Control
1991-09 → 1995-05
ended
|
CE104 | ¥28,600 | |
| 89551-12180 |
Computer, Emission Control
1993-05 → 1994-01
ended
|
CE100 | ¥37,900 | |
| 89551-12180 |
Computer, Emission Control
1994-01 → 1995-08
ended
|
CE100,108;CE106 4FC | ¥37,900 | |
| 89551-12200 |
Computer, Emission Control
1995-08 → 1998-04
ended
|
CE106,108 4FC | ¥38,100 | |
| 89551-12210 |
Computer, Emission Control
1995-08 → 1998-04
ended
|
CE108 5F | ¥38,100 | |
| 89551-13010 |
Computer, Emission Control
1991-09 → 1994-01
ended
|
EE106,107,108 MTM | ¥36,100 | |
| 89551-13020 |
Computer, Emission Control
1991-09 → 1994-01
ended
|
EE106,107,108 3FC | ¥36,100 | |
| 89551-13030 note |
Computer, Emission Control
1991-09 → 1994-01
ended
|
EE106 4F | ¥35,900 | |
| 89557 — Bracket, Emission Control Computer, NO.1 | ||||
| 89667-12110 |
Bracket, Emission Control Computer, NO.1
1991-06 → 1994-01
ended
|
CE100,104,108 | ¥580 | |
| 89667-12110 |
Bracket, Emission Control Computer, NO.1
1994-01 → 1995-05
ended
|
CE106 4FC;CE100,104,108 | ¥580 | |
| 89667-12120 |
Bracket, Emission Control Computer, NO.1
1995-05 → 1998-04
ended
|
CE108;CE106 4FC | ¥350 | |
| 89558 — Bracket, Emission Control Computer, NO.2 | ||||
| 89668-12050 |
Bracket, Emission Control Computer, NO.2
1991-06 → 1994-01
ended
|
CE100,104,108 | ¥380 | |
| 89668-12050 |
Bracket, Emission Control Computer, NO.2
1994-01 → 1998-04
ended
|
CE106 4FC;CE100,104,108 | ¥380 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
