Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

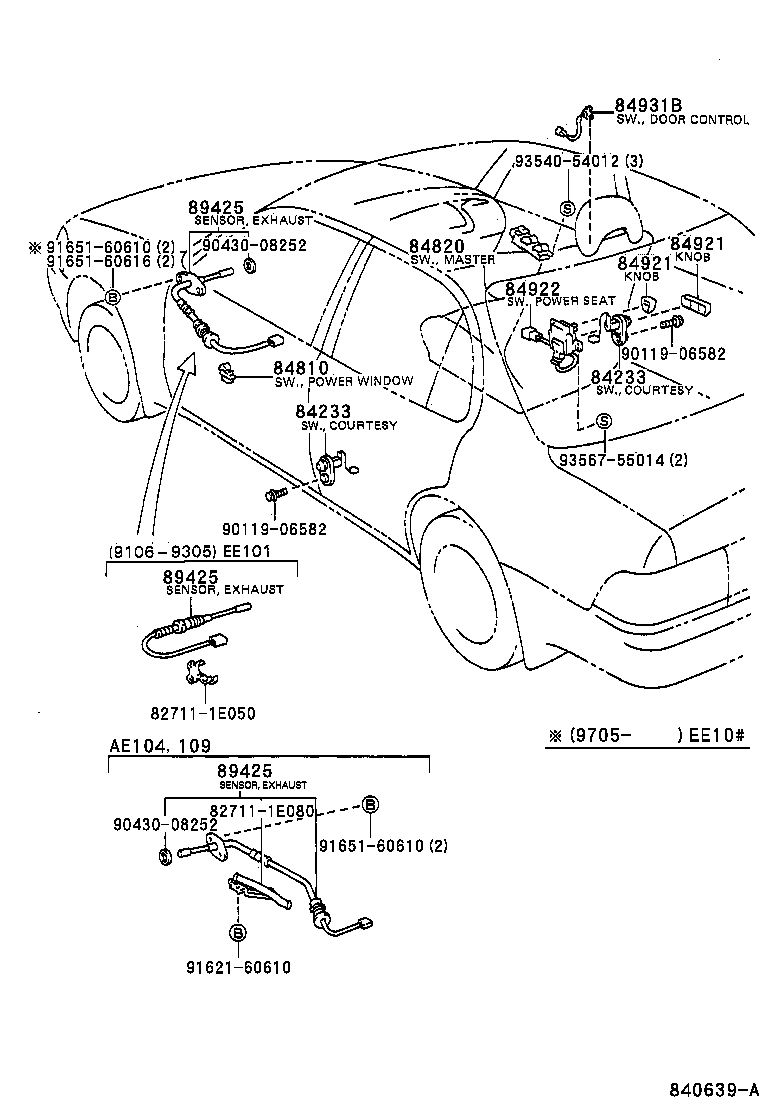

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-12080 note |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1992-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,070 | |
| 84231-12080 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# | ¥1,070 | |
| 84231-12080 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1997-04 → —
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84231-12080 note |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1995-12 → 1997-04
ended
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84231-12080 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1992-05 → 1995-12
ended
|
CE106,108,109,EE102,103,104,106,107,108 | ¥1,070 | |
| 84231-12120 note |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1995-12 → 1997-05
ended
|
AE109,CE10#,EE10# | ¥1,070 | |
| 84231-12120 note |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1992-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,070 | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-10020-P0 note |
Switch Assy, Power Window Regulator
1994-01 → 2000-08
ended
|
AE109,CE102,105,106,107,108,109,EE102,103,104 DX,L,XL | ¥3,780 | |
| 84810-10020-P0 note |
Switch Assy, Power Window Regulator
2000-08 → —
|
AE109,CE10#,EE10# | ¥3,780 | |
| 84810-12080 |
Switch Assy, Power Window Regulator
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥2,240 | |
| 84810-12080 |
Switch Assy, Power Window Regulator
1992-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥2,240 | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-12220 |
Master Switch Assy, Power Window Regulator
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥23,700 | |
| 84820-12220 |
Master Switch Assy, Power Window Regulator
1992-05 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥23,700 | |
| 84820-12221 |
Master Switch Assy, Power Window Regulator
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥23,700 | |
| 84820-13010 |
Master Switch Assy, Power Window Regulator
1994-01 → 1995-08
ended
|
CE106,108,109,EE102,103,104 DX,L,XL | ¥16,000 | |
| 84820-13020 |
Master Switch Assy, Power Window Regulator
1995-08 → 1997-04
ended
|
AE109,CE10#,EE10# DX,L,XL | ¥8,200 | |
| 84820-13040 |
Master Switch Assy, Power Window Regulator
1997-04 → 2000-08
ended
|
AE109,CE10#,EE10# DX,L,XL | ¥16,800 | |
| 84820-13040 |
Master Switch Assy, Power Window Regulator
2000-08 → —
|
AE109,CE10#,EE10# | ¥16,800 | |
| 84921 — Knob, Power Seat Switch | ||||
| 84921-12010-K0 note |
Knob, Power Seat Switch
1991-06 → 1993-05
ended
|
AE101 SEG | ¥1,470 | |
| 84921-12010-P0 note |
Knob, Power Seat Switch
1991-06 → 1993-05
ended
|
AE101 SEG | ¥1,470 | |
| 84921-12010-W3 note |
Knob, Power Seat Switch
1991-06 → 1993-05
ended
|
AE101 SEG | ¥1,470 | |
| 84921-22010-04 note |
Knob, Power Seat Switch
1991-06 → 1992-03
ended
|
AE101 SEG | ¥1,410 | |
| 84921-22010-J2 note |
Knob, Power Seat Switch
1992-03 → 1993-05
ended
|
AE101 SEG | ¥1,410 | |
| 84921-22010-K1 note |
Knob, Power Seat Switch
1991-06 → 1993-05
ended
|
AE101 SEG | ¥1,410 | |
| 84921-22010-P0 note |
Knob, Power Seat Switch
1991-06 → 1993-05
ended
|
AE101 SEG | ¥1,410 | |
| 84922 — Switch, Front Power Seat | ||||
| 84922-12010 |
Switch, Front Power Seat
1991-06 → 1993-05
ended
|
AE101 SEG | ¥8,200 | |
| 84931B — Switch, Door Control | ||||
| 84931-12060 |
Switch, Door Control
1992-05 → 1993-09
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥3,590 | |
| 84931-12061 |
Switch, Door Control
1993-09 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥3,590 | |
| 84931-20161 |
Switch, Door Control
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥3,590 | |
| 89425 — Sensor, Exhaust Gas Temperature | ||||
| 89425-12280 |
Sensor, Exhaust Gas Temperature
1991-06 → 1993-05
ended
|
EE101 | ¥21,000 | |
| 89425-19455 |
Sensor, Exhaust Gas Temperature
1991-06 → 1993-05
ended
|
AE100,101,EE106,107,108 | ¥20,800 | |
| 89425-19455 |
Sensor, Exhaust Gas Temperature
1993-05 → 1994-01
ended
|
AE100,101,EE10# | ¥20,800 | |
| 89425-19455 |
Sensor, Exhaust Gas Temperature
1994-01 → 1997-04
ended
|
AE100,101,EE10# | ¥20,800 | |
| 89425-19465 |
Sensor, Exhaust Gas Temperature
1991-09 → 1994-01
ended
|
AE104 | ¥21,000 | |
| 89425-19465 note |
Sensor, Exhaust Gas Temperature
1994-01 → 1995-05
ended
|
AE104 | ¥21,000 | |
| 89425-19525 note |
Sensor, Exhaust Gas Temperature
1994-01 → 1995-05
ended
|
AE104 | ¥21,000 | |
| 89425-19565 |
Sensor, Exhaust Gas Temperature
1997-04 → 1997-11
ended
|
EE10# | ¥21,000 | |
| 89425-19585 |
Sensor, Exhaust Gas Temperature
1996-05 → 1997-11
ended
|
AE109 | ¥21,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
