Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

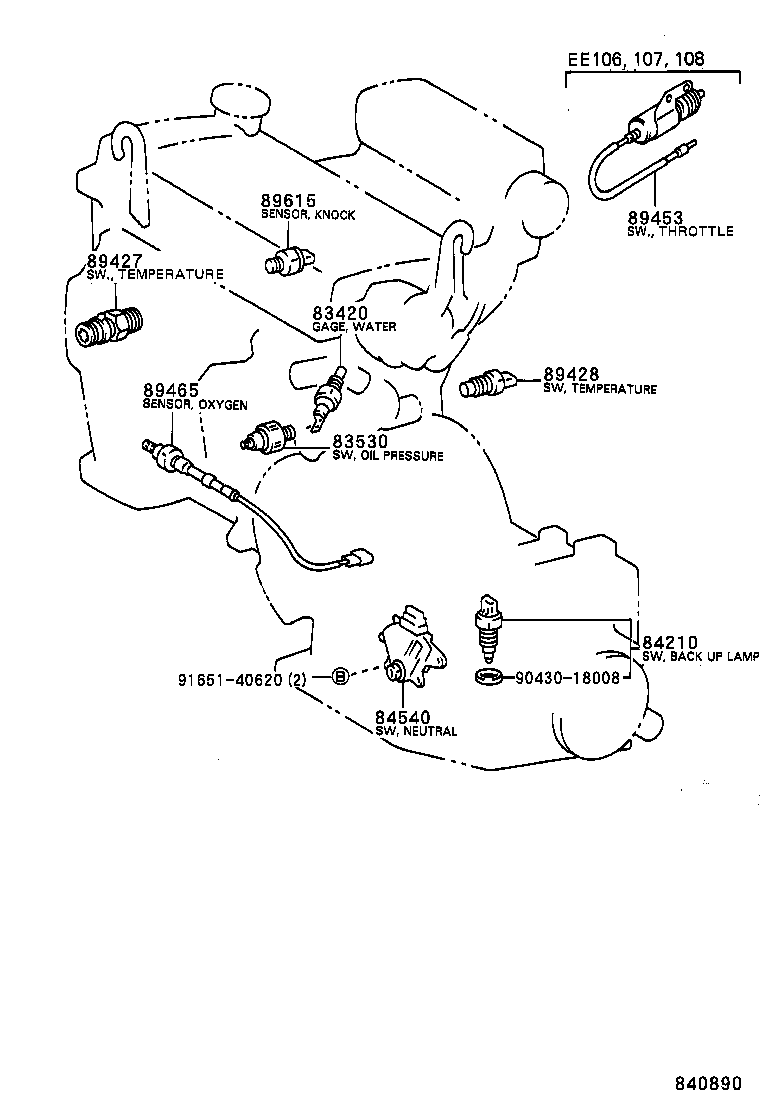

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-16020 |
Gage Assy, Water Temperature Sender
1992-05 → 1997-05
ended
|
AE101,EE10# CTD,DX,DXJ,GT,L,LX,XE,XL | ¥3,730 | |
| 83420-16020 |
Gage Assy, Water Temperature Sender
1991-06 → 1992-05
ended
|
AE10#,EE10# | ¥3,730 | |
| 83420-16050 |
Gage Assy, Water Temperature Sender
1992-05 → 1992-12
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥3,720 | |
| 83420-16050 note |
Gage Assy, Water Temperature Sender
1992-12 → 1994-11
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥3,720 | |
| 83420-20020 |
Gage Assy, Water Temperature Sender
1991-06 → —
|
CE10# | ¥3,610 | |
| 83420-20040 note |
Gage Assy, Water Temperature Sender
1992-12 → 1994-02
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥3,720 | |
| 83420-20040 |
Gage Assy, Water Temperature Sender
1994-02 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥3,720 | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-14060 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1992-05 → 1994-11
ended
|
EE10# | ¥1,300 | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-03 → —
|
AE109,EE10# | ¥1,970 | |
| 83530-30051 |
Switch Assy, Oil Pressure (FOR ENGINE)
1991-06 → 1992-08
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥1,320 | |
| 83530-30060 |
Switch Assy, Oil Pressure (FOR ENGINE)
1991-06 → 1992-05
ended
|
CE10# | ¥1,320 | |
| 83530-30080 |
Switch Assy, Oil Pressure (FOR ENGINE)
1991-06 → 1992-05
ended
|
AE101,EE10# CTD,DX,GT,L,LX,XE,XL | ¥1,320 | |
| 83530-30080 |
Switch Assy, Oil Pressure (FOR ENGINE)
1992-05 → 1995-05
ended
|
AE101 GT | ¥1,320 | |
| 83530-30090 |
Switch Assy, Oil Pressure (FOR ENGINE)
1992-08 → 1994-09
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥2,100 | |
| 83530-30090 |
Switch Assy, Oil Pressure (FOR ENGINE)
1994-09 → 1998-03
ended
|
AE10#,EE10# DX,DXJ,L,LX,SEG,SEL,XE,XL | ¥2,100 | |
| 83530-30090 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1992-05 → 1994-09
ended
|
EE10# | ¥2,100 | |
| 83530-30100 |
Switch Assy, Oil Pressure (FOR ENGINE)
1992-05 → 1998-03
ended
|
CE10# | ¥1,320 | |
| 83530-60010 |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-03 → —
|
CE10# | ¥1,970 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
1998-03 → —
|
AE109,EE10# | ¥1,970 | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-12040 |
Switch Assy, Back-up Lamp
1991-06 → —
|
AE10#,CE10#,EE10# MTM | ¥2,910 | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-12200 note |
Switch Assy, Neutral Start
1993-05 → 1995-05
ended
|
AE101 4FC | ¥12,100 | |
| 84540-12210 note |
Switch Assy, Neutral Start
1993-05 → 1995-05
ended
|
AE101 4FC | ¥12,100 | |
| 84540-16040 |
Switch Assy, Neutral Start
1993-05 → 1995-05
ended
|
AE100,104,CE100,106,108,EE10# ATM | ¥12,100 | |
| 84540-16040 |
Switch Assy, Neutral Start
1991-06 → 1993-05
ended
|
AE10#,CE100,106,108,EE10# ATM | ¥12,100 | |
| 84540-16050 |
Switch Assy, Neutral Start
1995-05 → —
|
AE109,CE102,106,107,108,EE10# ATM | ¥12,100 | |
| 89427 — Switch, Temperature Detect | ||||
| 89427-12090 |
Switch, Temperature Detect
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥5,300 | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-12160 |
Switch, Temperature Detect, NO.2
1991-06 → —
|
AE10#,EE10# | ¥5,300 | |
| 89428-33010 |
Switch, Temperature Detect, NO.2
1991-06 → —
|
CE10# | ¥6,000 | |
| 89453 — Switch, Throttle Position (FOR T.C.S.) | ||||
| 89453-13010 |
Switch, Throttle Position (FOR T.C.S.)
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥2,680 | |
| 89465 — Sensor, Oxygen | ||||
| 89465-10020 |
Sensor, Oxygen
1991-06 → 1995-05
ended
|
EE101,106,107,108 | ¥10,200 | |
| 89465-12270 |
Sensor, Oxygen
1991-06 → 1995-05
ended
|
AE100 | ¥10,200 | |
| 89465-12280 |
Sensor, Oxygen
1991-06 → 1997-04
ended
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥10,200 | |
| 89465-12360 |
Sensor, Oxygen
1994-01 → 1997-04
ended
|
EE102,103,104 | ¥10,700 | |
| 89465-12680 |
Sensor, Oxygen
2000-08 → —
|
EE10# | ¥11,200 | |
| 89465-13020 |
Sensor, Oxygen
1997-04 → —
|
AE109 | ¥10,200 | |
| 89465-19495 |
Sensor, Oxygen
1991-06 → 1995-05
ended
|
AE101 GT | ¥10,700 | |
| 89465-33180 |
Sensor, Oxygen
1997-04 → 2000-08
ended
|
EE10# | ¥11,200 | |
| 89615 — Sensor, Knock Control | ||||
| 89615-12030 note |
Sensor, Knock Control
1991-06 → 1998-09
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥16,800 | |
| 89615-12040 note |
Sensor, Knock Control
1991-06 → 1995-05
ended
|
AE101 GT | ¥16,900 | |
| 89615-12050 note |
Sensor, Knock Control
1991-06 → 1995-05
ended
|
AE101 GT | ¥16,900 | |
| 89615-22030 note |
Sensor, Knock Control
1991-06 → 1997-04
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥15,500 | |
| 89615-22030 note |
Sensor, Knock Control
1997-04 → 1999-09
ended
|
AE109,EE10# | ¥15,500 | |
| 89615-22040 note |
Sensor, Knock Control
1997-04 → 1999-09
ended
|
EE10# | ¥15,400 | |
| 89615-22050 note |
Sensor, Knock Control
1998-09 → —
|
AE109 | ¥15,500 | |
| 89615-52010 note |
Sensor, Knock Control
1999-09 → —
|
EE103 XL;AE109,EE104;EE102,103 (3FC,4F) (DX,DXJ) | ¥16,900 | |
| 89615-52010 |
Sensor, Knock Control
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥16,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
