Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

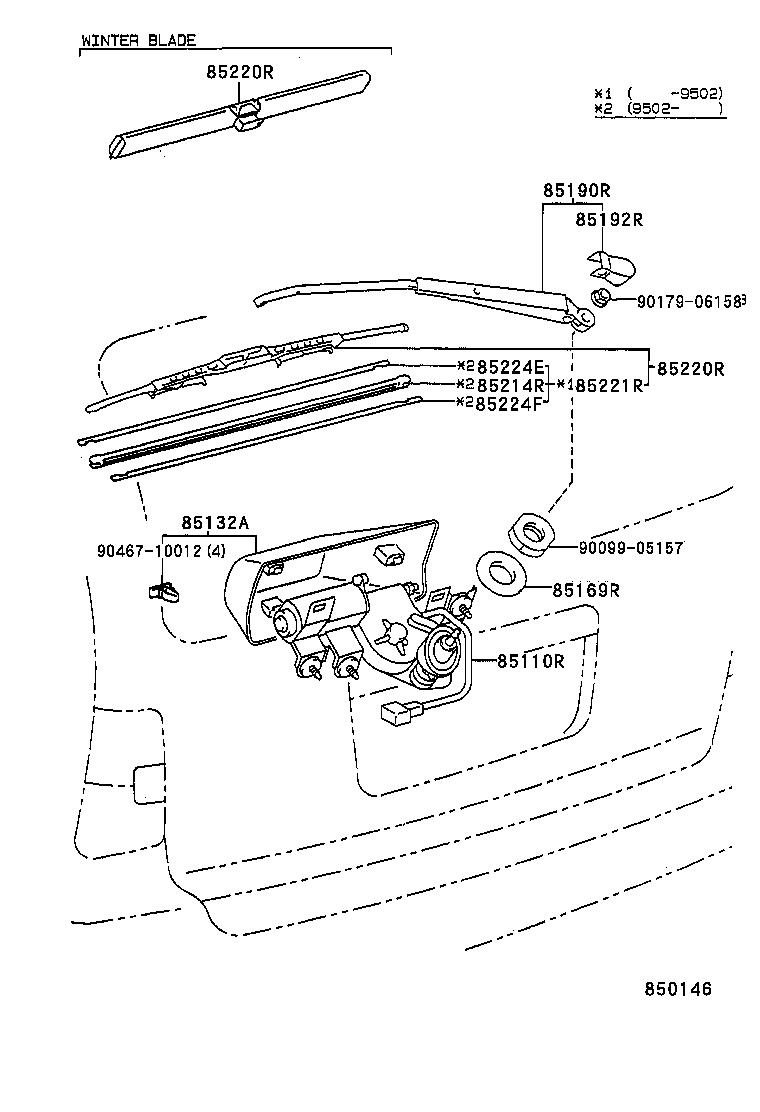

Exploded illustration 850146 85220R — BLADE ASSY, REAR WIPER (6 parts) 85190R — ARM ASSY, REAR WIPER (4 parts) 85192R — COVER, REAR WIPER ARM (1 parts) 9017906158 — not listed in this catalogue 85224E — PLATE, REAR WIPER RUBBER BACKING, NO.1 (2 parts) 85220R — BLADE ASSY, REAR WIPER (6 parts) 85214R — RUBBER, REAR WIPER (2 parts) 85221R — BLADE, REAR WIPER (1 parts) 85224F — PLATE, REAR WIPER RUBBER BACKING, NO.2 (2 parts) 85132A — COVER, REAR WIPER SHAFT (1 parts) 9009905157 — not listed in this catalogue 9046710012 — not listed in this catalogue 85169R — WASHER, REAR WIPER LINK PIVOT, NO.1 (1 parts) 85110R — MOTOR ASSY, REAR WIPER (3 parts)
850146 · 11 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
85110R — Motor Assy, Rear Wiper
85130-13060 note Motor Assy, Rear Wiper
1991-09 → 1992-04 ended
CE106 DX ¥35,200
85130-13060 Motor Assy, Rear Wiper
1991-09 → 1992-04 ended
CE109,EE106,107;CE106,108,EE108 CTD,L,XL ¥35,200
85130-13070 Motor Assy, Rear Wiper
1992-04 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥35,400
85132A — Cover, Rear Wiper Shaft
85132-13060-B0 note Cover, Rear Wiper Shaft
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,360
85169R — Washer, Rear Wiper Link Pivot, NO.1
85134-13060 Washer, Rear Wiper Link Pivot, NO.1
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
85190R — Arm Assy, Rear Wiper
85241-13010 Arm Assy, Rear Wiper
1991-09 → 1992-04 ended
CE109,EE106,107;CE106,108,EE108 CTD,L,XL ¥3,150
85241-13010 note Arm Assy, Rear Wiper
1991-09 → 1992-04 ended
CE106 DX ¥3,150
85241-13010 Arm Assy, Rear Wiper
1992-04 → 1993-01 ended
CE106,108,109,EE106,107,108 ¥3,150
85241-13030 Arm Assy, Rear Wiper
1993-01 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,170
85192R — Cover, Rear Wiper Arm
85245-13030 Cover, Rear Wiper Arm
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥380
85214R — Rubber, Rear Wiper
85214-12290 Rubber, Rear Wiper
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥830
85214-20340 Rubber, Rear Wiper
1995-02 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 ¥830
85220R — Blade Assy, Rear Wiper
85242-12080 Blade Assy, Rear Wiper
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥2,090
85242-13010 Blade Assy, Rear Wiper
1991-09 → 1992-04 ended
CE109,EE106,107;CE106,108,EE108 CTD,L,XL ¥2,090
85242-13010 note Blade Assy, Rear Wiper
1991-09 → 1992-04 ended
CE106 DX ¥2,090
85242-13010 Blade Assy, Rear Wiper
1992-04 → 1993-01 ended
CE106,108,109,EE106,107,108 ¥2,090
85242-13030 Blade Assy, Rear Wiper
1993-01 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,107 ¥2,090
85291-13020 note Blade Assy, Rear Wiper
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,060
85221R — Blade, Rear Wiper
85243-13010 Blade, Rear Wiper
1991-09 → 1995-02 ended
CE106,108,109,EE102,103,104,106,107,108 ¥840
85224E — Plate, Rear Wiper Rubber Backing, NO.1
85224-28100 Plate, Rear Wiper Rubber Backing, NO.1
1995-02 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 ¥330
85224-44030 Plate, Rear Wiper Rubber Backing, NO.1
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥230
85224F — Plate, Rear Wiper Rubber Backing, NO.2
85224-28100 Plate, Rear Wiper Rubber Backing, NO.2
1995-02 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104 ¥330
85224-44030 Plate, Rear Wiper Rubber Backing, NO.2
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥230
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
