Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

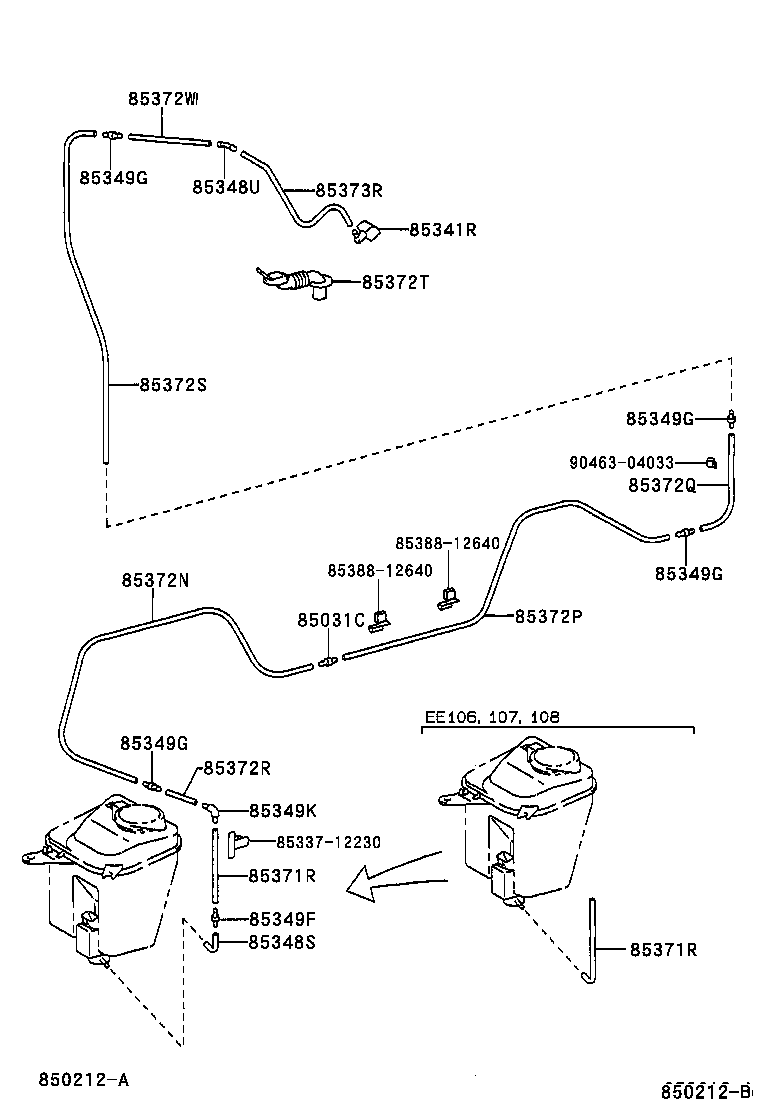

Exploded illustration 850212B 85372W — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 (3 parts) 85349G — JOINT, REAR WASHER HOSE, NO.2 (2 parts) 85348U — JOINT, REAR WASHER HOSE, NO.3 (4 parts) 85373R — HOSE, REAR WASHER (FROM JOINT TO NOZZLE) (1 parts) 85341R — NOZZLE ASSY, WASHER (1 parts) 85372T — GROMMET, WASHER (1 parts) 85372S — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 (1 parts) 85349G — JOINT, REAR WASHER HOSE, NO.2 (2 parts) 9046304033 — not listed in this catalogue 85372Q — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 (1 parts) 8538812640 — not listed in this catalogue 8538812640 — not listed in this catalogue 85349G — JOINT, REAR WASHER HOSE, NO.2 (2 parts) 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (4 parts) 85372P — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 (4 parts) 85031C — VALVE SUB-ASSY, WASHER (1 parts) 85349G — JOINT, REAR WASHER HOSE, NO.2 (2 parts) 85372R — HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) (2 parts) 85349K — JOINT, REAR WASHER ELBOW, NO.2 (1 parts) 8533712230 — not listed in this catalogue 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (2 parts) 85349F — JOINT, REAR WASHER HOSE, NO.1 (1 parts) 85348S — JOINT, REAR WASHER ELBOW, NO.1 (1 parts) 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (2 parts)
850212B · 20 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
85031C — Valve Sub-assy, Washer
85031-30010 Valve Sub-assy, Washer
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
85341R — Nozzle Assy, Washer
85395-13010 Nozzle Assy, Washer
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥0
85348S — Joint, Rear Washer Elbow, NO.1
85336-12230 Joint, Rear Washer Elbow, NO.1
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 —
85348U — Joint, Rear Washer Hose, NO.3
85349-89122 Joint, Rear Washer Hose, NO.3
1994-08 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104 —
85355-20080 Joint, Rear Washer Hose, NO.3
1991-09 → 1994-08 ended
CE106,108,109,EE102,103,104,106,107,108 —
85355-20080 note Joint, Rear Washer Hose, NO.3
1994-08 → 1997-05 ended
CE108,109 DX,L —
85355-20080 note Joint, Rear Washer Hose, NO.3
1994-08 → 1997-05 ended
CE106 DX —
85349F — Joint, Rear Washer Hose, NO.1
85375-10260 Joint, Rear Washer Hose, NO.1
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥120
85349G — Joint, Rear Washer Hose, NO.2
85349-89122 Joint, Rear Washer Hose, NO.2
1991-09 → 1997-04 ended
EE106 4F;EE106 3FC DX;AE109,CE106,108,109,EE102,103,107 —
85349-89122 Joint, Rear Washer Hose, NO.2
1997-04 → 2002-06 ended
AE109,CE10#,EE10# —
85349K — Joint, Rear Washer Elbow, NO.2
85317-12230 Joint, Rear Washer Elbow, NO.2
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
85371R — Hose, Rear Washer (FROM MOTOR TO JOINT)
90446-07001 note Hose, Rear Washer (FROM MOTOR TO JOINT)
1991-09 → 1994-01 ended
EE106,107,108 —
90446-07001 note Hose, Rear Washer (FROM MOTOR TO JOINT)
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
1992-04 → 1997-05 ended
CE106,108,109,EE108 DX,L —
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
1994-07 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104 —
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
1992-04 → 1994-07 ended
CE106,108,109,EE102,103,104,106,107,108 —
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
1991-09 → 1992-04 ended
CE106,108,109,EE106,107,108 —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
90099-59060 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
1991-09 → 1992-04 ended
CE106,108,109,EE106,107,108 —
90099-59060 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
1992-04 → 1997-05 ended
EE106 4F;EE102 4F DXJ;EE106 +3 —
90099-59079 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
1992-04 → 1994-07 ended
CE106,108,109,EE102,103,104,106,107,108 —
90099-59116 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
1994-07 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥620
85372Q — Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
90099-33299 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
85372R — Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
90099-33080 note Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
1992-05 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
90099-33299 note Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 —
85372S — Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
85372T — Grommet, Washer
82819-13080 Grommet, Washer
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥620
85372W — Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
90099-33080 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
1991-09 → 1992-04 ended
CE106,108,109,EE106,107,108 —
90099-33080 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
1992-04 → 1997-05 ended
CE106,108,109,EE108 DX,L —
90099-33080 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
1992-04 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE)
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
1991-09 → 2002-06 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
