Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

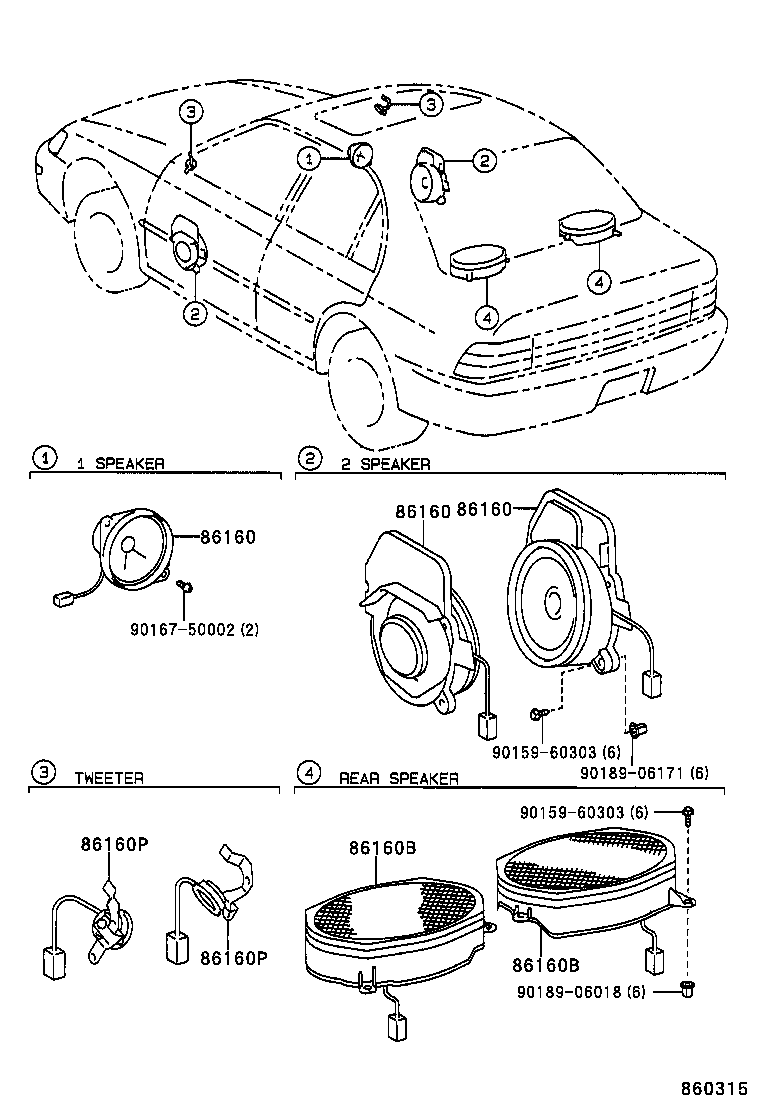

Exploded illustration 860315 86160 — SPEAKER ASSY, FRONT NO.1 (9 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (9 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (9 parts) 9016750002 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906171 — not listed in this catalogue 9015960303 — not listed in this catalogue 86160P — SPEAKER ASSY, FRONT NO.2 (4 parts) 86160B — SPEAKER ASSY, REAR (14 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (4 parts) 86160B — SPEAKER ASSY, REAR (14 parts) 9018906018 — not listed in this catalogue
860315 · 7 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
86160 — Speaker Assy, Front NO.1
86160-12400 Speaker Assy, Front NO.1
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥5,400
86160-12410 note Speaker Assy, Front NO.1
1991-06 → 2000-08 ended
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,102,104,108,EE101,104,108 DX,L,LX ¥10,700
86160-12410 note Speaker Assy, Front NO.1
2000-08 → —
AE109,CE10#,EE10# ¥10,700
86160-12420 note Speaker Assy, Front NO.1
1991-06 → 2000-08 ended
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,102,104,108,EE101,104,108 DX,L,LX ¥10,700
86160-12420 note Speaker Assy, Front NO.1
2000-08 → —
AE109,CE10#,EE10# ¥10,700
86160-12430 note Speaker Assy, Front NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥12,200
86160-12430 note Speaker Assy, Front NO.1
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥12,200
86160-12440 note Speaker Assy, Front NO.1
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥12,200
86160-12440 note Speaker Assy, Front NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥12,200
86160B — Speaker Assy, Rear
86160-12450 note Speaker Assy, Rear
1991-06 → 1993-05 ended
AE101 SEG ¥12,200
86160-12450 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥12,200
86160-12450 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,XE ¥12,200
86160-12450 note Speaker Assy, Rear
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEL,XE ¥12,200
86160-12460 note Speaker Assy, Rear
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEL,XE ¥12,200
86160-12460 note Speaker Assy, Rear
1991-06 → 1993-05 ended
AE101 SEG ¥12,200
86160-12460 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,XE ¥12,200
86160-12460 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥12,200
86160-12470 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥32,100
86160-12470 note Speaker Assy, Rear
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥32,100
86160-12470 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE101 GT ¥32,100
86160-12480 note Speaker Assy, Rear
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥32,100
86160-12480 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE101 GT ¥32,100
86160-12480 note Speaker Assy, Rear
1993-05 → 1995-05 ended
AE10#,CE100,104 SEG,SEL ¥32,100
86160P — Speaker Assy, Front NO.2
86160-12380 note Speaker Assy, Front NO.2
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥7,400
86160-12380 note Speaker Assy, Front NO.2
1993-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥7,400
86160-12390 note Speaker Assy, Front NO.2
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥7,400
86160-12390 note Speaker Assy, Front NO.2
1993-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥7,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
