Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

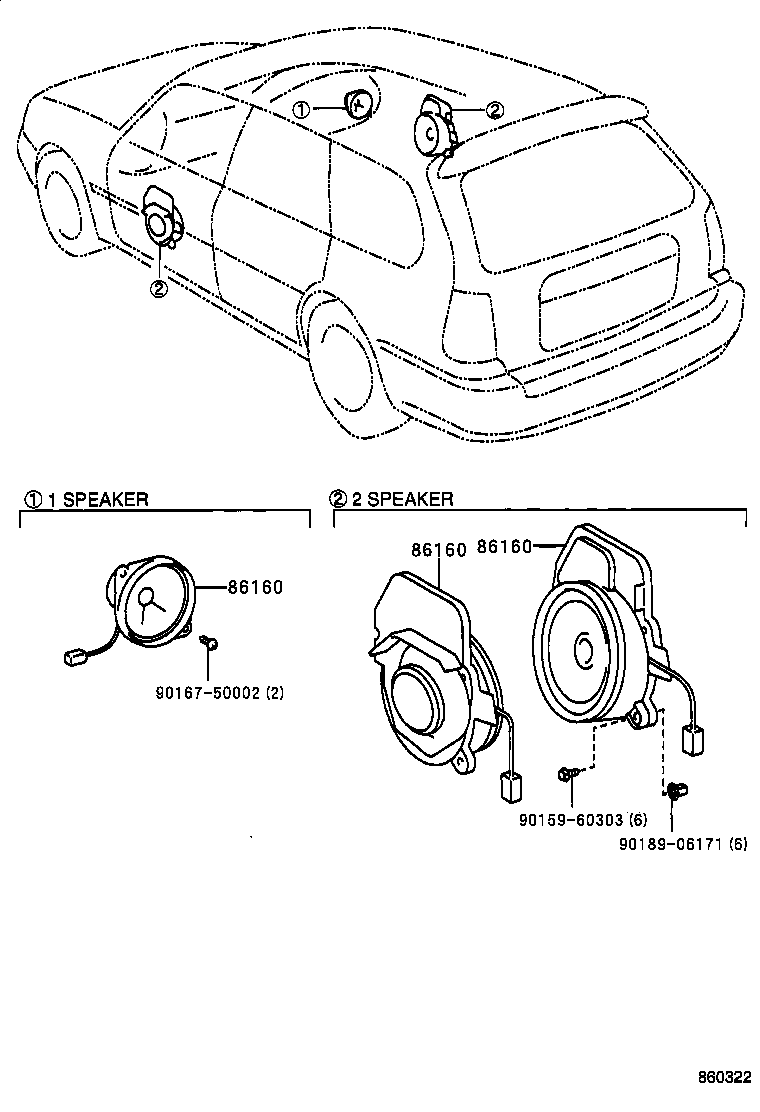

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-12400 |
Speaker Assy, Front NO.1
1991-06 → —
|
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL | ¥5,400 | |
| 86160-12410 note |
Speaker Assy, Front NO.1
1991-06 → 2000-08
ended
|
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,102,104,108,EE101,104,108 DX,L,LX | ¥10,700 | |
| 86160-12410 note |
Speaker Assy, Front NO.1
2000-08 → —
|
AE109,CE10#,EE10# | ¥10,700 | |
| 86160-12420 note |
Speaker Assy, Front NO.1
1991-06 → 2000-08
ended
|
CE105,106,107,109,EE103,107 XL;AE100,104,CE100,102,104,108,EE101,104,108 DX,L,LX | ¥10,700 | |
| 86160-12420 note |
Speaker Assy, Front NO.1
2000-08 → —
|
AE109,CE10#,EE10# | ¥10,700 | |
| 86160-12430 note |
Speaker Assy, Front NO.1
1992-05 → 1993-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥12,200 | |
| 86160-12430 note |
Speaker Assy, Front NO.1
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥12,200 | |
| 86160-12440 note |
Speaker Assy, Front NO.1
1992-05 → 1993-05
ended
|
AE100,104,CE100,104,EE101 LX | ¥12,200 | |
| 86160-12440 note |
Speaker Assy, Front NO.1
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥12,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
