Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

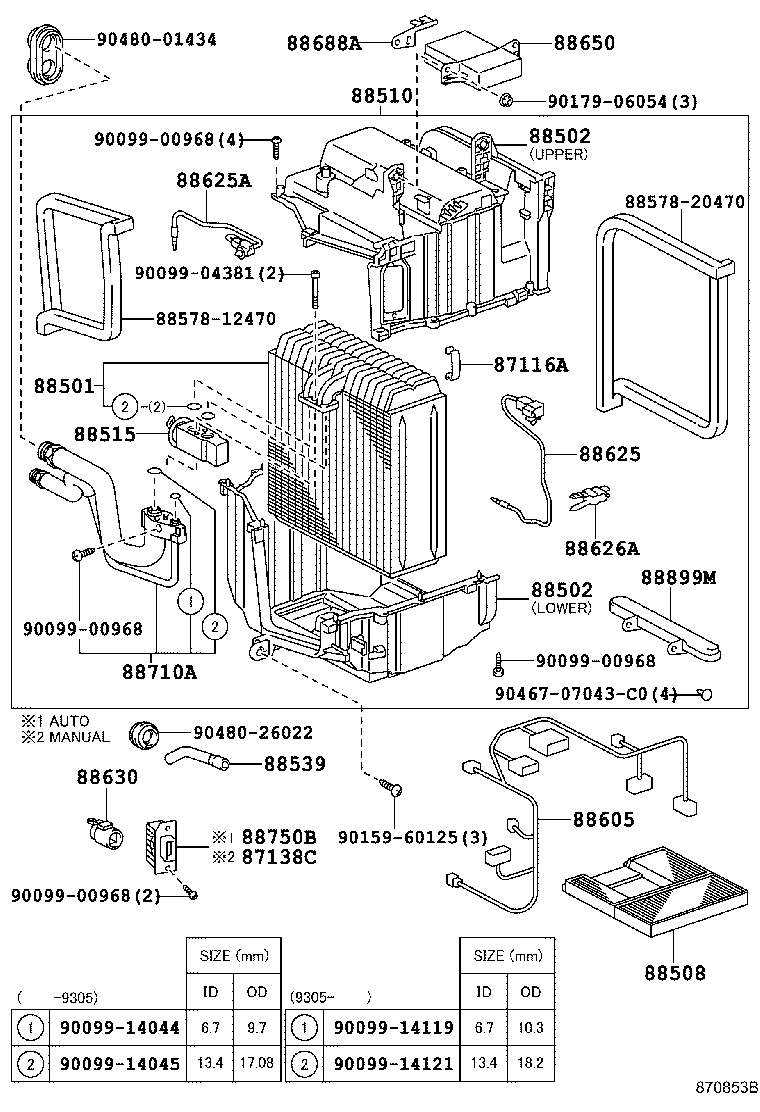

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87116A — Spring, Holding (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
Spring, Holding (FOR COOLER UNIT CASE)
1991-06 → 1995-08
ended
|
AE10#,CE10#,EE10# | — | |
| 87138C — Resistor, Blower | ||||
| 87138-12130 |
Resistor, Blower
1992-05 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-12360 |
Evaporator Sub-assy, Cooler, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE10#,EE10# | — | |
| 88501-12390 |
Evaporator Sub-assy, Cooler, NO.1
1993-05 → 1995-03
ended
|
AE10#,CE10#,EE10# | — | |
| 88501-12391 |
Evaporator Sub-assy, Cooler, NO.1
1995-03 → 1995-08
ended
|
AE10#,CE10#,EE10# | — | |
| 88501-12430 |
Evaporator Sub-assy, Cooler, NO.1
1995-08 → —
|
AE109,CE10#,EE10# | — | |
| 88502 — Case Sub-assy, Cooling Unit | ||||
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1991-06 → 1992-05
ended
|
CE100,108,EE107,108 DX,L,XL | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1991-06 → 1992-05
ended
|
CE100 LX,XE;AE100,104,CE104,106,109,EE101,106 CTD,DX,LX,XE,XL | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1994-05 → 1994-06
ended
|
AE104,CE100,104 LX,SEL;AE100,CE106,109,EE101,102 | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1994-05 → 1994-06
ended
|
AE104,CE100,104,108,EE103,104 DX,L,XE,XL | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1994-05 → 1994-06
ended
|
AE100 XE | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1992-05 → 1994-05
ended
|
EE101;CE100 LX,SEL;AE100,104,CE104,106,109,EE102,106 CTD,DX,DXJ,LX,SEL,XL | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1994-06 → 1995-08
ended
|
EE101;CE100 LX,SEL;AE100,104,CE104,106,109,EE102 CTD,DX,DXJ,LX,SEL,XL | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1992-05 → 1994-05
ended
|
CE100,EE103,107 DX,XE,XL;AE100,104,CE104,108,EE104,108 L,XE | — | |
| 88502-12160 note |
Case Sub-assy, Cooling Unit
1994-06 → 1995-08
ended
|
CE100,EE103 DX,XE,XL;AE100,104,CE104,108,EE104 L,XE | — | |
| 88502-12170 note |
Case Sub-assy, Cooling Unit
1992-05 → 1992-10
ended
|
EE101;CE100 LX;AE100,104,CE104,106,109,EE106 CTD,DX,LX,XL | — | |
| 88502-12170 note |
Case Sub-assy, Cooling Unit
1992-10 → 1992-11
ended
|
AE100,104,CE10#,EE10# | — | |
| 88502-12170 note |
Case Sub-assy, Cooling Unit
1992-05 → 1992-10
ended
|
CE100,EE107 DX,SEL,XE,XL;AE10#,CE104,108,EE108 GT,L,SEG,SEL,XE | — | |
| 88502-12170 note |
Case Sub-assy, Cooling Unit
1991-06 → 1992-05
ended
|
CE100 LX,XE;AE100,104,CE104,106,109,EE101,106 CTD,DX,LX,XE,XL | — | |
| 88502-12170 note |
Case Sub-assy, Cooling Unit
1991-06 → 1992-05
ended
|
CE100,EE107 DX,SEL,XL;AE10#,CE104,108,EE108 GT,L,SEG,SEL | — | |
| 88502-12180 note |
Case Sub-assy, Cooling Unit
1991-06 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 88502-12180 note |
Case Sub-assy, Cooling Unit
1991-06 → 1995-05
ended
|
CE100,EE101 LX,XE;AE100,104,CE104 DX,LX,XE | — | |
| 88502-12190 note |
Case Sub-assy, Cooling Unit
1991-06 → 1995-08
ended
|
CE106,109,EE101,102,106 | — | |
| 88502-12200 note |
Case Sub-assy, Cooling Unit
1992-11 → 1995-08
ended
|
EE101 ,XE LX,XE;CE100,EE103,107 DX,SEL,XE,XL;AE10#,CE104,108,EE104,108 +1 | — | |
| 88502-12200 note |
Case Sub-assy, Cooling Unit
1992-11 → 1995-08
ended
|
CE106,109,EE101,102,106 CTD,DX,DXJ,XL | — | |
| 88502-12200 note |
Case Sub-assy, Cooling Unit
1992-11 → 1995-05
ended
|
CE100 LX;AE100,104,CE104 DX,LX | — | |
| 88502-12200 note |
Case Sub-assy, Cooling Unit
1992-10 → 1992-11
ended
|
EE101,106;AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 88502-12200 note |
Case Sub-assy, Cooling Unit
1991-09 → 1992-11
ended
|
CE106,109 | — | |
| 88502-12200 note |
Case Sub-assy, Cooling Unit
1991-06 → 1992-10
ended
|
EE101,106 | — | |
| 88508 — Filter Sub-assy, Clean Air | ||||
| 88508-12010 |
Filter Sub-assy, Clean Air
1991-06 → 1992-10
ended
|
AE10#,CE10#,EE10# | ¥3,000 | |
| 88510 — Unit Assy, Cooler | ||||
| 88501-12420 |
Unit Assy, Cooler
1995-08 → —
|
AE109,CE10#,EE10# | — | |
| 88510-12840 |
Unit Assy, Cooler
1991-06 → 1992-10
ended
|
AE10# SEG,SEL | — | |
| 88510-12840 note |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
AE100,104 XE | — | |
| 88510-12841 note |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE100,104 XE | — | |
| 88510-12841 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE10# SEG,SEL | — | |
| 88510-12850 |
Unit Assy, Cooler
1991-06 → 1992-10
ended
|
AE101 GT | — | |
| 88510-12851 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE101 GT | — | |
| 88510-12870 |
Unit Assy, Cooler
1991-06 → 1992-10
ended
|
CE100,104 SEL | — | |
| 88510-12870 note |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
CE100,104 XE | — | |
| 88510-12871 note |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
CE100,104 XE | — | |
| 88510-12871 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
CE100,104 SEL | — | |
| 88510-12890 |
Unit Assy, Cooler
1991-06 → 1992-11
ended
|
CE100,108,EE107,108 DX,L,XL | — | |
| 88510-12890 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
CE106,109,EE101,106;CE100,104 LX,SEL,XE | — | |
| 88510-12890 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
CE100,104 LX,XE;CE106,109,EE101,106 | — | |
| 88510-12891 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
CE106,109,EE101,106;CE100,104 LX,SEL,XE | — | |
| 88510-12891 |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
CE100,108,EE107,108 DX,L,XL | — | |
| 88510-1A060 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
AE100,104 | — | |
| 88510-1A060 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88510-1A061 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
AE100,104 | — | |
| 88510-1A070 note |
Unit Assy, Cooler
1991-06 → 1993-05
ended
|
CE106,109,EE101,106 | — | |
| 88510-1A080 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
CE100,104,EE101 LX,XE | — | |
| 88510-1A080 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
EE101 LX,XE | — | |
| 88510-1A080 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
CE104 LX;CE100 LX,XE | — | |
| 88510-1A081 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
CE104 LX;CE100,EE101 LX,XE | — | |
| 88510-1A090 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
AE100,104 DX,LX | — | |
| 88510-1A090 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88510-1A091 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
AE100,104 DX,LX | — | |
| 88510-1A130 |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
AE100,104 XE | — | |
| 88510-1A131 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE100,104 XE | — | |
| 88510-1A140 |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
CE100,104 XE | — | |
| 88510-1A141 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
CE100,104 XE | — | |
| 88510-1A260 |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE100,104 XE | — | |
| 88510-1A260 note |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88510-1A270 |
Unit Assy, Cooler
1993-05 → 1995-08
ended
|
CE100,104,108,EE103,104,107,108 DX,L,XE,XL | — | |
| 88510-1A270 note |
Unit Assy, Cooler
1993-05 → 1995-08
ended
|
CE100,104 LX,SEL;CE106,109,EE101,102,106 | — | |
| 88510-1A280 note |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88510-1A280 |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE10# SEG,SEL | — | |
| 88510-1A290 note |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
CE100,104,EE101 LX,XE | — | |
| 88510-1A290 |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE101,CE100,104 GT,SEL | — | |
| 88510-1A300 note |
Unit Assy, Cooler
1993-05 → 1995-08
ended
|
CE106,109,EE101,102,106 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-14062 |
Valve, Cooler Expansion
1991-06 → 1992-11
ended
|
AE10#,CE100,104,108,EE10# | ¥10,500 | |
| 88515-14062 note |
Valve, Cooler Expansion
1991-09 → 1992-11
ended
|
CE106,109 | ¥10,500 | |
| 88515-14062 |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 SEL;AE10#,CE104 GT,SEG,SEL,XE | ¥10,500 | |
| 88515-14062 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 XE | ¥10,500 | |
| 88515-14062 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE106,109,EE101,106 | ¥10,500 | |
| 88515-20100 |
Valve, Cooler Expansion
1993-05 → —
|
AE10#,CE10#,EE10# | ¥10,300 | |
| 88515-33010 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 XE | ¥10,300 | |
| 88515-33010 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 SEL;AE100,104,CE104 SEL,XE;CE106,109,EE101,106 CTD,DX,XL | ¥10,300 | |
| 88515-33010 |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
EE101 LX,XE;AE100,104,CE100,104,108,EE107,108 DX,L,LX,XL | ¥10,300 | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-12120 |
Hose, Cooler Unit Drain, NO.1
1991-06 → 1997-04
ended
|
AE10#,CE10#,EE10# | — | |
| 88539-12160 |
Hose, Cooler Unit Drain, NO.1
1997-04 → —
|
AE109,CE10#,EE10# | — | |
| 88605 — Harness Sub-assy, Cooler Wiring, NO.1 | ||||
| 88605-1E600 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1995-05
ended
|
EE101 LX,XE | — | |
| 88605-1E610 note |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1994-05
ended
|
AE100,104 XE | — | |
| 88605-1E610 |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1994-05
ended
|
AE10# SEG,SEL | — | |
| 88605-1E610 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE101,104 SEG,SEL | — | |
| 88605-1E610 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE104 XE | — | |
| 88605-1E620 note |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1994-06
ended
|
AE100,104 DX,LX | — | |
| 88605-1E620 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88605-1E630 |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1993-05
ended
|
AE101 GT | — | |
| 88605-1E670 note |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1993-05
ended
|
CE100,104 XE | — | |
| 88605-1E670 |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1993-05
ended
|
CE100,104 SEL | — | |
| 88605-1E680 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1992-05
ended
|
CE100,104 LX,XE | — | |
| 88605-1E680 note |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1993-05
ended
|
CE104 LX;CE100 LX,XE | — | |
| 88605-1E690 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1997-04
ended
|
EE101,102 DX,DXJ | — | |
| 88605-1E700 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1997-04
ended
|
EE101,102 DX,DXJ | — | |
| 88605-1E700 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1995-05
ended
|
EE101 LX,XE | — | |
| 88605-1E700 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-01 → 1997-04
ended
|
EE103,104 | — | |
| 88605-1E710 |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1993-05
ended
|
AE100,104 XE | — | |
| 88605-1E710 note |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1993-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88605-1E710 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88605-1E720 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1993-05
ended
|
CE100 DX | — | |
| 88605-1E730 note |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1993-05
ended
|
CE100,104 LX,SEL | — | |
| 88605-1E730 |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1992-05
ended
|
CE108 | — | |
| 88605-1E730 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1992-05
ended
|
CE100,104 LX,XE | — | |
| 88605-1E730 |
Harness Sub-assy, Cooler Wiring, NO.1
1992-05 → 1993-05
ended
|
CE100,104,108 L,XE | — | |
| 88605-1E730 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1993-05
ended
|
CE100 DX | — | |
| 88605-1E740 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 4F | — | |
| 88605-1E750 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 4F | — | |
| 88605-1E750 |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE107,108 MTM | — | |
| 88605-1E760 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 3FC | — | |
| 88605-1E770 |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE107,108 3FC | — | |
| 88605-1E770 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 3FC | — | |
| 88605-1E780 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1995-08
ended
|
CE106 CTD | — | |
| 88605-1E790 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1995-08
ended
|
CE106 CTD | — | |
| 88605-1E790 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
CE106,109 DX,XL | — | |
| 88605-1E790 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-01 → 1995-08
ended
|
CE106,109 5F (DX,XL) | — | |
| 88605-1H010 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1997-04
ended
|
EE101,102 DX,DXJ | — | |
| 88605-1H010 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1995-05
ended
|
EE101 LX,XE | — | |
| 88605-1H020 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-06 → 1997-04
ended
|
EE101,102 DX,DXJ | — | |
| 88605-1H040 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1995-08
ended
|
CE106 CTD | — | |
| 88605-1H050 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-01 → 1995-08
ended
|
CE106,109 5F (DX,XL) | — | |
| 88605-1H050 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
CE106,109 DX,XL | — | |
| 88605-1H050 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1995-08
ended
|
CE106 CTD | — | |
| 88605-1H060 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 4F | — | |
| 88605-1H070 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 3FC | — | |
| 88605-1H080 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 4F | — | |
| 88605-1H090 note |
Harness Sub-assy, Cooler Wiring, NO.1
1991-09 → 1994-01
ended
|
EE106 3FC | — | |
| 88605-1H600 |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-05
ended
|
AE101 GT | — | |
| 88605-1H610 note |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-05
ended
|
CE100,104 XE | — | |
| 88605-1H610 |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-05
ended
|
CE100,104 SEL | — | |
| 88605-1H620 |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-08
ended
|
CE100,104,108 L,XE | — | |
| 88605-1H620 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-01 → 1995-08
ended
|
CE106 4FC;CE100,104 LX,SEL | — | |
| 88605-1H620 note |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1994-01
ended
|
CE100,104 LX,SEL | — | |
| 88605-1H620 note |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-05
ended
|
CE100 DX | — | |
| 88605-1H630 |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1994-05
ended
|
AE100,104 XE | — | |
| 88605-1H630 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE100;AE104 LX,SEL | — | |
| 88605-1H630 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE104 XE | — | |
| 88605-1H630 note |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1994-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88605-1H640 note |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-05
ended
|
CE100 DX | — | |
| 88605-1H650 note |
Harness Sub-assy, Cooler Wiring, NO.1
1993-05 → 1995-05
ended
|
CE100,104 LX | — | |
| 88605-1H670 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-01 → 1995-08
ended
|
CE106 4FC | — | |
| 88605-1H681 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-06 → 1995-05
ended
|
AE100,104 XE | — | |
| 88605-1H681 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-06 → 1995-05
ended
|
AE10# SEG,SEL | — | |
| 88605-1H681 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE100 XE | — | |
| 88605-1H681 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE100 SEL | — | |
| 88605-1H700 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-06 → 1995-05
ended
|
AE100,104 DX,LX | — | |
| 88605-1H710 note |
Harness Sub-assy, Cooler Wiring, NO.1
1994-06 → 1995-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88605-1H710 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-06 → 1995-05
ended
|
AE100,104 XE | — | |
| 88605-1H710 |
Harness Sub-assy, Cooler Wiring, NO.1
1994-05 → 1994-06
ended
|
AE100 XE | — | |
| 88605-1H750 |
Harness Sub-assy, Cooler Wiring, NO.1
1996-05 → —
|
AE109 | — | |
| 88605-1H770 |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE108;CE106 4FC | — | |
| 88605-1K030 note |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE106 CTD | — | |
| 88605-1K040 note |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE106 CTD | — | |
| 88605-1K050 note |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE106 CTD | — | |
| 88605-1K050 note |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE106,109 5F (DX,XL) | — | |
| 88605-1K060 note |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE106 CTD | — | |
| 88605-1K060 note |
Harness Sub-assy, Cooler Wiring, NO.1
1995-08 → 1998-04
ended
|
CE106,109 5F (DX,XL) | — | |
| 88605-1K300 |
Harness Sub-assy, Cooler Wiring, NO.1
1997-04 → —
|
EE102;CE107 DXJ | — | |
| 88605-1K310 note |
Harness Sub-assy, Cooler Wiring, NO.1
1997-04 → —
|
EE103 XL;EE103 (3FC,4F) DX;CE102,105,107,EE102,104 | — | |
| 88605-1K310 |
Harness Sub-assy, Cooler Wiring, NO.1
2000-08 → —
|
EE103 5F DX | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-12240 |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
AE10# DX,GT,SEG,SEL | — | |
| 88625-12240 note |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
AE100,104 LX,XE | — | |
| 88625-12240 |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
AE10# GT,SEG,SEL,XE | — | |
| 88625-12240 note |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
AE100,104 DX,LX | — | |
| 88625-12240 |
Thermistor, Cooler, NO.1
1993-05 → 1995-05
ended
|
AE10# DX,LX,SEG,SEL,XE | — | |
| 88625-12280 note |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
CE100,104 LX,XE | — | |
| 88625-12280 |
Thermistor, Cooler, NO.1
1993-05 → —
|
EE101;AE101,109,CE10#,EE102,103,104,106,107,108 CTD,DX,DXJ,GT,L,SEL,XE,XL | — | |
| 88625-12280 note |
Thermistor, Cooler, NO.1
1993-05 → 1995-05
ended
|
CE100 LX;AE100,104,CE104 DX,LX | — | |
| 88625-12280 note |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
CE100,104 LX | — | |
| 88625-12280 |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
EE101;CE10#,EE106,107,108 CTD,DX,L,SEL,XE,XL | — | |
| 88625-12280 |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
EE101;CE10#,EE106,107,108 CTD,DX,L,SEL,XL | — | |
| 88625A — Thermistor, Cooler NO.2 | ||||
| 88625-12300 |
Thermistor, Cooler NO.2
1997-05 → 1998-04
ended
|
CE106,109 5F | — | |
| 88625-12300 |
Thermistor, Cooler NO.2
1997-04 → 1997-05
ended
|
CE106,109;CE108 4FC | — | |
| 88625-12300 |
Thermistor, Cooler NO.2
1992-05 → 1995-08
ended
|
AE100,104,CE10#,EE10# | — | |
| 88625-12300 |
Thermistor, Cooler NO.2
1991-06 → 1992-05
ended
|
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL | — | |
| 88625-12300 |
Thermistor, Cooler NO.2
1995-08 → 1997-04
ended
|
CE108 4FC;CE106,109,EE10# | — | |
| 88626A — Holder, Thermistor | ||||
| 88626-28010 |
Holder, Thermistor
1991-06 → —
|
AE10#,CE10#,EE10# | — | |
| 88630 — Relay Assy, Cooler | ||||
| 88630-12140 |
Relay Assy, Cooler
1991-06 → 1995-05
ended
|
AE10#,CE104;CE100,EE101 LX,SEL,XE | — | |
| 88650 — Amplifier Assy, Cooler Stabilizer | ||||
| 88650-16620 |
Amplifier Assy, Cooler Stabilizer
1997-04 → —
|
CE102,105,107,EE103,104 DX,L,XL | — | |
| 88650-16620 note |
Amplifier Assy, Cooler Stabilizer
1997-04 → —
|
EE102;CE107 DXJ | — | |
| 88650-1A400 |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
EE101 DX | — | |
| 88650-1A400 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
EE101 LX,XE | — | |
| 88650-1A410 note |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
AE100 3FC XE;AE100,104 DX,LX,SEL | — | |
| 88650-1A410 |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
AE100,104 (4FC,5F) XE | — | |
| 88650-1A410 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88650-1A420 |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
CE100,104,108 DX,L,XE | — | |
| 88650-1A420 note |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
CE100,104 LX,SEL | — | |
| 88650-1A420 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1992-05
ended
|
CE100,104 LX,XE | — | |
| 88650-1A420 |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1992-05
ended
|
CE100,108 DX,L | — | |
| 88650-1A430 |
Amplifier Assy, Cooler Stabilizer
1991-09 → 1994-01
ended
|
EE106,107,108 | — | |
| 88650-1A440 |
Amplifier Assy, Cooler Stabilizer
1991-09 → 1994-01
ended
|
CE106,109 | — | |
| 88650-1A440 |
Amplifier Assy, Cooler Stabilizer
1994-01 → 1998-04
ended
|
CE106,109 5F | — | |
| 88650-1A460 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
CE100,EE101 LX,XE;AE100,104,CE104 DX,LX,XE | — | |
| 88650-1A460 |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 88650-1A830 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1994-01
ended
|
CE100,104,108 DX,L,XE | — | |
| 88650-1A830 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
CE100,104 LX,SEL | — | |
| 88650-1A830 |
Amplifier Assy, Cooler Stabilizer
1994-01 → 1995-08
ended
|
CE106 4FC;CE100,104,108 DX,L,XE | — | |
| 88650-1A850 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 88650-1A850 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
CE100,EE101 LX,XE;AE100,104,CE104 DX,LX,XE | — | |
| 88650-1A860 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
EE101 LX,XE | — | |
| 88650-1A860 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1997-04
ended
|
EE101,102,103,104 DX,DXJ,L,XL | — | |
| 88650-1A870 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88650-1A870 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
AE100,104 XE | — | |
| 88650-1A890 |
Amplifier Assy, Cooler Stabilizer
1997-04 → —
|
CE107 DXJ;AE109,EE102 | — | |
| 88650-1E010 |
Amplifier Assy, Cooler Stabilizer
1995-08 → 1998-04
ended
|
CE108;CE106 4FC | — | |
| 88650-1E040 |
Amplifier Assy, Cooler Stabilizer
1996-05 → 1997-04
ended
|
AE109 | — | |
| 88688A — Bracket, Cooler Stabilizer Amplifier | ||||
| 88688-1A090 note |
Bracket, Cooler Stabilizer Amplifier
1992-05 → 1993-05
ended
|
AE100,104 XE | — | |
| 88688-1A090 |
Bracket, Cooler Stabilizer Amplifier
1993-05 → —
|
EE101;AE100,104,109,CE10#,EE102,103,104,106,107,108 CTD,DX,DXJ,L,LX,SEL,XL | — | |
| 88688-1A090 note |
Bracket, Cooler Stabilizer Amplifier
1993-05 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 88688-1A090 |
Bracket, Cooler Stabilizer Amplifier
1992-05 → 1993-05
ended
|
CE100,104,EE101;AE100,104,CE106,108,109,EE106,107,108 CTD,DX,L,LX,SEL,XL | — | |
| 88688-1A090 |
Bracket, Cooler Stabilizer Amplifier
1991-06 → 1992-05
ended
|
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL | — | |
| 88688-1A430 note |
Bracket, Cooler Stabilizer Amplifier
1992-05 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 88710A — Tube Assy, Air Conditioner | ||||
| 88710-12240 |
Tube Assy, Air Conditioner
1991-06 → 1993-05
ended
|
AE10#,CE10#,EE10# | ¥9,800 | |
| 88710-12330 |
Tube Assy, Air Conditioner
1993-05 → —
|
AE10#,CE10#,EE10# | ¥10,800 | |
| 88750B — Transistor Assy, Blower Resistor | ||||
| 88750-12010 |
Transistor Assy, Blower Resistor
1991-06 → 1995-05
ended
|
AE10#,CE104;CE100,EE101 LX,SEL,XE | — | |
| 88899M — Plate, Cover(FOR AIR FILTER) | ||||
| 88899-12110 |
Plate, Cover(FOR AIR FILTER)
1991-06 → 1992-10
ended
|
AE10#,CE10#,EE10# | — | |
| 88899-12110 |
Plate, Cover(FOR AIR FILTER)
1992-10 → 1992-11
ended
|
AE100,104,CE10#,EE10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
