Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

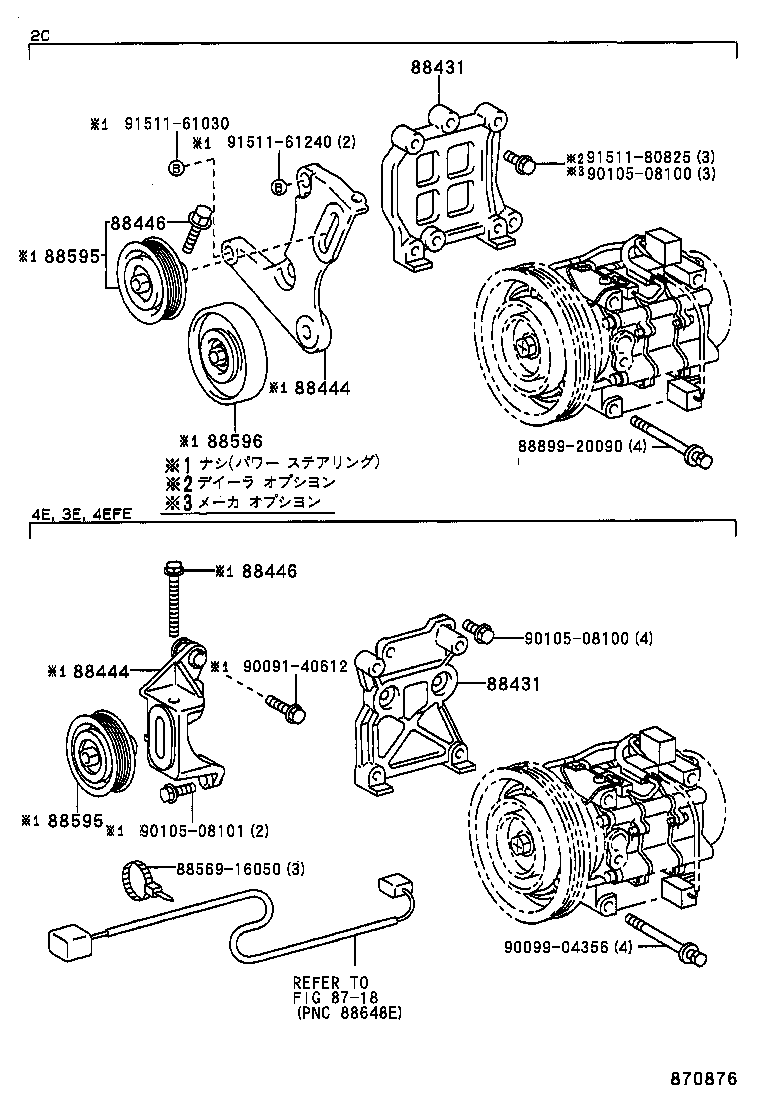

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-12370 |
Bracket, Compressor Mounting, NO.1
1991-06 → 1993-05
ended
|
EE10# | — | |
| 88431-12390 |
Bracket, Compressor Mounting, NO.1
1991-06 → 1993-05
ended
|
AE101 GT | — | |
| 88431-12500 |
Bracket, Compressor Mounting, NO.1
1991-06 → 1995-05
ended
|
AE10# DX,LX,SEG,SEL,XE | — | |
| 88431-12510 |
Bracket, Compressor Mounting, NO.1
1991-06 → 1998-12
ended
|
CE10# | — | |
| 88431-12511 |
Bracket, Compressor Mounting, NO.1
1998-12 → —
|
CE10# | — | |
| 88431-12540 |
Bracket, Compressor Mounting, NO.1
1993-05 → —
|
EE10# | — | |
| 88431-12560 |
Bracket, Compressor Mounting, NO.1
1996-05 → —
|
AE109 | — | |
| 88444 — Bracket, Idle Pulley | ||||
| 88444-10031 |
Bracket, Idle Pulley
1991-06 → —
|
EE101,102,106 CTD,DX,DXJ | — | |
| 88444-12050 |
Bracket, Idle Pulley
1991-06 → —
|
CE100 DX;CE106,107 CTD,DXJ | — | |
| 88446 — Bolt, Idle Pulley | ||||
| 88446-12020 |
Bolt, Idle Pulley
1993-05 → —
|
CE106,107 CTD,DXJ | — | |
| 88446-12020 |
Bolt, Idle Pulley
1991-06 → 1993-05
ended
|
CE100 DX;CE106 CTD | — | |
| 88446-12030 |
Bolt, Idle Pulley
1991-06 → —
|
EE101 DX;AE10#,EE102,106 CTD,DX,DXJ,LX,SEG,SEL,XE | — | |
| 88446-35010 |
Bolt, Idle Pulley
1991-06 → 1995-05
ended
|
AE101 GT | — | |
| 88595 — Pulley, Cooler Compressor Idle | ||||
| 88440-12100 |
Pulley, Cooler Compressor Idle
1991-06 → 1993-05
ended
|
CE100 DX;CE106 CTD | ¥7,700 | |
| 88440-12170 |
Pulley, Cooler Compressor Idle
1991-06 → 1993-05
ended
|
EE101,106 CTD,DX | ¥6,400 | |
| 88440-12170 |
Pulley, Cooler Compressor Idle
1993-05 → 1994-02
ended
|
CE106 CTD;CE100,EE101,102,106 CTD,DX,DXJ | ¥6,400 | |
| 88440-12170 |
Pulley, Cooler Compressor Idle
1994-02 → 1995-08
ended
|
CE100 DX;CE106 CTD | ¥6,400 | |
| 88440-12200 |
Pulley, Cooler Compressor Idle
1993-05 → 1995-05
ended
|
AE101 GT | ¥5,700 | |
| 88440-12210 |
Pulley, Cooler Compressor Idle
1994-02 → 1995-08
ended
|
EE101,102 DX,DXJ | ¥6,100 | |
| 88440-12230 |
Pulley, Cooler Compressor Idle
1995-08 → 2002-06
ended
|
EE102;CE106,107 CTD,DXJ | ¥6,100 | |
| 88440-17010 |
Pulley, Cooler Compressor Idle
1991-06 → 1995-05
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥6,400 | |
| 88440-20160 |
Pulley, Cooler Compressor Idle
1996-05 → 2002-03
ended
|
AE109 | ¥6,400 | |
| 88440-20170 note |
Pulley, Cooler Compressor Idle
2000-08 → 2002-06
ended
|
AE109 | ¥6,100 | |
| 88440-32030 |
Pulley, Cooler Compressor Idle
1991-06 → 1993-05
ended
|
AE101 GT | ¥5,900 | |
| 88596 — Pulley Assy, Idle, NO.2 | ||||
| 88440-12190 |
Pulley Assy, Idle, NO.2
1991-06 → —
|
CE100 DX;CE106,107 CTD,DXJ | ¥5,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
