Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

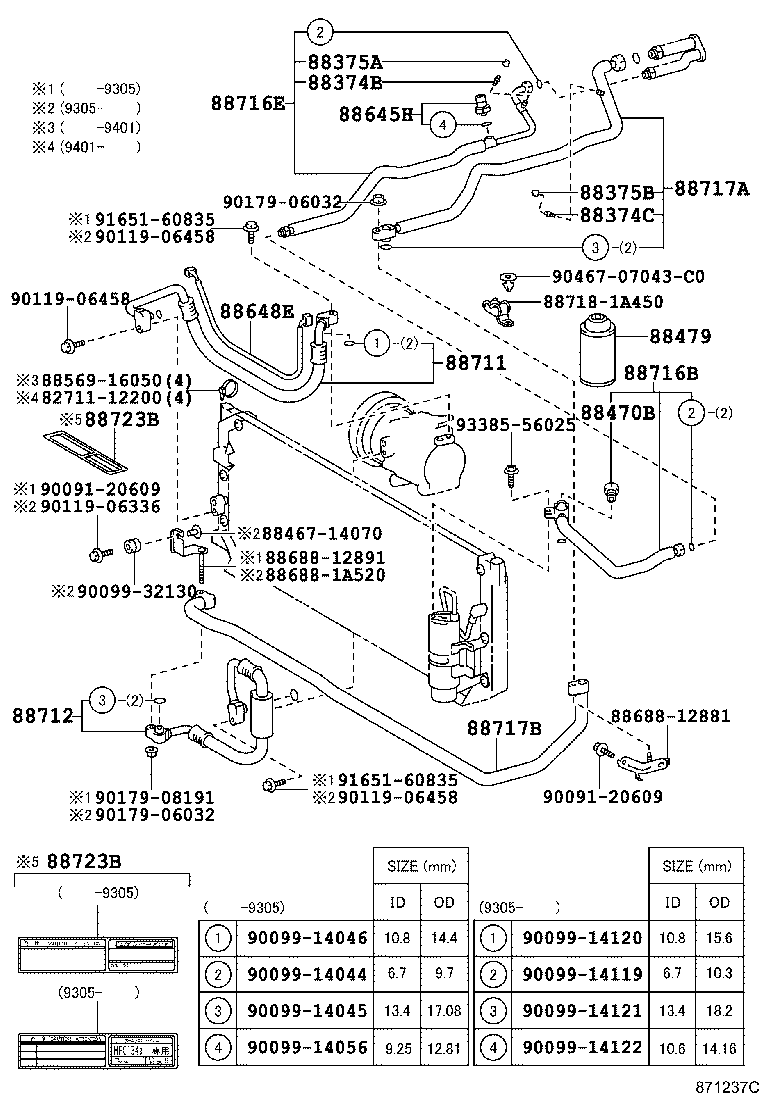

Exploded illustration 871237C 88723B — LABEL, COOLER SERVICE CAUTION (2 parts) 9009914044 — not listed in this catalogue 9009914045 — not listed in this catalogue 9009914056 — not listed in this catalogue 9009914046 — not listed in this catalogue 9009914119 — not listed in this catalogue 9009914121 — not listed in this catalogue 9009914122 — not listed in this catalogue 9009914120 — not listed in this catalogue 9017906032 — not listed in this catalogue 88645H — SWITCH, PRESSURE NO.1 (2 parts) 88374B — VALVE, SERVICE, NO.1 (5 parts) 88716E — PIPE, COOLER REFRIGERANT LIQUID, E (24 parts) 88375A — CAP, SERVICE VALVE (FOR COOLER PIPE) (2 parts) 88374C — VALVE, SERVICE, NO.2 (7 parts) 88717A — PIPE, COOLER REFRIGERANT SUCTION, A (38 parts) 88375B — CAP, SERVICE VALVE, NO.1 (4 parts) 9046707043C0 — not listed in this catalogue 887181A450 — not listed in this catalogue 88479 — FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) (5 parts) 9011906458 — not listed in this catalogue 88648E — WIRING, COOLER (3 parts) 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (19 parts) 9165160835 — not listed in this catalogue 9011906458 — not listed in this catalogue 88723B — LABEL, COOLER SERVICE CAUTION (2 parts) 8856916050 — not listed in this catalogue 8271112200 — not listed in this catalogue 9009932130 — not listed in this catalogue 8868812891 — not listed in this catalogue 886881A520 — not listed in this catalogue 9011906336 — not listed in this catalogue 9009120609 — not listed in this catalogue 9011906458 — not listed in this catalogue 9165160835 — not listed in this catalogue 9017908191 — not listed in this catalogue 9017906032 — not listed in this catalogue 88717B — PIPE, COOLER REFRIGERANT SUCTION, B (4 parts) 9009120609 — not listed in this catalogue 8868812881 — not listed in this catalogue 88716B — PIPE, COOLER REFRIGERANT LIQUID, B (7 parts) 88470B — BOLT, FUSE (2 parts) 9338556025 — not listed in this catalogue 8846714070 — not listed in this catalogue 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (21 parts)
871237C · 16 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
145 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
48094-10010 Valve, Service, NO.1
1992-05 → 1993-05 ended
AE100,104,CE10#,EE10# ¥310
48094-10010 Valve, Service, NO.1
1991-06 → 1992-05 ended
EE107,108 MTM;AE100,104,CE10#,EE101,106 CTD,DX,L,LX,XE,XL ¥310
88375-30010 Valve, Service, NO.1
1994-01 → 1995-08 ended
CE108 4FC;AE10#,CE100,104,106,109,EE10# —
88375-30010 Valve, Service, NO.1
1993-05 → 1994-01 ended
AE10#,CE10#,EE10# —
88375-30010 Valve, Service, NO.1
1995-08 → —
AE109,CE10#,EE10# —
88374C — Valve, Service, NO.2
48094-10010 Valve, Service, NO.2
1991-06 → 1993-05 ended
CE10# ¥310
88374-12020 Valve, Service, NO.2
1991-06 → 1992-05 ended
AE100,104,EE10# CTD,DX,L,LX,XE,XL —
88374-12020 Valve, Service, NO.2
1992-05 → 1993-05 ended
AE100,104,EE10# —
88374-30010 Valve, Service, NO.2
1993-05 → 1994-01 ended
AE100,104,CE10#,EE10# —
88374-30010 Valve, Service, NO.2
1994-01 → 1994-08 ended
CE108 4FC;AE100,104,CE100,104,106,109,EE10# —
88374-30010 Valve, Service, NO.2
1994-08 → 1995-08 ended
CE108 4FC;AE10#,CE100,104,106,109,EE10# —
88374-30010 Valve, Service, NO.2
1995-08 → —
AE109,CE10#,EE10# —
88375A — Cap, Service Valve (FOR COOLER PIPE)
88375-24010 Cap, Service Valve (FOR COOLER PIPE)
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# —
88375-30280 Cap, Service Valve (FOR COOLER PIPE)
1993-05 → —
AE10#,CE10#,EE10# —
88375B — Cap, Service Valve, NO.1
88375-30270 Cap, Service Valve, NO.1
1991-06 → 1992-05 ended
CE100,104;AE100,104,CE106,108,109,EE10# CTD,DX,L,LX,XE,XL —
88375-30270 Cap, Service Valve, NO.1
1992-05 → 1993-05 ended
AE100,104,CE10#,EE10# —
88375-30290 Cap, Service Valve, NO.1
1993-05 → 1994-08 ended
AE100,104,CE10#,EE10# —
88375-30290 Cap, Service Valve, NO.1
1994-08 → —
AE10#,CE10#,EE10# —
88470B — Bolt, Fuse
88475-12020 Bolt, Fuse
1991-06 → 1992-05 ended
AE100,104,EE10# CTD,DX,L,LX,XE,XL —
88475-12020 Bolt, Fuse
1992-05 → 1993-05 ended
AE100,104,EE10# —
88479 — Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
90986-02004 note Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1992-05 → 1993-05 ended
AE100,104,CE10#,EE10# —
90986-02004 note Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1991-06 → 1992-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL —
90986-02006 note Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1993-05 → 1997-05 ended
AE100,104,CE10#,EE101,106,107,108 —
90986-02008 note Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1993-05 → 1995-05 ended
CE100 LX;EE101 LX,XE;AE100,104,CE104 DX,LX ¥1,500
90986-02008 note Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1993-05 → —
EE101 EE102,103,106,107 DX;AE100,104,CE102,104,108,EE104,108 CTD,DX,DXJ,SEL,XE,XL +1 ¥1,500
88645H — Switch, Pressure NO.1
88645-20050 Switch, Pressure NO.1
1993-05 → —
AE10#,CE10#,EE10# —
88645-50010 Switch, Pressure NO.1
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# —
88648E — Wiring, Cooler
88648-12490 Wiring, Cooler
1992-05 → 1994-01 ended
EE106,107,108 —
88648-12550 Wiring, Cooler
1991-06 → 1992-05 ended
EE10# —
88648-12550 Wiring, Cooler
1992-05 → —
EE101,102,103,104 —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-12630 Hose, Cooler Refrigerant Discharge, NO.1
1991-06 → 1993-05 ended
EE10# ¥12,600
88711-12640 note Hose, Cooler Refrigerant Discharge, NO.1
1991-06 → 1992-05 ended
AE10# SEG,SEL ¥11,500
88711-12640 note Hose, Cooler Refrigerant Discharge, NO.1
1992-05 → 1992-10 ended
AE10# SEG,SEL,XE ¥11,500
88711-12650 Hose, Cooler Refrigerant Discharge, NO.1
1991-06 → 1992-10 ended
AE101 GT ¥11,500
88711-12671 Hose, Cooler Refrigerant Discharge, NO.1
1991-06 → 1992-05 ended
CE100,104 SEL ¥14,000
88711-12671 note Hose, Cooler Refrigerant Discharge, NO.1
1992-05 → 1993-05 ended
CE100,104 SEL,XE ¥14,000
88711-12700 Hose, Cooler Refrigerant Discharge, NO.1
1991-06 → 1992-05 ended
AE100,104 DX,LX,XE ¥12,900
88711-12700 Hose, Cooler Refrigerant Discharge, NO.1
1992-05 → 1993-05 ended
AE100,104 DX,LX ¥12,900
88711-12700 note Hose, Cooler Refrigerant Discharge, NO.1
1992-05 → 1993-05 ended
AE100,104 SEL,XE ¥12,900
88711-12730 Hose, Cooler Refrigerant Discharge, NO.1
1991-06 → 1993-05 ended
CE10# CTD,DX,L,LX,XE,XL ¥14,000
88711-12730 note Hose, Cooler Refrigerant Discharge, NO.1
1992-05 → 1993-05 ended
CE100,104 SEL ¥14,000
88711-12820 note Hose, Cooler Refrigerant Discharge, NO.1
1992-10 → 1993-05 ended
AE10# SEG,SEL,XE ¥12,600
88711-12830 Hose, Cooler Refrigerant Discharge, NO.1
1992-10 → 1993-05 ended
AE101 GT ¥12,600
88711-1A050 note Hose, Cooler Refrigerant Discharge, NO.1
1993-05 → 1995-05 ended
AE10# SEG,SEL,XE ¥12,800
88711-1A060 note Hose, Cooler Refrigerant Discharge, NO.1
1993-05 → 1995-05 ended
AE100,104 ¥12,800
88711-1A070 Hose, Cooler Refrigerant Discharge, NO.1
1993-05 → 1995-05 ended
AE101 GT ¥13,000
88711-1A090 Hose, Cooler Refrigerant Discharge, NO.1
1993-05 → —
CE10# ¥13,400
88711-1A110 Hose, Cooler Refrigerant Discharge, NO.1
1993-05 → —
EE10# ¥12,800
88711-1A470 Hose, Cooler Refrigerant Discharge, NO.1
1996-05 → —
AE109 ¥13,500
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-12830 Hose, Cooler Refrigerant Suction, NO.1
1991-06 → 1993-05 ended
EE10# ¥13,300
88712-12840 note Hose, Cooler Refrigerant Suction, NO.1
1992-05 → 1993-05 ended
AE100,104 DX,LX ¥12,600
88712-12840 Hose, Cooler Refrigerant Suction, NO.1
1992-05 → 1993-05 ended
AE10# SEG,SEL,XE ¥12,600
88712-12840 Hose, Cooler Refrigerant Suction, NO.1
1991-06 → 1992-05 ended
AE10# DX,LX,SEG,SEL,XE ¥12,600
88712-12850 Hose, Cooler Refrigerant Suction, NO.1
1991-06 → 1993-05 ended
AE101 GT ¥12,900
88712-12870 Hose, Cooler Refrigerant Suction, NO.1
1991-06 → 1992-05 ended
CE100,104 ¥13,000
88712-12870 Hose, Cooler Refrigerant Suction, NO.1
1992-05 → 1993-05 ended
CE106,109;CE100,104,108 L,SEL,XE ¥13,000
88712-12870 Hose, Cooler Refrigerant Suction, NO.1
1992-05 → 1993-05 ended
CE100,104 DX,LX ¥13,000
88712-12870 Hose, Cooler Refrigerant Suction, NO.1
1991-09 → 1992-05 ended
CE106,108,109 ¥13,000
88712-1A090 Hose, Cooler Refrigerant Suction, NO.1
1993-05 → 1994-11 ended
AE10# SEG,SEL,XE ¥14,000
88712-1A090 note Hose, Cooler Refrigerant Suction, NO.1
1993-05 → 1994-11 ended
AE100,104 DX,LX ¥14,000
88712-1A100 Hose, Cooler Refrigerant Suction, NO.1
1993-05 → 1995-05 ended
AE101 GT ¥13,000
88712-1A120 note Hose, Cooler Refrigerant Suction, NO.1
1993-05 → 1995-05 ended
CE100,104 LX ¥13,300
88712-1A120 Hose, Cooler Refrigerant Suction, NO.1
1993-05 → 1995-08 ended
CE10# CTD,DX,L,SEL,XE,XL ¥13,300
88712-1A130 note Hose, Cooler Refrigerant Suction, NO.1
1994-11 → 1995-05 ended
AE100,104 DX,LX ¥13,300
88712-1A130 Hose, Cooler Refrigerant Suction, NO.1
1994-11 → 1995-05 ended
AE10# SEG,SEL,XE ¥13,300
88712-1A140 Hose, Cooler Refrigerant Suction, NO.1
1993-05 → 1995-08 ended
EE10# ¥14,300
88712-1A440 Hose, Cooler Refrigerant Suction, NO.1
1995-08 → —
EE10# ¥15,700
88712-1A450 Hose, Cooler Refrigerant Suction, NO.1
1996-05 → —
AE109 ¥15,500
88712-1A480 Hose, Cooler Refrigerant Suction, NO.1
1995-08 → 1997-04 ended
CE10# ¥14,000
88712-1A570 Hose, Cooler Refrigerant Suction, NO.1
1997-04 → —
CE10# ¥13,400
88716B — Pipe, Cooler Refrigerant Liquid, B
88716-1A020 Pipe, Cooler Refrigerant Liquid, B
1992-05 → 1993-05 ended
AE100,104,EE10# ¥4,670
88716-1A020 Pipe, Cooler Refrigerant Liquid, B
1991-06 → 1992-05 ended
AE100,104,EE10# CTD,DX,L,LX,XE,XL ¥4,670
88716-1A040 Pipe, Cooler Refrigerant Liquid, B
1991-06 → 1993-05 ended
CE10# ¥7,200
88716-1A240 Pipe, Cooler Refrigerant Liquid, B
1993-05 → —
AE100,104,109,EE10# ¥4,600
88716-1A360 note Pipe, Cooler Refrigerant Liquid, B
1993-05 → 1995-05 ended
CE100,104 SEL,XE ¥5,500
88716-1A370 note Pipe, Cooler Refrigerant Liquid, B
1993-05 → 1995-05 ended
CE100,104 SEL,XE ¥4,780
88716-1A370 Pipe, Cooler Refrigerant Liquid, B
1993-05 → —
CE10# CTD,DX,DXJ,L,LX,XL ¥4,780
88716E — Pipe, Cooler Refrigerant Liquid, E
88706-12090 Pipe, Cooler Refrigerant Liquid, E
1991-06 → 1992-05 ended
CE100,104 SEL ¥22,900
88706-12090 Pipe, Cooler Refrigerant Liquid, E
1992-05 → 1993-05 ended
CE100,104 SEL,XE ¥22,900
88716-12890 Pipe, Cooler Refrigerant Liquid, E
1995-08 → 1997-04 ended
AE109,EE10# ¥7,400
88716-1A010 note Pipe, Cooler Refrigerant Liquid, E
1992-05 → 1993-05 ended
AE100,104 SEL,XE ¥7,100
88716-1A010 note Pipe, Cooler Refrigerant Liquid, E
1992-05 → 1993-05 ended
AE100,104 DX,LX ¥7,100
88716-1A010 Pipe, Cooler Refrigerant Liquid, E
1992-05 → 1993-05 ended
EE106 3FC;EE101,107,108 DX,L,XL ¥7,100
88716-1A010 note Pipe, Cooler Refrigerant Liquid, E
1991-09 → 1993-05 ended
EE106 4F ¥7,100
88716-1A010 note Pipe, Cooler Refrigerant Liquid, E
1991-06 → 1993-05 ended
EE101 LX,XE ¥7,100
88716-1A010 note Pipe, Cooler Refrigerant Liquid, E
1991-06 → 1992-05 ended
AE100,104 LX,XE ¥7,100
88716-1A010 Pipe, Cooler Refrigerant Liquid, E
1991-06 → 1992-05 ended
EE106 3FC;AE100,EE101,107,108 DX,L,XL ¥7,100
88716-1A030 note Pipe, Cooler Refrigerant Liquid, E
1992-05 → 1993-05 ended
CE100,104 SEL ¥5,900
88716-1A030 note Pipe, Cooler Refrigerant Liquid, E
1991-06 → 1993-05 ended
CE100,104 LX,XE ¥5,900
88716-1A030 Pipe, Cooler Refrigerant Liquid, E
1991-06 → 1993-05 ended
CE100,106,108,109 CTD,DX,L,XL ¥5,900
88716-1A050 note Pipe, Cooler Refrigerant Liquid, E
1991-09 → 1993-05 ended
EE106 4F ¥7,800
88716-1A250 note Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1995-05 ended
AE100,104 SEL,XE ¥6,000
88716-1A250 Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1995-08 ended
EE106 3FC;EE101,102,103,104,107,108 DX,DXJ,L,XL ¥6,000
88716-1A250 note Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1995-05 ended
EE101 LX,XE ¥6,000
88716-1A250 note Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1995-05 ended
AE100,104 DX,LX ¥6,000
88716-1A250 note Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1994-01 ended
EE106 4F ¥6,000
88716-1A260 note Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1994-01 ended
EE106 4F ¥7,600
88716-1A330 Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1995-05 ended
AE10# GT,SEG,SEL,XE ¥6,000
88716-1A340 note Pipe, Cooler Refrigerant Liquid, E
1993-05 → 1995-05 ended
CE100,104 LX ¥3,890
88716-1A340 Pipe, Cooler Refrigerant Liquid, E
1993-05 → —
CE10# CTD,DX,DXJ,L,SEL,XE,XL ¥3,890
88716-1A530 Pipe, Cooler Refrigerant Liquid, E
1997-04 → —
AE109,EE10# ¥7,300
88717A — Pipe, Cooler Refrigerant Suction, A
88704-12380 Pipe, Cooler Refrigerant Suction, A
1991-06 → 1992-05 ended
AE10# GT,SEG,SEL ¥14,000
88704-12380 Pipe, Cooler Refrigerant Suction, A
1992-05 → 1993-05 ended
AE10# GT,SEG,SEL,XE ¥14,000
88704-12540 Pipe, Cooler Refrigerant Suction, A
1993-05 → 1994-08 ended
AE10# GT,SEG,SEL,XE ¥14,000
88717-12530 note Pipe, Cooler Refrigerant Suction, A
1991-06 → 1992-05 ended
CE100,104 LX,XE ¥14,800
88717-12530 Pipe, Cooler Refrigerant Suction, A
1991-06 → 1992-05 ended
CE10# CTD,DX,L,SEL,XL ¥14,800
88717-12530 Pipe, Cooler Refrigerant Suction, A
1992-05 → 1993-05 ended
CE10# CTD,DX,L,SEL,XE,XL ¥14,800
88717-12530 note Pipe, Cooler Refrigerant Suction, A
1992-05 → 1993-05 ended
CE100,104 LX ¥14,800
88717-12560 Pipe, Cooler Refrigerant Suction, A
1991-06 → 1992-05 ended
EE106 3FC;AE100,EE101,107,108 DX,L,XL ¥11,900
88717-12560 note Pipe, Cooler Refrigerant Suction, A
1991-06 → 1992-05 ended
AE100,104 LX,XE ¥11,900
88717-12560 note Pipe, Cooler Refrigerant Suction, A
1991-06 → 1993-05 ended
EE101 LX,XE ¥11,900
88717-12560 note Pipe, Cooler Refrigerant Suction, A
1991-09 → 1993-05 ended
EE106 4F ¥11,900
88717-12560 Pipe, Cooler Refrigerant Suction, A
1992-05 → 1993-05 ended
EE106 3FC;EE101,107,108 DX,L,XL ¥11,900
88717-12560 note Pipe, Cooler Refrigerant Suction, A
1992-05 → 1993-05 ended
AE100,104 DX,LX ¥11,900
88717-12560 note Pipe, Cooler Refrigerant Suction, A
1992-05 → 1993-05 ended
AE100,104 SEL,XE ¥11,900
88717-12620 note Pipe, Cooler Refrigerant Suction, A
1991-09 → 1993-05 ended
EE106 4F ¥12,400
88717-12750 Pipe, Cooler Refrigerant Suction, A
1994-01 → 1994-02 ended
CE106,109 5F;CE100,104 SEL,XE ¥14,000
88717-12750 Pipe, Cooler Refrigerant Suction, A
1994-02 → 1995-05 ended
CE100,104 SEL,XE ¥14,000
88717-12750 Pipe, Cooler Refrigerant Suction, A
1993-05 → 1994-01 ended
CE106,109;CE100,104,108 L,SEL,XE ¥14,000
88717-12760 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1994-01 ended
EE106 4F ¥12,000
88717-12760 Pipe, Cooler Refrigerant Suction, A
1993-05 → 1995-08 ended
EE106 3FC;EE101,102,103,104,107,108 DX,DXJ,L,XL ¥12,000
88717-12760 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1995-05 ended
AE100,104 DX,LX ¥12,000
88717-12760 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1995-05 ended
AE100,104 SEL,XE ¥12,000
88717-12760 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1995-05 ended
EE101 LX,XE ¥12,000
88717-12770 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1994-01 ended
EE106 4F ¥12,400
88717-12780 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1995-05 ended
CE100,104 SEL,XE ¥7,800
88717-12780 Pipe, Cooler Refrigerant Suction, A
1994-01 → 1994-02 ended
CE106 4FC;CE100,108 DX,L ¥7,800
88717-12780 Pipe, Cooler Refrigerant Suction, A
1994-02 → 1995-05 ended
CE100,106,108,109 CTD,DX,L,XL ¥7,800
88717-12780 Pipe, Cooler Refrigerant Suction, A
1993-05 → 1994-01 ended
CE100 DX ¥7,800
88717-12780 Pipe, Cooler Refrigerant Suction, A
1995-05 → 1995-08 ended
CE10# 5F ¥7,800
88717-12780 note Pipe, Cooler Refrigerant Suction, A
1995-05 → 1995-08 ended
CE106 4FC ¥7,800
88717-12780 note Pipe, Cooler Refrigerant Suction, A
1993-05 → 1995-05 ended
CE100,104 LX ¥7,800
88717-13020 Pipe, Cooler Refrigerant Suction, A
1997-04 → —
AE109,EE10# ¥14,400
88717-1A010 Pipe, Cooler Refrigerant Suction, A
1994-08 → 1995-05 ended
AE10# GT,SEG,SEL,XE ¥12,200
88717-1A020 Pipe, Cooler Refrigerant Suction, A
1995-08 → 1997-04 ended
AE109,EE10# ¥13,600
88717-1A030 note Pipe, Cooler Refrigerant Suction, A
1995-05 → 1995-08 ended
CE106 4FC ¥9,500
88717-1A030 Pipe, Cooler Refrigerant Suction, A
1995-08 → 1997-04 ended
CE10# ¥9,500
88717-1A030 Pipe, Cooler Refrigerant Suction, A
1995-05 → 1995-08 ended
CE108 4FC ¥9,500
88717-1A050 Pipe, Cooler Refrigerant Suction, A
1997-04 → —
CE10# ¥13,400
88717B — Pipe, Cooler Refrigerant Suction, B
88707-12040 Pipe, Cooler Refrigerant Suction, B
1991-06 → 1993-05 ended
CE10# ¥15,300
88717-12550 Pipe, Cooler Refrigerant Suction, B
1991-06 → 1993-05 ended
AE10#,EE10# ¥21,700
88717-12730 Pipe, Cooler Refrigerant Suction, B
1993-05 → 1995-08 ended
CE10# ¥14,400
88717-12740 Pipe, Cooler Refrigerant Suction, B
1993-05 → 1995-08 ended
AE10#,EE10# ¥20,100
88723B — Label, Cooler Service Caution
88723-12050 note Label, Cooler Service Caution
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# —
88723-12110 note Label, Cooler Service Caution
1993-05 → —
AE10#,CE10#,EE10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
