Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

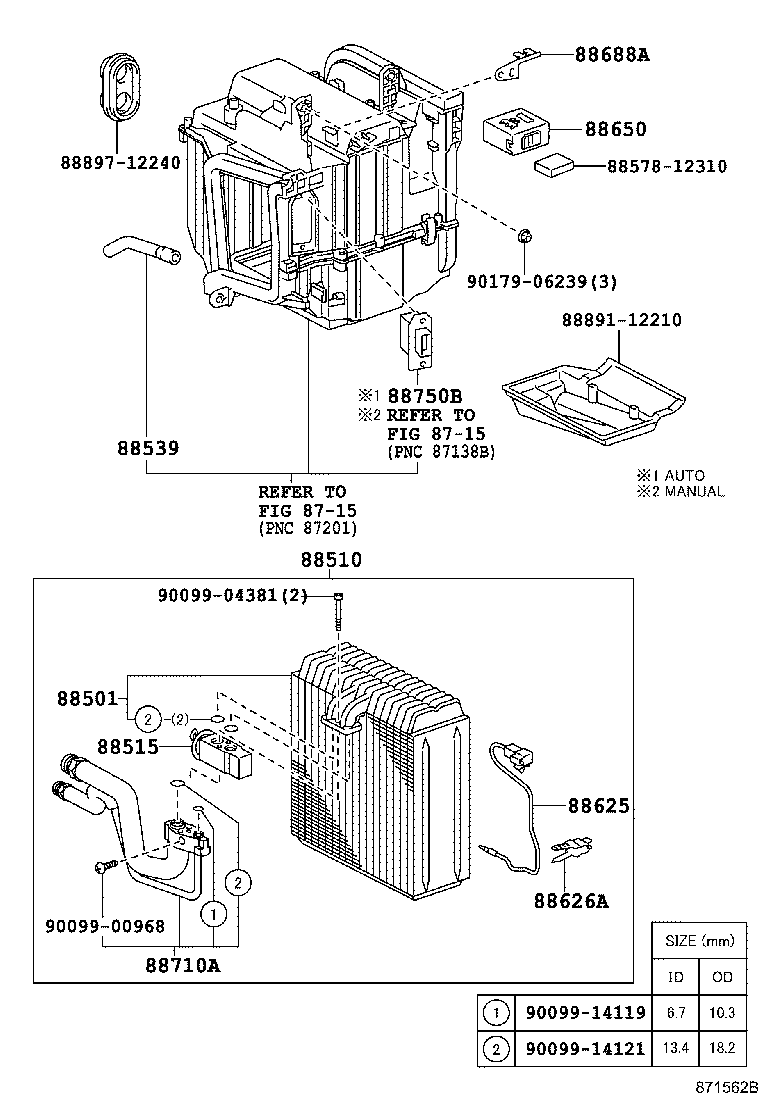

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-12360 |
Evaporator Sub-assy, Cooler, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE10#,EE10# | — | |
| 88501-12390 |
Evaporator Sub-assy, Cooler, NO.1
1993-05 → 1995-03
ended
|
AE10#,CE10#,EE10# | — | |
| 88501-12391 |
Evaporator Sub-assy, Cooler, NO.1
1995-03 → 1995-08
ended
|
AE10#,CE10#,EE10# | — | |
| 88501-12430 |
Evaporator Sub-assy, Cooler, NO.1
1995-08 → —
|
AE109,CE10#,EE10# | — | |
| 88510 — Unit Assy, Cooler | ||||
| 88501-12420 |
Unit Assy, Cooler
1995-08 → —
|
AE109,CE10#,EE10# | — | |
| 88510-12840 |
Unit Assy, Cooler
1991-06 → 1992-10
ended
|
AE10# SEG,SEL | — | |
| 88510-12840 note |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
AE100,104 XE | — | |
| 88510-12841 note |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE100,104 XE | — | |
| 88510-12841 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE10# SEG,SEL | — | |
| 88510-12850 |
Unit Assy, Cooler
1991-06 → 1992-10
ended
|
AE101 GT | — | |
| 88510-12851 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE101 GT | — | |
| 88510-12870 |
Unit Assy, Cooler
1991-06 → 1992-10
ended
|
CE100,104 SEL | — | |
| 88510-12870 note |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
CE100,104 XE | — | |
| 88510-12871 note |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
CE100,104 XE | — | |
| 88510-12871 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
CE100,104 SEL | — | |
| 88510-12890 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
CE106,109,EE101,106;CE100,104 LX,SEL,XE | — | |
| 88510-12890 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
CE100,104 LX,XE;CE106,109,EE101,106 | — | |
| 88510-12890 |
Unit Assy, Cooler
1991-06 → 1992-11
ended
|
CE100,108,EE107,108 DX,L,XL | — | |
| 88510-12891 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
CE106,109,EE101,106;CE100,104 LX,SEL,XE | — | |
| 88510-12891 |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
CE100,108,EE107,108 DX,L,XL | — | |
| 88510-1A060 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
AE100,104 | — | |
| 88510-1A060 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88510-1A061 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
AE100,104 | — | |
| 88510-1A070 note |
Unit Assy, Cooler
1991-06 → 1993-05
ended
|
CE106,109,EE101,106 | — | |
| 88510-1A080 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
CE104 LX;CE100 LX,XE | — | |
| 88510-1A080 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
EE101 LX,XE | — | |
| 88510-1A080 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
CE100,104,EE101 LX,XE | — | |
| 88510-1A081 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
CE104 LX;CE100,EE101 LX,XE | — | |
| 88510-1A090 note |
Unit Assy, Cooler
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88510-1A090 note |
Unit Assy, Cooler
1992-05 → 1992-11
ended
|
AE100,104 DX,LX | — | |
| 88510-1A091 note |
Unit Assy, Cooler
1992-11 → 1993-05
ended
|
AE100,104 DX,LX | — | |
| 88510-1A130 |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
AE100,104 XE | — | |
| 88510-1A131 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
AE100,104 XE | — | |
| 88510-1A140 |
Unit Assy, Cooler
1992-05 → 1992-10
ended
|
CE100,104 XE | — | |
| 88510-1A141 |
Unit Assy, Cooler
1992-10 → 1993-05
ended
|
CE100,104 XE | — | |
| 88510-1A260 |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE100,104 XE | — | |
| 88510-1A260 note |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88510-1A270 |
Unit Assy, Cooler
1993-05 → 1995-08
ended
|
CE100,104,108,EE103,104,107,108 DX,L,XE,XL | — | |
| 88510-1A270 note |
Unit Assy, Cooler
1993-05 → 1995-08
ended
|
CE100,104 LX,SEL;CE106,109,EE101,102,106 | — | |
| 88510-1A280 |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE10# SEG,SEL | — | |
| 88510-1A280 note |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88510-1A290 note |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
CE100,104,EE101 LX,XE | — | |
| 88510-1A290 |
Unit Assy, Cooler
1993-05 → 1995-05
ended
|
AE101,CE100,104 GT,SEL | — | |
| 88510-1A300 note |
Unit Assy, Cooler
1993-05 → 1995-08
ended
|
CE106,109,EE101,102,106 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-14062 |
Valve, Cooler Expansion
1991-06 → 1992-11
ended
|
AE10#,CE100,104,108,EE10# | ¥10,500 | |
| 88515-14062 note |
Valve, Cooler Expansion
1991-09 → 1992-11
ended
|
CE106,109 | ¥10,500 | |
| 88515-14062 |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 SEL;AE10#,CE104 GT,SEG,SEL,XE | ¥10,500 | |
| 88515-14062 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 XE | ¥10,500 | |
| 88515-14062 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE106,109,EE101,106 | ¥10,500 | |
| 88515-20100 |
Valve, Cooler Expansion
1993-05 → —
|
AE10#,CE10#,EE10# | ¥10,300 | |
| 88515-33010 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 SEL;AE100,104,CE104 SEL,XE;CE106,109,EE101,106 CTD,DX,XL | ¥10,300 | |
| 88515-33010 |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
EE101 LX,XE;AE100,104,CE100,104,108,EE107,108 DX,L,LX,XL | ¥10,300 | |
| 88515-33010 note |
Valve, Cooler Expansion
1992-11 → 1993-05
ended
|
CE100 XE | ¥10,300 | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-12120 |
Hose, Cooler Unit Drain, NO.1
1991-06 → 1997-04
ended
|
AE10#,CE10#,EE10# | — | |
| 88539-12160 |
Hose, Cooler Unit Drain, NO.1
1997-04 → —
|
AE109,CE10#,EE10# | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-12240 |
Thermistor, Cooler, NO.1
1993-05 → 1995-05
ended
|
AE10# DX,LX,SEG,SEL,XE | — | |
| 88625-12240 note |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
AE100,104 DX,LX | — | |
| 88625-12240 |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
AE10# GT,SEG,SEL,XE | — | |
| 88625-12240 note |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
AE100,104 LX,XE | — | |
| 88625-12240 |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
AE10# DX,GT,SEG,SEL | — | |
| 88625-12280 |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
EE101;CE10#,EE106,107,108 CTD,DX,L,SEL,XL | — | |
| 88625-12280 |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
EE101;CE10#,EE106,107,108 CTD,DX,L,SEL,XE,XL | — | |
| 88625-12280 note |
Thermistor, Cooler, NO.1
1992-05 → 1993-05
ended
|
CE100,104 LX | — | |
| 88625-12280 note |
Thermistor, Cooler, NO.1
1991-06 → 1992-05
ended
|
CE100,104 LX,XE | — | |
| 88625-12280 note |
Thermistor, Cooler, NO.1
1993-05 → 1995-05
ended
|
CE100 LX;AE100,104,CE104 DX,LX | — | |
| 88625-12280 |
Thermistor, Cooler, NO.1
1993-05 → —
|
EE101;AE101,109,CE10#,EE102,103,104,106,107,108 CTD,DX,DXJ,GT,L,SEL,XE,XL | — | |
| 88626A — Holder, Thermistor | ||||
| 88626-28010 |
Holder, Thermistor
1991-06 → —
|
AE10#,CE10#,EE10# | — | |
| 88650 — Amplifier Assy, Cooler Stabilizer | ||||
| 88650-16620 note |
Amplifier Assy, Cooler Stabilizer
1997-04 → —
|
EE102;CE107 DXJ | — | |
| 88650-16620 |
Amplifier Assy, Cooler Stabilizer
1997-04 → —
|
CE102,105,107,EE103,104 DX,L,XL | — | |
| 88650-1A400 |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
EE101 DX | — | |
| 88650-1A400 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
EE101 LX,XE | — | |
| 88650-1A410 note |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
AE100 3FC XE;AE100,104 DX,LX,SEL | — | |
| 88650-1A410 |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
AE100,104 (4FC,5F) XE | — | |
| 88650-1A410 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1992-05
ended
|
AE100,104 DX,LX,XE | — | |
| 88650-1A420 |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
CE100,104,108 DX,L,XE | — | |
| 88650-1A420 note |
Amplifier Assy, Cooler Stabilizer
1992-05 → 1993-05
ended
|
CE100,104 LX,SEL | — | |
| 88650-1A420 |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1992-05
ended
|
CE100,108 DX,L | — | |
| 88650-1A420 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1992-05
ended
|
CE100,104 LX,XE | — | |
| 88650-1A430 |
Amplifier Assy, Cooler Stabilizer
1991-09 → 1994-01
ended
|
EE106,107,108 | — | |
| 88650-1A440 |
Amplifier Assy, Cooler Stabilizer
1991-09 → 1994-01
ended
|
CE106,109 | — | |
| 88650-1A440 |
Amplifier Assy, Cooler Stabilizer
1994-01 → 1998-04
ended
|
CE106,109 5F | — | |
| 88650-1A460 |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 88650-1A460 note |
Amplifier Assy, Cooler Stabilizer
1991-06 → 1993-05
ended
|
CE100,EE101 LX,XE;AE100,104,CE104 DX,LX,XE | — | |
| 88650-1A830 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1994-01
ended
|
CE100,104,108 DX,L,XE | — | |
| 88650-1A830 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
CE100,104 LX,SEL | — | |
| 88650-1A830 |
Amplifier Assy, Cooler Stabilizer
1994-01 → 1995-08
ended
|
CE106 4FC;CE100,104,108 DX,L,XE | — | |
| 88650-1A850 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
CE100,EE101 LX,XE;AE100,104,CE104 DX,LX,XE | — | |
| 88650-1A850 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 88650-1A860 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1997-04
ended
|
EE101,102,103,104 DX,DXJ,L,XL | — | |
| 88650-1A860 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
EE101 LX,XE | — | |
| 88650-1A870 |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
AE100,104 XE | — | |
| 88650-1A870 note |
Amplifier Assy, Cooler Stabilizer
1993-05 → 1995-05
ended
|
AE100,104 DX,LX,SEL | — | |
| 88650-1A890 |
Amplifier Assy, Cooler Stabilizer
1997-04 → —
|
CE107 DXJ;AE109,EE102 | — | |
| 88650-1E010 |
Amplifier Assy, Cooler Stabilizer
1995-08 → 1998-04
ended
|
CE108;CE106 4FC | — | |
| 88650-1E040 |
Amplifier Assy, Cooler Stabilizer
1996-05 → 1997-04
ended
|
AE109 | — | |
| 88688A — Bracket, Cooler Stabilizer Amplifier | ||||
| 88688-1A090 |
Bracket, Cooler Stabilizer Amplifier
1991-06 → 1992-05
ended
|
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL | — | |
| 88688-1A090 |
Bracket, Cooler Stabilizer Amplifier
1993-05 → —
|
EE101;AE100,104,109,CE10#,EE102,103,104,106,107,108 CTD,DX,DXJ,L,LX,SEL,XL | — | |
| 88688-1A090 note |
Bracket, Cooler Stabilizer Amplifier
1993-05 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 88688-1A090 note |
Bracket, Cooler Stabilizer Amplifier
1992-05 → 1993-05
ended
|
AE100,104 XE | — | |
| 88688-1A090 |
Bracket, Cooler Stabilizer Amplifier
1992-05 → 1993-05
ended
|
CE100,104,EE101;AE100,104,CE106,108,109,EE106,107,108 CTD,DX,L,LX,SEL,XL | — | |
| 88688-1A430 note |
Bracket, Cooler Stabilizer Amplifier
1992-05 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 88710A — Tube Assy, Air Conditioner | ||||
| 88710-12240 |
Tube Assy, Air Conditioner
1991-06 → 1993-05
ended
|
AE10#,CE10#,EE10# | ¥9,800 | |
| 88710-12330 |
Tube Assy, Air Conditioner
1993-05 → —
|
AE10#,CE10#,EE10# | ¥10,800 | |
| 88750B — Transistor Assy, Blower Resistor | ||||
| 88750-12010 |
Transistor Assy, Blower Resistor
1991-06 → 1995-05
ended
|
AE10#,CE104;CE100,EE101 LX,SEL,XE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
