Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

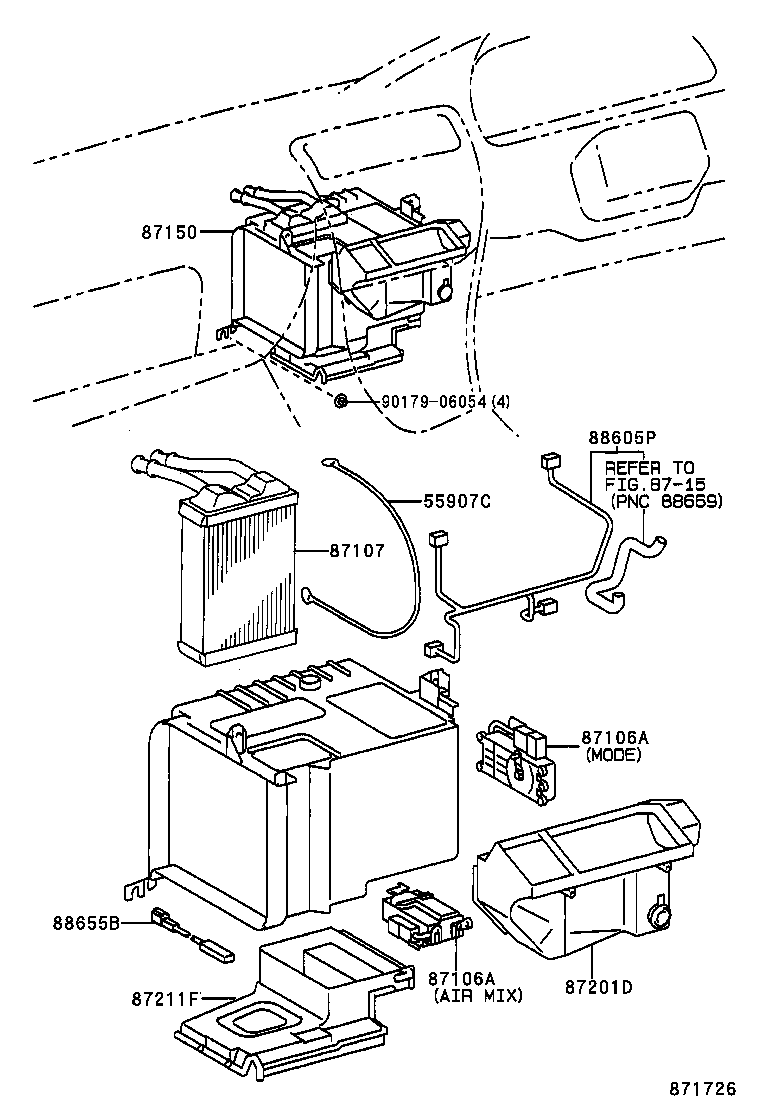

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55907C — Cable Sub-assy, Water Valve Control | ||||
| 55907-12390 |
Cable Sub-assy, Water Valve Control
1991-06 → 1995-05
ended
|
AE10#,CE104;CE100,EE101 LX,SEL,XE | — | |
| 87106A — Servo Sub-assy, Damper | ||||
| 87106-12030 note |
Servo Sub-assy, Damper
1992-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 87106-12030 note |
Servo Sub-assy, Damper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 87106-12050 note |
Servo Sub-assy, Damper
1992-05 → 1993-05
ended
|
EE101 LX,XE;AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 87106-12050 note |
Servo Sub-assy, Damper
1993-05 → 1995-05
ended
|
AE10# GT,SEG,SEL,XE;CE100,104,EE101 LX,SEL,XE | — | |
| 87106-12050 |
Servo Sub-assy, Damper
1993-05 → 1995-05
ended
|
AE100,104 DX,LX | — | |
| 87106-12050 |
Servo Sub-assy, Damper
1992-05 → 1993-05
ended
|
CE100 LX;AE100,104,CE104 DX,LX | — | |
| 87106-12050 |
Servo Sub-assy, Damper
1991-09 → 1992-05
ended
|
CE100 LX,XE;AE100,104,CE104 DX,LX,XE | — | |
| 87106-12050 note |
Servo Sub-assy, Damper
1991-09 → 1992-05
ended
|
EE101 LX,XE;AE10#,CE100,104 GT,SEG,SEL | — | |
| 87106-12050 note |
Servo Sub-assy, Damper
1991-06 → 1991-09
ended
|
AE10#;CE100 SEL;EE101 LX,XE | — | |
| 87106-12050 |
Servo Sub-assy, Damper
1991-06 → 1991-09
ended
|
CE100 LX,XE | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1991-09 → 1992-05
ended
|
EE101 LX,XE;AE10#,CE100,104 GT,SEG,SEL | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1991-09 → 1992-05
ended
|
AE100,104,CE100,104 LX,XE | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1992-05 → 1993-05
ended
|
EE101 LX,XE;AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1992-05 → 1993-05
ended
|
CE100 LX;AE100,104,CE104 DX,LX | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1991-06 → 1991-09
ended
|
CE100 SEL;AE10#,EE101 GT,LX,SEG,SEL,XE | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1991-06 → 1991-09
ended
|
CE100 LX,XE | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1993-05 → 1995-05
ended
|
AE100,104 DX,LX | — | |
| 87106-12060 note |
Servo Sub-assy, Damper
1993-05 → 1995-05
ended
|
AE10# GT,SEG,SEL,XE;CE100,104,EE101 LX,SEL,XE | — | |
| 87106-12070 note |
Servo Sub-assy, Damper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 87106-12070 note |
Servo Sub-assy, Damper
1992-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 87107 — Unit Sub-assy, Heater Radiator | ||||
| 87107-12380 |
Unit Sub-assy, Heater Radiator
1991-06 → 1996-05
ended
|
AE10#,EE10# | — | |
| 87107-12430 |
Unit Sub-assy, Heater Radiator
1991-06 → 1996-05
ended
|
CE10# | — | |
| 87107-12470 note |
Unit Sub-assy, Heater Radiator
1991-06 → 1996-05
ended
|
AE10#,CE10#,EE10# | — | |
| 87107-12500 |
Unit Sub-assy, Heater Radiator
1996-05 → —
|
AE109,CE10#,EE10# | — | |
| 87107-12510 note |
Unit Sub-assy, Heater Radiator
1996-05 → —
|
AE109,CE10#,EE10# | — | |
| 87150 — Radiator Assy, Heater | ||||
| 87150-12570 note |
Radiator Assy, Heater
1992-05 → 1995-03
ended
|
AE100,104 SEL | — | |
| 87150-12570 |
Radiator Assy, Heater
1991-06 → 1995-03
ended
|
AE100,104,EE10# CTD,DX,DXJ,L,LX,XE,XL | — | |
| 87150-12571 |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE100,104,EE10# DX,DXJ,L,LX,XE,XL | — | |
| 87150-12571 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE100,104 SEL | — | |
| 87150-12580 |
Radiator Assy, Heater
1991-06 → 1995-03
ended
|
CE10# CTD,DX,L,LX,XE,XL | — | |
| 87150-12580 note |
Radiator Assy, Heater
1992-05 → 1995-03
ended
|
CE100,104 SEL | — | |
| 87150-12581 |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
CE10# CTD,DX,L,LX,XE,XL | — | |
| 87150-12581 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
CE100,104 SEL | — | |
| 87150-12600 note |
Radiator Assy, Heater
1991-06 → 1995-03
ended
|
AE100,104,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL | — | |
| 87150-12600 note |
Radiator Assy, Heater
1992-05 → 1995-03
ended
|
AE100,104,CE100,104 SEL | — | |
| 87150-12601 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE100,104,CE100,104 SEL | — | |
| 87150-12601 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE100,104,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL | — | |
| 87150-12620 |
Radiator Assy, Heater
1991-06 → 1995-03
ended
|
AE10# GT,SEG,SEL | — | |
| 87150-12620 note |
Radiator Assy, Heater
1992-05 → 1995-03
ended
|
AE100,104 XE | — | |
| 87150-12621 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE100,104 XE | — | |
| 87150-12621 |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE10# GT,SEG,SEL | — | |
| 87150-12630 note |
Radiator Assy, Heater
1992-05 → 1995-03
ended
|
CE100,104 XE | — | |
| 87150-12630 |
Radiator Assy, Heater
1991-06 → 1995-03
ended
|
CE100,104 SEL | — | |
| 87150-12631 |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
CE100,104 SEL | — | |
| 87150-12631 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
CE100,104 XE | — | |
| 87150-12650 note |
Radiator Assy, Heater
1991-06 → 1995-03
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 87150-12650 note |
Radiator Assy, Heater
1992-05 → 1995-03
ended
|
AE100,104,CE100,104 XE | — | |
| 87150-12651 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 87150-12651 note |
Radiator Assy, Heater
1995-03 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 87150-12860 |
Radiator Assy, Heater
1995-05 → 1996-05
ended
|
EE10# | — | |
| 87150-12861 |
Radiator Assy, Heater
1996-05 → —
|
AE109,CE10#,EE10# | — | |
| 87150-12870 |
Radiator Assy, Heater
1995-05 → 1996-05
ended
|
CE10# | — | |
| 87150-12880 note |
Radiator Assy, Heater
1995-05 → 1996-05
ended
|
CE10#,EE10# | — | |
| 87150-12881 note |
Radiator Assy, Heater
1996-05 → —
|
AE109,CE10#,EE10# | — | |
| 87201D — Duct Sub-assy, Air | ||||
| 87201-12300 |
Duct Sub-assy, Air
1991-06 → —
|
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL | — | |
| 87201-12300 note |
Duct Sub-assy, Air
1992-05 → 1995-05
ended
|
AE100,104,CE100,104 SEL | — | |
| 87201-12310 note |
Duct Sub-assy, Air
1992-05 → 1995-05
ended
|
AE100,104,CE100,104 SEL | — | |
| 87201-12310 note |
Duct Sub-assy, Air
1991-06 → —
|
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL | — | |
| 87201-12330 |
Duct Sub-assy, Air
1992-05 → 1995-05
ended
|
AE10# GT,SEG,SEL | — | |
| 87201-12330 note |
Duct Sub-assy, Air
1992-05 → 1995-05
ended
|
AE100,104 XE | — | |
| 87201-12330 |
Duct Sub-assy, Air
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 87201-12360 note |
Duct Sub-assy, Air
1992-05 → 1995-05
ended
|
AE100,104,CE100,104 XE | — | |
| 87201-12360 note |
Duct Sub-assy, Air
1991-06 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 87211F — Duct, Air | ||||
| 87211-12160 |
Duct, Air
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# | — | |
| 87211-12160 note |
Duct, Air
1992-05 → 1995-05
ended
|
CE100,104 SEL | — | |
| 87211-12160 |
Duct, Air
1992-05 → 1998-11
ended
|
CE100,104 DX,LX,XE;AE10#,CE102,105,106,107,108,109,EE10# | — | |
| 87211-12170 note |
Duct, Air
1991-06 → —
|
AE10#,CE10#,EE10# | — | |
| 87211-13010 |
Duct, Air
1998-11 → —
|
AE109,CE10#,EE10# | — | |
| 88605P — Harness Sub-assy, Air Conditioner Wiring | ||||
| 88605-1E880 |
Harness Sub-assy, Air Conditioner Wiring
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | — | |
| 88605-1E880 |
Harness Sub-assy, Air Conditioner Wiring
1992-05 → 1995-03
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 88605-1E881 |
Harness Sub-assy, Air Conditioner Wiring
1995-03 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | — | |
| 88655B — Switch, Water Temperature | ||||
| 88790-28010 |
Switch, Water Temperature
1991-06 → 1995-05
ended
|
AE10#,CE104;CE100,EE101 LX,SEL,XE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
