Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

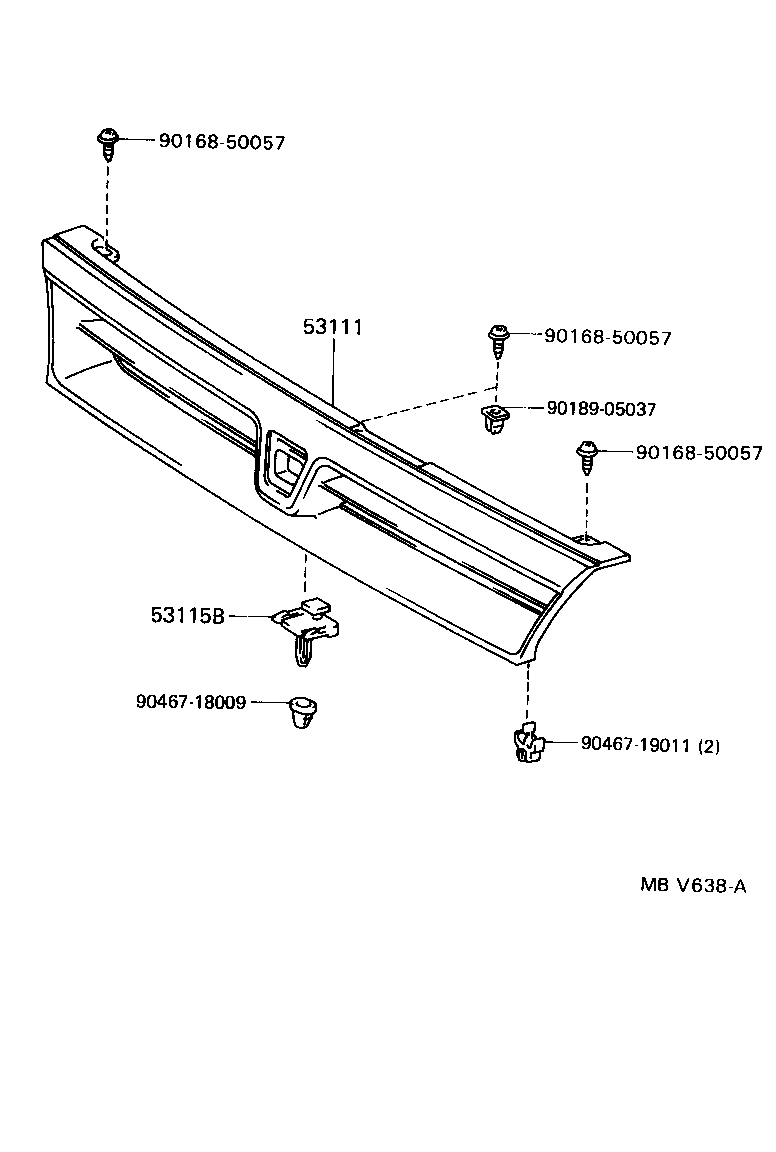

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53111 — Grille, Radiator | ||||
| 53101-12880 |
Grille, Radiator
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥14,400 | |
| 53101-1A080 |
Grille, Radiator
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥13,800 | |
| 53111-13080 |
Grille, Radiator
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥13,200 | |
| 53111-13100 |
Grille, Radiator
1994-01 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104 | ¥13,300 | |
| 53115B — Bracket, Radiator Grille | ||||
| 53115-16010 |
Bracket, Radiator Grille
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥580 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
