Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

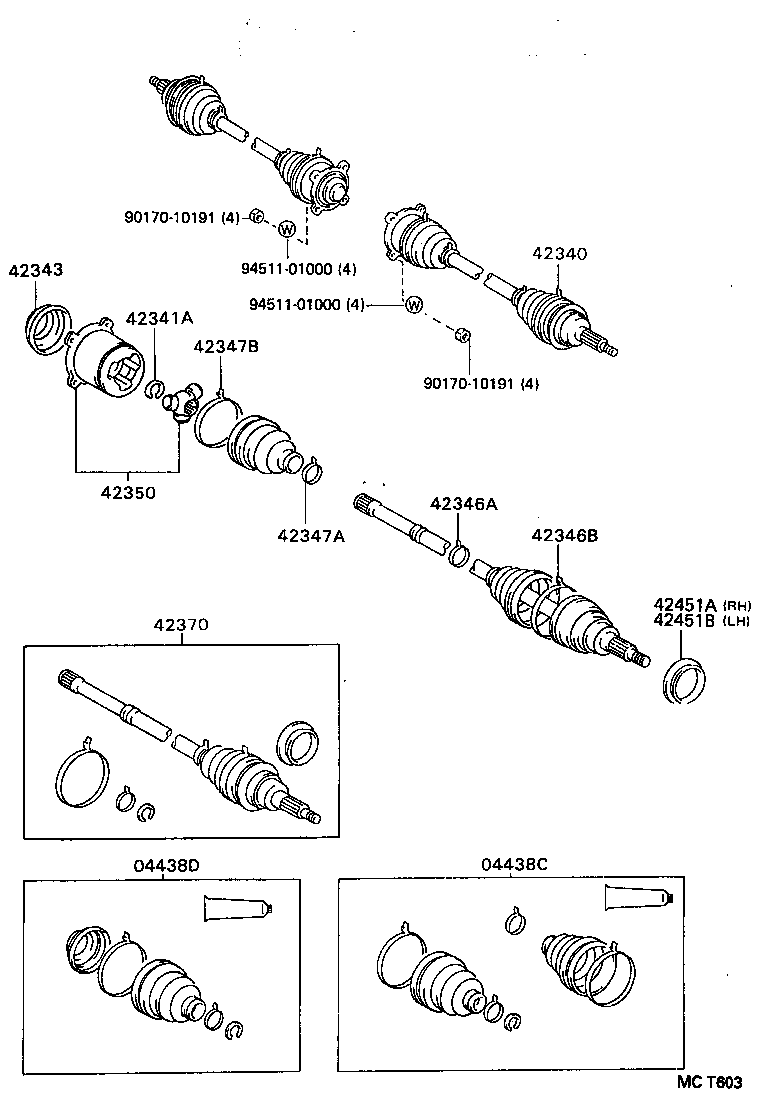

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04438C — Boot Kit, Rear Drive Shaft | ||||
| 04437-32010 |
Boot Kit, Rear Drive Shaft
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥10,800 | |
| 04438D — Boot Kit, Rear Drive Shaft Inboard Joint | ||||
| 04437-14020 |
Boot Kit, Rear Drive Shaft Inboard Joint
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥6,700 | |
| 42340 — Shaft Assy, Rear Drive | ||||
| 42340-12010 |
Shaft Assy, Rear Drive
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥59,100 | |
| 42340-12020 note |
Shaft Assy, Rear Drive
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥59,000 | |
| 42341A — Ring, Snap (FOR REAR DRIVE SHAFT) | ||||
| 90520-23024 |
Ring, Snap (FOR REAR DRIVE SHAFT)
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥170 | |
| 42343 — Cover, Outboard Joint End | ||||
| 42343-14010 |
Cover, Outboard Joint End
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥770 | |
| 42346A — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14010 note |
Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥700 | |
| 42346B — Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16040 |
Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-07 → 1995-05
ended
|
AE104,CE104 | ¥550 | |
| 90949-01076 |
Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1991-09 → 1993-07
ended
|
AE104,CE104 | ¥380 | |
| 42347A — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14010 note |
Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥700 | |
| 42345-16030 note |
Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-07 → 1995-05
ended
|
AE104,CE104 | ¥660 | |
| 42347B — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14020 |
Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥630 | |
| 42350 — Joint Assy, Rear Drive Shaft Outboard | ||||
| 42350-14010 |
Joint Assy, Rear Drive Shaft Outboard
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥18,100 | |
| 42370 — Shaft Assy, Rear Drive Outboard Joint | ||||
| 42370-19075 |
Shaft Assy, Rear Drive Outboard Joint
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥44,800 | |
| 42370-19085 note |
Shaft Assy, Rear Drive Outboard Joint
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥46,800 | |
| 42451A — Deflector, Rear Wheel Bearing Dust, NO.1 RH | ||||
| 42451-32010 |
Deflector, Rear Wheel Bearing Dust, NO.1 RH
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥1,290 | |
| 43247-12010 note |
Deflector, Rear Wheel Bearing Dust, NO.1 RH
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥780 | |
| 42451B — Deflector, Rear Wheel Bearing Dust, NO.1 LH | ||||
| 42451-32010 |
Deflector, Rear Wheel Bearing Dust, NO.1 LH
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥1,290 | |
| 43247-12010 note |
Deflector, Rear Wheel Bearing Dust, NO.1 LH
1991-09 → 1995-05
ended
|
AE104,CE104 | ¥780 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
