Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

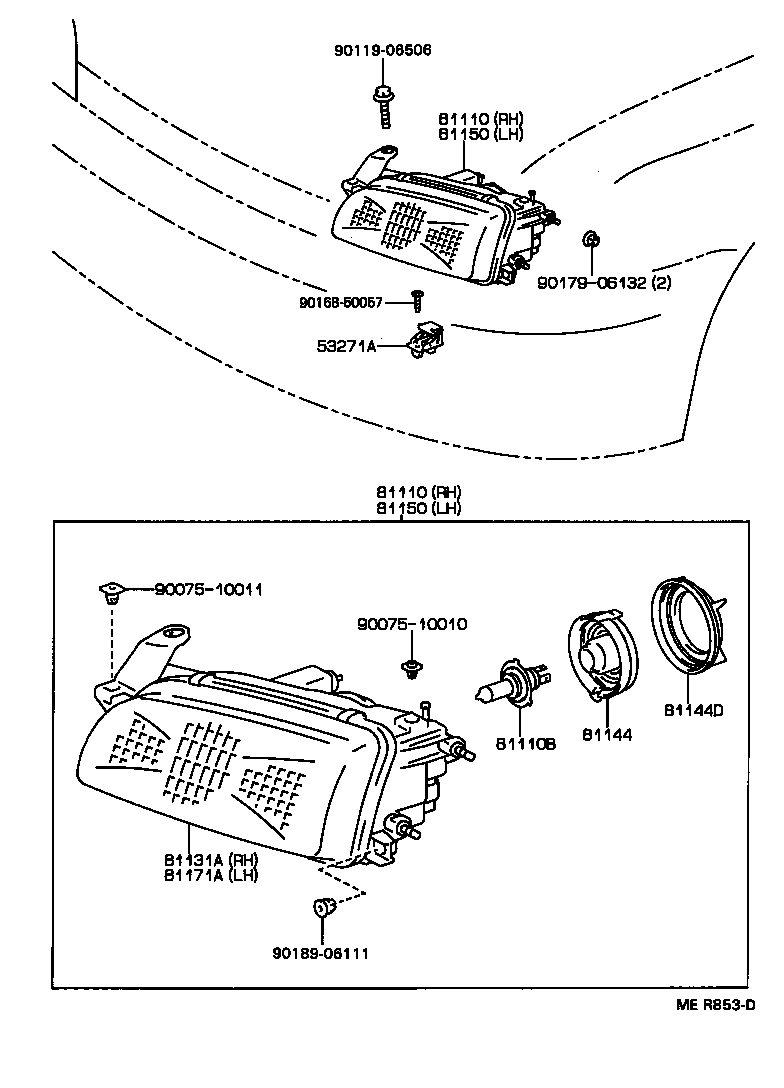

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53271A — Bracket, Headlamp Mounting | ||||
| 53271-12040 |
Bracket, Headlamp Mounting
1991-06 → 1993-09
ended
|
AE10#,CE10#,EE10# | ¥750 | |
| 53271-12060 |
Bracket, Headlamp Mounting
1993-09 → —
|
AE10#,CE10#,EE10# | ¥630 | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-1E180 |
Headlamp Assy, RH
1991-09 → 1993-05
ended
|
CE106,108,109,EE106,107,108 | ¥20,200 | |
| 81110-1E181 |
Headlamp Assy, RH
1993-05 → 1997-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥20,400 | |
| 81110-1E182 |
Headlamp Assy, RH
1997-04 → —
|
AE109,CE10#,EE10# | ¥20,400 | |
| 81110-1E200 |
Headlamp Assy, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥28,100 | |
| 81110-1E201 |
Headlamp Assy, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥28,100 | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 note |
Bulb(FOR HEADLAMP, NO.1)
1991-06 → 1994-01
ended
|
AE10#,CE10#,EE10# | ¥1,800 | |
| 90981-22004 note |
Bulb(FOR HEADLAMP, NO.1)
1994-01 → —
|
AE10#,CE10#,EE10# | ¥2,000 | |
| 81131A — Unit, Headlamp, RH | ||||
| 81130-1E180 |
Unit, Headlamp, RH
1991-09 → 1993-05
ended
|
CE106,108,109,EE106,107,108 | ¥14,700 | |
| 81130-1E181 |
Unit, Headlamp, RH
1993-05 → 1997-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥14,800 | |
| 81130-1E182 |
Unit, Headlamp, RH
1997-04 → —
|
AE109,CE10#,EE10# | ¥14,800 | |
| 81130-1E200 |
Unit, Headlamp, RH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥23,000 | |
| 81130-1E201 |
Unit, Headlamp, RH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥23,000 | |
| 81144 — Cover, Headlamp, NO.1 | ||||
| 90075-99058 |
Cover, Headlamp, NO.1
1991-06 → —
|
AE10#,CE10#,EE10# | ¥910 | |
| 81144D — Cap, Headlamp Locking | ||||
| 90075-99057 |
Cap, Headlamp Locking
1991-06 → 1997-04
ended
|
AE10#,CE10#,EE10# | ¥670 | |
| 90075-99057 |
Cap, Headlamp Locking
1997-04 → —
|
AE109,CE10#,EE10# | ¥670 | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-1A440 |
Headlamp Assy, LH
1991-09 → 1993-05
ended
|
CE106,108,109,EE106,107,108 | ¥20,200 | |
| 81150-1A441 |
Headlamp Assy, LH
1993-05 → 1997-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥20,400 | |
| 81150-1A442 |
Headlamp Assy, LH
1997-04 → —
|
AE109,CE10#,EE10# | ¥20,400 | |
| 81150-1A460 |
Headlamp Assy, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥28,100 | |
| 81150-1A461 |
Headlamp Assy, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥28,100 | |
| 81171A — Unit, Headlamp, LH | ||||
| 81170-1A440 |
Unit, Headlamp, LH
1991-09 → 1993-05
ended
|
CE106,108,109,EE106,107,108 | ¥14,700 | |
| 81170-1A441 |
Unit, Headlamp, LH
1993-05 → 1997-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥14,800 | |
| 81170-1A442 |
Unit, Headlamp, LH
1997-04 → —
|
AE109,CE10#,EE10# | ¥14,800 | |
| 81170-1A460 |
Unit, Headlamp, LH
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥23,000 | |
| 81170-1A461 |
Unit, Headlamp, LH
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥23,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
