Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

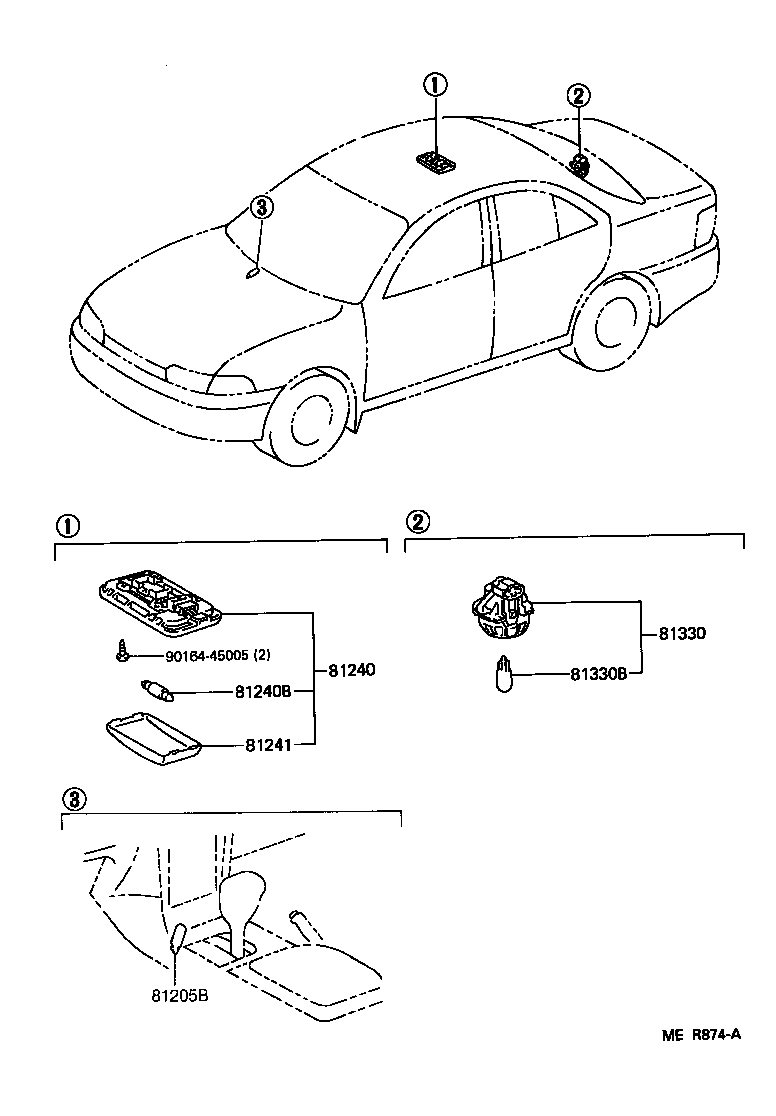

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81205B — Bulb, Ash Receptacle Lamp | ||||
| 90981-11018 note |
Bulb, Ash Receptacle Lamp
2000-08 → —
|
CE107,EE103;AE109,CE102,105,EE102,104 DX,DXJ,L | ¥140 | |
| 90981-11018 note |
Bulb, Ash Receptacle Lamp
1991-06 → 2000-08
ended
|
AE10#,CE10#,EE10# | ¥140 | |
| 81240 — Lamp Assy, Room, NO.1 | ||||
| 81240-12040-B0 note |
Lamp Assy, Room, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥3,110 | |
| 81240-12040-J0 note |
Lamp Assy, Room, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,110 | |
| 81240-12040-K0 note |
Lamp Assy, Room, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,110 | |
| 81240-12050-B0 note |
Lamp Assy, Room, NO.1
1991-09 → 1993-07
ended
|
CE106,108,109,EE106,107,108 | ¥3,110 | |
| 81240-12051-B0 note |
Lamp Assy, Room, NO.1
1993-07 → 1998-04
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥3,140 | |
| 81240-12051-B1 note |
Lamp Assy, Room, NO.1
1998-04 → —
|
AE109,CE10#,EE10# | ¥3,110 | |
| 81240-12060-B0 note |
Lamp Assy, Room, NO.1
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,960 | |
| 81240-12060-K0 note |
Lamp Assy, Room, NO.1
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥3,110 | |
| 81240B — Bulb, Room Lamp, NO.1 | ||||
| 90981-14011 note |
Bulb, Room Lamp, NO.1
1993-05 → —
|
AE10#,CE10#,EE10# | ¥180 | |
| 99132-12100 note |
Bulb, Room Lamp, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE10#,EE10# | ¥150 | |
| 81241 — Lens, Room Lamp, NO.1 | ||||
| 81241-12020 |
Lens, Room Lamp, NO.1
1991-06 → —
|
AE10#,CE10#,EE10# | ¥400 | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81330-12020 |
Lamp Assy, Luggage Compartment, NO.1
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥840 | |
| 81330-12020 |
Lamp Assy, Luggage Compartment, NO.1
1993-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | ¥840 | |
| 81330B — Bulb, Luggage Compartment Lamp | ||||
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥170 | |
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
1993-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
