Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

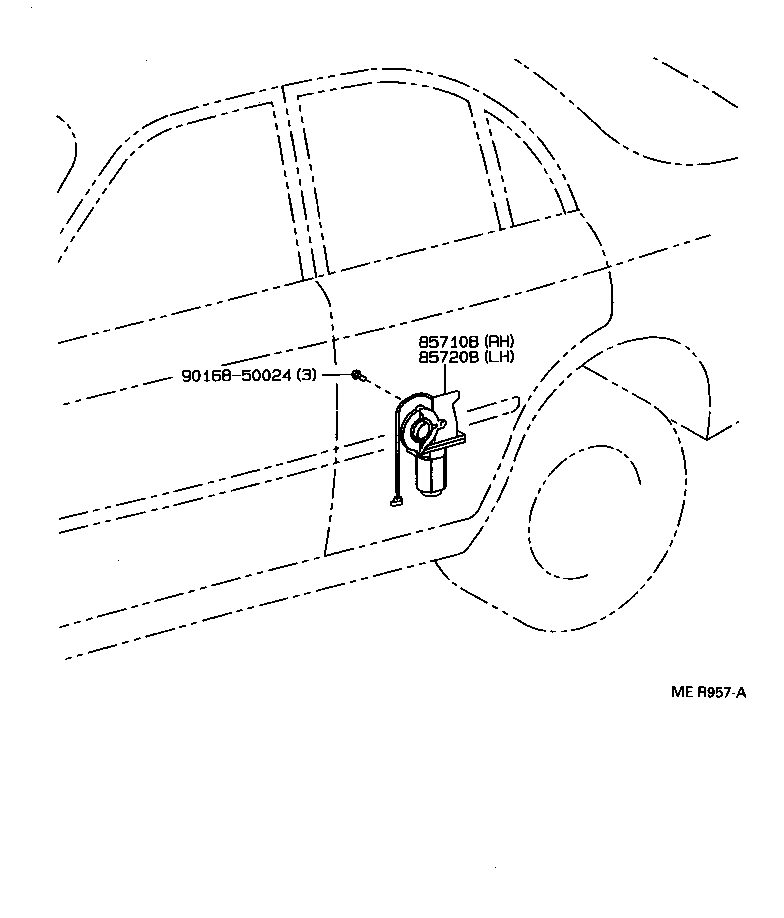

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85710B — Motor Assy, Power Window Regulator, Rear RH | ||||
| 85710-12090 |
Motor Assy, Power Window Regulator, Rear RH
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥25,500 | |
| 85710-12090 |
Motor Assy, Power Window Regulator, Rear RH
1992-05 → 1994-09
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥25,500 | |
| 85710-12091 |
Motor Assy, Power Window Regulator, Rear RH
1994-09 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥25,700 | |
| 85720B — Motor Assy, Power Window Regulator, Rear LH | ||||
| 85720-12090 |
Motor Assy, Power Window Regulator, Rear LH
1991-06 → 1992-05
ended
|
AE10#,CE100,104 GT,SEG,SEL,XE | ¥25,500 | |
| 85720-12090 |
Motor Assy, Power Window Regulator, Rear LH
1992-05 → 1994-09
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥25,500 | |
| 85720-12091 |
Motor Assy, Power Window Regulator, Rear LH
1994-09 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥25,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
