Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

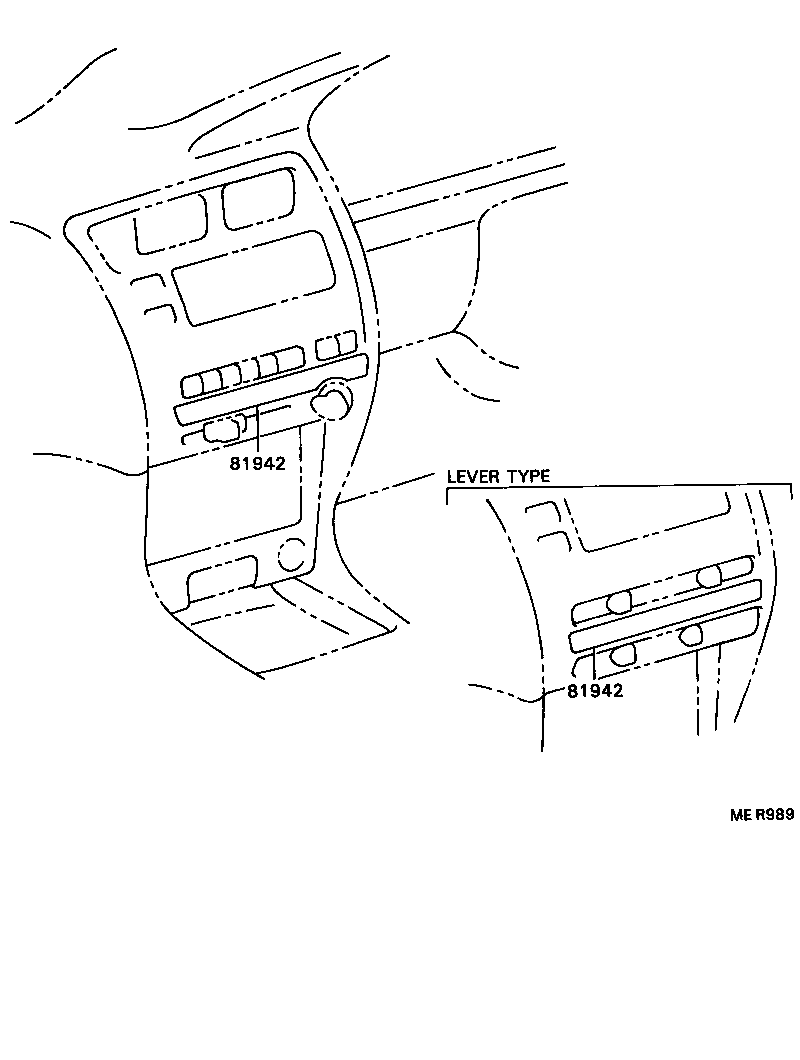

Exploded illustration MER989 81942 — SHEET, HEATER CONTROL NAME (9 parts) 81942 — SHEET, HEATER CONTROL NAME (9 parts)
MER989 · 2 callouts Full size ↗
9 parts on this figure
Part number Description Fitment Price
81942 — Sheet, Heater Control Name
81942-12310 Sheet, Heater Control Name
1991-06 → 1993-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL ¥860
81942-12310 note Sheet, Heater Control Name
1992-05 → 1993-05 ended
AE100,104,CE100,104 SEL ¥860
81942-12311 note Sheet, Heater Control Name
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL ¥860
81942-12311 Sheet, Heater Control Name
1993-05 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥860
81942-12350 note Sheet, Heater Control Name
1991-06 → 1992-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥860
81942-12350 note Sheet, Heater Control Name
1992-05 → 1993-05 ended
CE100 LX;EE101 LX,XE;AE100,104,CE104 DX,LX ¥860
81942-12351 note Sheet, Heater Control Name
1993-05 → 1995-05 ended
CE100 LX;EE101 LX,XE;AE100,104,CE104 DX,LX ¥860
81942-12410 Sheet, Heater Control Name
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥620
81942-12410 note Sheet, Heater Control Name
1992-05 → 1995-05 ended
AE100,104,CE100,104 XE ¥620
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
